How can a sensor just 4.7mm thick accurately detect LED pins?

In modern industrial automation, the precision and efficiency of detection tasks directly impact production quality and costs. Particularly in electronics manufacturing, inspecting minute components like LED pins demands exceptional sensor size, response speed, and stability. Fuwei Electronics' ultra-thin FGNH04-30NFT series photoelectric sensors are engineered precisely for such challenges. Its exceptionally slim profile and high-performance sensing capabilities make it the ideal choice for detecting pins like those on LEDs.

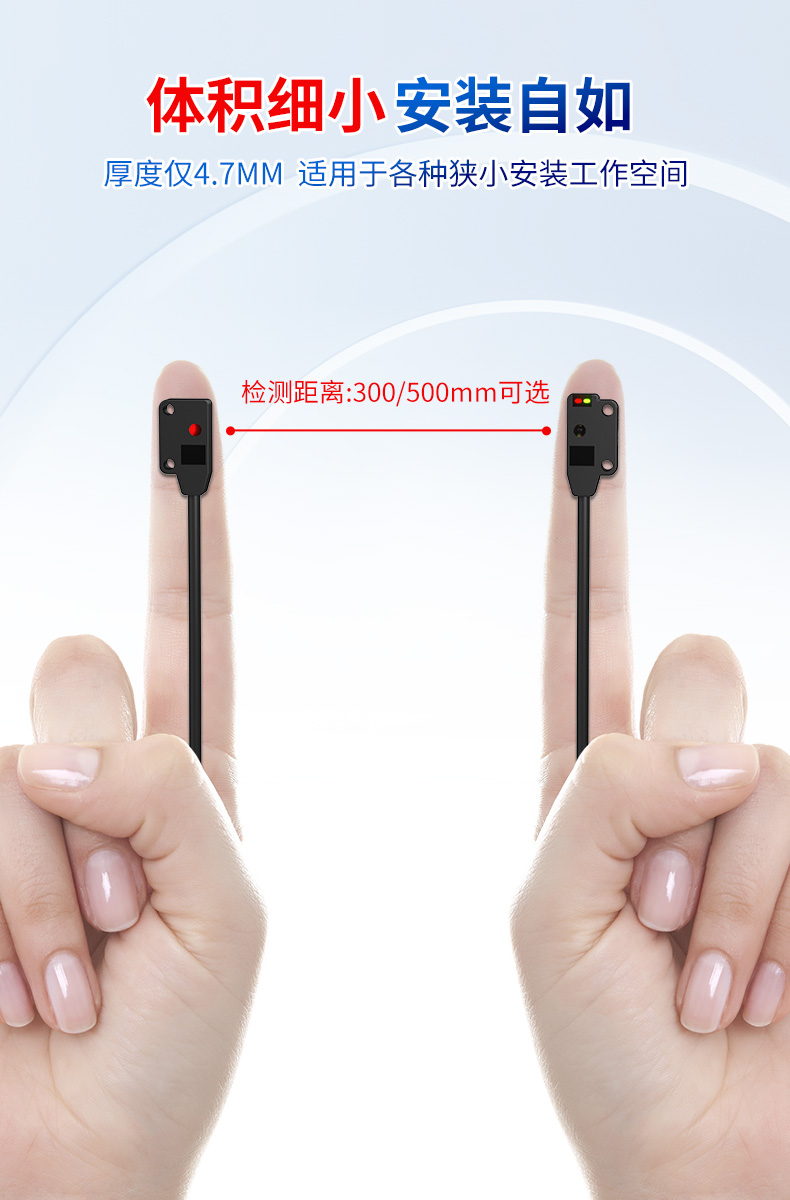

First, the FGNH04-30NFT series boasts a thickness of just 4.7mm. This ultra-thin design significantly expands installation flexibility. Where traditional sensors often struggle to fit in confined equipment spaces, this product can be seamlessly integrated into various compact environments without compromising overall mechanical structures. This is particularly crucial for sensor applications detecting pins like LEDs on electronics assembly lines—where pin pitch is minute and workspace is constrained, requiring sensors that can be “invisibly” installed without sacrificing performance.

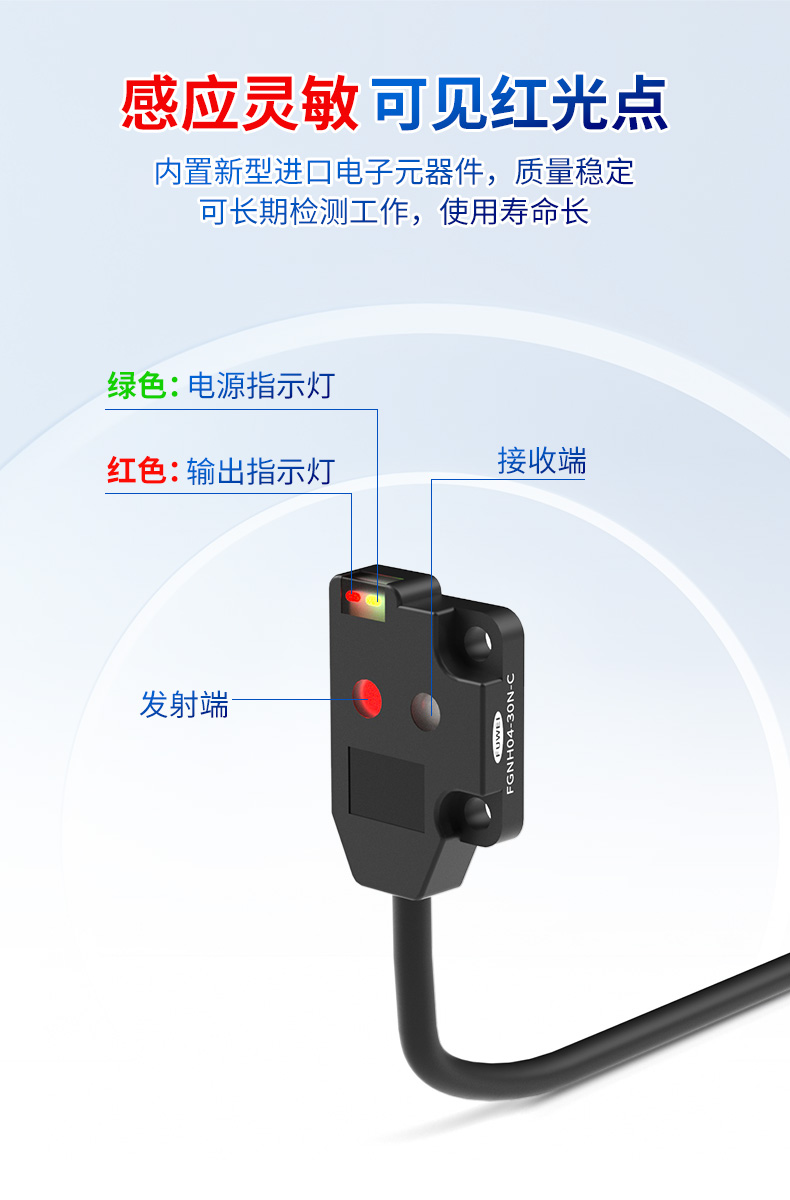

Second, the sensor incorporates new imported electronic components, offering highly sensitive detection with a visible red light emission point. This significantly enhances detection visibility and accuracy. With stable quality, support for long-term continuous operation, and extended service life, it is particularly suited for demanding industrial environments. For applications requiring high repeatability and reliability—such as sensors detecting pins on LEDs—this feature significantly reduces false detection rates and equipment maintenance frequency, thereby boosting overall production efficiency.

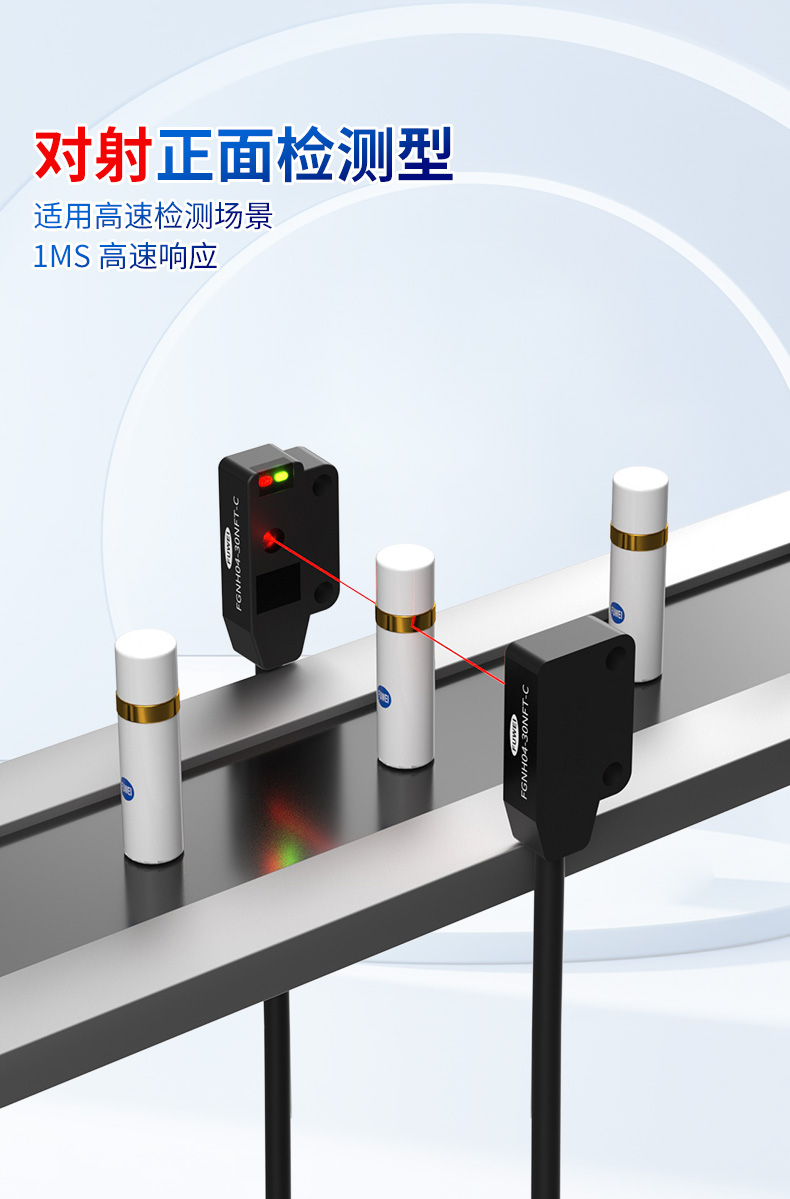

Furthermore, the FGNH04-30NFT series offers multiple detection modes to comprehensively support high-speed applications. Its through-beam side detection, through-beam front detection, and diffuse reflection front detection variants all deliver 1ms high-speed response, accommodating diverse mounting positions and detection requirements. Particularly in pin and micro-component inspection, the through-beam type enables obstruction detection via cross-mounting to precisely determine pin presence, while the diffuse reflection type suits close-range detection without a receiver. This multi-mode flexibility allows users to select the optimal configuration for their specific needs, ensuring stable operation of sensors detecting pins like LEDs on high-speed production lines.

In industrial applications, this sensor is widely used for presence detection of thin workpieces, IC chip presence verification, LED pin positioning, and positioning inspection in PCB manufacturing processes. Particularly in LED production, pin integrity and precise positioning directly impact final soldering quality and product performance. With its high sensitivity and ultra-thin design, the FGNH04-30NFT enables high-frequency, high-precision pin detection without disrupting production line layouts, establishing itself as a truly reliable sensor solution for detecting pins on LEDs and similar components.

In summary, the FGNH04-30NFT series from Fuwei Electronics not only resolves space constraints through extreme thinness but also meets the dual demands of precision and efficiency in modern microelectronics manufacturing with its high-speed response and stable detection performance. Whether used for IC inspection, PCB positioning, or as a core sensor for detecting pins in LEDs, it demonstrates exceptional adaptability and reliability, propelling smart manufacturing toward higher levels of sophistication.
