Measurement Sensor

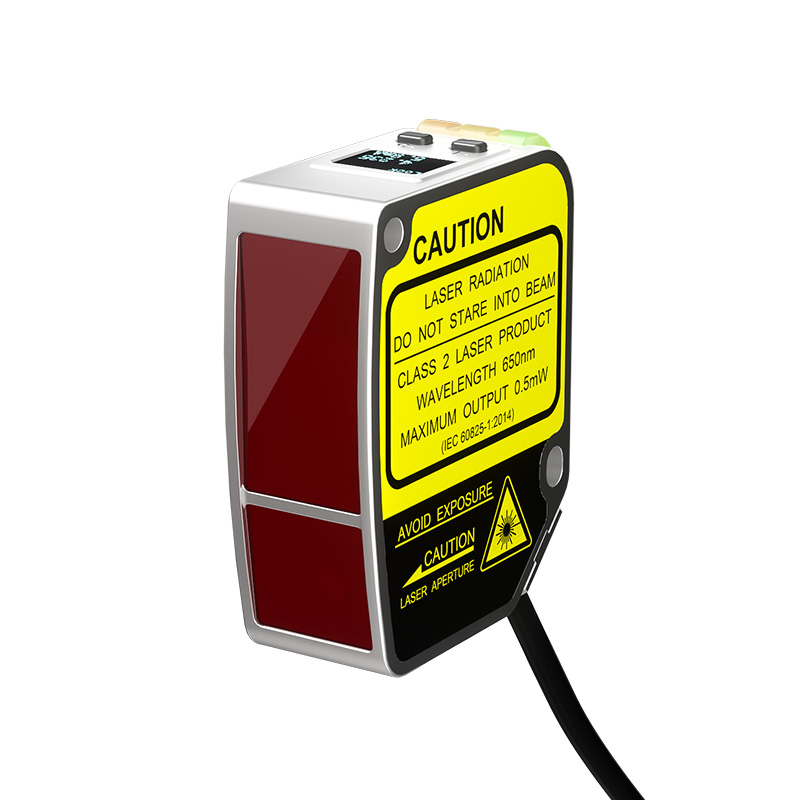

Analog current 4-20mA Laser Displacement Sensor No reviews yet Part number：FSD23-100-AA Measurement center distance：100mm Measurement range：±50mm Linearity:±0.1%F.S. Repeatability：20μm current output：Output 4-20mA, allowable load resistance below 300Ω Protection：IP67 Operating Temp./Humid.：-10~50⁰C / 35 ~ 85% RH without freasing or condensation

High Precision Laser Displacement Sensors Part number：FSD23-150-RS485 Measurement center distance：150mm Measurement range：±100mm Linearity:±0.5%F.S. Repeatability：60μm Control output：NPN/PNP max.100mA/DC30V ((Residual voltage 1.8 V max.) Supply voltage：24VDC, Sampling period: 500 μs, Averaging: 64,Measuring distance:Center of range, Testing object: White ceramic Analog voltage output：Output 0-10V , output impedance 100ΩAnalog current output：Output 4-20mA, allowable load resistance below 300Ω Protection：IP67 Operating Temp./Humid.：-10~50⁰C / 35 ~ 85% RH without freasing or condensation

High-Precision Laser Displacement Sensor Part number：FSD23-150-AV Measurement center distance：150mm Measurement range：±100mm Linearity:±0.5%F.S. Repeatability：60μm Control output：NPN/PNP max.100mA/DC30V ((Residual voltage 1.8 V max.) Supply voltage：24VDC, Sampling period: 500 μs, Averaging: 64,Measuring distance:Center of range, Testing object: White ceramic Analog voltage output：Output 0-10V , output impedance 100ΩAnalog current output：Output 4-20mA, allowable load resistance below 300Ω Protection：IP67 Operating Temp./Humid.：-10~50⁰C / 35 ~ 85% RH without freasing or condensation

Laser Displacement Measurement Sensors Part number：FSD23-150-RS485 Measurement center distance：35mm Measurement range：±15mm Linearity:±0.1%F.S. Repeatability：6μm Control output：NPN/PNP max.100mA/DC30V ((Residual voltage 1.8 V max.) Supply voltage：24VDC, Sampling period: 500 μs, Averaging: 64,Measuring distance:Center of range, Testing object: White ceramic Analog voltage output：Output 0-10V , output impedance 100ΩAnalog current output：Output 4-20mA, allowable load resistance below 300Ω Protection：IP67 Operating Temp./Humid.：-10~50⁰C / 35 ~ 85% RH without freasing or condensation

High-precision digital display typeLaser displacement distance sensor Part number：FSD23-100-RS485 Measurement center distance：35mm Measurement range：±15mm Linearity:±0.1%F.S. Repeatability：6μm Control output：NPN/PNP max.100mA/DC30V ((Residual voltage 1.8 V max.) Supply voltage：24VDC, Sampling period: 500 μs, Averaging: 64,Measuring distance:Center of range, Testing object: White ceramic Analog voltage output：Output 0-10V , output impedance 100ΩAnalog current output：Output 4-20mA, allowable load resistance below 300Ω Protection：IP67 Operating Temp./Humid.：-10~50⁰C / 35 ~ 85% RH without freasing or condensation

Measurement range 35mm Laser Displacement Sensor Measurement range 35mm Laser Displacement Sensor Measurement center distance：35mm Measurement range：±15mm Linearity:±0.1%F.S. Repeatability：6μm Control output：NPN/PNP max.100mA/DC30V ((Residual voltage 1.8 V max.) Supply voltage：24VDC, Sampling period: 500 μs, Averaging: 64,Measuring distance:Center of range, Testing object: White ceramic Analog voltage output：Output 0-10V , output impedance 100ΩAnalog current output：Output 4-20mA, allowable load resistance below 300Ω Protection：IP67 Operating Temp./Humid.：-10~50⁰C / 35 ~ 85% RH without freasing or condensation

Laser Displacement Sensor Analog voltage 0-10V Part number：FSD23-15-AV Measurement center distance：15mm Measurement range：±5mm Linearity:±0.1%F.S. Repeatability：1μm Control output：NPN/PNP max.100mA/DC30V ((Residual voltage 1.8 V max.) Supply voltage：24VDC, Sampling period: 500 μs, Averaging: 64,Measuring distance:Center of range, Testing object: White ceramic Analog voltage output：Output 0-10V , output impedance 100ΩAnalog current output：Output 4-20mA, allowable load resistance below 300Ω Protection：IP67 Operating Temp./Humid.：-10~50⁰C / 35 ~ 85% RH without freasing or condensation

LED Digital Laser Displacement Sensor Part number：FSD23-15-RS485 Measurement center distance：15mm Measurement range：±5mm Linearity:±0.1%F.S. Repeatability：1μm Control output：NPN/PNP max.100mA/DC30V ((Residual voltage 1.8 V max.) Supply voltage：24VDC, Sampling period: 500 μs, Averaging: 64,Measuring distance:Center of range, Testing object: White ceramic Analog voltage output：Output 0-10V , output impedance 100ΩAnalog current output：Output 4-20mA, allowable load resistance below 300Ω Protection：IP67 Operating Temp./Humid.：-10~50⁰C / 35 ~ 85% RH without freasing or condensation

LED Digital Screen Laser Displacement Sensor Part number：FSD23-15-AA Measurement center distance：15mm Measurement range：±5mm Linearity:±0.1%F.S. Repeatability：1μm Control output：NPN/PNP max.100mA/DC30V ((Residual voltage 1.8 V max.) Supply voltage：24VDC, Sampling period: 500 μs, Averaging: 64,Measuring distance:Center of range, Testing object: White ceramic Analog voltage output：Output 0-10V , output impedance 100ΩAnalog current output：Output 4-20mA, allowable load resistance below 300Ω Protection：IP67 Operating Temp./Humid.：-10~50⁰C / 35 ~ 85% RH without freasing or condensation
