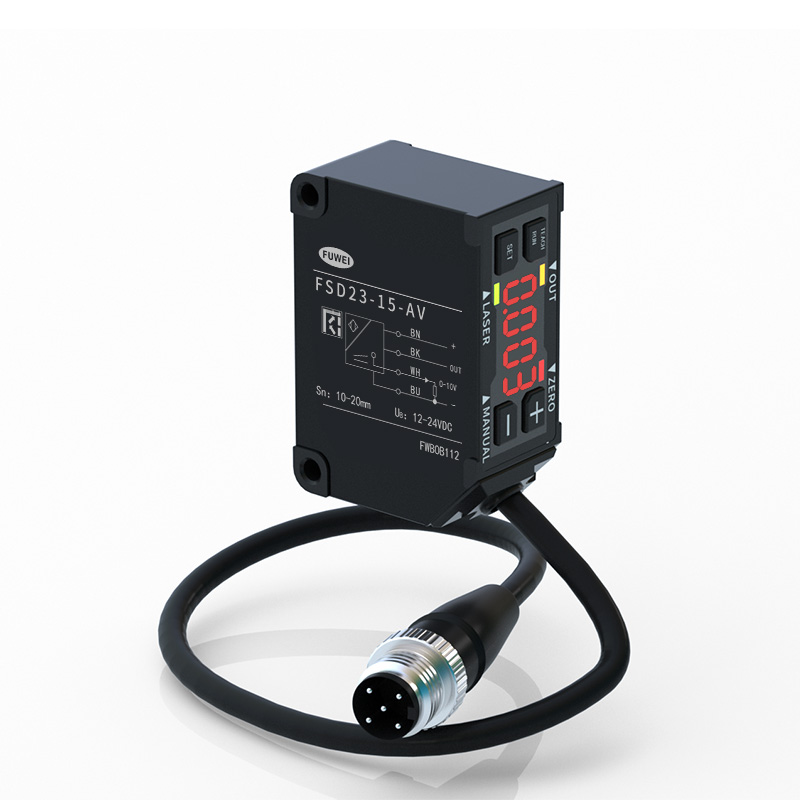

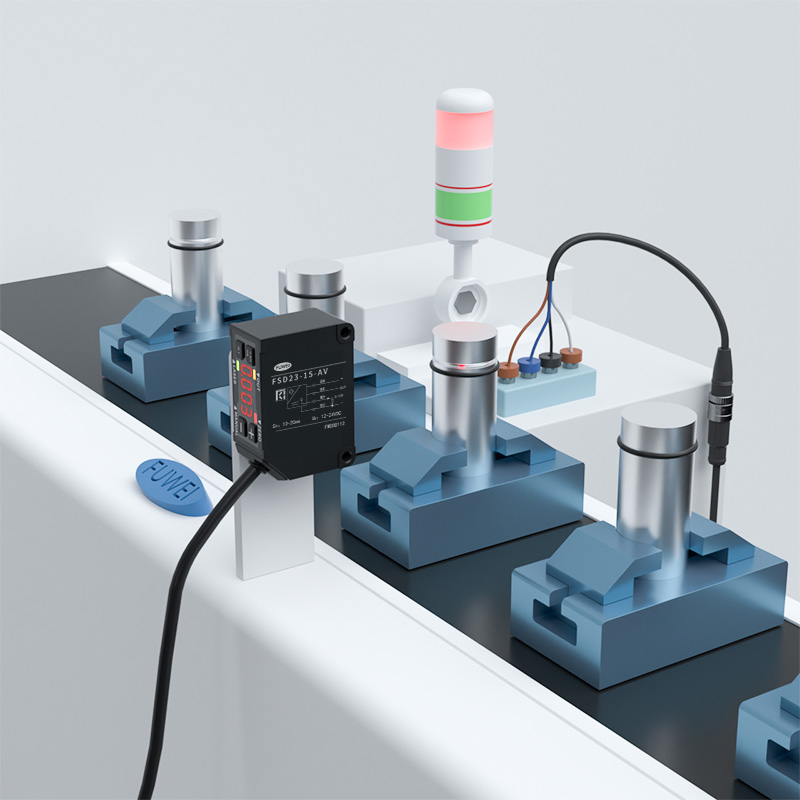

Laser Displacement Sensor Analog voltage 0-10V

Model:FSD23-15-AV
Laser Displacement Sensor Analog voltage 0-10V Part number：FSD23-15-AV Measurement center distance：15mm Measurement range：±5mm Linearity:±0.1%F.S. Repeatability：1μm Control output：NPN/PNP max.100mA/DC30V ((Residual voltage 1.8 V max.) Supply voltage：24VDC, Sampling period: 500 μs, Averaging: 64,Measuring distance:Center of range, Testing object: White ceramic Analog voltage output：Output 0-10V , output impedance 100ΩAnalog current output：Output 4-20mA, allowable load resistance below 300Ω Protection：IP67 Operating Temp./Humid.：-10~50⁰C / 35 ~ 85% RH without freasing or condensation
Send Inquiry PDF DownLoad
Product Description

Laser Displacement Sensor Analog voltage 0-10V Product Characteristics:

Part number：FSD23-15-AV

Measurement center distance：15mm

Measurement range：±5mm

Linearity:±0.1%F.S.

Repeatability：1μm

Control output：NPN/PNP max.100mA/DC30V ((Residual voltage 1.8 V max.)

Supply voltage：24VDC, Sampling period: 500 μs, Averaging: 64,Measuring distance:Center of range, Testing object: White ceramic

Analog voltage output：Output 0-10V , output impedance 100ΩAnalog current output：Output 4-20mA, allowable load resistance below 300Ω

Protection：IP67

Operating Temp./Humid.：-10~50⁰C / 35 ~ 85% RH without freasing or condensation

























Specifications:

Part number

Analog current

4-20mA

FSD23-15-AA
 FSD23-35-AA
 FSD23-100-AA
 FSD23-150-AA

Analog voltage

0-10V

FSD23-15-AV
 FSD23-35-AV
 FSD23-100-AV
 FSD23-150-AV
RS-485 communication
 FSD23-15-RS485
 FSD23-35-RS485
 FSD23-100-RS485
 /
Cable typers-485 communication
 /
 /
 /
 FSD23-150-RS485

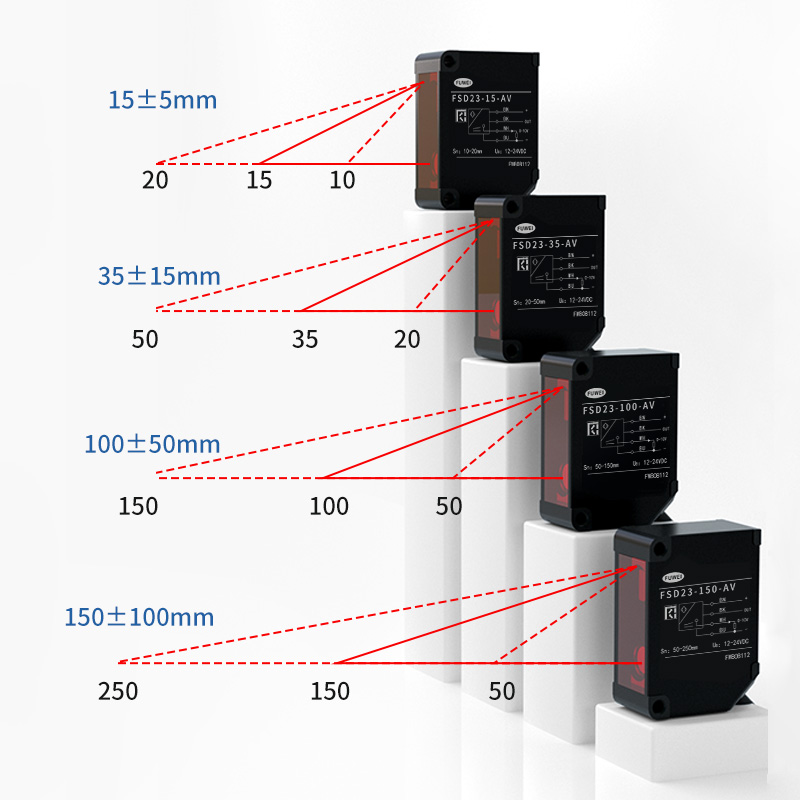

Center of measurement range
 15mm
 35mm
 100mm
 150mm
Measurement range
 ±5mm
 ±15mm
 ±50mm
 ±100mm
Light source
 Medium. Wavelength
 Red laser Diode (wave length 650nm)
Max. output power
 390 μW
 1mW
Laser class
 IEC/JIS
 Class1
 Class2
FDA
 CLASS I
 CLASS II
Spot size*1
 0.5*0.7mm
 0.45*0.80mm
 0.6*0.7mm
 0.5*0.55mm
Linearity
 ±0.1% F.S.
 ±0.1% F.S.
 ±0.1% F.S.
 ±0.5% F.S.
Repeatability*2
 1μm
 6μm
 20μm
 60μm
Sampling period
 500μs / 1000μs / 2000μs / 4000μs / AUTO
Temperature drift (typical value)
 ±0.02%  F.S./⁰C
 ±0.02%  F.S./⁰C
 ±0.05%  F.S./⁰C
 ±0.08%  F.S./⁰C

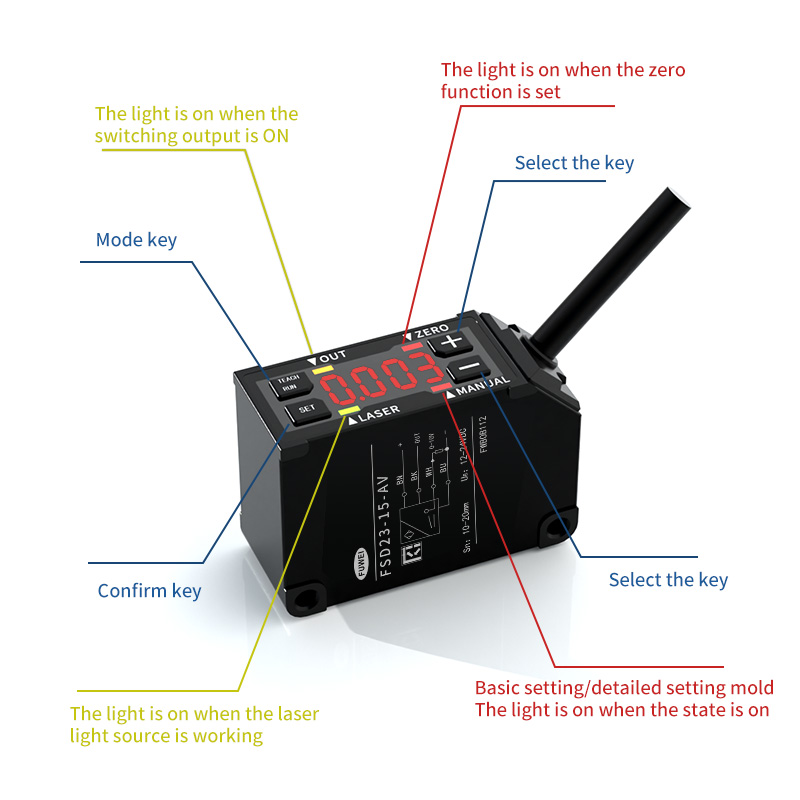

Indicator

Laser indicator: Green / Zero reset indicator: Red

Output indicator: Orange / Mode indicator: Red

MF (multiple function ) Input
 Laser OFF, Teaching, Sample & Hold, One shot, Zero reset
Control Output
 NPN/PNP max.100mA/DC30V ((Residual voltage 1.8 V max.)
Current consumption
 70mA max.
Analog current
 Output 4-20mA, allowable load resistance below 300Ω

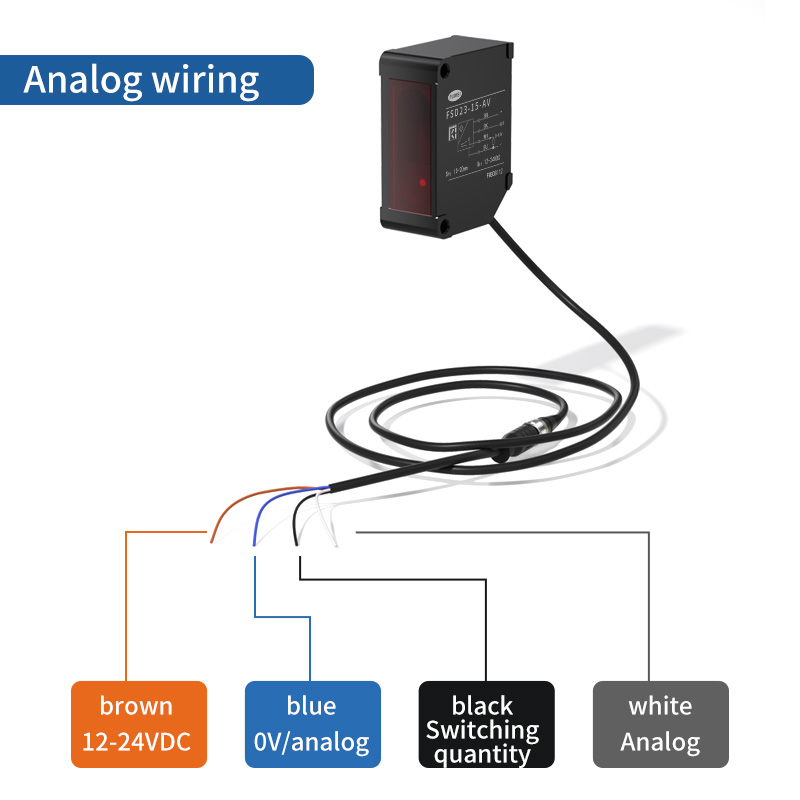

Analog voltage
 Output 0-10V , output impedance 100Ω
Protection circuit
 Reverse connection protection, Over current protection
Protection category
 IP67 including connection part
Operating Temp./Humid.
 -10~50⁰C / 35 ~ 85% RH without freasing or condensation
Storage Temp./Humid.
 -20 ~ 60⁰C / 35 ~85%/RH
Ambient illuminance
 Sun light: 20,000 lx max. / Incandescent lamp: 3,000 lx max.
Vibration resistence
 10 ~ 55Hz, Double amplitude 1.5mm, X,Y,Z for 2 hours
Shock resistence
 500mm/s2 ( approx. 50G) X,Y,Z 3 times each
Material
 Aluminum
Weight
 Approx. 60g
The specifications are based on the condition unless otherwise designated:Ambient temperature:23⁰C,
Supply voltage: 24VDC, Sampling period: 500 μs, Averaging: 64,Measuring distance:Center of range, Testing object: White ceramic
*1 Defined with center strength 1/e2(13.5%)at the center. There may be leak light other than the specified spot size. The sensor may
be affected when there is a highly reflective object close to the detection area.
*2 512 averaging time

Small stature and strong functionality

A variety of core functional benefits for your use
