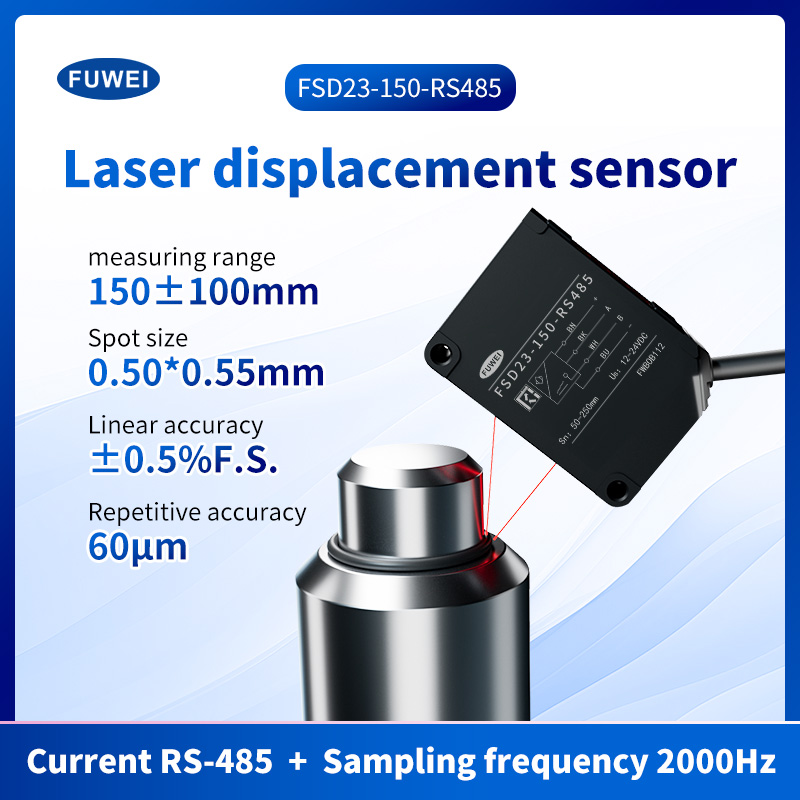

High Precision Laser Displacement Sensors

Model:FSD23-150-RS485
High Precision Laser Displacement Sensors Part number：FSD23-150-RS485 Measurement center distance：150mm Measurement range：±100mm Linearity:±0.5%F.S. Repeatability：60μm Control output：NPN/PNP max.100mA/DC30V ((Residual voltage 1.8 V max.) Supply voltage：24VDC, Sampling period: 500 μs, Averaging: 64,Measuring distance:Center of range, Testing object: White ceramic Analog voltage output：Output 0-10V , output impedance 100ΩAnalog current output：Output 4-20mA, allowable load resistance below 300Ω Protection：IP67 Operating Temp./Humid.：-10~50⁰C / 35 ~ 85% RH without freasing or condensation
Send InquiryPDF DownLoad
Product Description

FUWEI is a leading China Laser Displacement SensorFSD23-150-RS485 manufacturer, supplier and exporter. Adhering to the pursuit of perfect quality of products, so that our Laser Displacement Sensor FSD23-150-RS485 have been satisfied by many customers. Extreme design, quality raw materials, high performance and competitive price are what every customer wants, and that's also what we can offer you. Of course, also essential is our perfect after-sales service. If you are interested in our Laser Displacement Sensor FSD23-150-RS485 Series services, you can consult us now, we will reply to you in time!


High Precision Laser Displacement Sensors Product Characteristics:

Part number：FSD23-150-RS485

Measurement center distance：150mm

Measurement range：±100mm

Linearity:±0.5%F.S.

Repeatability：60μm

Control output：NPN/PNP max.100mA/DC30V ((Residual voltage 1.8 V max.)

Supply voltage：24VDC, Sampling period: 500 μs, Averaging: 64,Measuring distance:Center of range, Testing object: White ceramic

Analog voltage output：Output 0-10V , output impedance 100ΩAnalog current output：Output 4-20mA, allowable load resistance below 300Ω

Protection：IP67

Operating Temp./Humid.：-10~50⁰C / 35 ~ 85% RH without freasing or condensation





High-Resolution Measurement

With a resolution of up to 60 μm, this device supports high-precision measurement, making it suitable for diverse production environments worldwide.


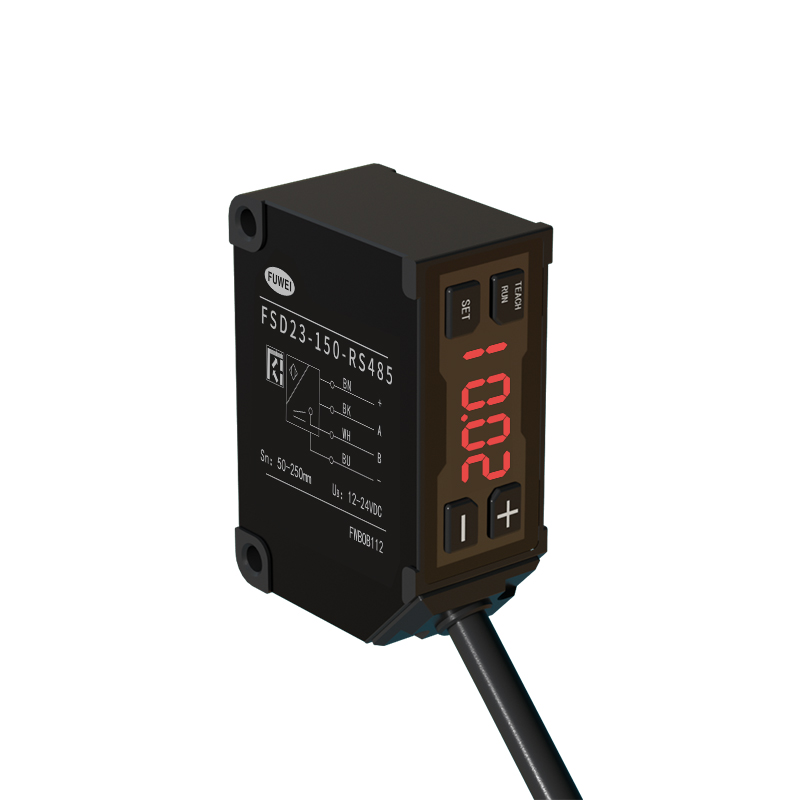

Digital LED Display

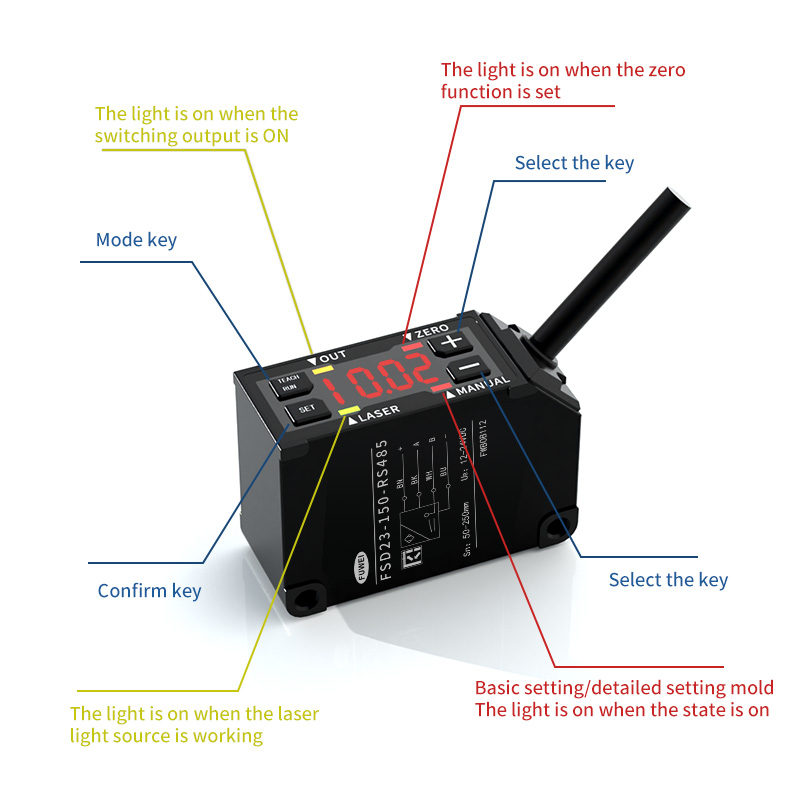

The integrated digital display allows users to easily monitor displacement values and configure settings simultaneously, enhancing operational efficiency.


IP67-Rated Protection

Designed with IP67 protection, the sensor performs reliably in moist or dusty conditions. It features a metal liner in the mounting hole and supports secure circumferential mounting with a torque of 0.8 N·m.


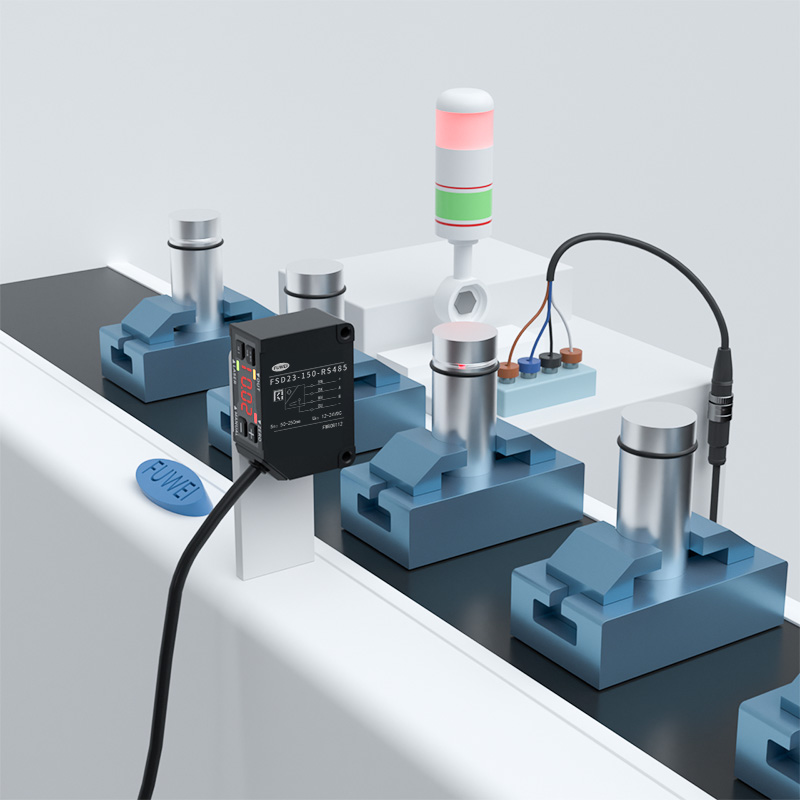

Simplified Installation

By integrating all controller functions into the sensor itself, the need for an external controller is eliminated, saving space and streamlining installation.












Specifications:

Part number

Analog current

4-20mA

FSD23-15-AA
 FSD23-35-AA
 FSD23-100-AA
 FSD23-150-AA

Analog voltage

0-10V

FSD23-15-AV
 FSD23-35-AV
 FSD23-100-AV
 FSD23-150-AV

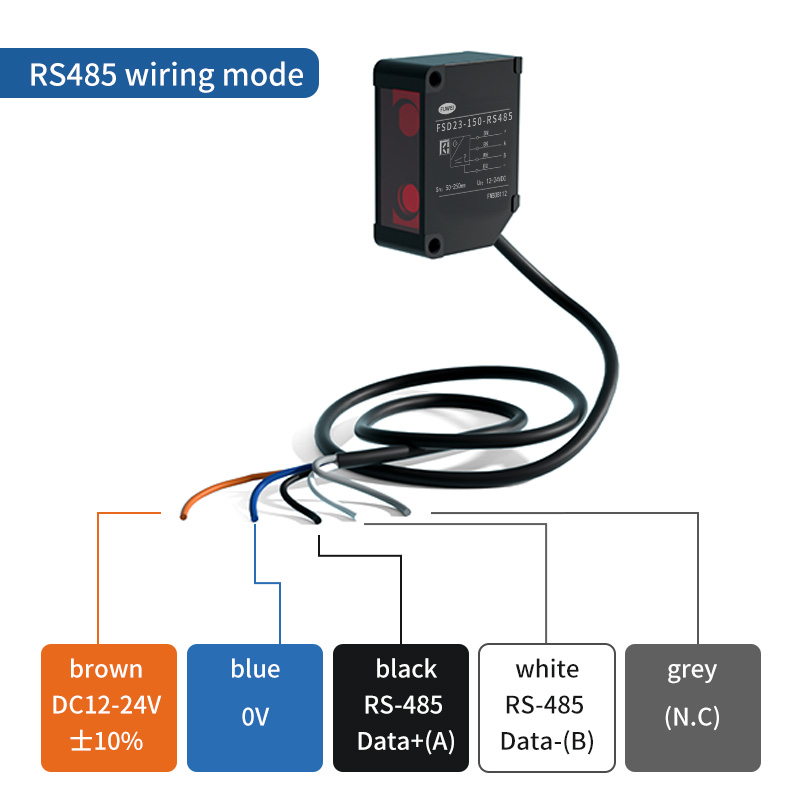

RS-485 communication
 FSD23-15-RS485
 FSD23-35-RS485
 FSD23-100-RS485
 /
Cable typers-485 communication
 /
 /
 /
 FSD23-150-RS485

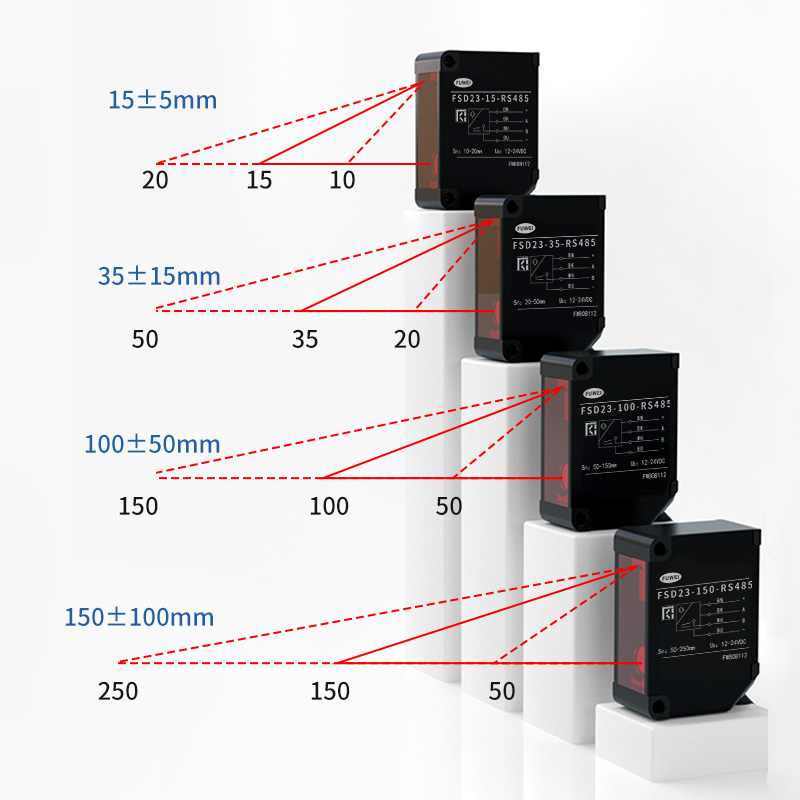

Center of measurement range
 15mm
 35mm
 100mm
 150mm
Measurement range
 ±5mm
 ±15mm
 ±50mm
 ±100mm
Light source
 Medium. Wavelength
 Red laser Diode (wave length 650nm)
Max. output power
 390 μW
 1mW
Laser class
 IEC/JIS
 Class1
 Class2
FDA
 CLASS I
 CLASS II
Spot size*1
 0.5*0.7mm
 0.45*0.80mm
 0.6*0.7mm
 0.5*0.55mm
Linearity
 ±0.1% F.S.
 ±0.1% F.S.
 ±0.1% F.S.
 ±0.5% F.S.
Repeatability*2
 1μm
 6μm
 20μm
 60μm
Sampling period
 500μs / 1000μs / 2000μs / 4000μs / AUTO
Temperature drift (typical value)
 ±0.02%  F.S./⁰C
 ±0.02%  F.S./⁰C
 ±0.05%  F.S./⁰C
 ±0.08%  F.S./⁰C
Indicator

Laser indicator: Green / Zero reset indicator: Red

Output indicator: Orange / Mode indicator: Red

MF (multiple function ) Input
 Laser OFF, Teaching, Sample & Hold, One shot, Zero reset
Control Output
 NPN/PNP max.100mA/DC30V ((Residual voltage 1.8 V max.)
Current consumption
 70mA max.
Analog current
 Output 4-20mA, allowable load resistance below 300Ω
Analog voltage
 Output 0-10V , output impedance 100Ω
Protection circuit
 Reverse connection protection, Over current protection
Protection category
 IP67 including connection part
Operating Temp./Humid.
 -10~50⁰C / 35 ~ 85% RH without freasing or condensation
Storage Temp./Humid.
 -20 ~ 60⁰C / 35 ~85%/RH
Ambient illuminance
 Sun light: 20,000 lx max. / Incandescent lamp: 3,000 lx max.
Vibration resistence
 10 ~ 55Hz, Double amplitude 1.5mm, X,Y,Z for 2 hours
Shock resistence
 500mm/s2 ( approx. 50G) X,Y,Z 3 times each
Material
 Aluminum
Weight
 Approx. 60g
The specifications are based on the condition unless otherwise designated:Ambient temperature:23⁰C,
Supply voltage: 24VDC, Sampling period: 500 μs, Averaging: 64,Measuring distance:Center of range, Testing object: White ceramic
*1 Defined with center strength 1/e2(13.5%)at the center. There may be leak light other than the specified spot size. The sensor may
be affected when there is a highly reflective object close to the detection area.
*2 512 averaging time

Small stature and strong functionality

A variety of core functional benefits for your use
