FSD23-15-AA High precision laser displacement sensor
  • FSD23-15-AA High precision laser displacement sensorFSD23-15-AA High precision laser displacement sensor

FSD23-15-AA High precision laser displacement sensor

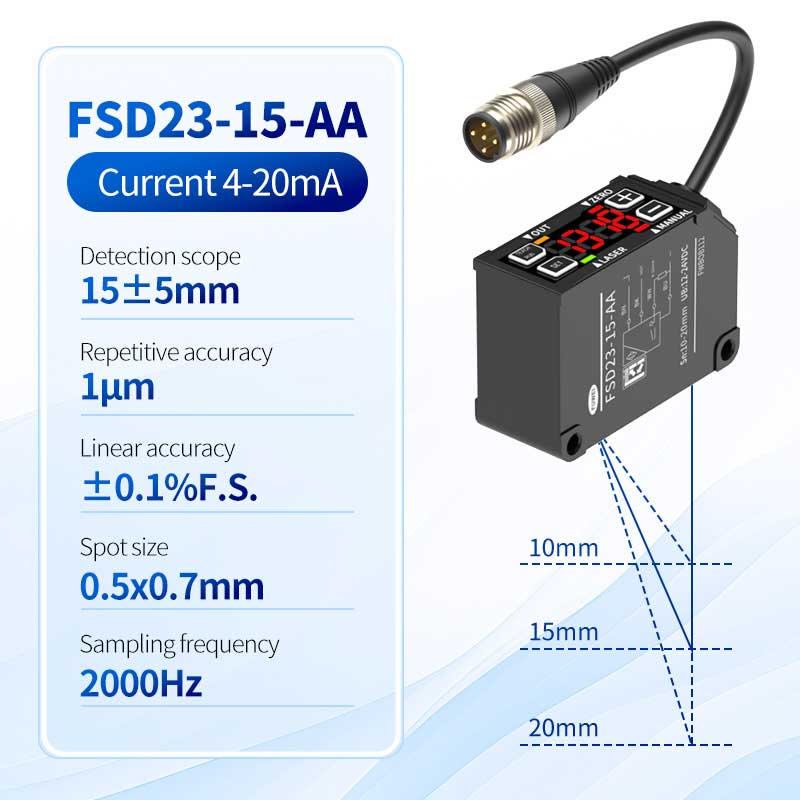

Model:FSD23-15-AA
Revolutionary ultra-small size adapts to a variety of installation environments; Built-in controller with 4-digit digital display High performance comparable to the high end. Repeatability: 1μm Industry's smallest and lightest weight; and Easiest mounting/dismounting on equipment; and Lightweight die-cast aluminum housing. Effectively suppresses measurement errors due to mounting offset and temperature.​
Send Inquiry PDF DownLoad
Product Description



Performance Features:

Revolutionary ultra-small size adapts to a variety of installation environments;

Built-in controller with 4-digit digital display

High performance comparable to the high end.

Repeatability: 1μm

Industry's smallest and lightest weight; and

Easiest mounting/dismounting on equipment; and

Lightweight die-cast aluminum housing.

Effectively suppresses measurement errors due to mounting offset and temperature.


Specifications

Model

Cable

based

RS-485correspo-ndence


FSD23-150-RS485

M12

Plugga-

ble

Analog currentoutput
 FSD23-15-AA
 FSD23-35-AA
 FSD23-100-AA
 FSD23-150-AA

Analog voltage

output

FSD23-15-AV
 FSD23-35-AV
 FSD23-100-AV
 FSD23-150-AV
R5-485correspo-ndence
 FSD23-15-RS485
 FSD23-35-RS485
 FSD23-100-RS485
 -
Detection distance (center position)
 15mm
 35mm
 100mm
 150mm
Detection range
 ±5mm
 ±15mm
 士50mm
 士100mm
Full Scale (F.S.)
 10mm
 30mm
 100mm
 200mm
light source
 medium*wavelength
 Red diode laser
wavelength:655mm
Maximum output power
 390μW
1mW
Laser class
 ICE/JIS
 Class 1
Class 2
FDA
 Class l
Class ll
Spot size※2
 0.45*0.8mm
 0.6*0.7mm
 0.50*0.55mm
Linear accuracy
 士0.1%F.S.

士0.5%F.S.
Repeatability※3
 1um
 6μm
 20um
 60μm
Adoption cycle
 500μS/1000μS/4000μS/AUTO




Temperature Drift

Characteristics (Reference Value)

士0.02%F.S./°C
 士0.05%F.S./°C
士0.08%F.S./°C
Light

Laser working indicator (green) /zero setting indicator (red)/switching output indicator

(orange) /Mode indicator (red)

External input function

RS485 models such as laser off, remote teaching, sample hold, single pulse trigger

and zero reset do not have externalinput functions

Analog output
 Analog current type
 The output is 4~20mA,and the allowable load resistance is 300Ω or less
Analog voltage type
 The output is 0~10V,and the output impedance is 100Ω
Switching output※5
 Open collector output (NPN/PNP switchable) Max 100mA/DC30VResidual voltage1.8V
Supply voltage
 Analog current/-485 communication type: Dc12-24V+10%;Analog voltage type: DC18-24V±10%
Current consumption※4
 700mA or less
Pluggable connectors
 M12 5-pin connector (with 300mm cable)
Protection circuits
 Reverse connection protection,overcurrent protection
Environmental parameters
 Degree of protection
 IP67 (including cable connector)
Use ambienttemperature/humidity
 -10~50/35-85%RH(no condensation/icing)
Ambient illumination
 Sunlight:20,000lxorless/incandescent: 3,000 lx or less10
Vibration resistance
 10~55Hz double amplitude 1.5mm x,Y,Z directions for 2 hours each
Impact resistance
 500 m/s²(approx.50 G) 3 times in each of x, Y, and Z directions
Material

Housing: Die-cast aluminum lens board: PpSU display board: PET cable: oil-resistant PVC
weight

Approx.60 g (including cable)
