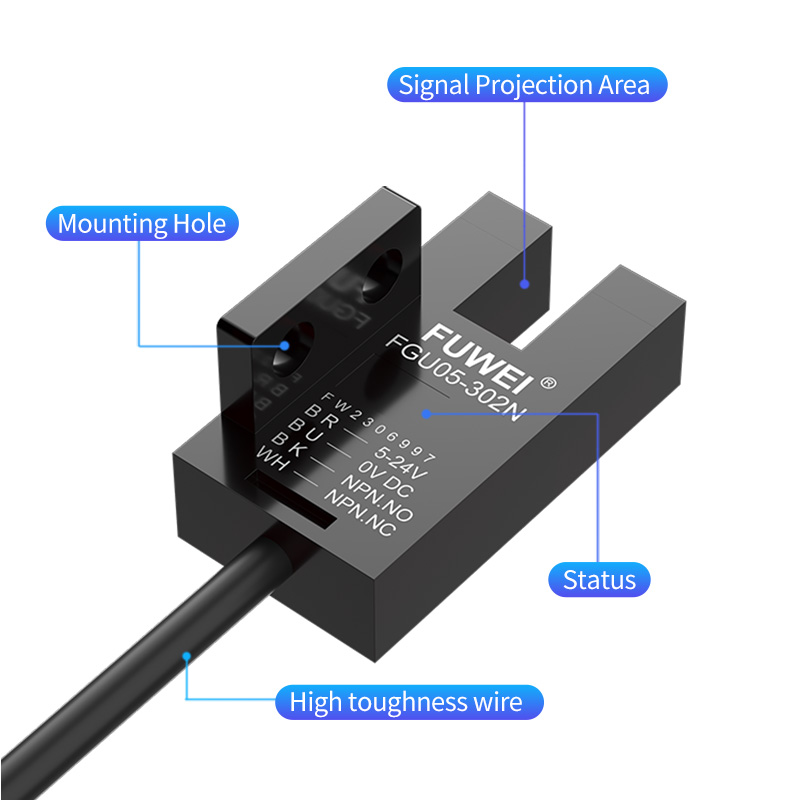

FGU05-302 U-slot photoelectric switch sensor

FGU05-302 U-slot photoelectric switch sensorModel：FGU05-302N/FGU05-302P

Detection Distance：5mm

Operation Temperature:-10℃C~45°C

Working Humidity:20%~85%RH

Light Source: 940nmUnmodulated Light

Working Voltage: 5-24VDC士10%

Consumption Current:15mA Max

Load Current:50mAMaxatDC24V

Output Mode:N=NPN.NO&NC;P=PNP.NO&NC

Protection：IP66

Multiple Protection

Not only does it protect the product itself, but it alsoprotects the equipment from damage, making itsafer during work.

Short Circuit Protection

When there is a problem with a short circuit in the load,it not only protects itself but also protects the load frombeing burned out

Overload Protection

Automatically protect when the load is unstable orthere is a problem causing the current to increase

Polarity Protection

Reverse connection of the positive and negative polesof the product power cord will not burn the product

Dustproof

The integrated shell is dustproof and seamlessgreatlyincreasing the service life of the product.

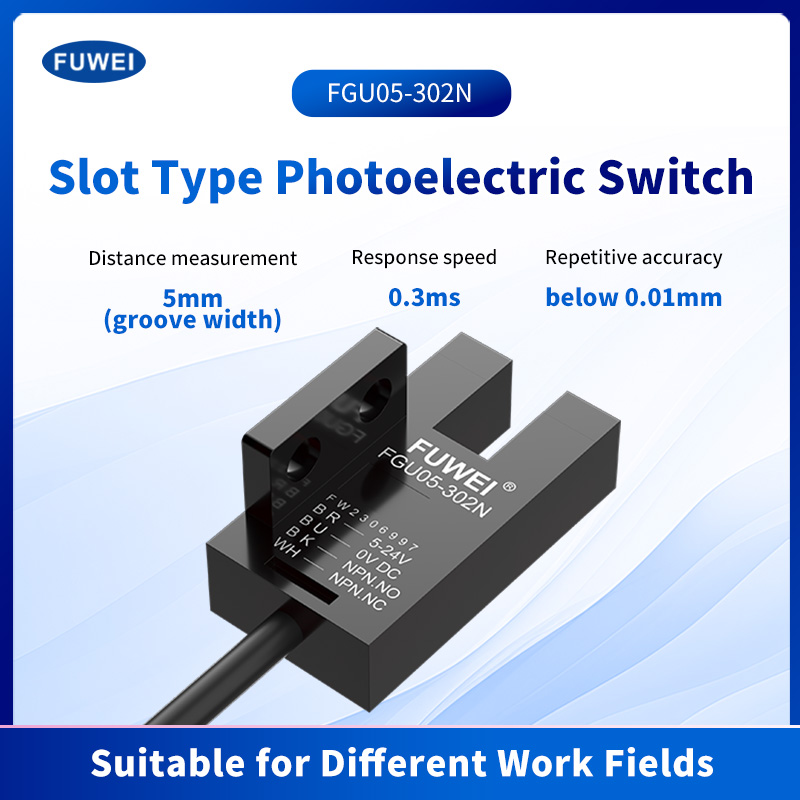

Fuwei Groove TypePhotoelectric Series

Compatible with Panasonic/Omron

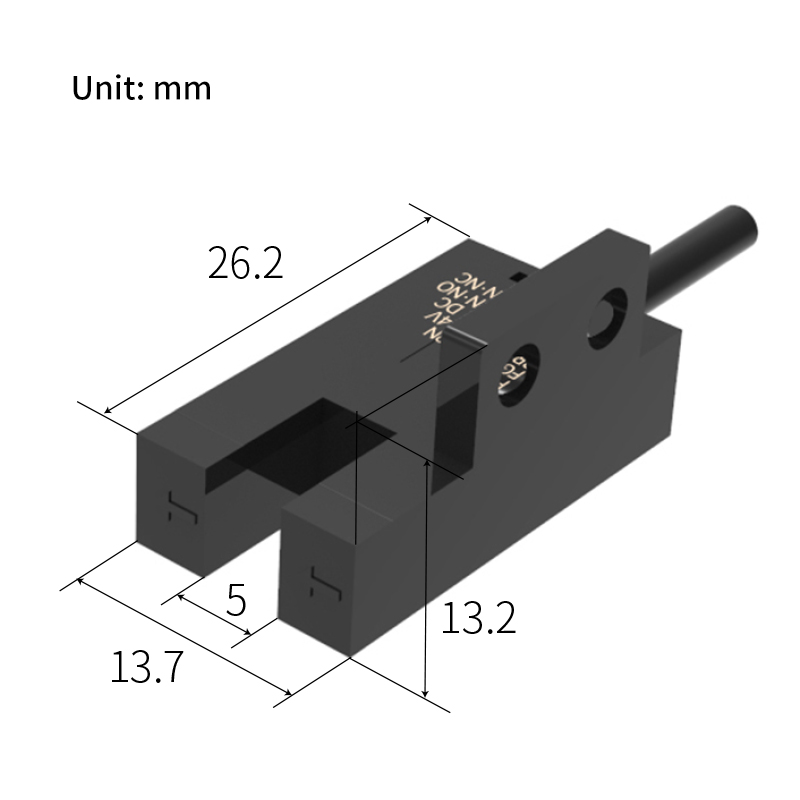

Product Size

Wiring Guidelines

Specification

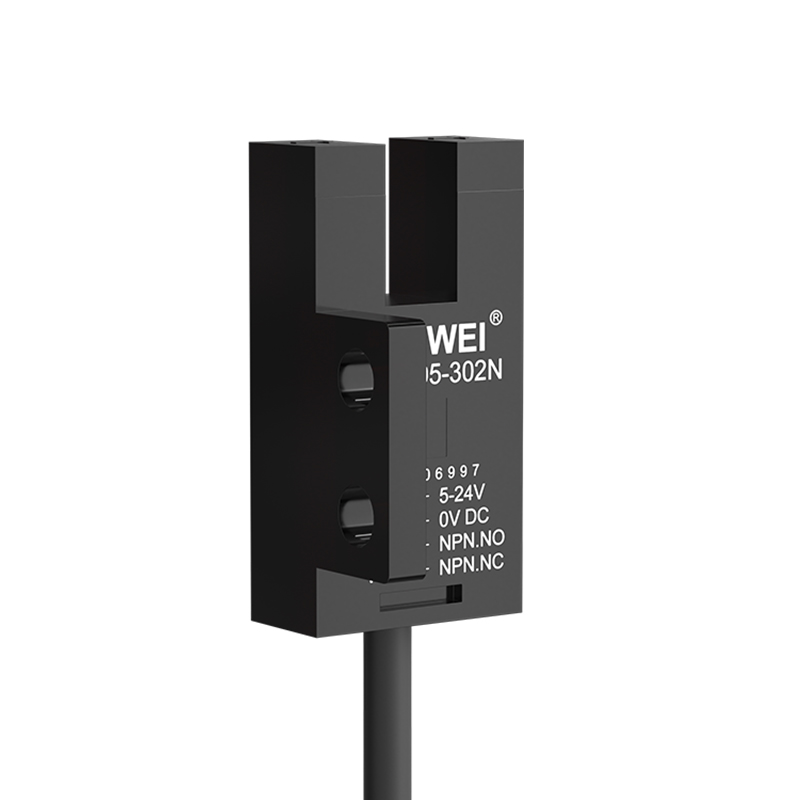

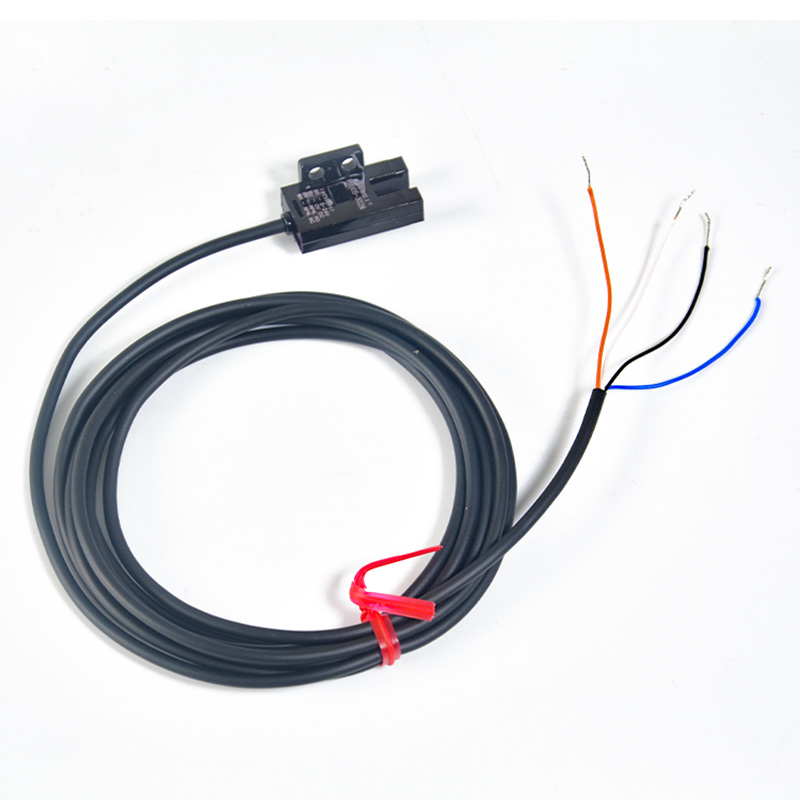

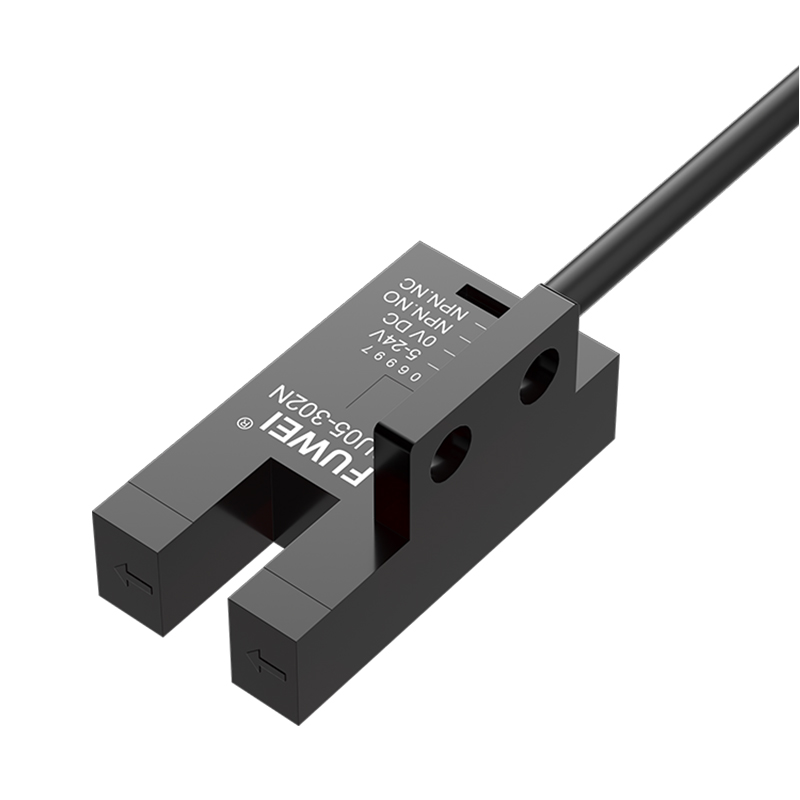

Product Display
