FGU05-307 U-slot photoelectric switch sensor

Model:FGU05-307N/FGU05-307P

Model:FGU05-307N/FGU05-307P Detection Distance:5mm Operation Temperature:-10℃C~45°C Working Humidity:20%~85%RH Light Source: 940nmUnmodulated Light Working Voltage: 5-24VDC士10% Consumption Current:15mA Max Load Current:50mAMaxatDC24V Output Mode:N=NPN.NO&NC;P=PNP.NO&NC Protection:IP66 M......


Model:FGU05-307N/FGU05-307P

Detection Distance:5mm

Operation Temperature:-10℃C~45°C

Working Humidity:20%~85%RH

Light Source: 940nmUnmodulated Light

Working Voltage: 5-24VDC士10%

Consumption Current:15mA Max

Load Current:50mAMaxatDC24V

Output Mode:N=NPN.NO&NC;P=PNP.NO&NC

Protection:IP66




Multiple Protection

Not only does it protect the product itself, but it alsoprotects the equipment from damage, making itsafer during work.

Short Circuit Protection

When there is a problem with a short circuit in the load,it not only protects itself but also protects the load frombeing burned out

Overload Protection

Automatically protect when the load is unstable orthere is a problem causing the current to increase

Polarity Protection

Reverse connection of the positive and negative polesof the product power cord will not burn the product



Fuwei Groove TypePhotoelectric Series

Compatible with Panasonic/Omron

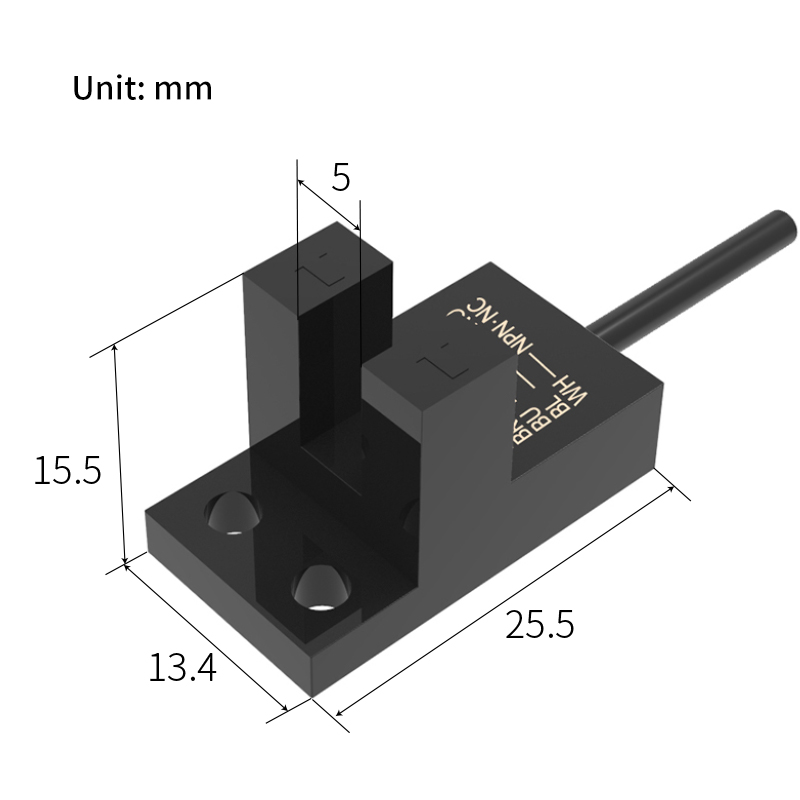

Product Size


Wiring Guidelines

Specification

Model
NPN
FGU05-302N
FGU05-303N
FGU05-304N
FGU05-305N
FGU05-306N
FGUO5-307N
PNP
FGU05-302P
FGU05-303P
FGU05-304P
FGU05-305P
FGU05-306P
FGU05-307P
Detection

Distance

5mm
Light Source
940nmUnmodulated Light
Working

Voltage

5-24VDC士10%
Consumption

Current

15mA Max
Load Current
50mAMaxatDC24V
Output Mode
N=NPN.NO&NC;P=PNP.NO&NC
Protection

Circuit

Reversepowerconnection protection
Reaction

Time

0.3ms Max

lsolation

Impedance

20mΩmin.(Dc500v)

Dielectric

Strength

AC1000V60Hzfor60sec.

Operation

Temperature

-10℃C~45°C

Working

Humidity

20%~85%RH

Storage

lemperature

-10°C~55°C/20%

Work

Instructions

RedLED:Theindicatorlight for addingpoints is on,

and theindicatorlightis offduringoperation

Waterproof

Grade

IP66

Appearance

Material

PC

Wiring

Method

4-core cable diameter2.8mm
Weight
20g

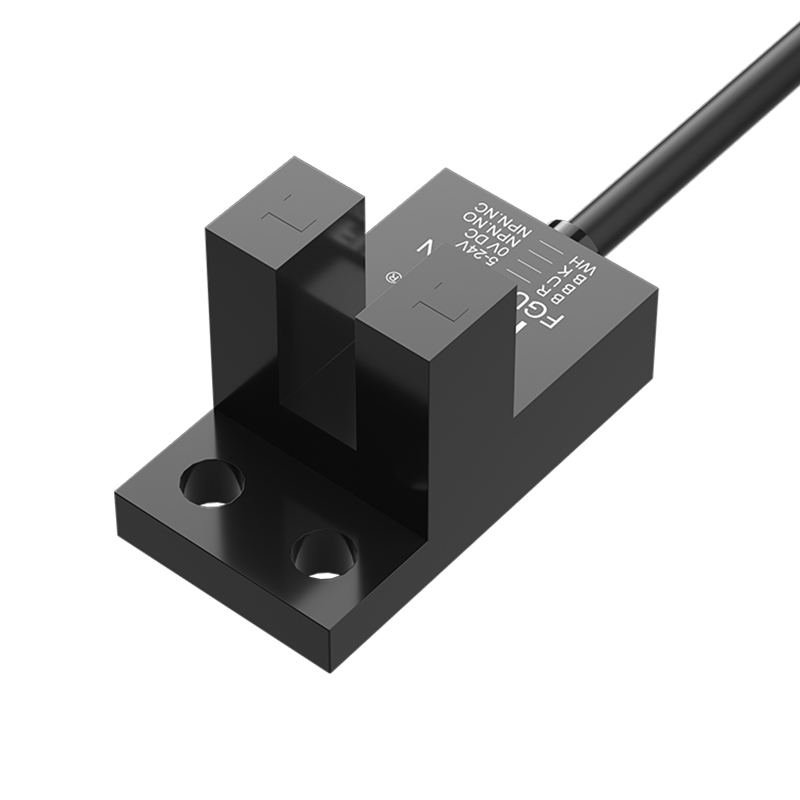

Product Display
