Industrial ranging laser displacement sensor

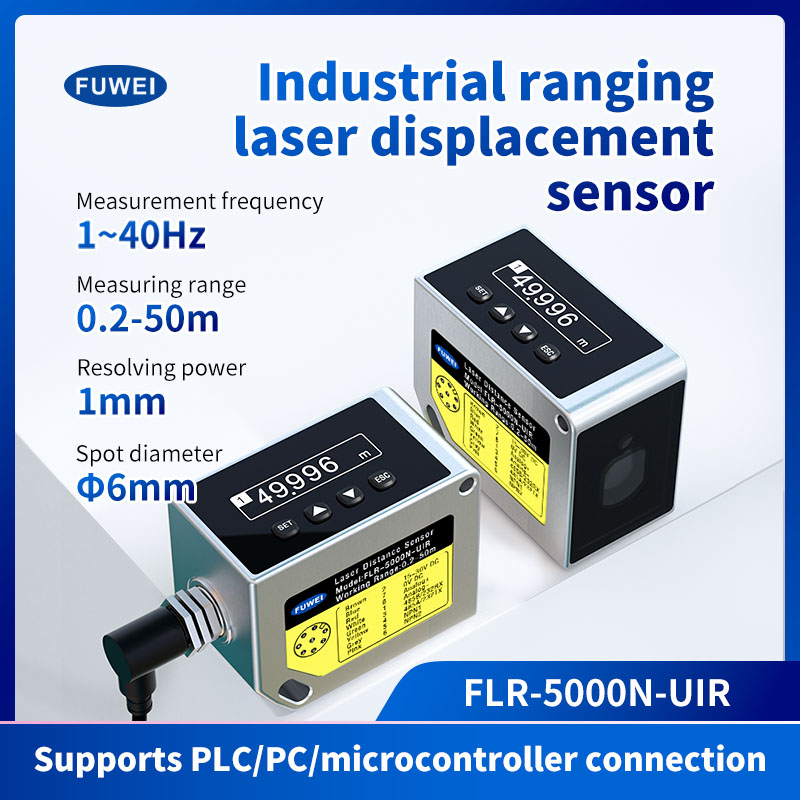

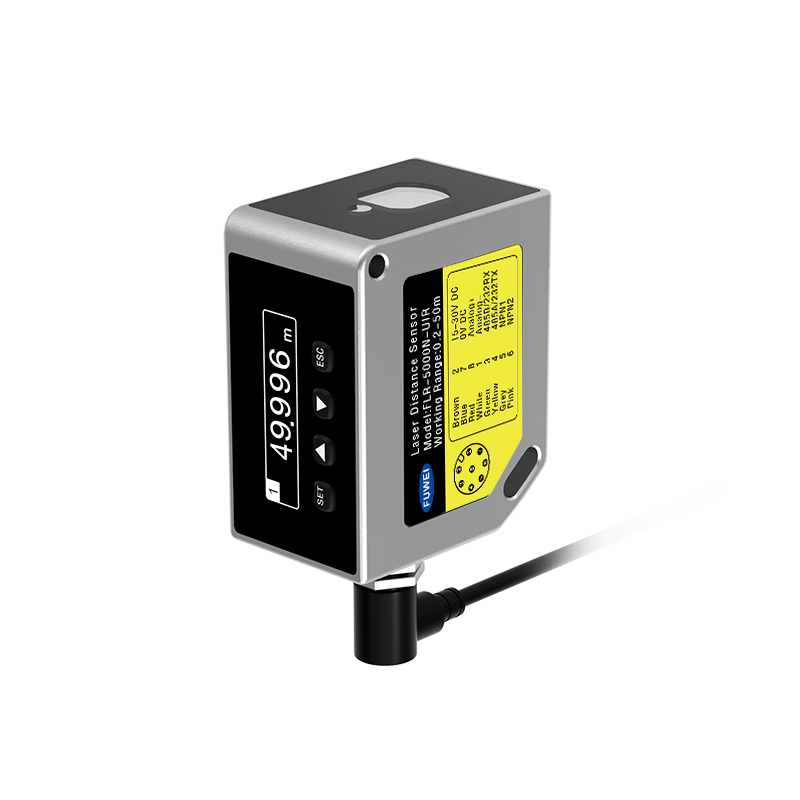

Model:​FLR-5000N-UIR

​FLR-5000N-UIR IP67 OLED Digital CMOS High Frequency Industrial Distance Measuring Laser Displacement Sensor

The FUWEI FLR-5000N-UIR Digital Laser Displacement Sensor

a product of China leading manufacturer and supplier,

offers competitive pricing while maintaining exceptional quality,

ensuring accurate and reliable measurements for various industrial applications.



There are three ranges of 20 meters, 50 meters, and 100 meters to choose from. It uses phase measurement to determine distance, and its precise optics ensure high accuracy even in outdoor and harsh environments.

The metal die-casting housing has an IP67 safety protection level, and it comes with a keypad and display for easy setting of instrument parameters.

High accuracy: ±(2mm+d * 0.0001)

Fast speed: 1Hz-40Hz.

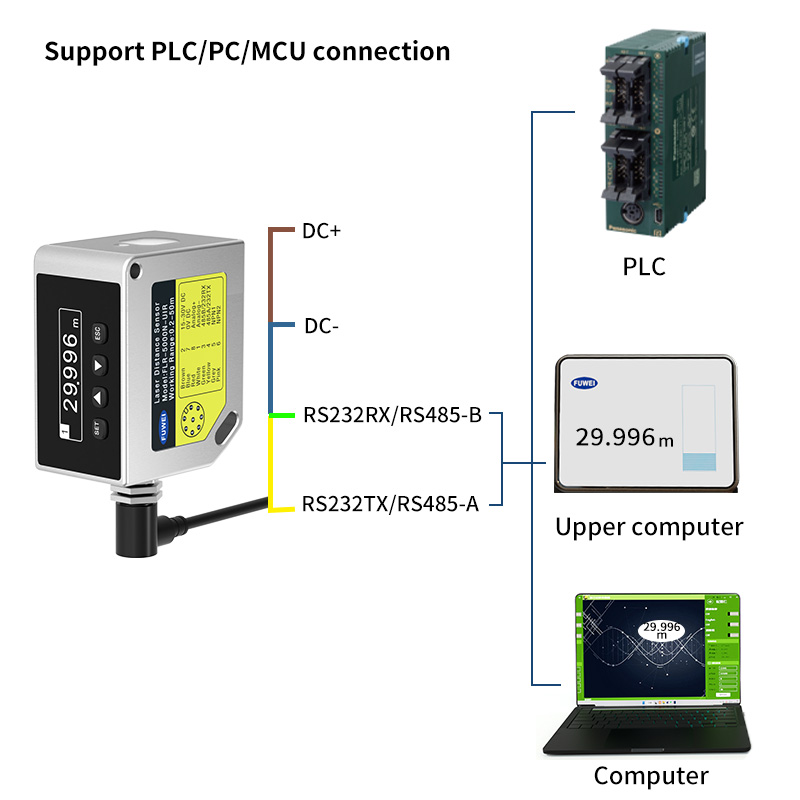

Output interface: Integrates RS232/RS485, 2 relay outputs, voltage/current output.



RS485 supports ModBus protocol and supports network configuration.

The laser distance sensor can detect material level/liquid level detection,

forklift anti-collision protection, distance measurement, and mobile positioning,

and is widely used in port automation, intelligent logistics, intelligent warehousing, AGV, intelligent manufacturing and other industries.



Specifications
Model
FLR-5000N-UIR

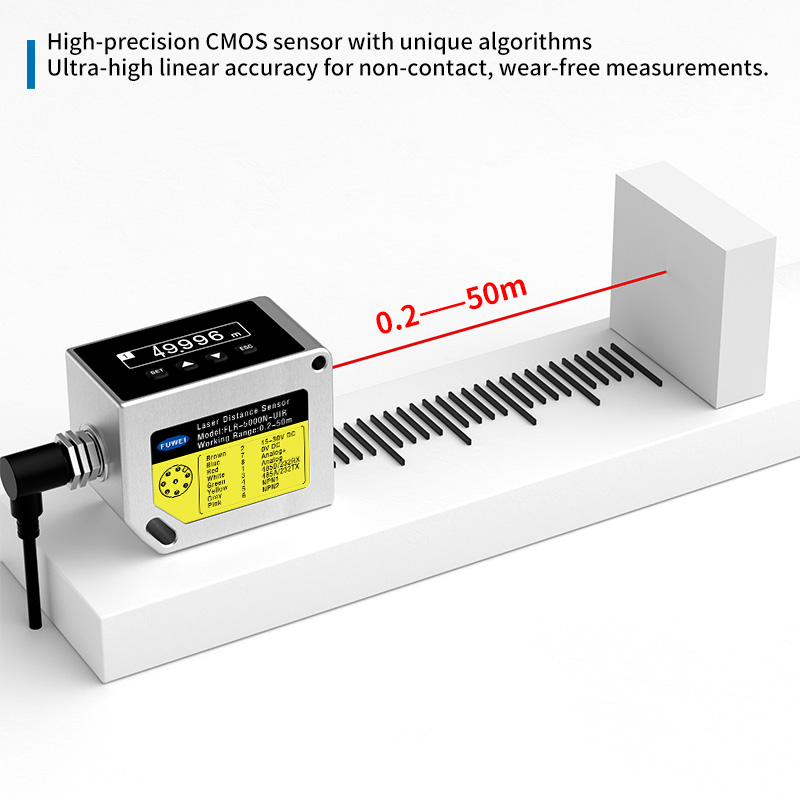

Measure distances
0.2m-50m
Output
RS485/232+analog voltage currentoutput+NPN output
Voltage/current output
0~5V/0~10V/4~20mA/0~20mA/0~24mA output can be set
Voltage output error
0.2%+0.5mV
Current output error
0.2%+0.005mA
Communication interface
RS232/RS485(switchable)
Measurement frequency
1Hz-40Hz
Laser type
Class IⅡ,660±15nm,≤1mW
Measure resolution
1mm
Measurement error
±(2mm+d*1/10,000)
Indicator light
Red laser
Spot size
@1m     O6mm;@10m     O8mm;@20m     012mm

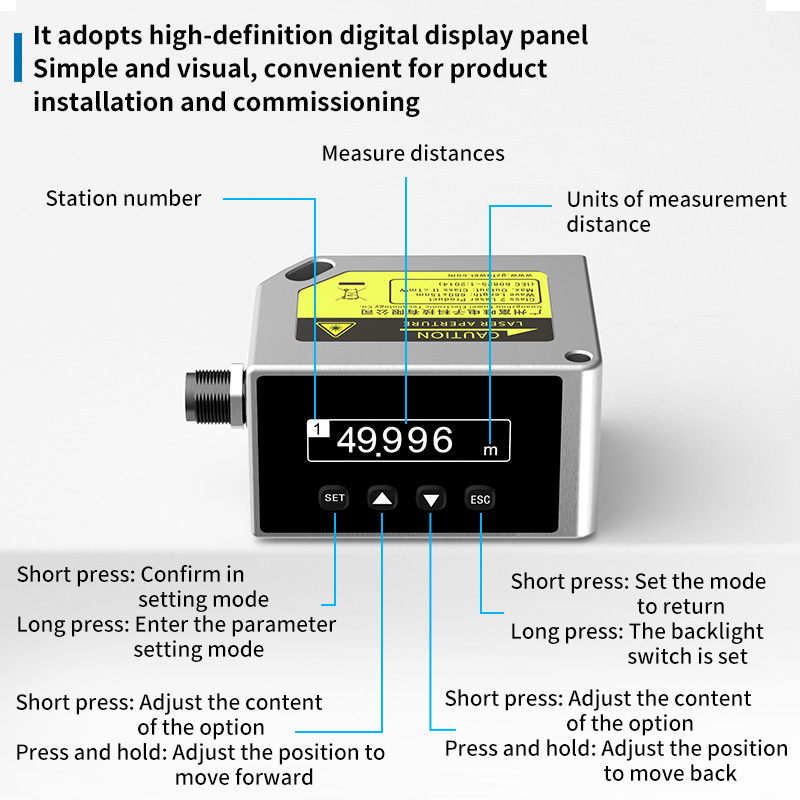

Display screen
128x32 dot matrix screen
Backlight off time
30 minutes (can be set to normally open)
Mode of operation
Closed measurement,continuous measurement
Transistorswitching output
2 channels(not more than DC36V0.5A)
Power supply
DC15~30V
Power consumption
<3.0W
Ingress protection
IP67
Housing material
Die-cast zinc alloy
Operating temperature
10℃~50℃
Store at temperature and humidity
-20℃~60℃,20%~85%RH
Overheatprotection

Thefuselage temperature is above 70℃to close the measurement

and below 70℃to recover

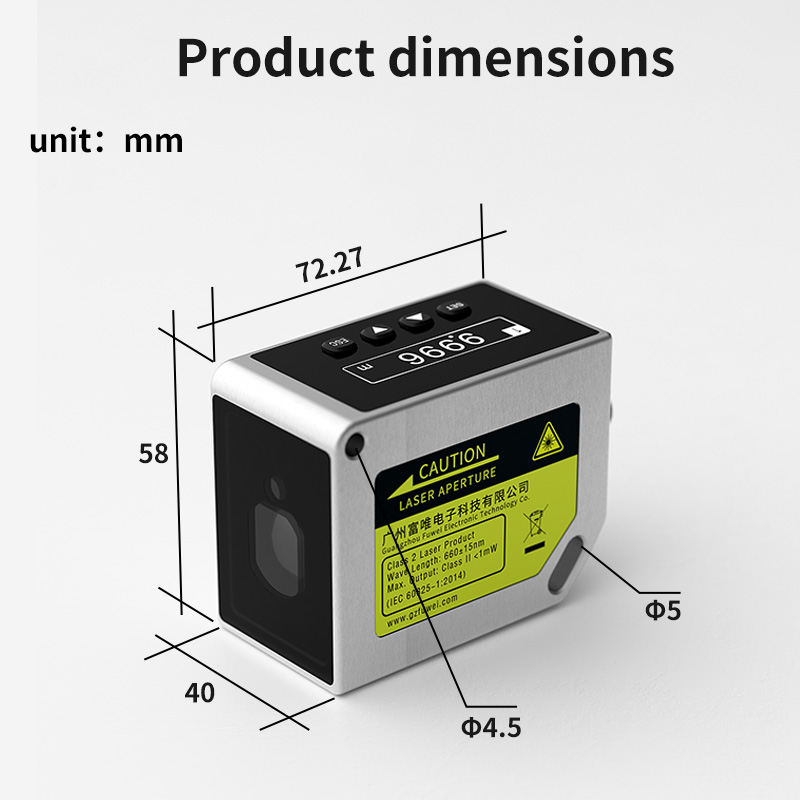

Fuselage size
86.45x40x58mm (with connector)
