Laser Displacement Sensor FSD-LKJ Series

FUWEI is a leading China Laser Displacement Sensor FSD-LKJ Series manufacturer, supplier and exporter. Adhering to the pursuit of perfect quality of products, so that our Laser Displacement Sensor FSD-LKJ Series have been satisfied by many customers. Extreme design, quality raw materials, high performance and competitive price are what every customer wants, and that's also what we can offer you. Of course, also essential is our perfect after-sales service. If you are interested in our Laser Displacement Sensor FSD-LKJ Series services, you can consult us now, we will reply to you in time!

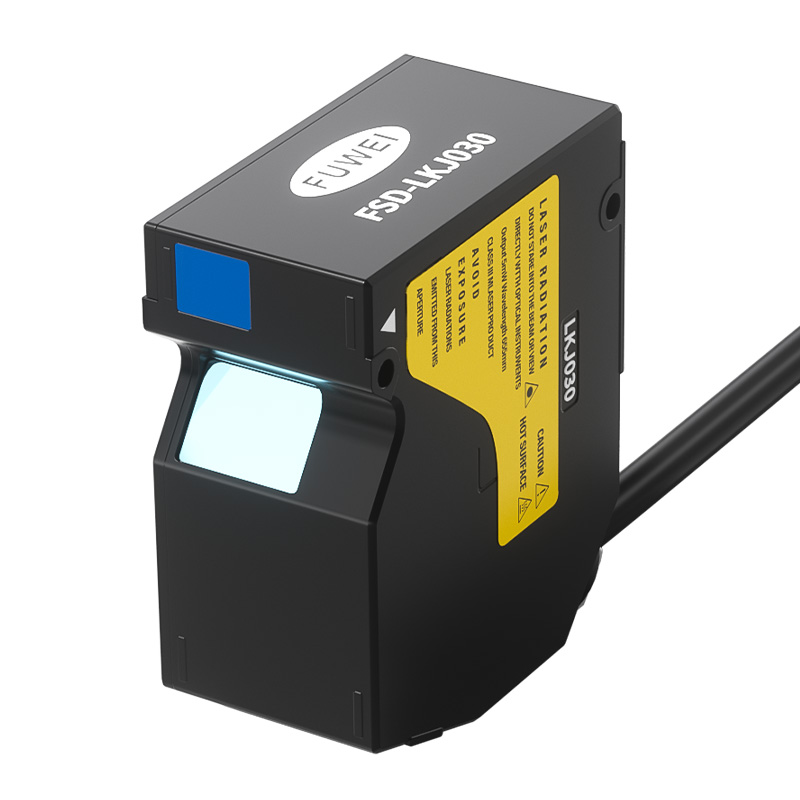

FSD-LKJ Series Laser Displacement Sensor: Accurate, Stable and Adaptable to Diverse Needs

The Laser Displacement Sensor FSD-LKJ Series delivers accurate measurement and stable detection, making it a reliable choice for precision monitoring tasks. It adopts a unique algorithm that enables stable and reliable detection of tiny objects, ensuring the accuracy and dependability of measurement and monitoring data. Boasting excellent EMC characteristics, it is immune to electromagnetic and electrostatic interference, guaranteeing the authenticity and reliability of measured data even in complex electrical environments. Thanks to the automatic gluing process, the product features superior sealing performance, allowing it to be immersed in 1m deep water for 30 minutes, thus meeting the demands of harsh and complex working conditions. Equipped with a convenient operation panel, it allows quick setup of all functions, while the LED digital display provides clear visibility of detection data at a glance. Additionally, it offers standard RS485 communication output, NPN or PNP output, and optional analog current/voltage output, making it highly adaptable to a wide range of application needs.

Core Competitiveness of Laser Displacement Sensor FSD-LKJ Series

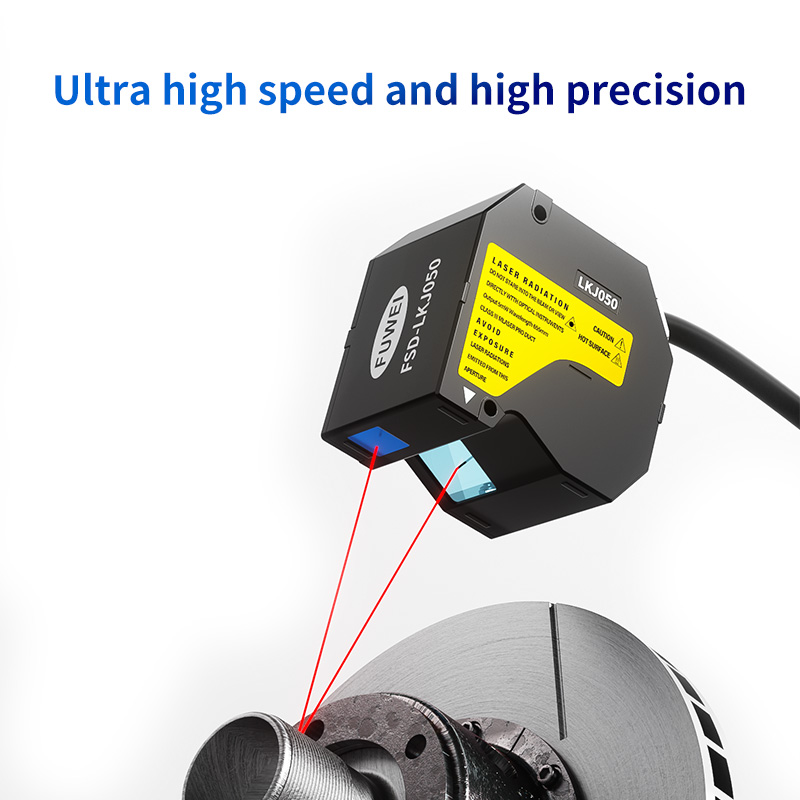

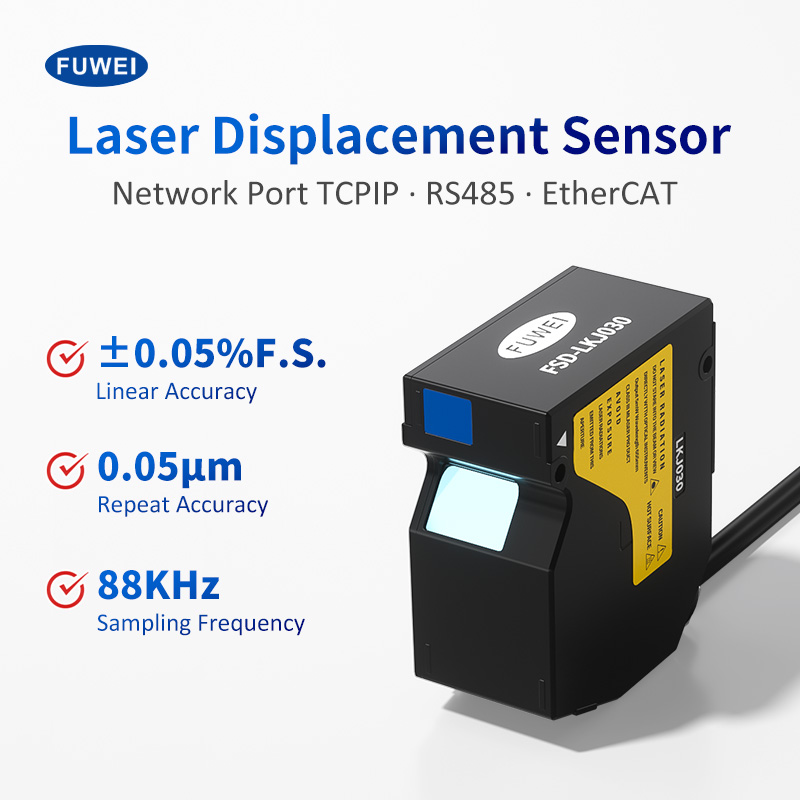

Laser Displacement Sensor FSD-LKJ Series boasts exceptional core strengths that set it apart in precision measurement. It achieves a fastest sampling frequency of 88kHz, ensuring rapid and accurate data capture for dynamic measurement tasks. The sensor supports single-ended encoders and external timed triggering, enhancing flexibility in diverse application scenarios. With ultra-high integration, it eliminates the need for external controllers, simplifying system setup and reducing operational complexity.In terms of connectivity, it offers rich communication methods, including network port TCP/IP (supporting ModbusTCP), RS485 communication, and compatibility with Ether-CAT modules, along with analog and switch outputs, enabling seamless integration into various industrial systems. Additionally, its high stability effectively suppresses errors caused by temperature drift, guaranteeing reliable performance even in fluctuating thermal environments.

FSD-LKI Series Laser Displacement Sensor: 25-97mm Detection Range

The FSD-LKI Series Laser Displacement Sensor features a detection range of 25-97mm, combining this versatile measurement span with its inherent precision and stability. This range capability enables reliable performance across various industrial scenarios, ensuring accurate detection and monitoring within the specified distance interval.

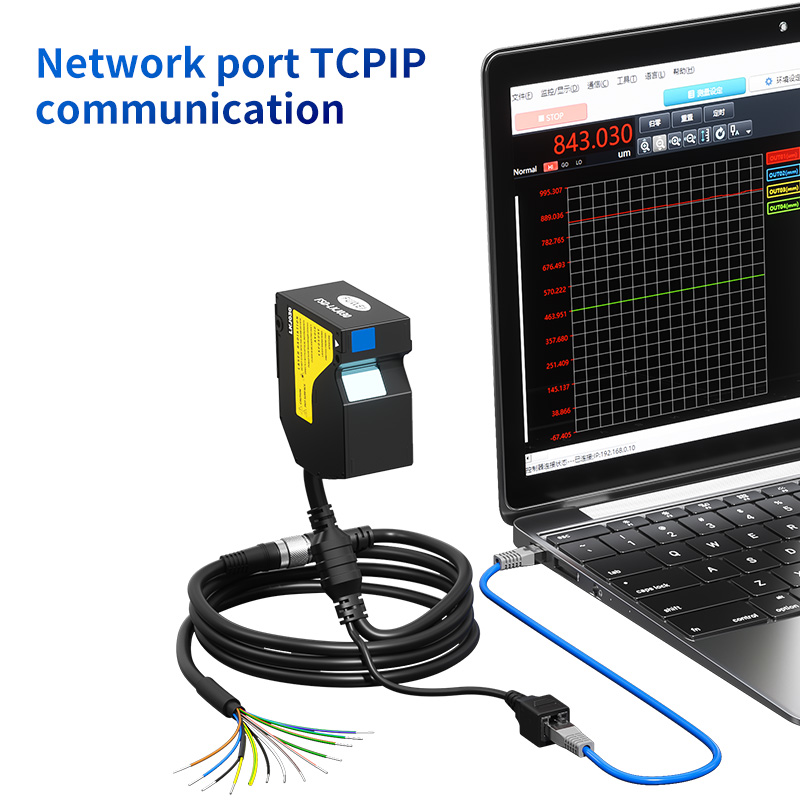

Wiring Instructions: Network Port TCP/IP Communication

For network port TCP/IP communication wiring of the device, ensure the Ethernet cable is correctly connected to the dedicated network port interface on the sensor. Use a shielded twisted-pair cable to minimize signal interference, especially in complex industrial environments with strong electromagnetic fields. Verify that the cable specifications meet Cat5e or higher standards to support stable data transmission. After connection, confirm the network parameters (IP address, subnet mask, gateway) are properly configured via the device's operation panel or accompanying software, ensuring seamless communication with the host system or industrial network.

PC Setting Parameters: Efficient Configuration via SG Imaging

Through the SG Imaging platform, users can conveniently set parameters for multiple FSD-LKJ sensors and achieve real-time confirmation of measurement data. This integrated solution streamlines the configuration process, allowing simultaneous adjustment of settings across multiple devices while providing instant visibility into measurement results, ensuring accuracy and efficiency in sensor operation.

Integrated Design Advantages: Enhanced Performance and Practicality

Equipped with imported smart chips, the device delivers reliable and efficient performance. It comes with a built-in controller and communication unit, streamlining the overall system structure. The integrated device design not only simplifies maintenance and troubleshooting processes, reducing downtime and operational hassle, but also offers significant advantages in space utilization, making it suitable for compact installation environments. Additionally, this integrated approach enhances cost-effectiveness by minimizing the need for additional components and reducing overall setup expenses.

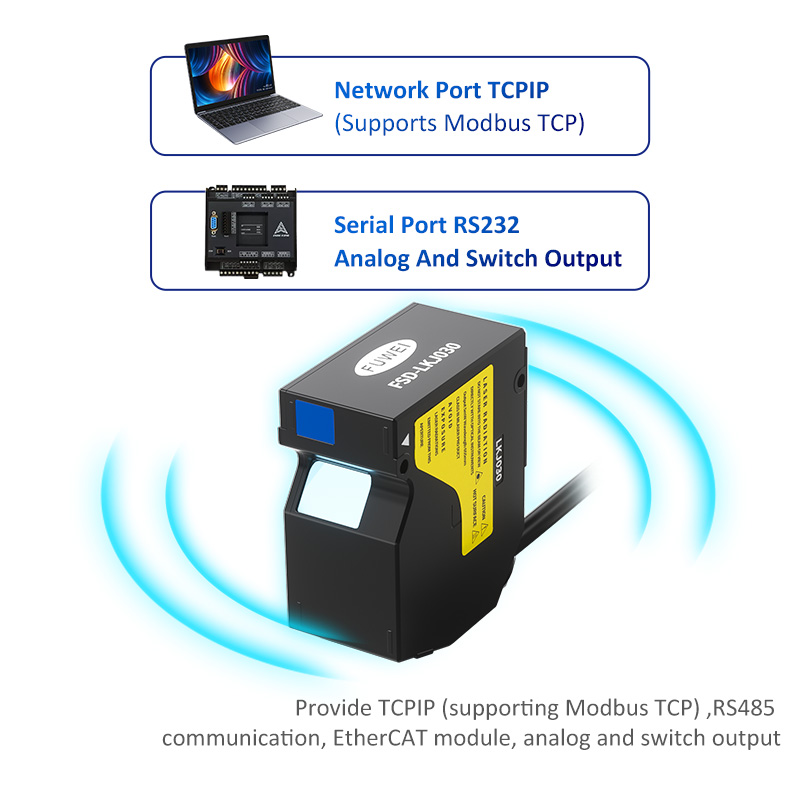

Multiple Communications: Versatile Connectivity Options

The device offers a range of multiple communication methods to meet diverse integration needs. It features a Network Port TCP/IP that supports Modbus TCP, enabling seamless data transmission and remote control over network systems. Additionally, it is equipped with a Serial Port RS232 for reliable serial communication, along with analog and switch output capabilities, ensuring flexible connectivity with various industrial equipment and control systems.

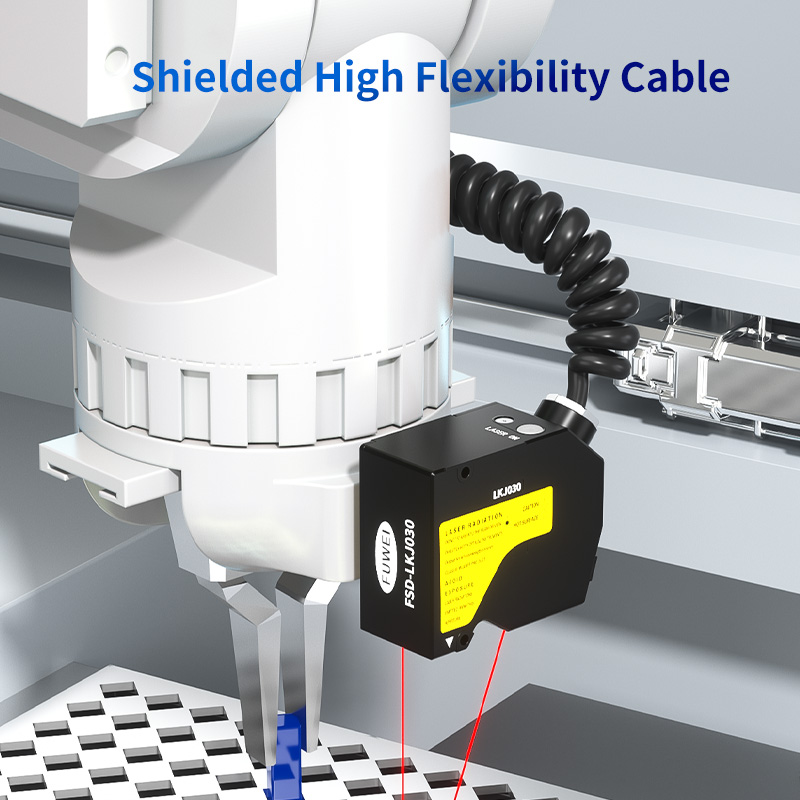

Cable Performance: Shielded, Flexible and Durable

The device is equipped with a shielded high flexibility cable that offers excellent tensile and bending resistance. This robust cable design ensures reliable performance even when configured with robotic arms, eliminating concerns about wiring limitations. Whether subjected to frequent movements or mechanical stress during robotic operations, the cable maintains stable connectivity, allowing for confident use in dynamic industrial environments without compromising on functionality.

Application Scenarios

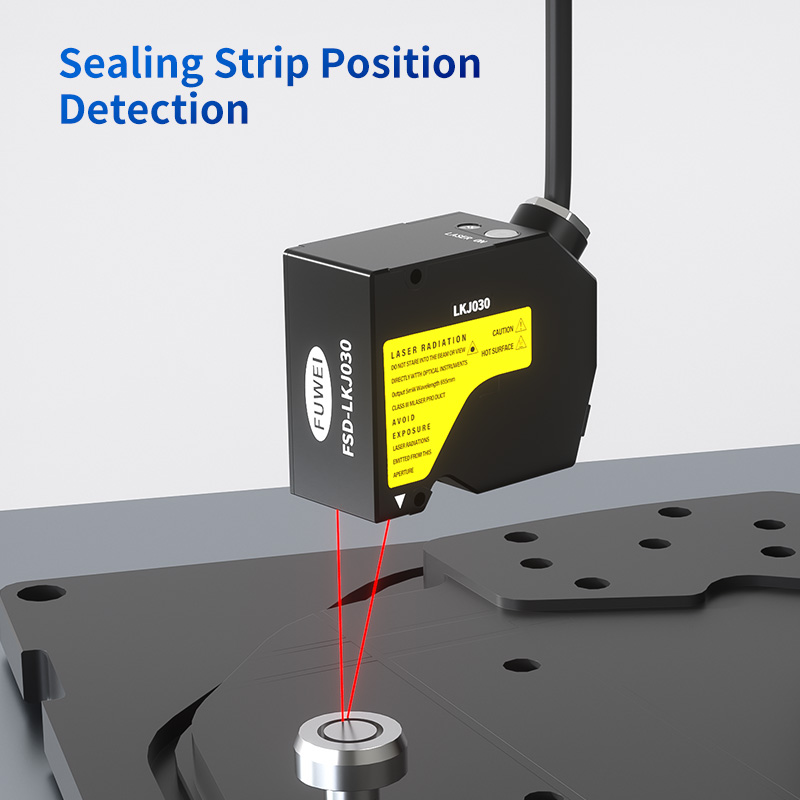

The Laser Displacement Sensor FSD-LKJ Series excels in a range of precision measurement tasks across industrial fields. It is highly effective for sealing strip position detection, ensuring accurate alignment and proper installation of sealing components in automotive or machinery assembly.In catalyst manufacturing, the sensor enables precise catalyst roundness detection, guaranteeing compliance with dimensional standards for optimal performance. It also plays a key role in detecting chip curling, a critical task in electronics production to maintain chip integrity and functionality.Additionally, the sensor accurately measures the deflection of discs, providing essential data for quality control in industries such as aerospace and precision engineering, where disc stability is paramount. Its versatility makes it a reliable choice for diverse high-precision detection needs.
