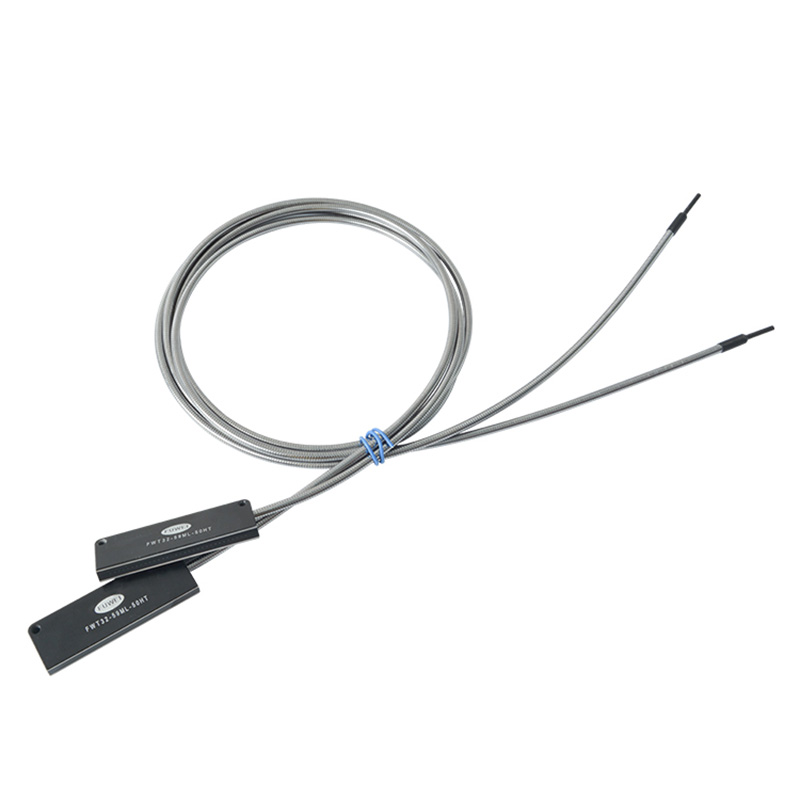

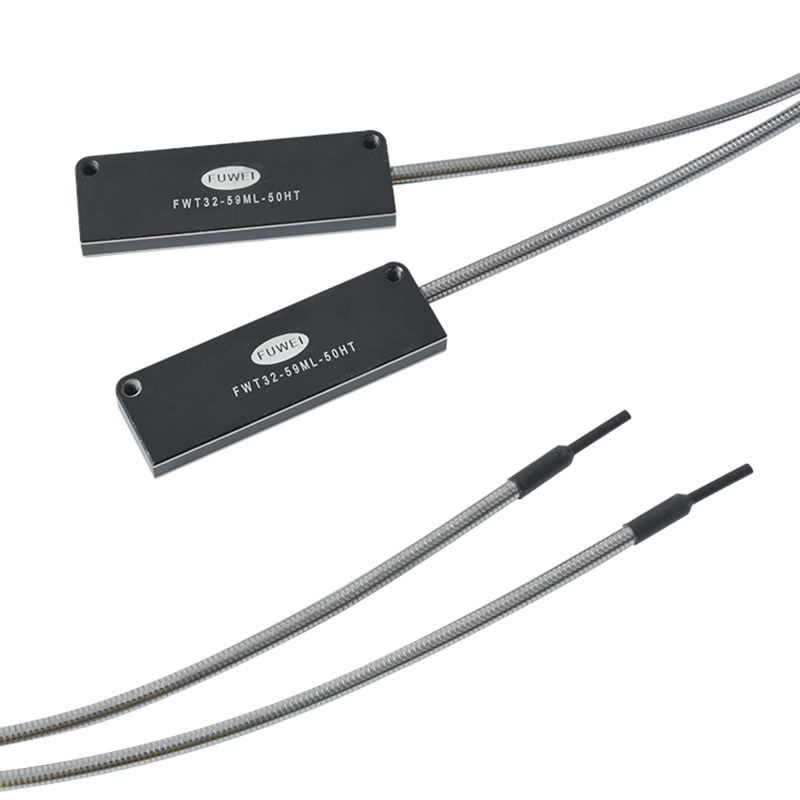

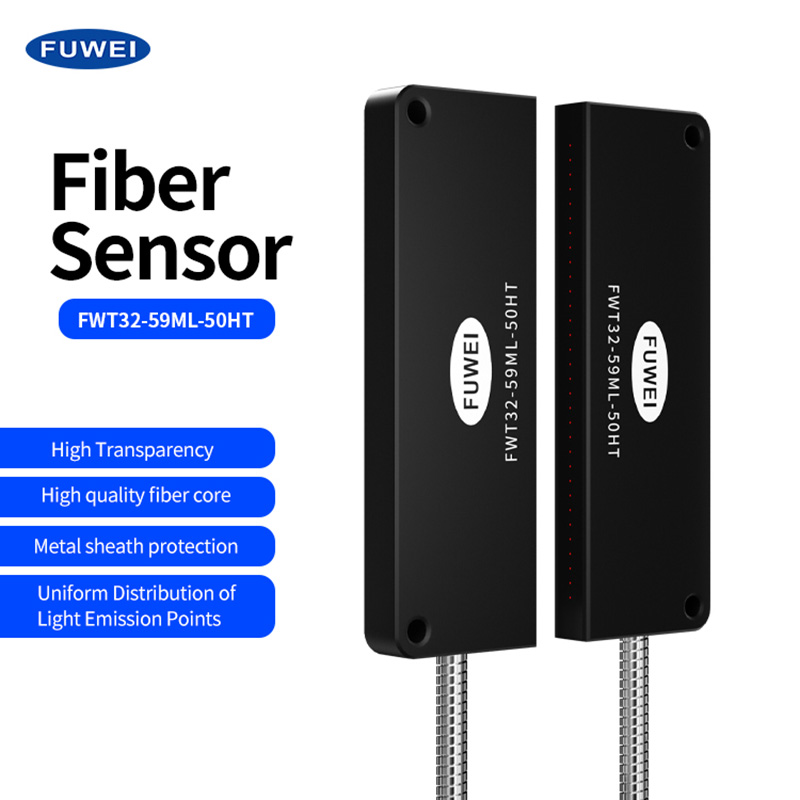

The FWT32-59ML-50HT Matrix optical sensor is equipped with an imported fiber core, which delivers strong light transmission and excellent light conductivity to ensure efficient and stable signal propagation. It features region detection capability with uniformly distributed light, enabling consistent and accurate sensing across the target area for reliable detection results. Additionally, the sensor boasts impressive fiber bending resistance, with a bending radius of R25, allowing flexible installation in scenarios where moderate bending is required without compromising performance, thus enhancing its adaptability in various industrial and detection applications.

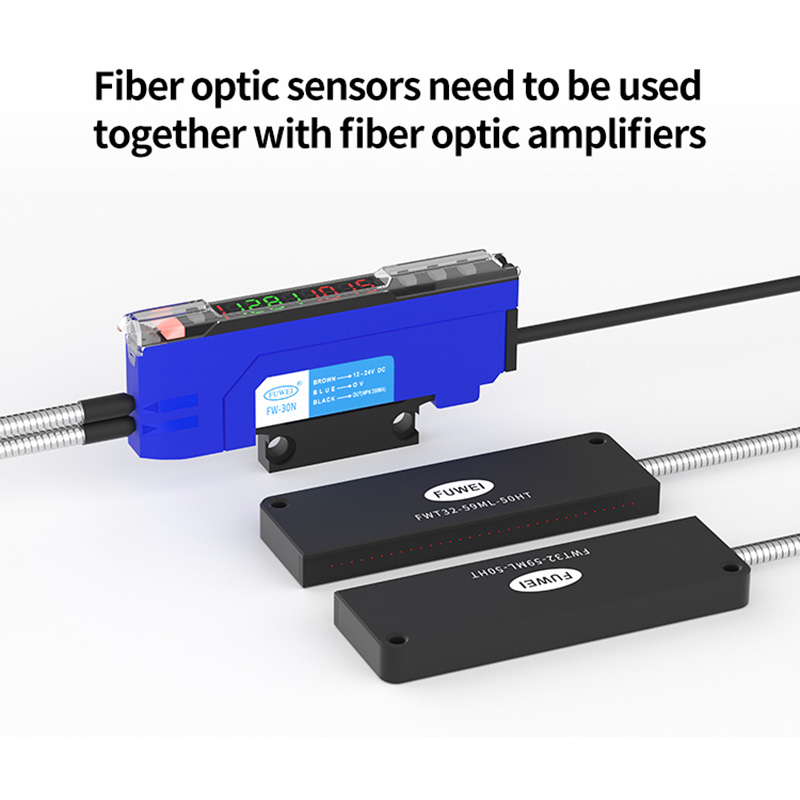

Strong adaptability, can be adapted to various brands of amplifiers.
Model
FWT32-59ML-50HT
Detection
Through Beam
Exit Surface
50mm
Fiber Optic Core
32-core
Bending Radius
R25
Detection Distance
0-500mm
Product Size
44x19x6mm
Fiber Diameter
φ2.6
Fiber Inner Diameter
φ0.25*32
Operation Temperature
-40~55℃
Shell Material
Aluminium
Metallic Sheath
NO
Line Length
Standard configuration of 1m,customizable wire length
