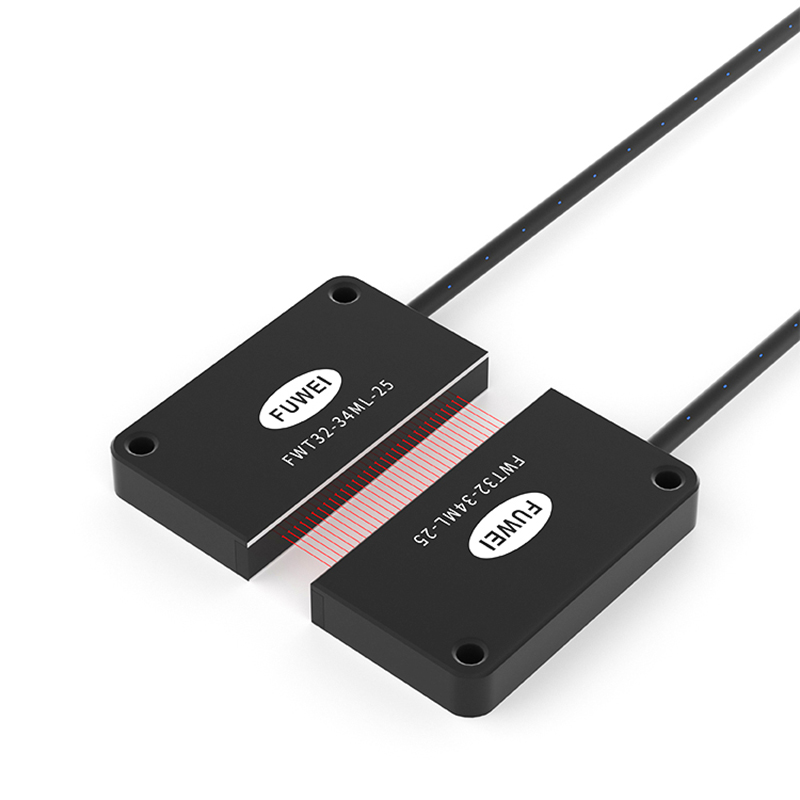

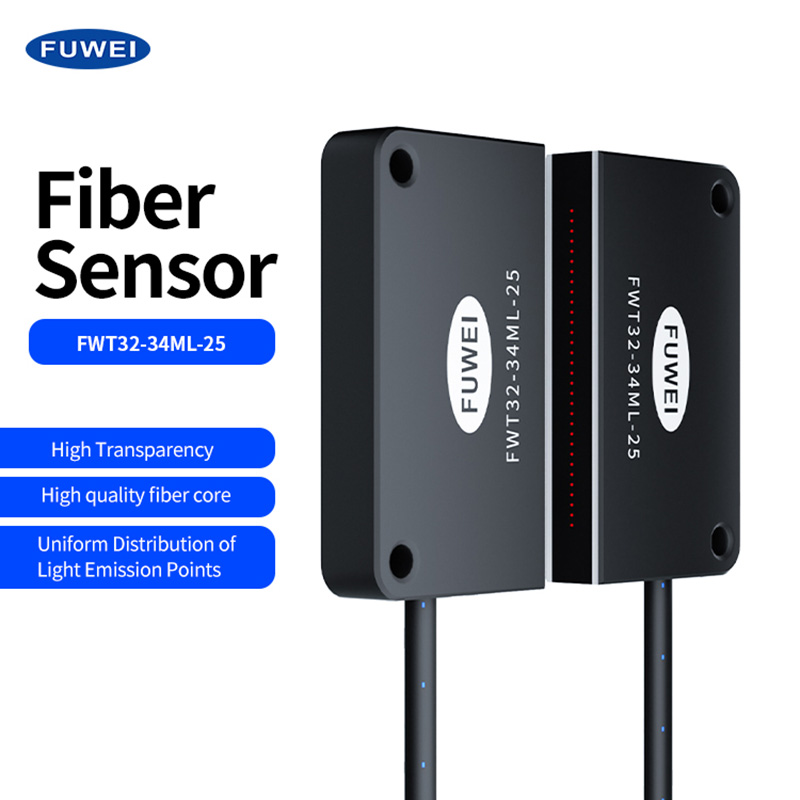

The FWT32-34ML-25 opposite-beam matrix fiber sensor comes with an imported fiber core, which ensures strong light transmission and good light conductivity, laying a solid foundation for efficient and stable signal transmission in opposite-beam sensing. It features region detection with uniform light, enabling consistent and accurate sensing across the target area, thus enhancing the reliability of detection results. Additionally, the sensor boasts excellent fiber bending resistance with a minimum bending radius of R25, allowing for flexible installation in various complex environments without affecting its performance, making it highly adaptable to different application scenarios.

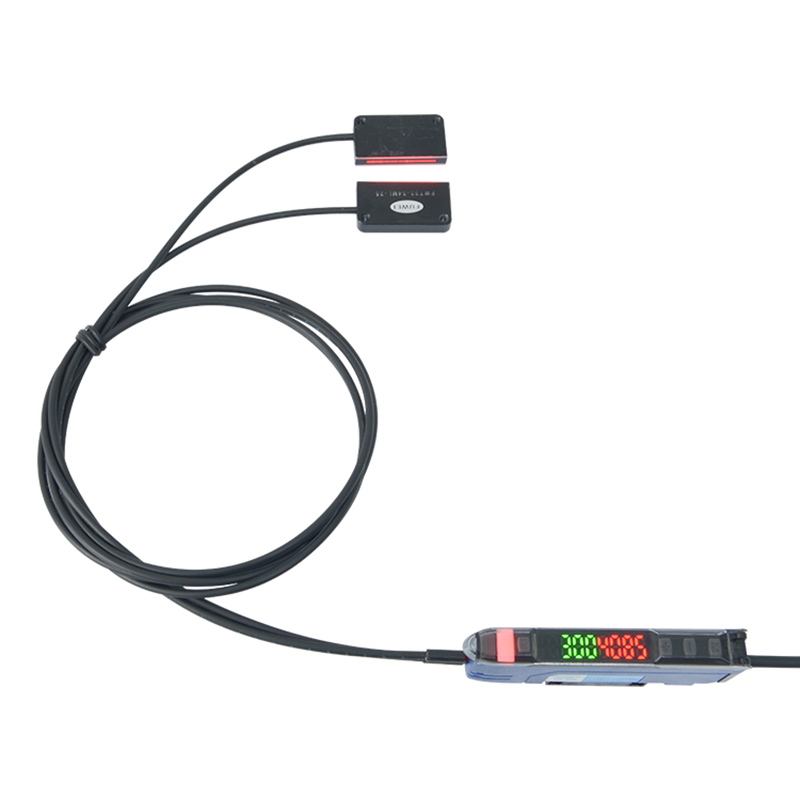

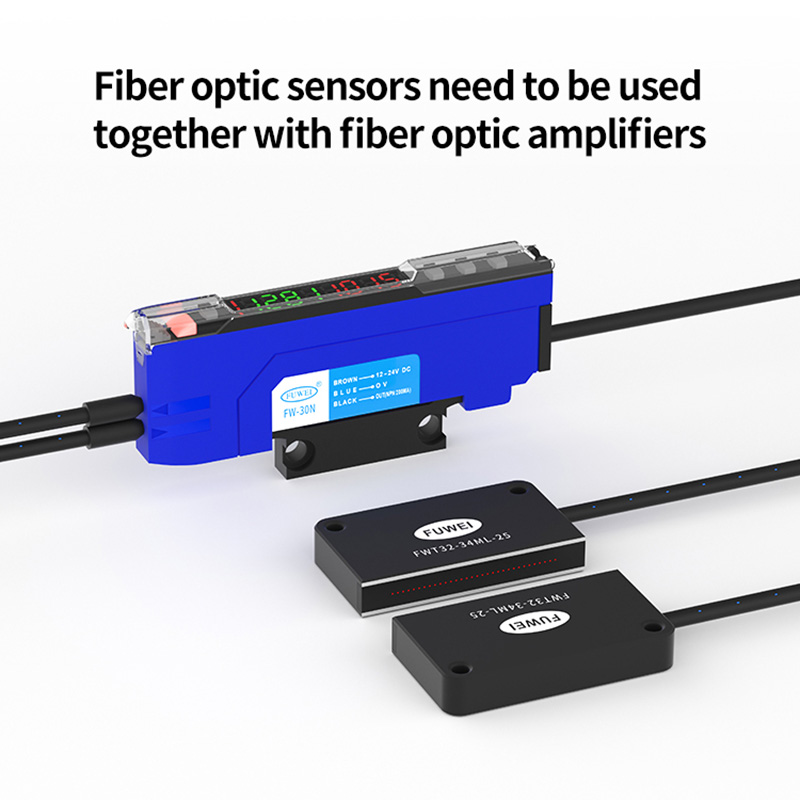

Strong adaptability, can be adapted to various brands of amplifiers.
Model
FWT32-34ML-25
Detection
Through Beam
Exit Surface
50mm
Fiber Optic Core
32-core
Bending Radius
R25
Detection Distance
0-500mm
Product Size
34x19x6mm
Fiber Diameter
φ2.6
Fiber Inner Diameter
φ0.25*32
Operation Temperature
-40~55℃
Shell Material
Aluminium
Metallic Sheath
NO

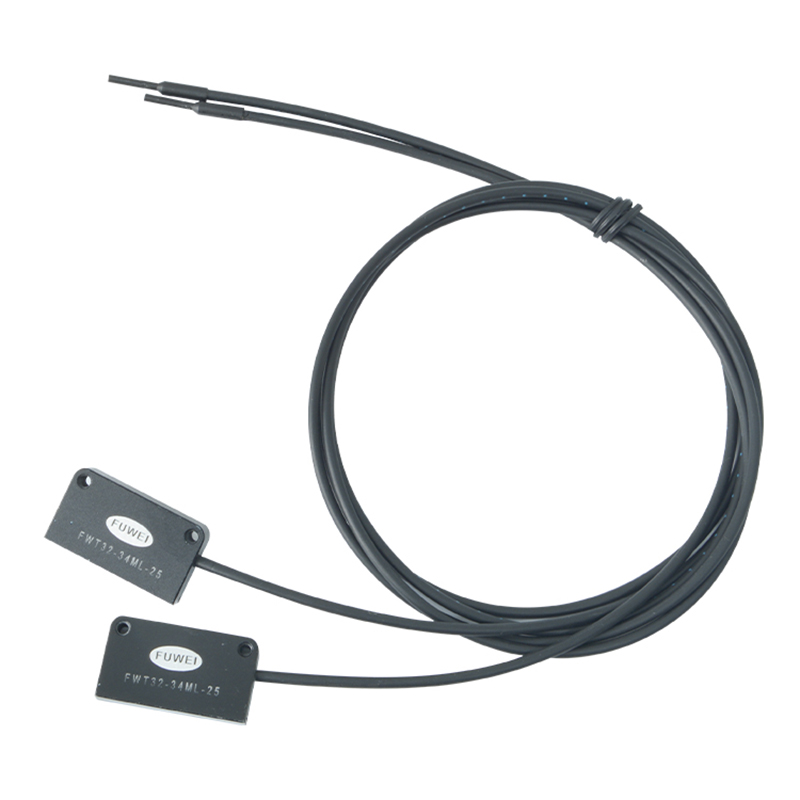

Line Length
Standard configuration of 1m,customizable wire length
To inquire about laser displacement sensors, tag sensors, or safety light curtains, kindly leave your email address, and we'll reach out to you within 24 hours.
