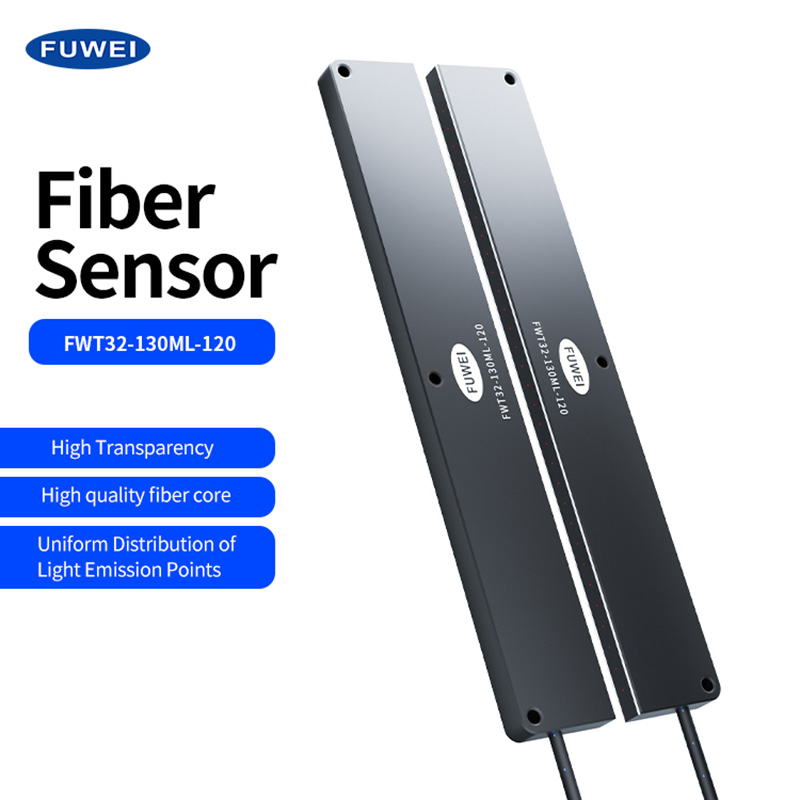

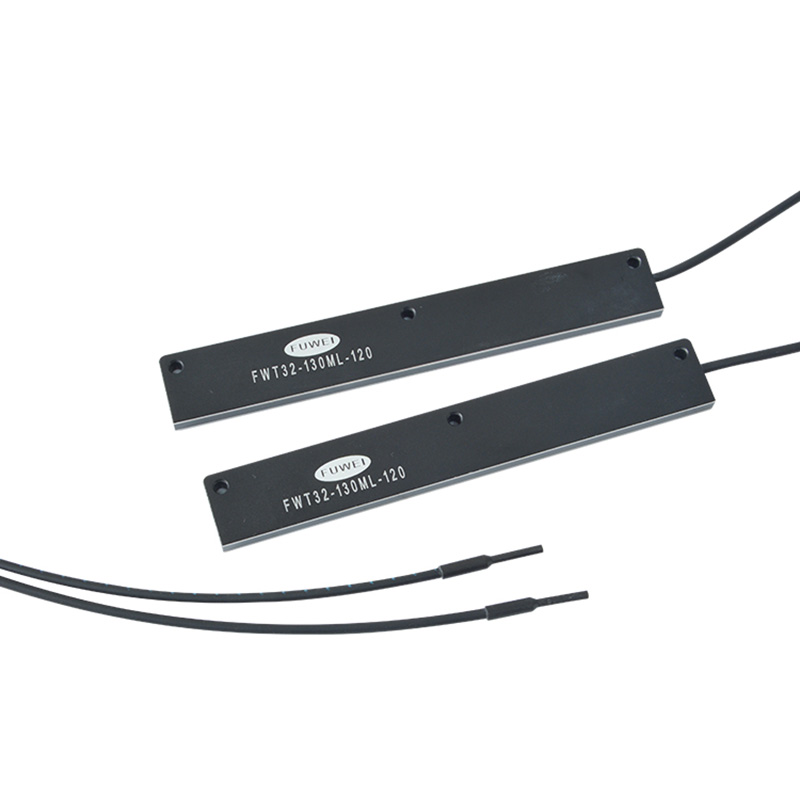

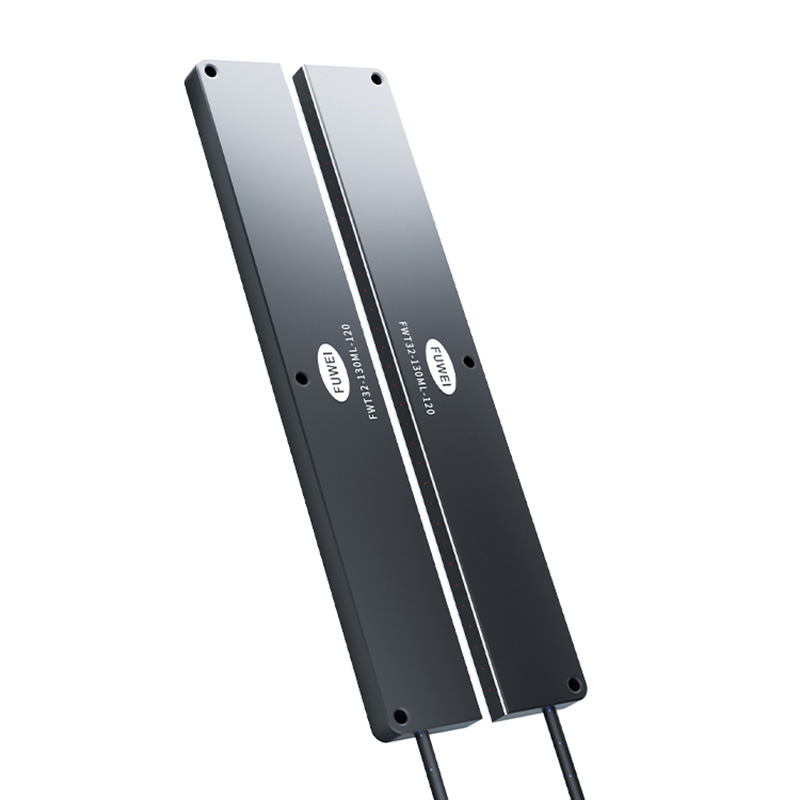

Matrix Fiber Optic Sensor FWT32-130ML-120 is equipped with an imported fiber core, which ensures strong light transmission and excellent light conductivity, laying a solid foundation for efficient and stable signal transmission. It features region detection capability with uniform light distribution, enabling consistent and accurate sensing across the target area to meet the needs of large-range detection scenarios. Additionally, the sensor boasts remarkable fiber bending resistance, with a minimum bending radius of R25, allowing for flexible installation in complex spatial environments without compromising its performance, thus enhancing its adaptability in various industrial applications.
The Matrix Fiber Optic Sensor FWT32-130ML-120 is equipped with an imported fiber core, which ensures strong light transmission and excellent light conductivity, laying a solid foundation for efficient and stable signal transmission. It features region detection capability with uniform light distribution, enabling consistent and accurate sensing across the target area to meet the needs of large-range detection scenarios. Additionally, the sensor boasts remarkable fiber bending resistance, with a minimum bending radius of R25, allowing for flexible installation in complex spatial environments without compromising its performance, thus enhancing its adaptability in various industrial applications.

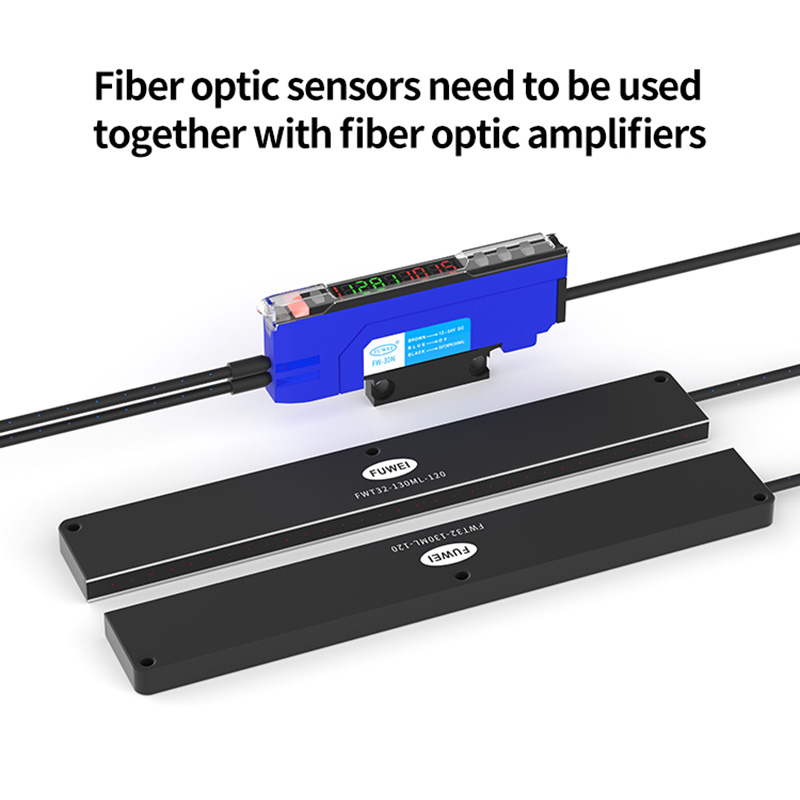

Strong adaptability, can be adapted to various brands of amplifiers.
Model
FWT32-130ML-120
Detection
Through Beam

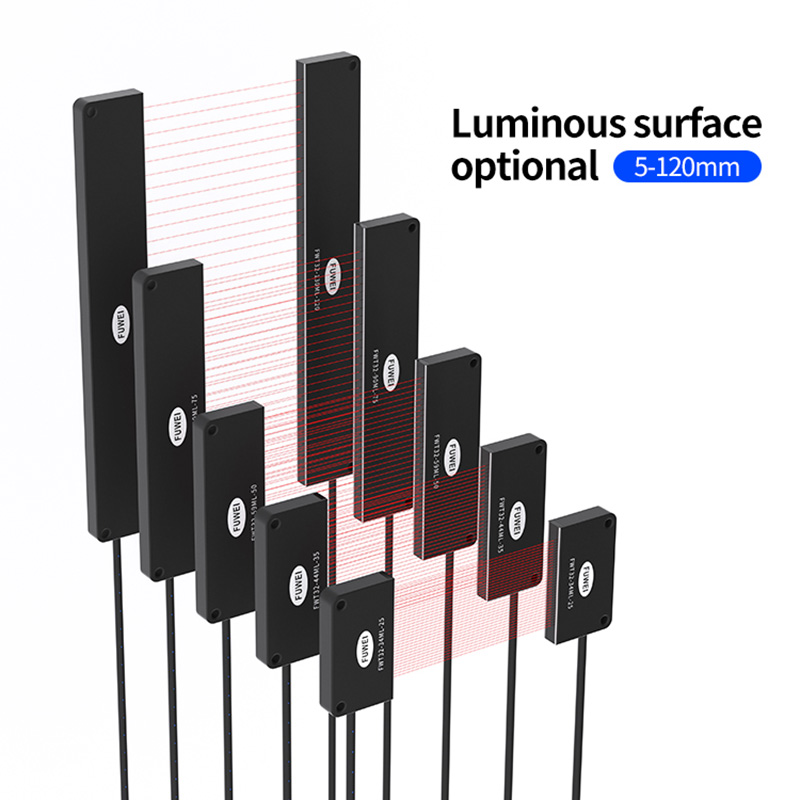

Exit Surface
120mm
Fiber Optic Core
32-core
Bending Radius
R25
Detection Distance
0-500mm
Product Size
130x19x6mm
Fiber Diameter
φ2.6
Fiber Inner Diameter
φ0.25*32
Operation Temperature
-40~55℃
Shell Material
Aluminium
Metallic Sheath
NO

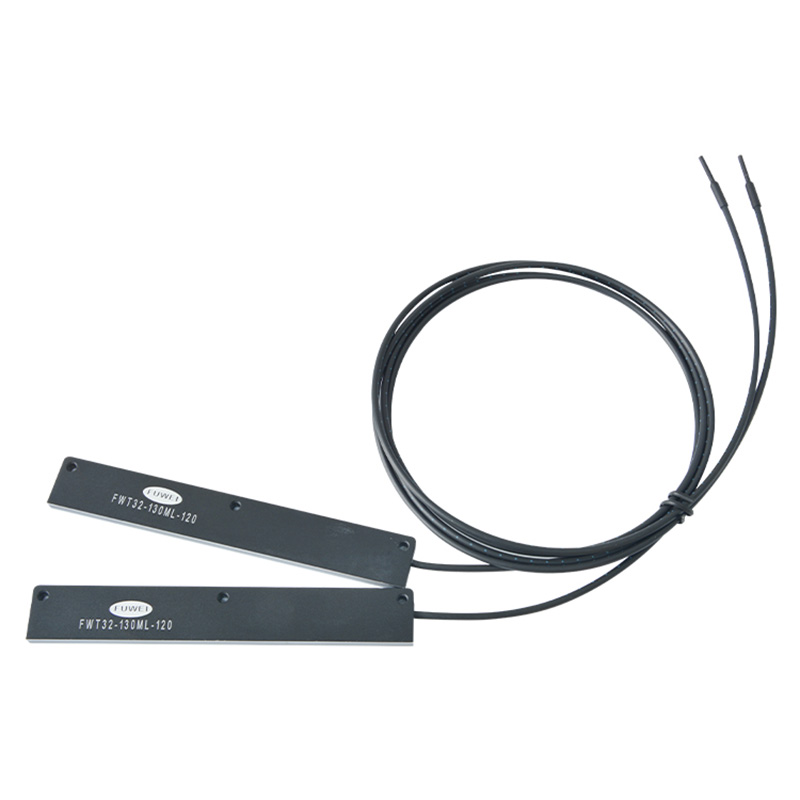

Line Length
Standard configuration of 1m,customizable wire length
To inquire about laser displacement sensors, tag sensors, or safety light curtains, kindly leave your email address, and we'll reach out to you within 24 hours.
