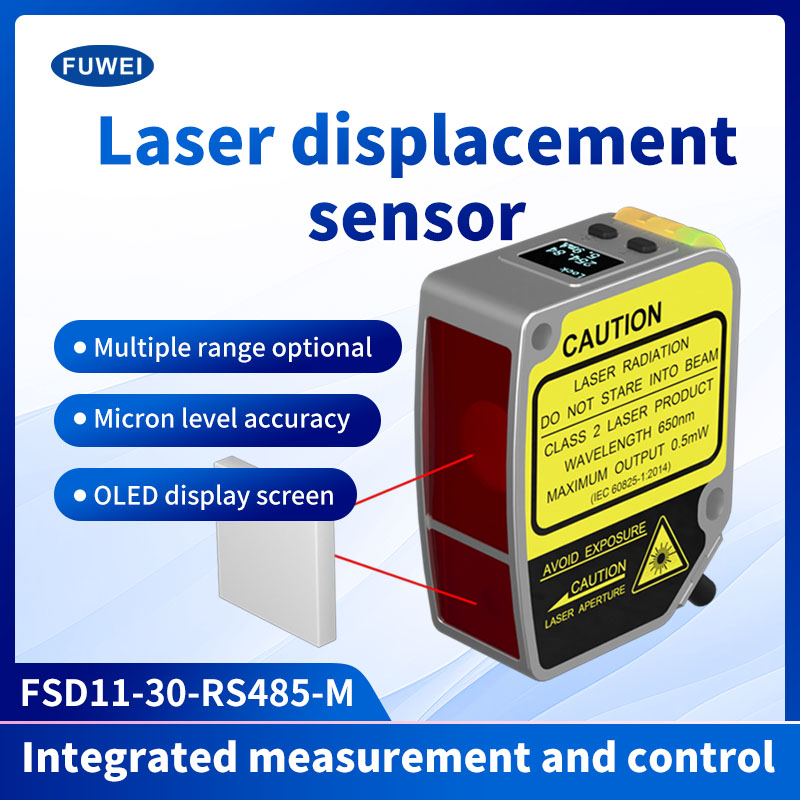

High-accuracy laser displacement sensor

Model: FSD11-50-RS485

High precision CMOS sensors and unique algorithms,with ultra-high linear accuracy,achieve non-contactand wear free measurement.

Product Characteristics:

Measuring range: 35-65mm

Output mode: with switching and RS485 communication (support ModBus protocol)

Linearity accuracy: Standard: ±0.3% F.S. (35-65mm)

Repeatability: 20um

Resolution: 10um

Spot size: Φ0.5mm at 50mm

Response time: 2ms/16ms/40ms settable

Ambient light resistance: incandescent light ≥ 3,000lux

Operation panel: OLED digital display

Temperature drift: ±0.02%F.S./°C



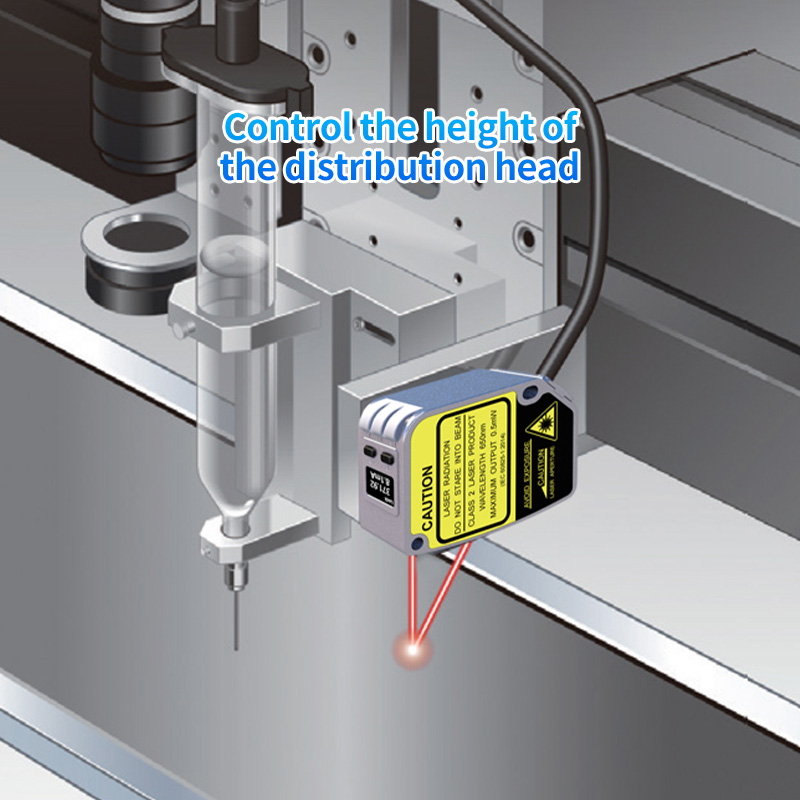

Accurate MeasurementCapability

High precision CMOS sensors and unique algorithms,with ultra-high linear accuracy,achieve non-contactand wear free measurement.



Can Communicate Datawith Upper Level DevicesSuch as PLC

Using the RS-485 interface, up to 32 sensors can be connected(each sensor has a different address set separately),sendingrequest messages from the PLC and returning measurementvalues.



Tiny Laser Spot

Good black and white color difference, with a spot size ofonly0.5mm, can accurately detect small objects.



Powerful Operational Functions

Powerful operating functions: rich range and precisionoptions with different modes and filtering settings, combinedwith zero point setting, single point, window teaching,simulation mapping setting and other functions. Ensure stableand flexible process control and detection.




Flexible Output Methods

Flexible output mode:built-in switch output (NPN/PNP/PULL-PUSH)+analog outputof 4.20mA or RS-485,and supports MODBUS protocol,without the need to connect to the controller, workingindependently, whether it is a PLC or an industrial computer,it can be easily connected directly.


Digital Display

It is easy to set while confirmingthe displacement amount.



IP67

lP67 protection structure can be usedeven in environments with high levelsof moisture and dust. A metal liningtube isinserted into the installationhole and can be securely secured witha torque of0.8N· m.


Convenient Installation

The functions of the controller areall integrated into the sensor,eliminating the need for additionalcontrollers to save space.


Supports NPN/PNP polarity

By changing the wiring method,a product can be compatible withboth NPN/PNP polarities, therebyreducing the need for modelregistration for maintenance andupkeep.



Product Size:

Wiring Guidelines:

Specification:

Digital Display Laser Displacement Sensor

Part Number

RS-485 output


FSD11-30-RS485-M
FSD11-50-RS485
FSD11-85-RS485-M
Measuring center distance
30mm
50mm8 85mm
Measuring range
±5mm
±15mm
±25mm
Full range(F.S.)
10mm
30mm
50mm
Light spot size
Φ0.5mm@30mm
Φ0.5mm@50mm
Φ0.5mm@85mm
Resolution
2.5um@30mm
10um@50mm
30um@85mm
Repeated stabilily①②③
5um
20um
60um
Temperature drift
±0.08%F.S./°C
±0.02%F.S./°C
±0.04%F.S./°C
Linear accuracy①②
Please refer to the specification of specific models
Supply voltage
RS-485:10...30VDC;4...20mA:12...24VDC
Load current
200mA
Voltage drop
<2.5V
Light source type
Red laser(650nm); Laser level:Class 2
Dimension
65*51*23mm
Output 1
Digital value:RS-4S5(Support ModBus protocol);Analog:4...20mA(Load resistance<390Ω)
Output 2
Switch value:PUSH-PULL/NPN/PNP NO/NC Settable
Distance setting
RS-485:keypress/RS-485 setting;4... 20mA:keypress setting
Response time
2ms、16ms、 40ms Settable
Indicator

Power indicator:Green LED; Motion indicator:Yellow LED;

Alarm indicator:Yellow LED

Display
OLED Display(Size: 14*10.7mm)
Built-in function④
•Slave address&Port rate setting  •Zero set •Product self-check  •Output setting •Parameter query •Average setting  •Analog map settings •Single point teach •window teach •Factory default
Protection circuit⑤
Short circuit,reverse polarity,overload protection
Service environment
Operating temperature:-10.. .+50®C; Storage temperature :-20.. .+70°C Environment humidity:35...85%RH(No condensation)
Anti ambient light
Incandescent light:<3,000 lux
Protection degree
IP67
Material
Housmg:Aluminium;Lens cover:PMMA Display panel: PC
Vibration resistant
10...55Hz Double amplitude 1mm, 2hrs each for X,XZ direction
Impulse withsand
500m/s2(About 50G),3 times each for X,Y,Z direction
Connection way
2m 5pin/4pin PVC cable (5pin: RS-485 output;4pin:Analog output)
Accessoiy

Screw(M4X35mm)X2、NutX2、Washer X 2、Mounting brackets 、

Operation manual
