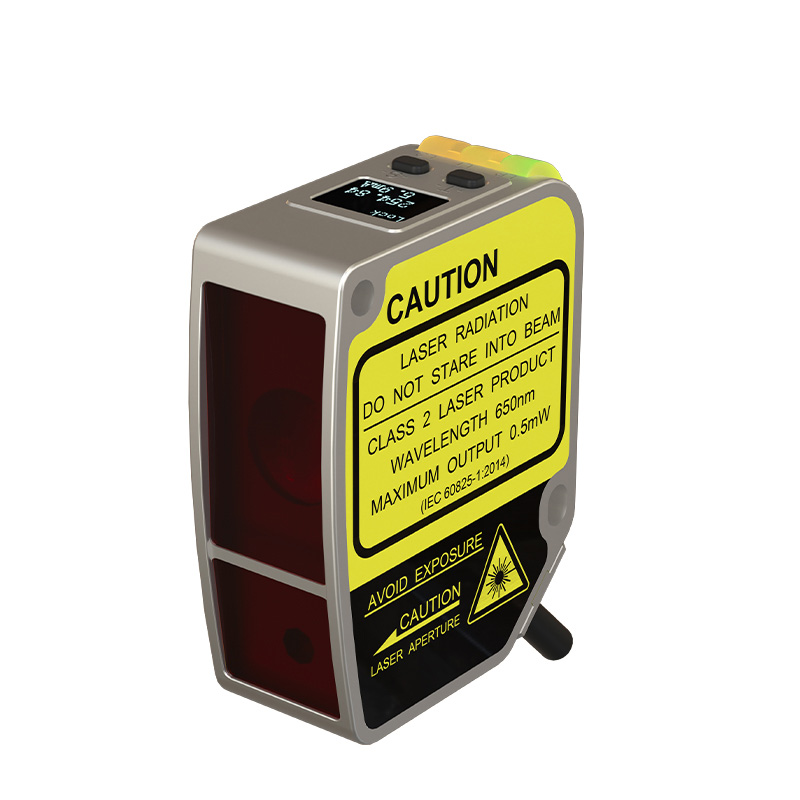

OLED Digital Display Laser Displacement Sensor

Model: FSD11-50-AA-M
OLED Digital Display Laser Displacement Sensor Measuring range: 35-65mm Output mode: with switch quantity, current 4-20mA Linearity accuracy: high precision type: ± 0.1% F.S. (35-65mm) Repeatability: 20um Resolution: 10um Spot size: Φ0.5mm at 50mm Response time：2ms/16ms/40ms can be set Ambient light resistance: incandescent light ≥ 3,000lux Operation panel: OLED digital display Temperature drift: ±0.02%F.S./°C
Send InquiryPDF DownLoad
Product Description

OLED Digital Display Laser Displacement Sensor Product Characteristics：

Measuring range: 35-65mm

Output mode: with switch quantity, current 4-20mA

Linearity accuracy: high precision type: ± 0.1% F.S. (35-65mm)

Repeatability: 20um

Resolution: 10um

Spot size: Φ0.5mm at 50mm

Response time：2ms/16ms/40ms can be set

Ambient light resistance: incandescent light ≥ 3,000lux

Operation panel: OLED digital display

Temperature drift: ±0.02%F.S./°C












Specification:

Digital Display Laser Displacement Sensor

Part Number

4...20mA output

FSD11-30-AA-M
 FSD11-50-AA-M
 FSD11-80-AA-M
Measuring center distance
 30mm
 50mm 85mm
Measuring range
 ±5mm
 ±15mm
 ±25mm
Full range(F.S.)
 10mm
 30mm
 50mm
Light spot size
 Φ0.5mm@30mm
 Φ0.5mm@50mm

Φ0.5mm@85mm

Resolution
 2.5um@30mm
 10um@50mm
 30um@85mm
Repeated stabilily①②③
 5um
 20um
 60um
Light spot size
 Φ0.5mm@30mm
 Φ0.5mm@50mm
 Φ0.5mm@85mm
Resolution
 2.5um@30mm
 10um@50mm
 30um@85mm
Repeated stabilily①②③
 5um
 20um
 60um
Temperature drift
 ±0.08%F.S./°C
 ±0.02%F.S./°C
 ±0.04%F.S./°C
Linear accuracy①②
 Please refer to the specification of specific models
Supply voltage
 RS-485:10...30VDC;4...20mA:12...24VDC
Load current
 200mA
Voltage drop
 <2.5V
Light source type
 Red laser(650nm); Laser level:Class 2

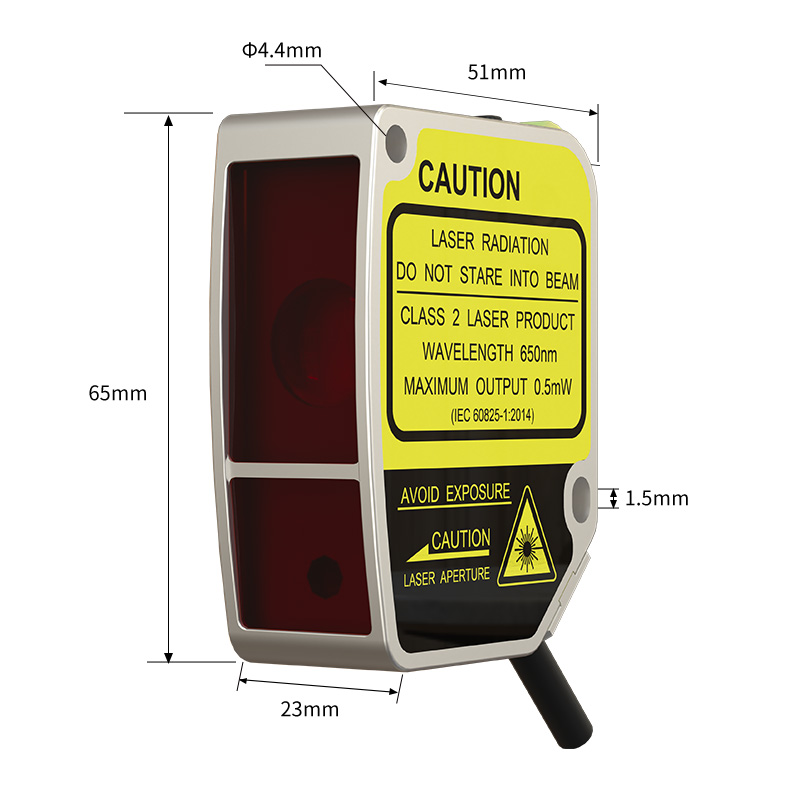

Dimension
 65*51*23mm
Output 1
 Digital value:RS-4S5(Support ModBus protocol);Analog:4...20mA(Load resistance<390Ω)
Output 2
 Switch value:PUSH-PULL/NPN/PNP NO/NC Settable
Distance setting
 RS-485:keypress/RS-485 setting;4... 20mA:keypress setting
Response time
 2ms、16ms、 40ms Settable
Indicator

Power indicator:Green LED; Motion indicator:Yellow LED;

Alarm indicator:Yellow LED

Display
 OLED Display(Size: 14*10.7mm)
