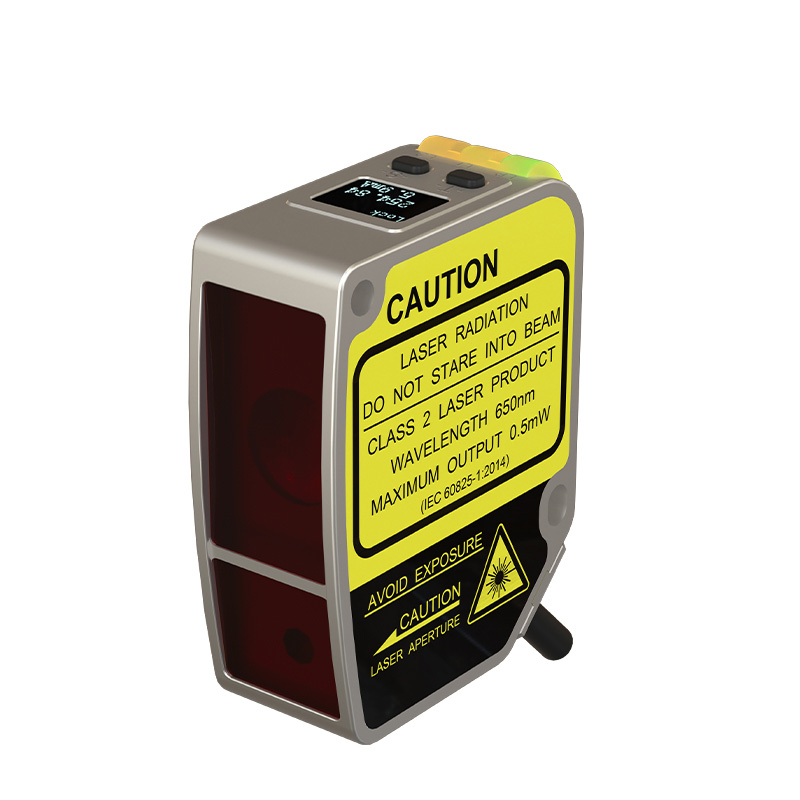

Model:FSD11-30-RS485
Laser displacement sensor. Measuring range: 25-35mm Output mode: with switching and RS485 communication (support ModBus protocol) Linearity accuracy: Standard: ±0.3% F.S. (25-35mm) Repeatability: 5um Resolution: 2.5um Spot size: Φ0.5mm at 30mm Response time: 2ms/16ms/40ms settable
Send Inquiry PDF DownLoad

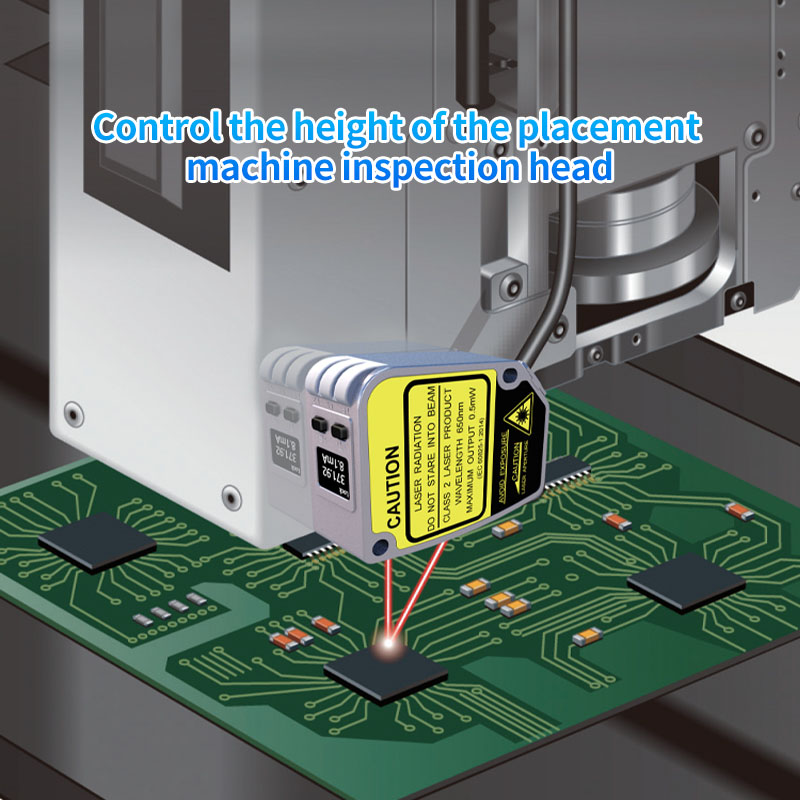

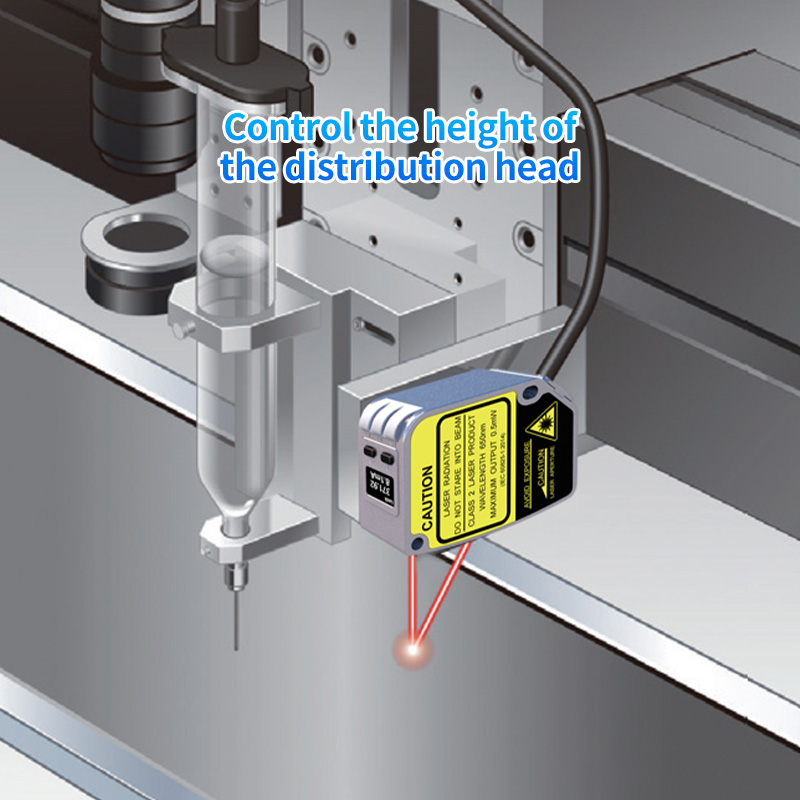

Product Description

Laser displacement sensor. Product Characteristics：

Measuring range: 25-35mm

Output mode: with switching and RS485 communication (support ModBus protocol)

Linearity accuracy: Standard: ±0.3% F.S. (25-35mm)

Repeatability: 5um

Resolution: 2.5um

Spot size: Φ0.5mm at 30mm

Response time: 2ms/16ms/40ms settable










Specification:

Standard Type

RS-485
 FSD11-30-RS485
 FSD11-50-RS485
 FSD11-85-RS485
4-20mA
 FSD11-30-AA
 FSD11-50-AA
 FSD11-85-AA

High Precision Type

RS-485 FSD11-30-RS485-M
 FSD11-50-RS485-M
 FSD11-85-RS485-M
4-20mA
 FSD11-30-AA-M
 FSD11-50-AA-M
 FSD11-85-AA-M

Measure Center Distance

30mm
 50mm
 85mm
Measuring Range
 士5mm
 士15mm
 士25mm
F.S.
 10mm
 30mm
 50mm
Linearity
 Standard type:RS485:+0.3%FS.; 4-20mA:+0.4%FS.
High precision type:RS485:±0.1%FS; 4-20mA:±0.1%F.S
Supply Voltage
 RS-485: 10..30VDC: 4...20mA: 12...24VDC
Power
 Consumption

<700mW

LOAD
 200mA
Pressure Drop
 <2.5V
Light Source
 Red laser (650nm); Laser level: Class 2
Spot Size
 中0.5mm@30nm
 中0.5mm@50nm
 中0.5mm@85nm
Size

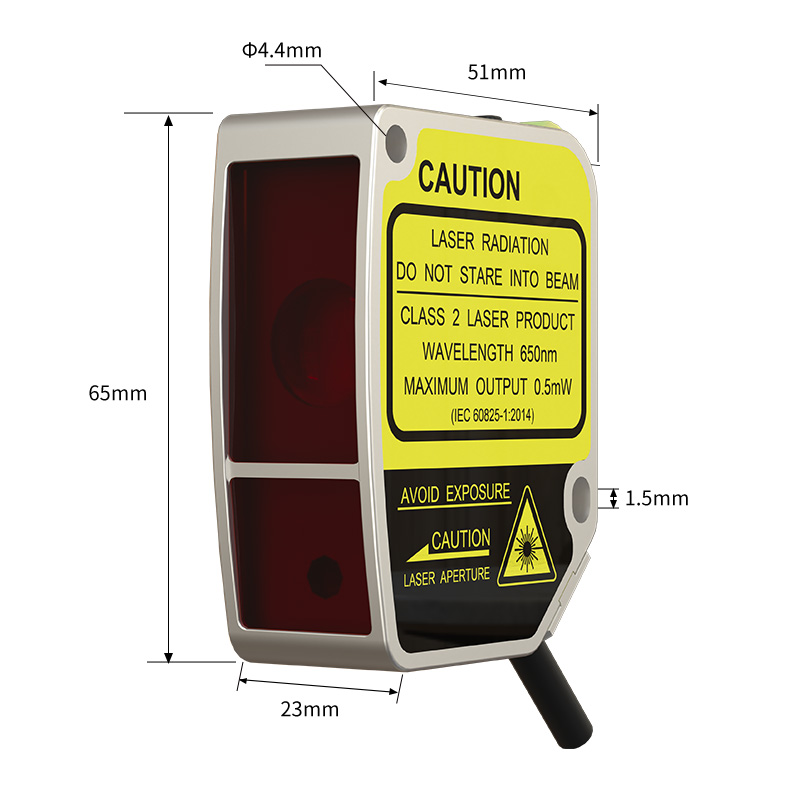

65*51*23mm

Resolution Ratio
 2.5um@30mm
 10um@50mm
 30um@85mm
Repeatability
 5um
 20um
 60um
Output1
 Digital quantity: RS-485 (supports ModBus protocol);

Analog quantity: 4-20mA(load resistance < 390 Ω)

Output2
 Switching quantity: PUSH-PULL/NPN/PNP and NO/NC can be set
Distance Setting
 RS-485: Button/RS-485 setting; 4...20mA: Key settings

Temperature Drift

士0.08%F.S./°C
 士0.02%F.S./°C
 士0.04%FS./°C
Response Time
 2ms/16ms/40ms can be set
Pilot Lamp

Powerindicator: Green LED; Action indicator: Red LED;

Alarm indication: Yellow LED

Display Screen
 OLED displayscreen (size:14*10.7mm)
Built in Features
 Slave address&Port rate setting· Parameter query·window teachZero set· Product self-check·Output setting·Single point teachAverage setting·Analog map settings
Protection

Circuit

Short circuit protection, reverse polarity protection, overload protection
Usage

Environment

Workingtemperature: -10~+50°C; Storage environment: -20~+70 °C:

Environmentalhumidity: 35%~85% RH (without condensation)

Resistance to

Ambient Light

Incandescent lamp:<3, 000lux
Protection Grade
 IP67
Material Quality
 Shell: Aluminum; Lens cover: PMAA, Display board: PC
Vibration

Resistance

10~55Hzdual amplitude lmm,2 hours each in X, Y, and Z directions

Impact

Resistance

500m/S*(Approximately 50G),3 times each in X,Y, andZ directions
Connection

method

2m 5-core/4-core PVC lead wire(5-core: RS-485 output; 4-core: analogoutput)

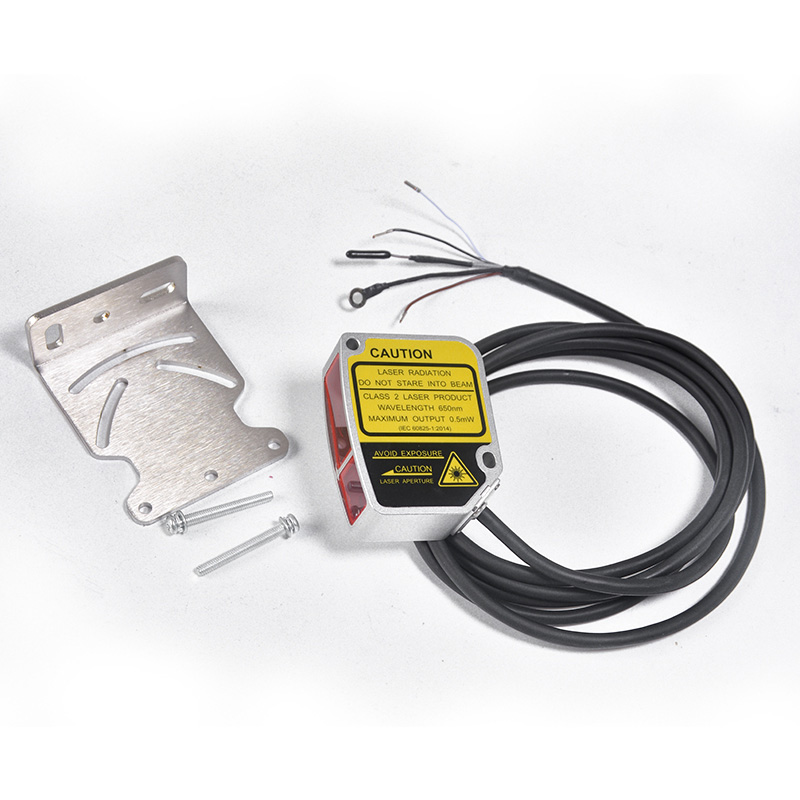

Annex

M4 screw (length 35mm)*2, nut*2, gasket*2, installation bracket, user manual
