FSD11-85-RS485-M

China High accuracy 0.01mm Laser displacement sensor Supplier, Manufacturer - Factory Direct Price - Fuwei Model: FSD11-85-RS485-M 20-meter Laser Range Sensor

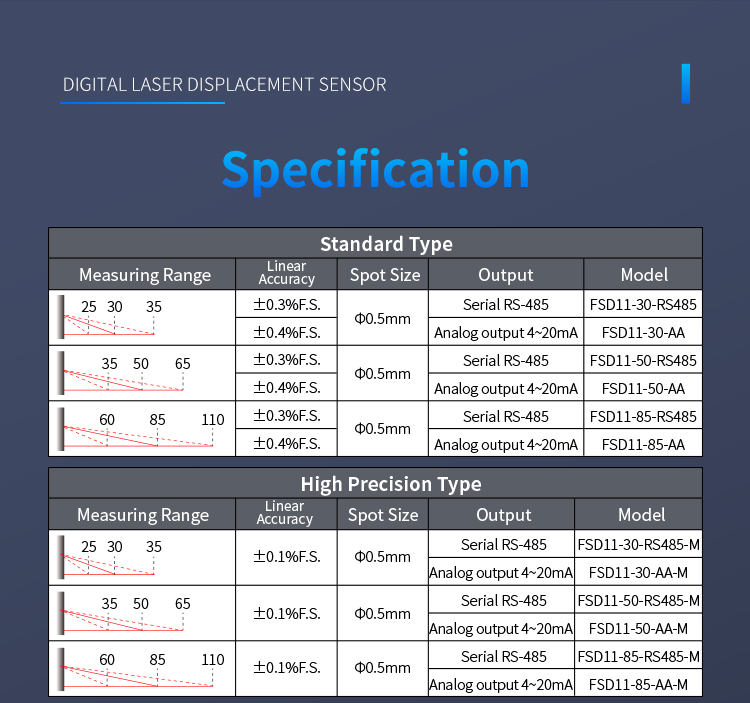

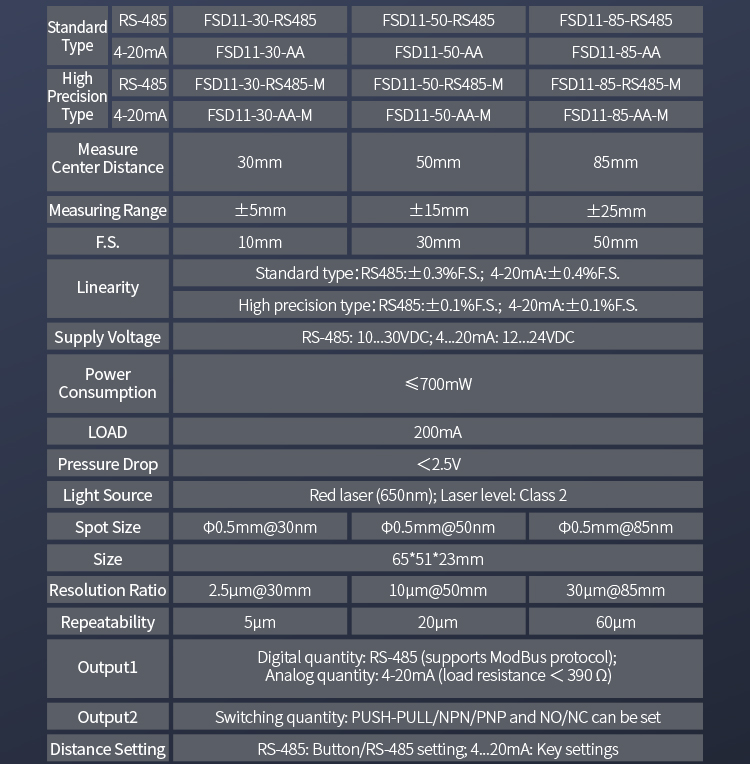

Measuring Range: 60-110mm

Output Method: Switch output and RS485 communication (supports ModBus protocol)

Linearity Accuracy: Standard type: ±0.3% F.S. (60-110mm); High-precision type: ±0.1% F.S. (360-110mm)

Repeatability: 60μm

Resolution: 30μm

Spot Size: Φ0.5mm at 85mm

Response Time: 2ms/16ms/40ms (configurable)

Ambient Light Resistance: Incandescent light ≥3,000 lux

Operation Panel: Equipped with OLED digital display

Temperature Drift: ±0.02% F.S./°C

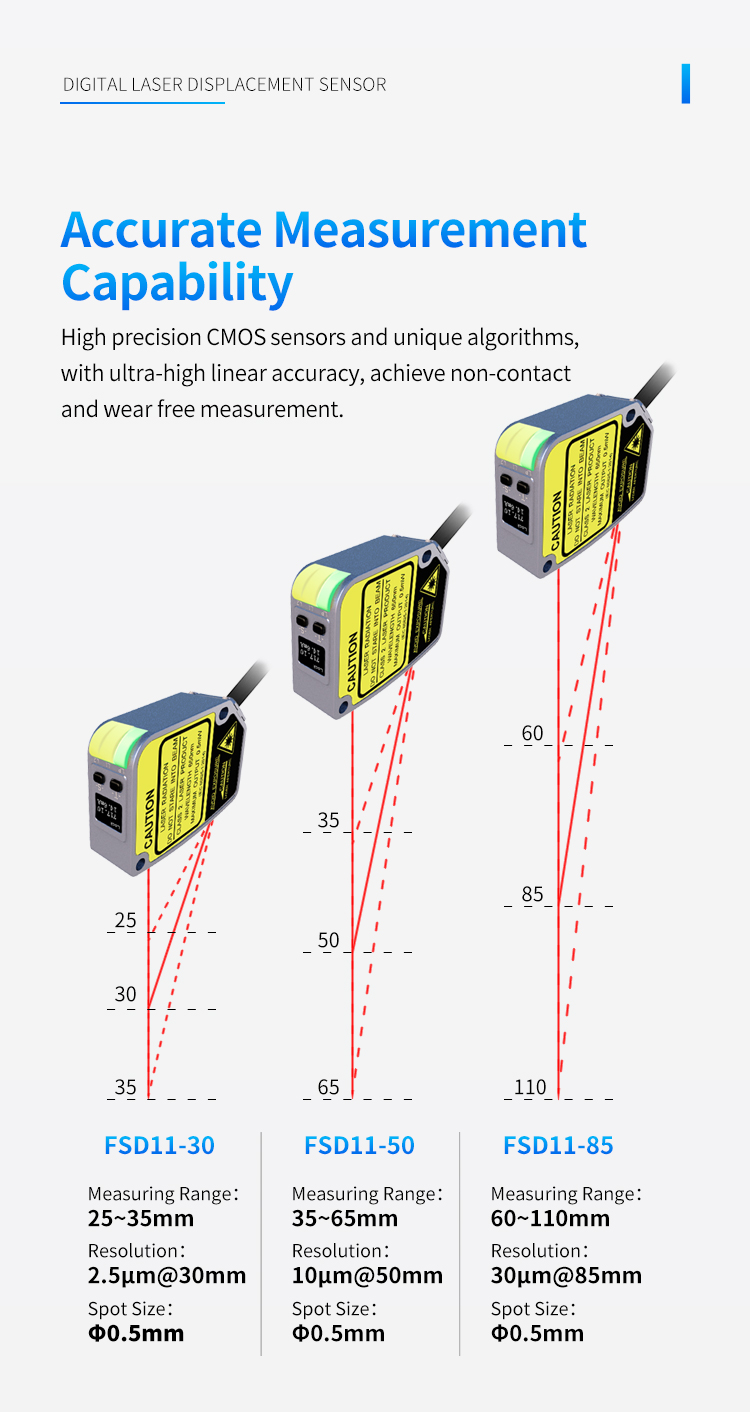

Accurate MeasurementCapability

High precision CMOS sensors and unique algorithms,with ultra-high linear accuracy, achieve non-contactand wear free measurement.

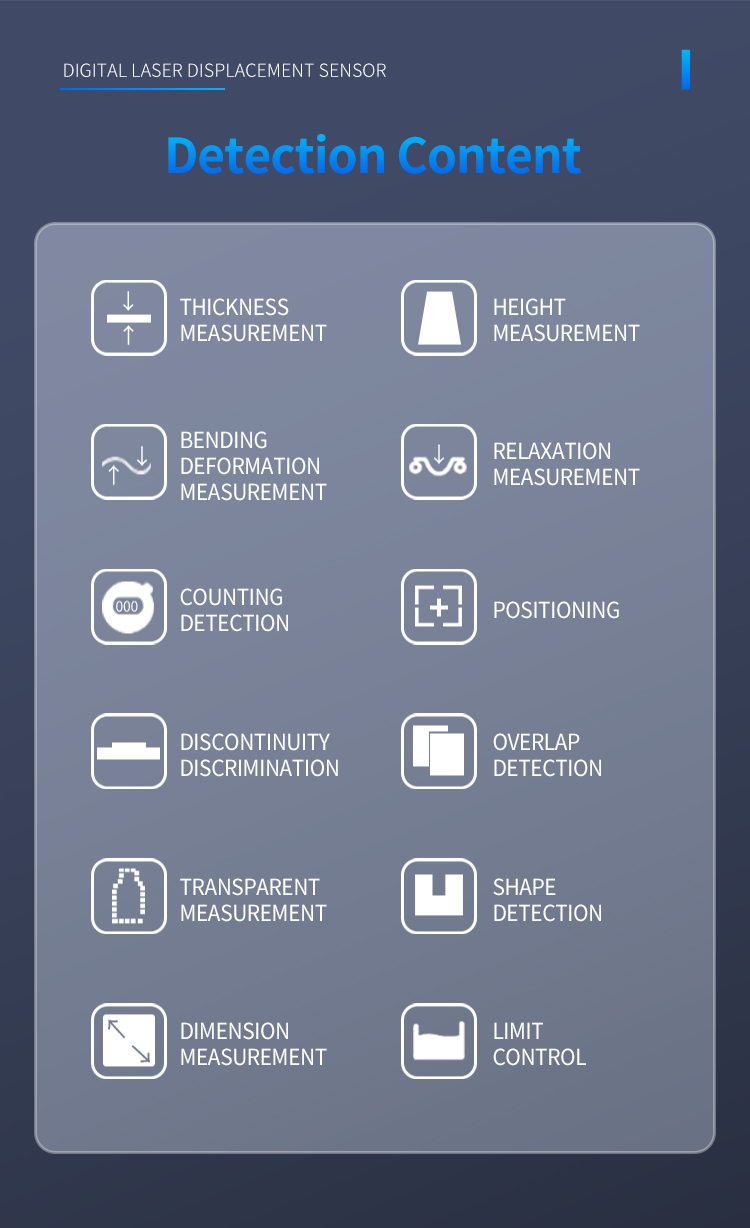

Detection Content:

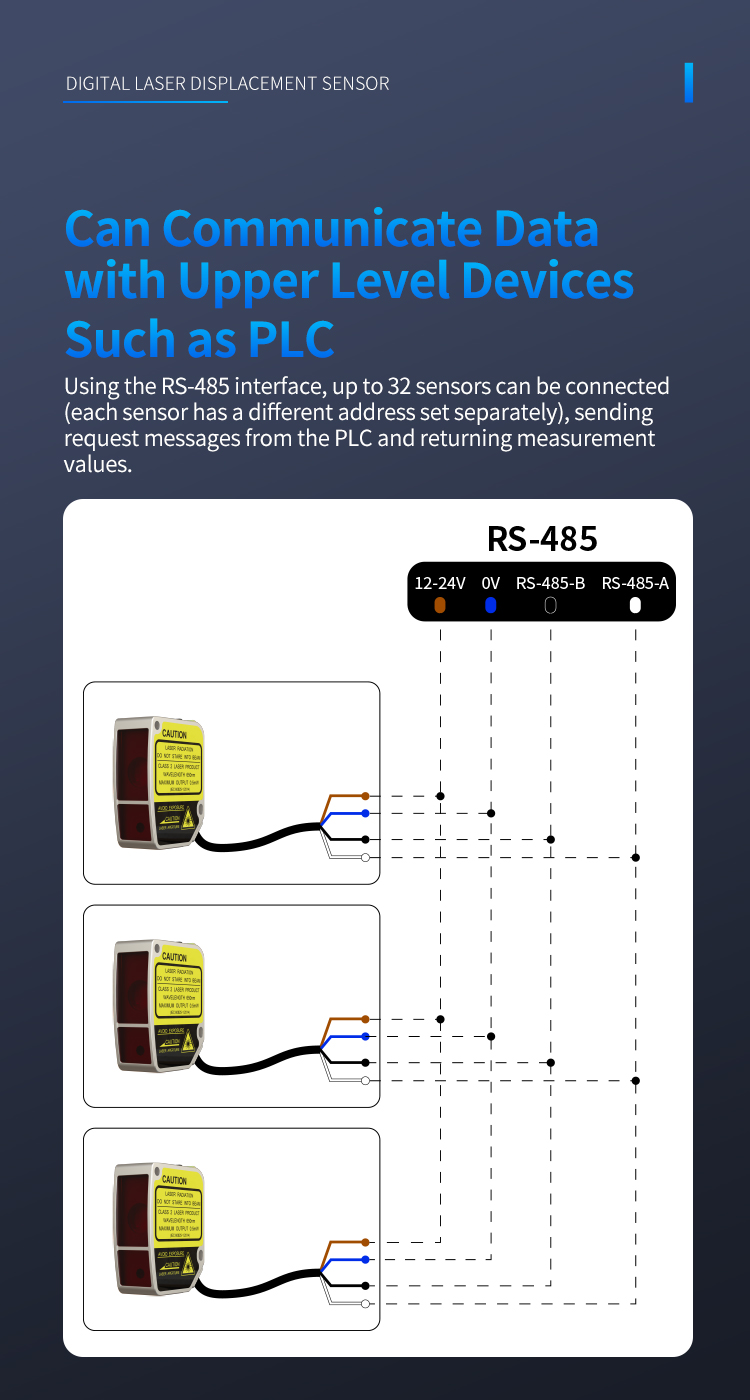

Can Communicate Datawith Upper Level DevicesSuch as PLC

Using the RS-485 interface, up to 32 sensors can be connected(each sensor has a different address set separately), sendingrequest messages from the PLC and returning measurementvalues.

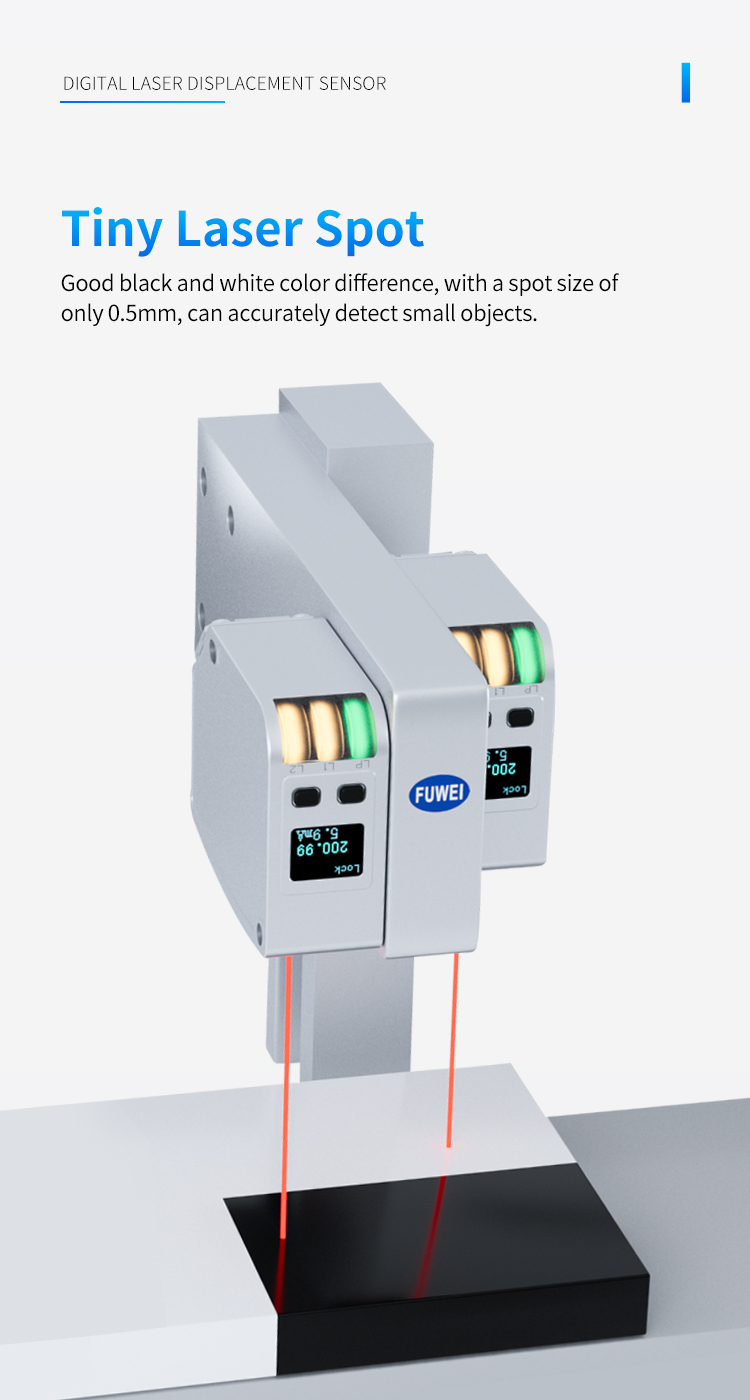

Tiny Laser Spot

Good black and white color difference, with a spot size ofonly0.5mm, can accurately detect small objects.

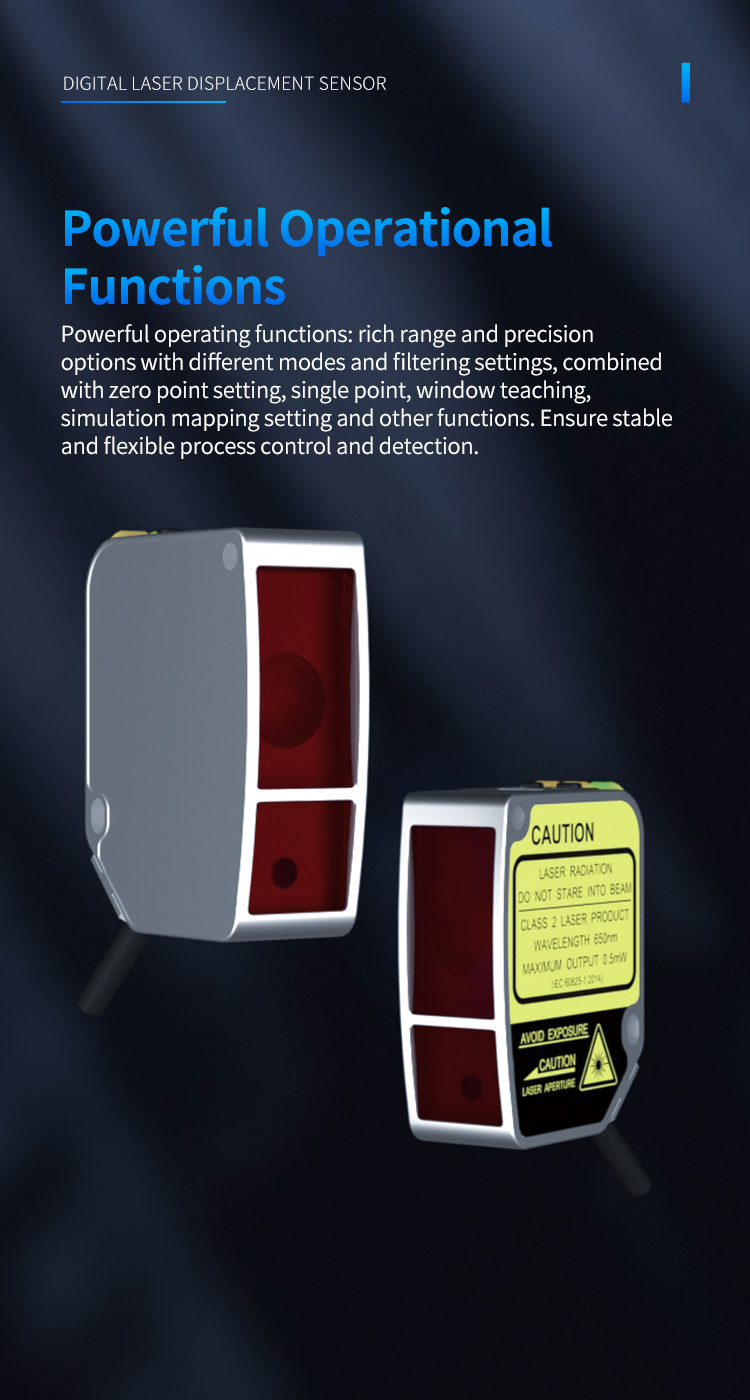

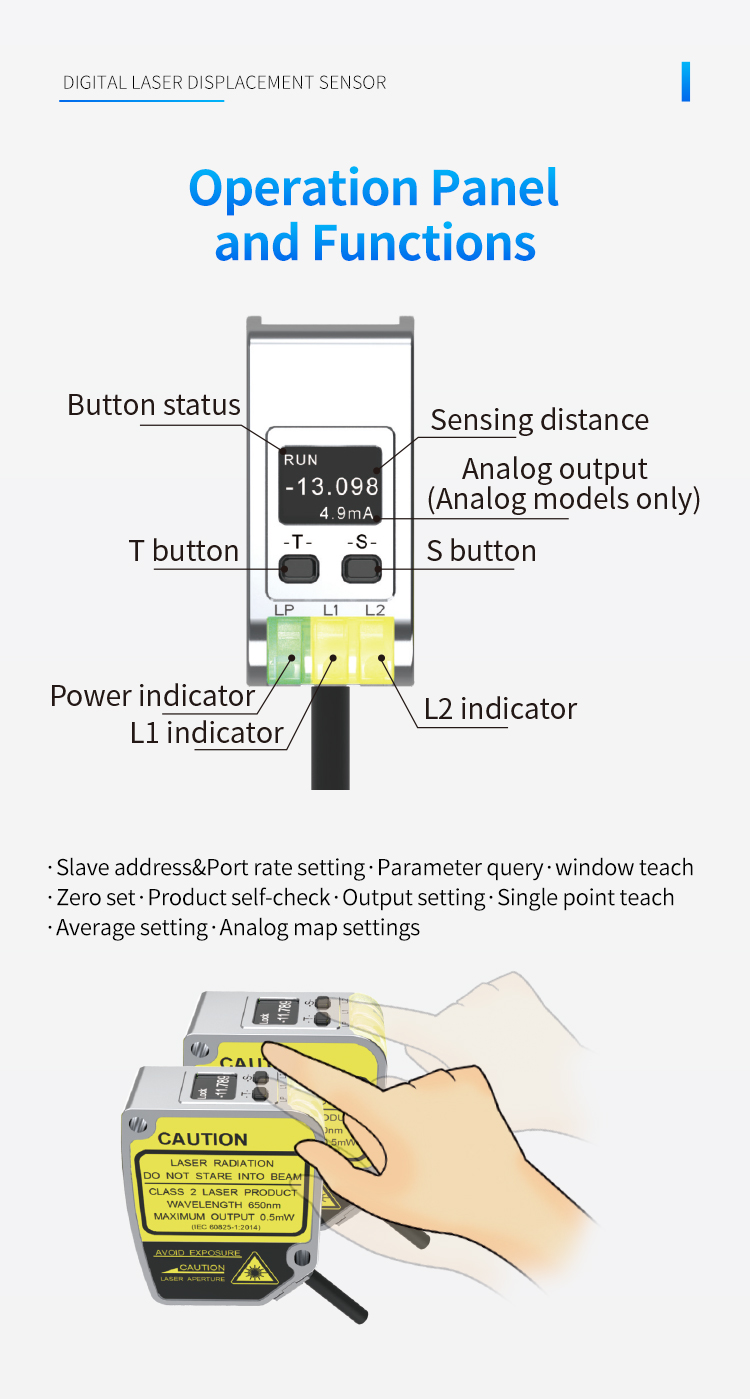

Powerful Operational Functions

Powerful operating functions: rich range and precisionoptions with different modes and filteringsettings, combinedwith zero point setting, single point, window teaching,simulation mapping setting and other functions. Ensure stableand flexible process control and detection.

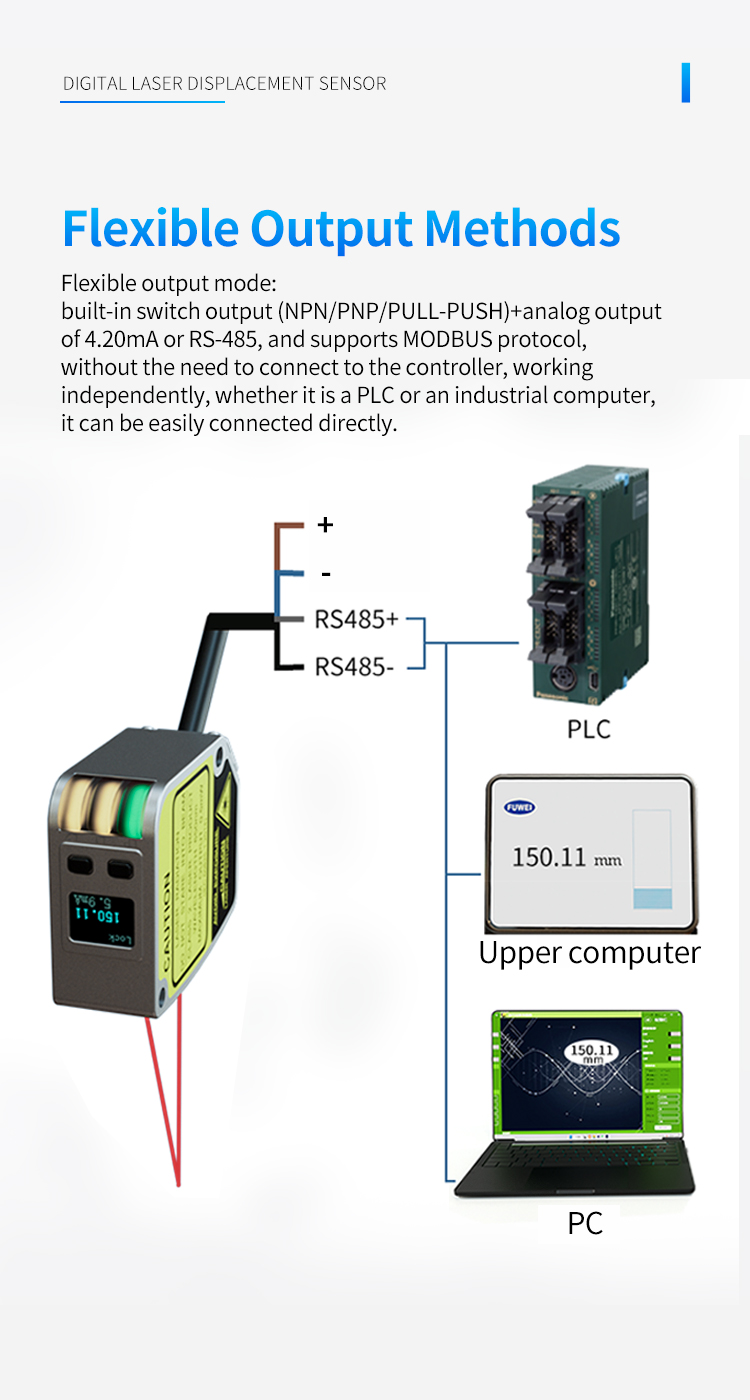

Flexible Output Methods

Flexible output mode:built-in switch output (NPN/PNP/PULL-PUSH)+analog outputof 4.20mA or RS-485,and supports MODBUS protocol,without the need to connect to the controller, workingindependently,whether it is a PLC or an industrial computer,it can be easily connected directly.

Digital Display

It is easy to set while confirmingthe displacement amount.

IP67

lP67 protection structure can be usedeven in environments with high levelsof moisture and dust. A metal liningtube is inserted into the installationhole and can be securely secured witha torque of0.8N · m.

ConvenientInstallation

The functions of the controller areall integrated into the sensoreliminating the need for additionalcontrollers to save space.

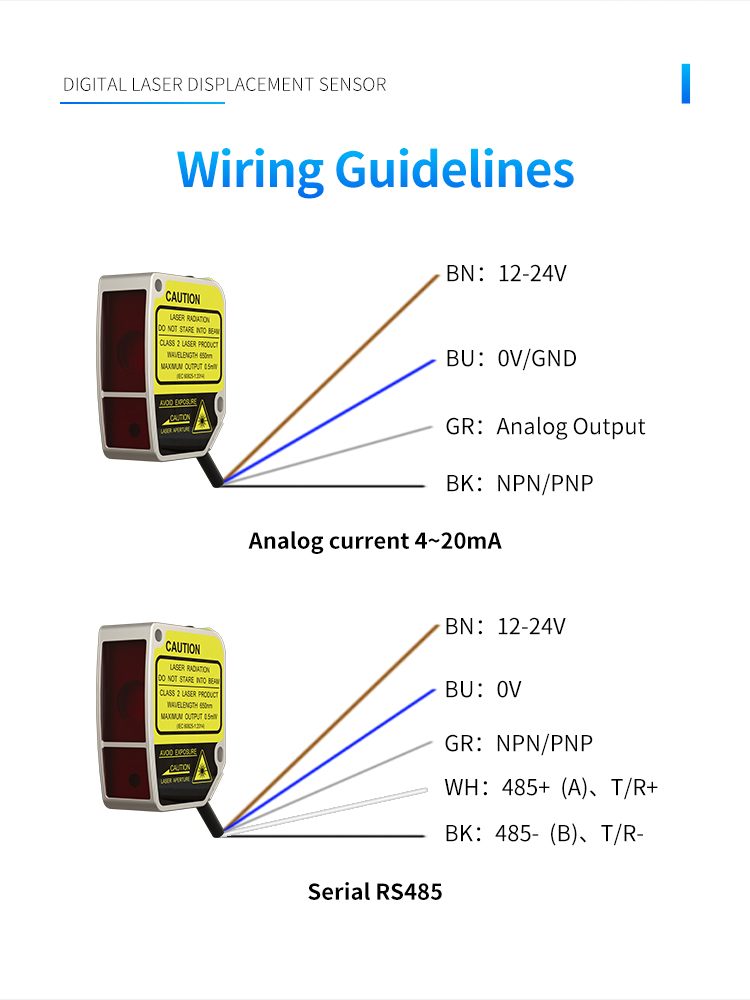

supports NPN/PNP polarity

By changing the wiring method,a product can be compatible withboth NPN/PNP polarities, therebyreducing the need for modelregistration for maintenance andupkeep.
