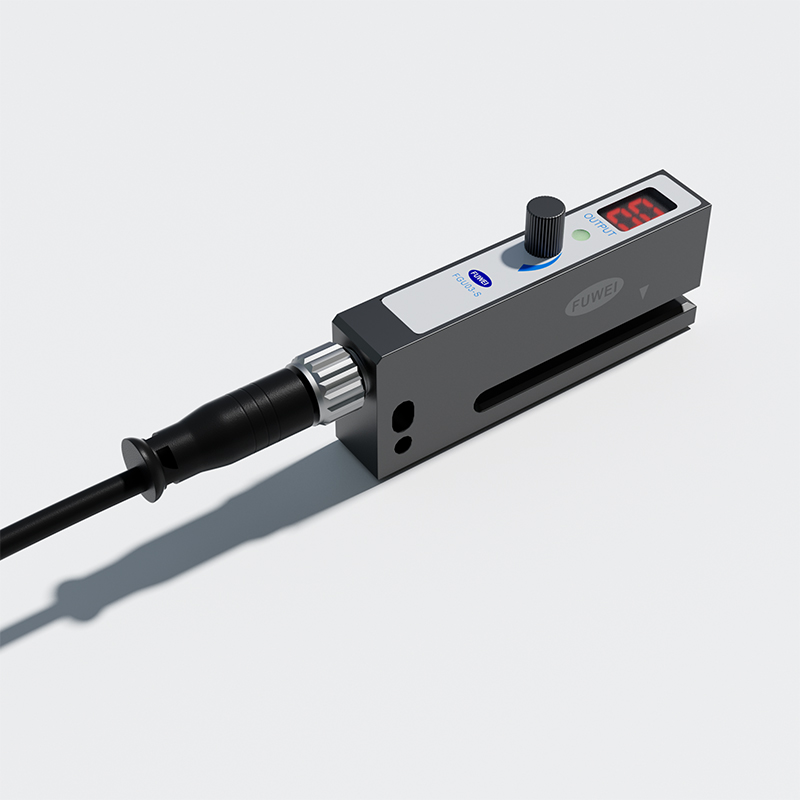

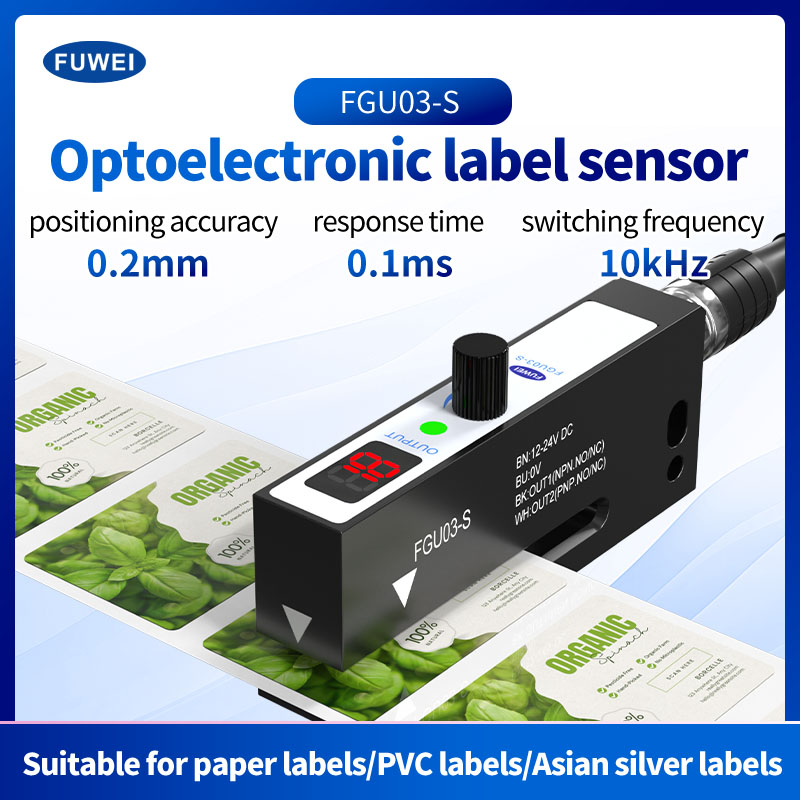

FGU03-S Product Features:
Photoelectric detection principle, applicable to non-transparent paper PVC, PU and other materials with transmittance changes in the label;

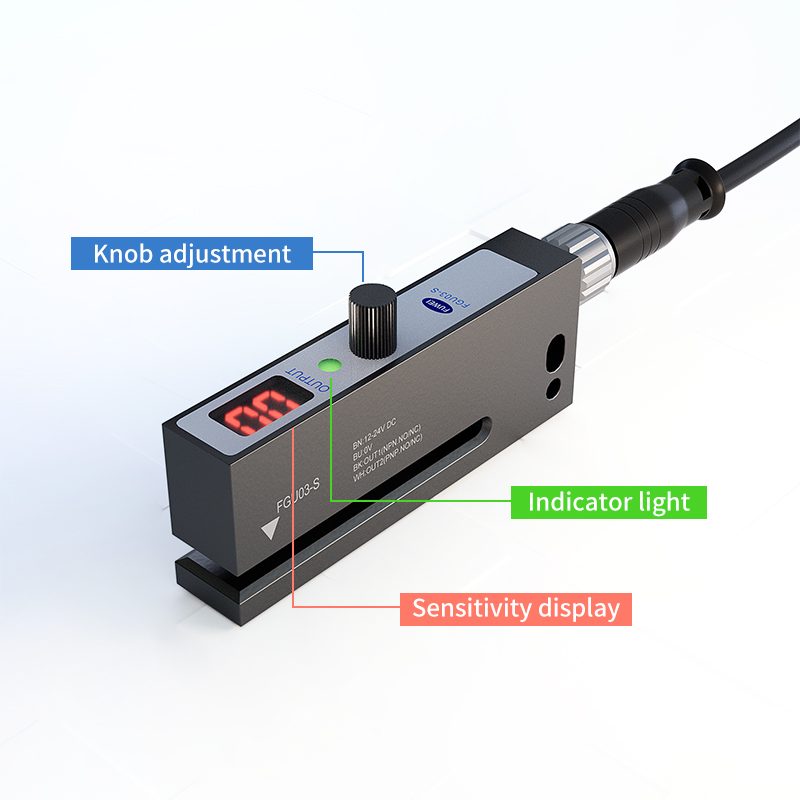

Sensitivity knob adjustment with a two-digit digital display, the use of settings simple and easy to understand;
Dual output: NPN + PNP, high adaptability
SPECIFICATIONS：
|
MODEL |
FGU03-S |
|
SLOT WIDTH |
3mm |
|
GROOVE DEPTH |
44mm |
|
RESPONSE FREQUENCY |
Max 10kHz |
|
RESPONSE TIME |
0.1ms |
|
POWER SUPPLY VOLTAGE |
10-30VDC |
|
CONTROL OUTPUT |
Route NPN.NO pathway PNP.NO |
|
DETECTION CHARACTERISTICS |
Label seam detection |
|
OUTPUT CURRENT |
<100mA |
|
CONSUMPTION CURRENT |
25mA Max |
|
GREEN INDICATOR LIGHT |
Signal output indicator light |
|
ENVIRONMENTAL TEMPERATURE/HUMIDITY |
0-60°C/0-80%RH |
|
PROTECTION LEVEL |
IP66 |
|
SHELL MATERIAL |
metal |
|
CONNECTION METHOD |
M8 connector, 4PlN |
|
WIRING METHOD |
Brown: positive pole of the power supplyBlue: negative pole of the power supplyBlack: NPN signal lineWhite: PNp signal line |

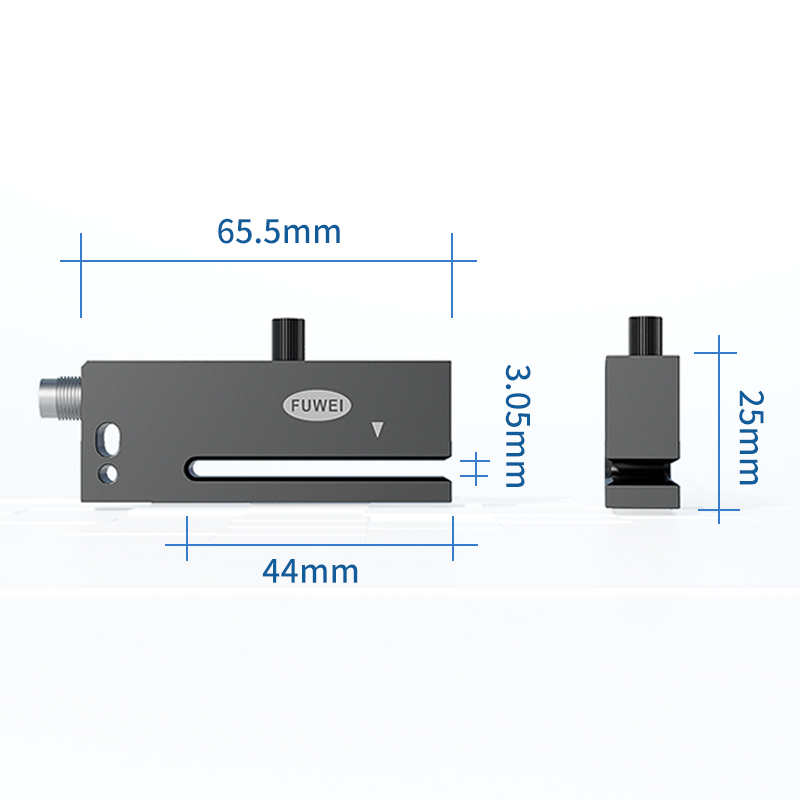

DIMENSIONAL DRAWING
