FGNH04-30P-B Photoelectric sensor

Model:FGNH04-30P-B

Background suppression type, less affected by the color of the detector Compact size for easy installation and use Bright LED status indicator with 360° visibility Good resistance to light interference and high product stability Red light source design for easy alignment

Performance Characteristics:

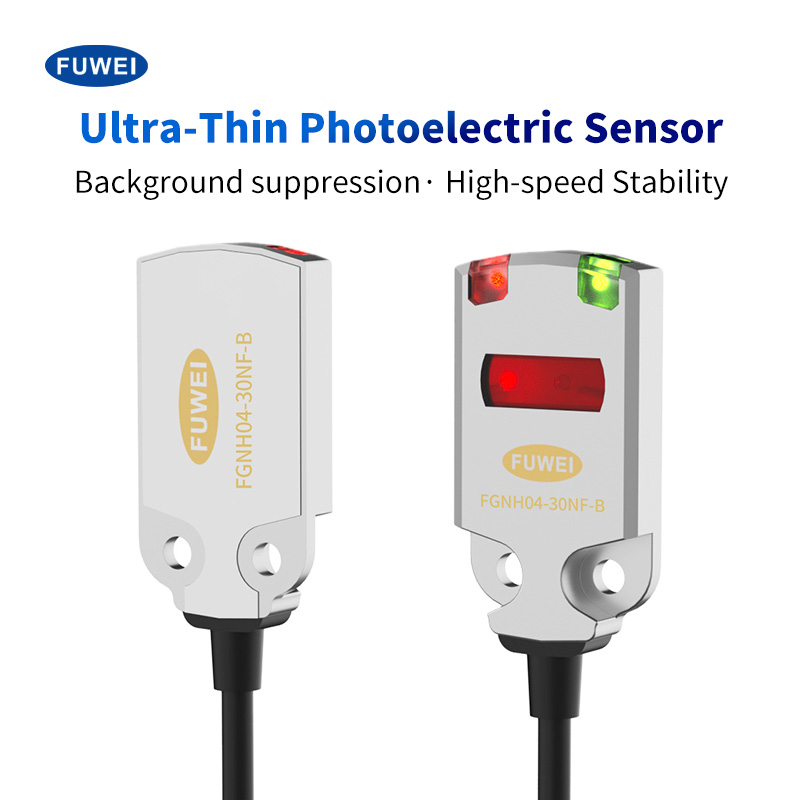

Background suppression type, less affected by the color of the detector

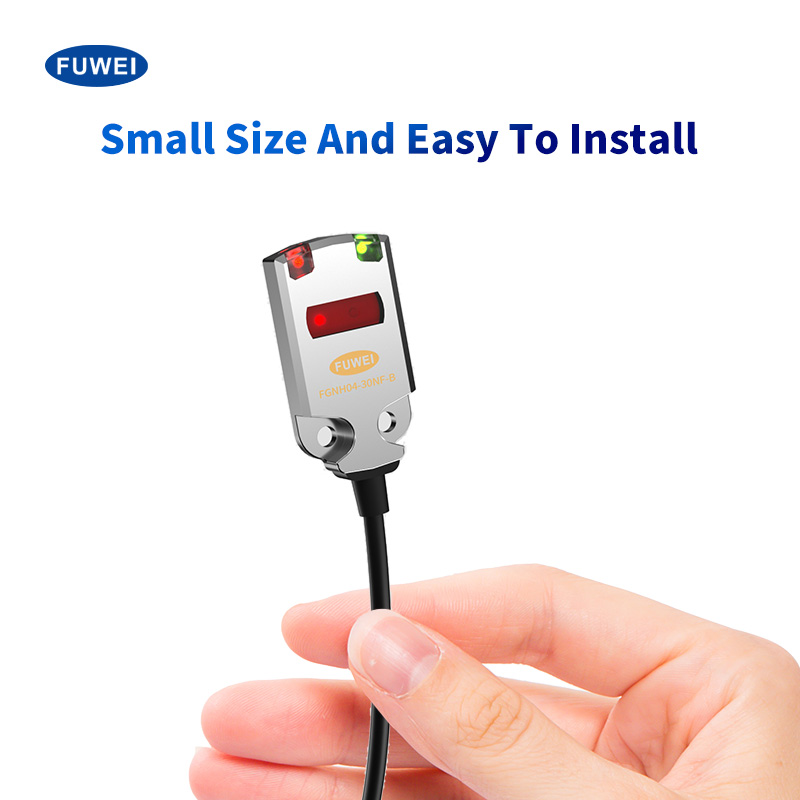

Compact size for easy installation and use

Bright LED status indicator with 360° visibility

Good resistance to light interference and high product stability

Red light source design for easy alignment


Specification

Model Specification
NPN NO
FGNVO4-30N-B
PNP NO
FGNH04-30P-B
NPN NC
FGNVO4-30NA-B
PNP NC
FGNH04-30P-B
Detection Distance 30mm ®

Indicator light

Green: power indication, stabilization indication; Yellow: output indication

Blind Zone

<4mm

Response Time
<1ms
Standard Detector
50*50mm white card
Ambient Light Resistance
Sunlight interference ≤ 10.000lux; incandescent light in the interference 3.000 lux
Spot size
2mm@30mm
Operating Temperature
-20..55°C
Color Sensitivity
>90%
Storage Temperature
-30..70°C
Contrast
<20%
Protection class
IP65
Supply Voltage
10..30VDC
Product Certificates
CE
Current consumption
≤15mA
Enclosure Material
PC+PBT
Negative Surge Current
≤50mA lenticular
PC
Voltage drop
< 1.5V
Weights
22g
Light source type
Red light (680nm)
Accessory
M2 screw (length 8mm) x 2, nut x 2
Protection circuit
Short circuit protection, board protection, overload protection, Zener protection
①Use 50*50mm white card with reflectivity greater than 90%.
