FGNH04D-30NFT-C Photoelectric Sensor

Model:FGNH04D-30NFT-C

Compact size for easy installation and use Bright, easy-to-see two-color indicator light Good resistance to light interference and high product stability Red light source design for easy alignment​


Performance Characteristics:

Compact size for easy installation and use

Bright, easy-to-see two-color indicator light

Good resistance to light interference and high product stability

Red light source design for easy alignment

                                        Specification

Brand
FUWEI
Product Name
Ultra-Thin Photoelectric Sensor
Product Model
Ultra-Thin Photoelectric Sensor
Output Mode
Output Mode

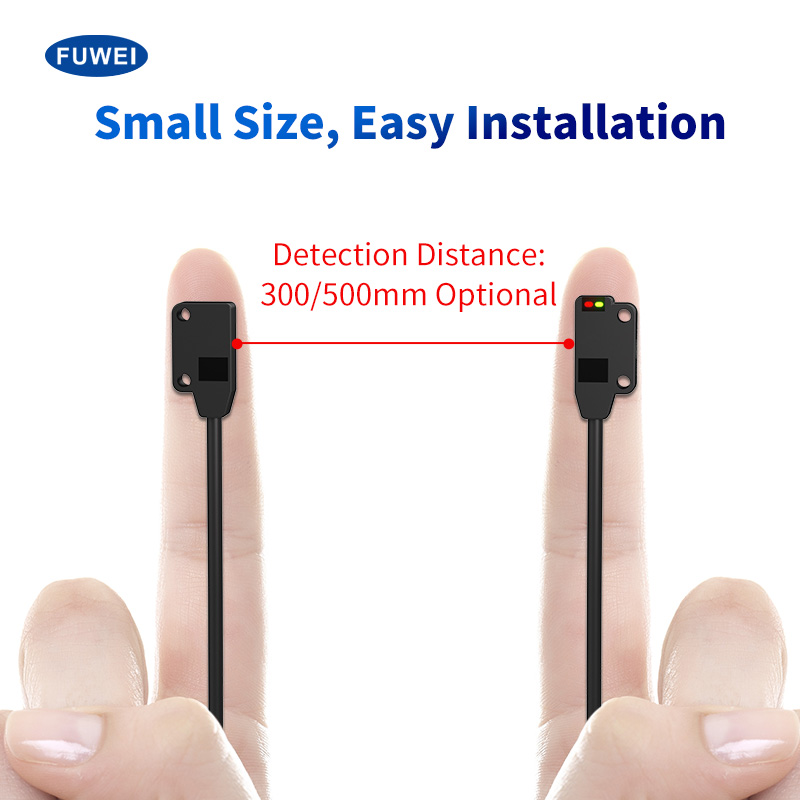

Detection Distance
Diffuse Reflection:30mm Through-Beam:300/500mm
Detected Object
ф2mm Opaque Object
Response Time
<1ms(Action/Reset)
Power Supply Voltage
12~24VDC :10%
Current Consumption
<25mA

Indicator Light

Green: Powerindicator Light Red: Output indicator Light
Protection Circuit
Reverse Connection Protection, Short Circuit Protection

Protective Structure

IP65

Ambient lllumination
Incandescent Lamp:<3000lx、Sunlight:<10000lx
Ambient Temperature
-25~+55°C
Ambient Humidity
35~85%RH
Vibration Resistance
Frequency10~500HZ Double amplitude 3mm(MAX:20G)2 hours in each ofX,Y,andZ directions
Shock Resistance
acceleration 500m/s (About 50G)X,Y,andZ directions, each 3 times
Connection Method
Lead-out type(2m)
Housing
Housing:ABS
