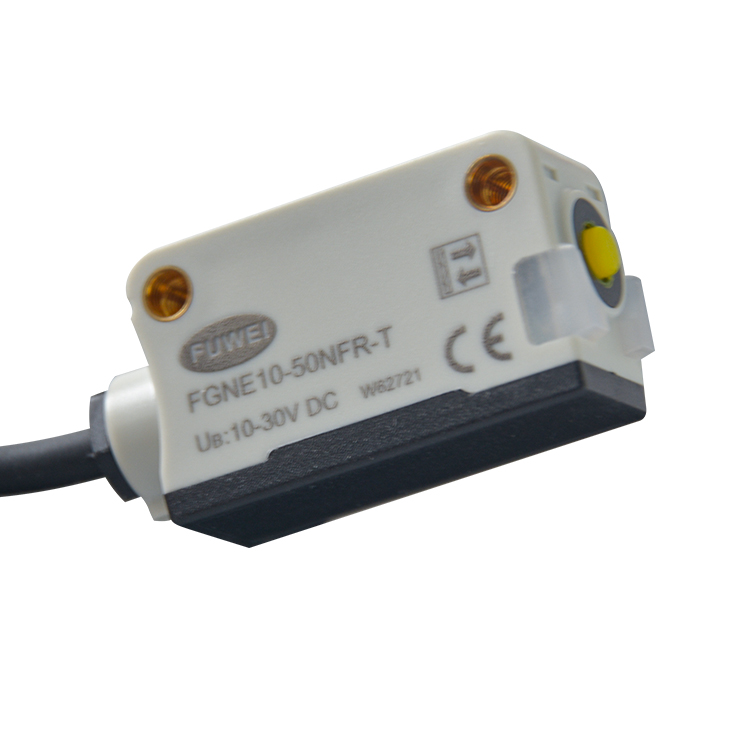

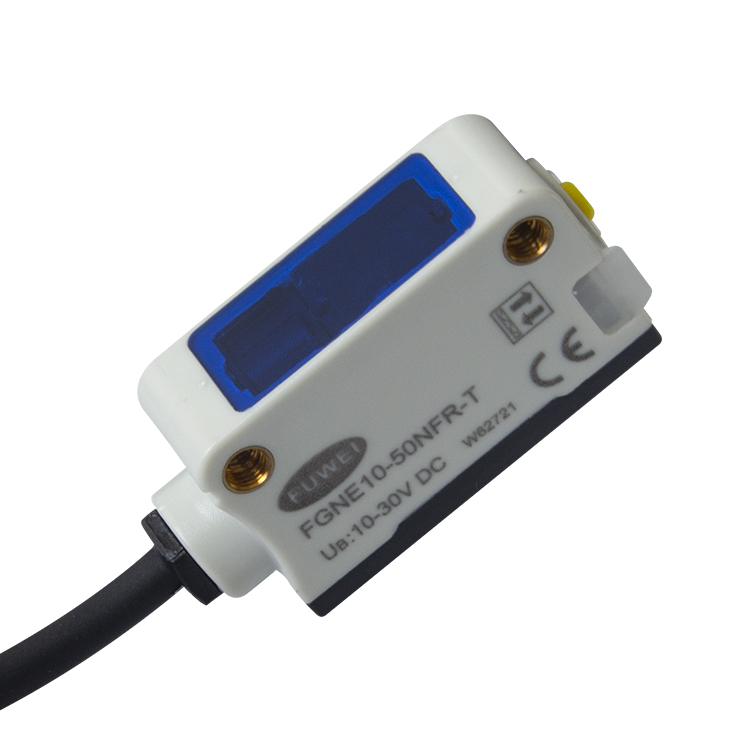

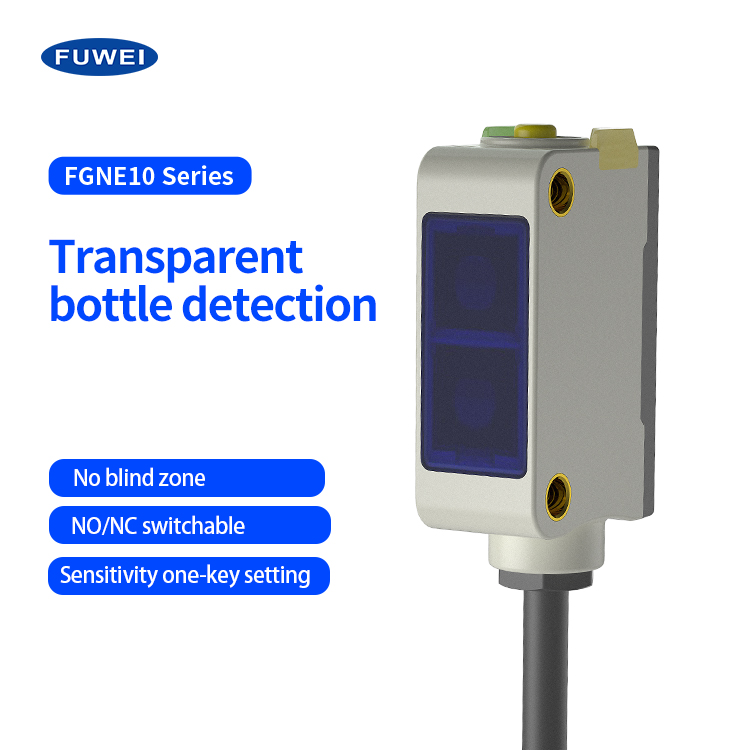

TOF Photoelectric sensors FGNE10-50NFR-T As a leading manufacturer and supplier in the FGNE10-50NFR-T Transparent bottle detection industry, Fuwei is proud to offer a range of sensors that are specifically tailored to meet the unique needs of our customers. The FGNE10-50NFR-T Transparent Bottle Detection Sensor, one of our flagship products, is produced in our state-of-the-art factory, where we employ the latest manufacturing techniques and technologies.
This sensor undergoes rigorous quality control procedures, from the initial stages of component selection to the final inspection, to ensure its exceptional performance and reliability. We are committed to providing our customers with sensors that are not only accurate and precise but also durable and long-lasting.

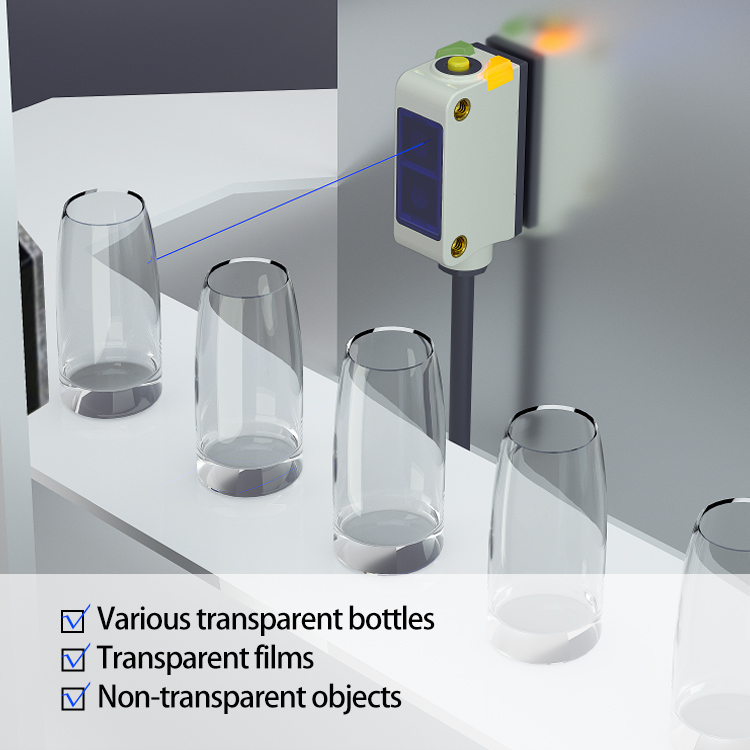

The FGNE10-50NFR-T Transparent Bottle Detection Sensor features advanced technology that allows for precise detection of transparent bottles, even in challenging environments. Its ability to accurately detect and identify bottles of various sizes, shapes, and materials makes it an essential tool in various industrial applications, such as packaging, filling, and sorting lines.
Whether you require a standard sensor or a customized solution, FUWEI team of experts is ready to assist you in achieving your unique requirements. We understand that each customer has their own specific needs and challenges, and we are committed to working closely with you to find the best solution for your application.







|
Type |
Transparent bottle detection |
|
|
Product number |
FGNE10-50NFR-T |
FGNE10-50PFR-T |
| Outputtype | NPN Output |
PNP Output |

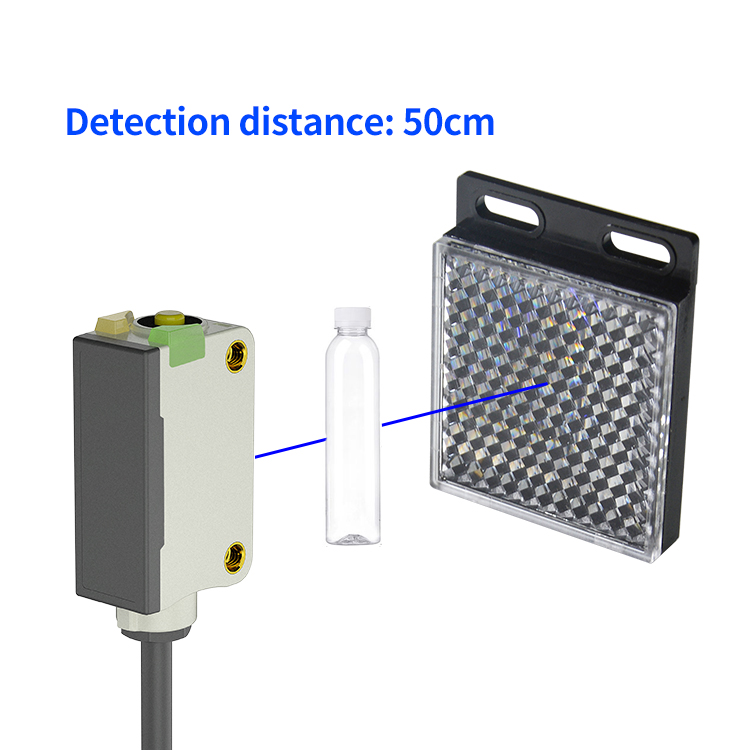

| Detection distance |
50cm |
|
| Light spot size |
≤14mm@0.5m |
|
| Supply voltage |
10..30VDC(RippleP-P<10%) |
|
| Consumption current |
<25mA |
|
| Load current |
200mA |
|
| Voltage drop |
≤1.5V |
|
| Light source |
Blue light(460nm) |
|
| Protection circuit |
Short circuit protection、Polarity protection、Overload protection |
|
| Indicator |
Green:Power indicator;Yellow:Output indication、Overload indication |
|
| Response time |
<0.5ms |
|
| Distance adjustment |
The product is facing the reflector,press the button for 2...5s,when
theyellow and green lightflash synchronously at 4Hz,and lift to finish thedistance setting lf the yellow and green light flash asynchronously at8Hz,setting fails and the product distance goes to the maximum |
|
| NO/NC adjustment |
Press the button for 5...8s,when the yellow and green lightflash
synchronously at 2Hz,finish the state switching. |
|
| Anti ambient light |
Sunshine≤10,000Lux,Incandescent≤3,000Lux |
|
| Operating temperature |
25.55C(No condensation,noicing) |
|
| Storage temperature |
-30℃..70℃ |
|
| Vibration resistance |
10...55Hz,Double amplitude 0.5mm(2.5hrs each for X、Y、Zdirection) |
|
| Impulse withsand |
500m/s%,3 times each for X、Y、Zdirection |
|
| High pressure resistant |
1000VIAC50/60Hz60s |
|
| Protection degree |
IP67 |
|
| Certification |
CE |
|
| Housing material |
PC+ABS |
|
| Lens |
PMMA |
|
| Weight |
Connector-About 10g;Cable:About 50g |
|
|

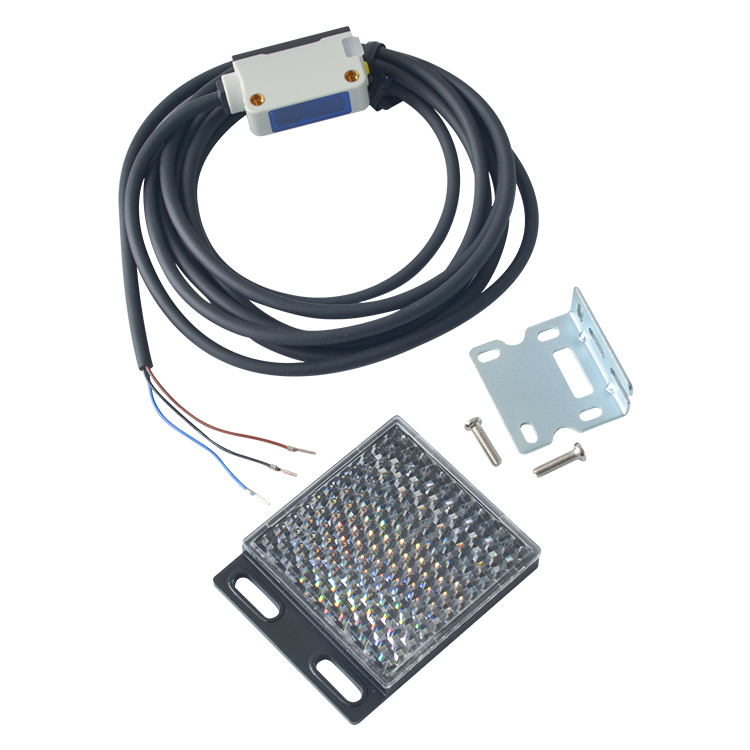

Accessories |
Installation bracket,instruction manual,reflector |
|
