Photoelectric sensors

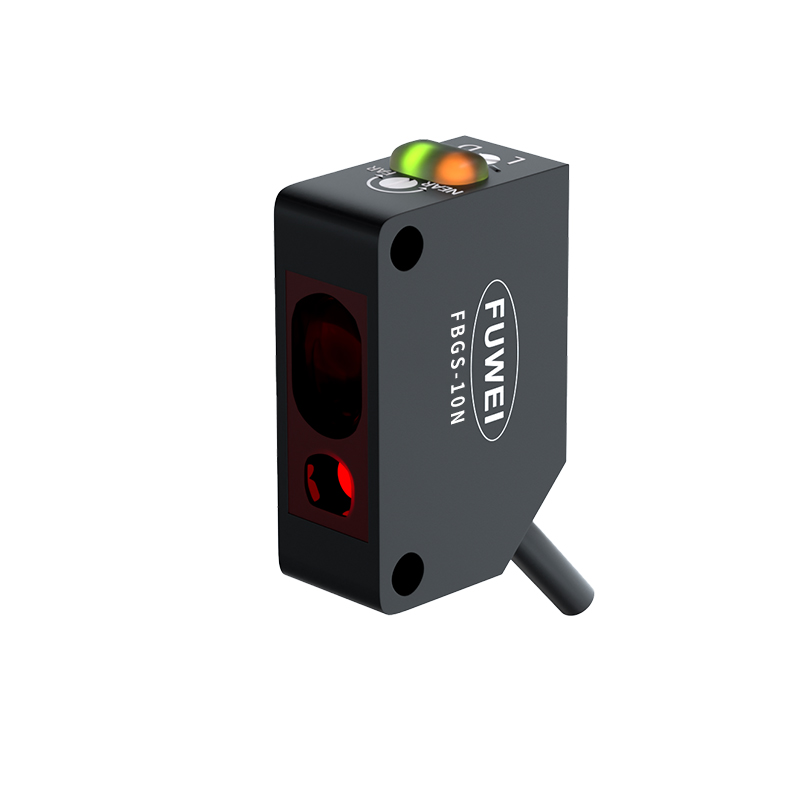

Model:FBGS-10N

The Photoelectric sensors Equipped with multiple transition light point adjuster, the distance can be accurately set; Equipped with automatic anti-interference function; The BGS/FGS function allows for easy, more stringent Settings.

The Photoelectric sensors segment difference should be less than 2%, and the detectable number is only 0.4mm;

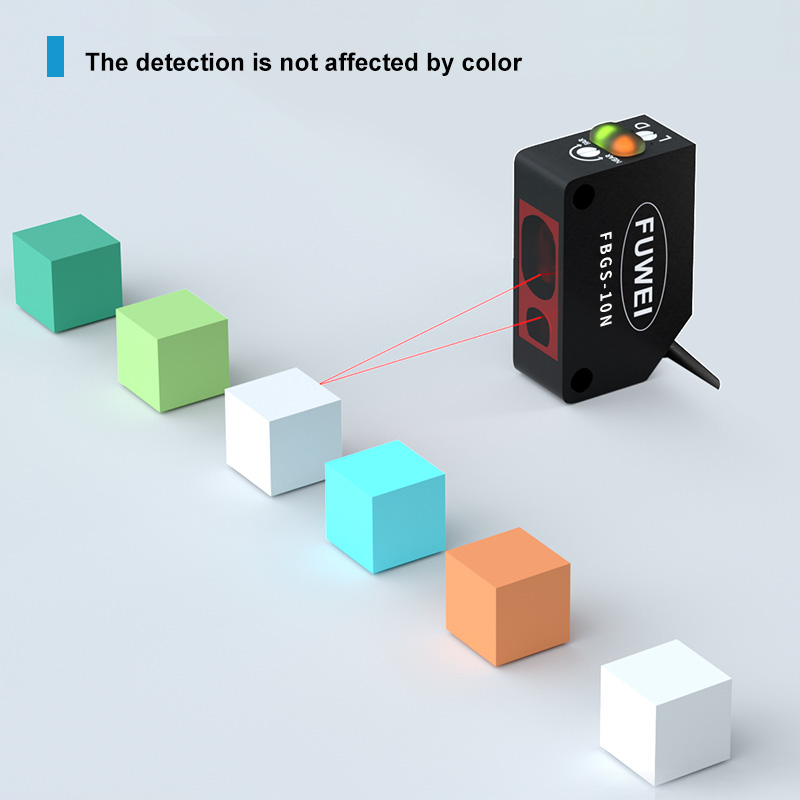

Not easily affected by color, almost equivalent distance detection of black and white workpiece;

High brightness spot light, easy to align the optical axis;




Equipped with multiple transition light point adjuster, the distance can be accurately set;

Equipped with automatic anti-interference function;

The BGS/FGS function allows for easy, more stringent Settings.



NPN output (FBGS-10N)      PNP output (FBGS-10P)
Specifications
Adjustable range
20mm~100mm
Spot diameter
Approx.中9 mm(at a distance of 100 mm)
Supply voltage
12~24VDC±10 %ripple P-P10 %or less
Current consumption
25mA or less
Output
You can use the toggle switch to select ON on detection or OFF on non-detection

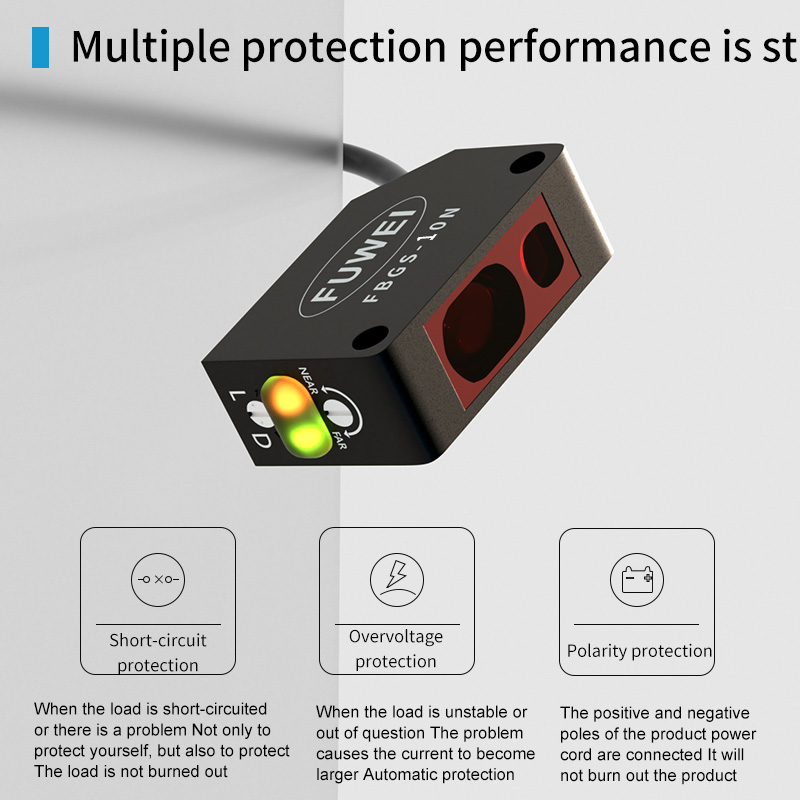

Operational short-circuit protection Equipped with
Response time
1ms or less
Working status indicator
Orange LED (lights up when ON is output)
Stability metrics
Green LED (lights up during steady operation)
Distance adjuster
Equipped with a mechanical 5-turn adjuster
Detection mode
The BGS/FGS function can be selected by switching the input of the detection mode
Ngress protection
IP67
Ambient temperature
25°C~+55°℃(note no condensation and freezing),storage.-30°C~+70℃
Ambient humidity
35%RH~85%RH,storage:35%RH~85%RH
Use ambient illumination
Incandescent lamp:3,000 x or less illumination of the light-receiving surface
Voltage resistance
AC1,000V for 1 minute Between all power connection terminals and housing
Impact resistance
Acceleration 500 m/s2(approx.50 G)3 times each in the X,Y and Z directions
Light-emitting elements
Red LED (Emission peak wavelength:650nm,modulated type)

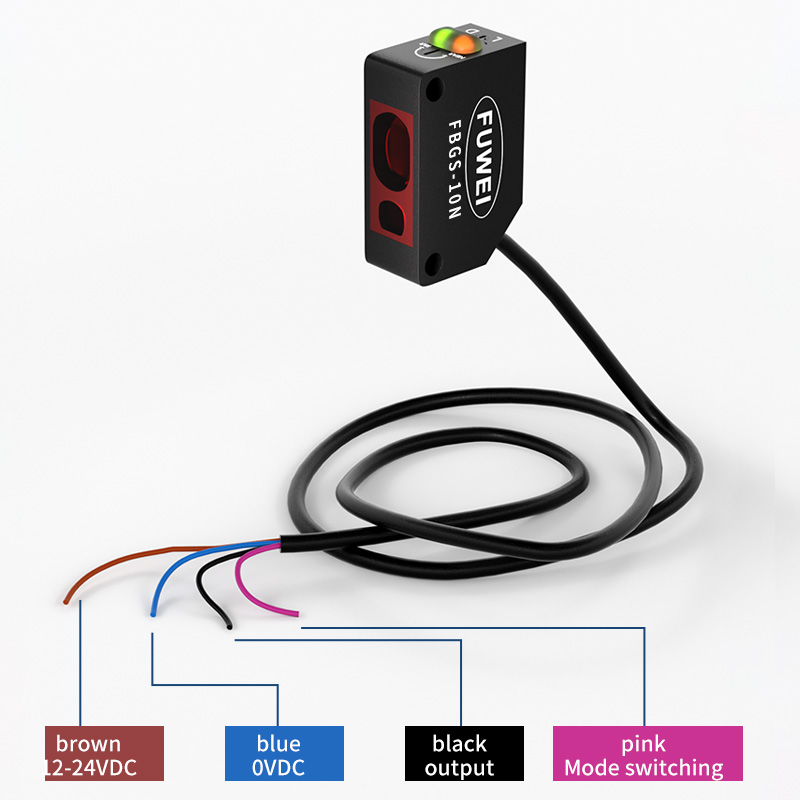

Cable
0.2mm24-core rubber cable,2m long
Material
Housing:PBT (polyethylene terephthalate),lens:polycarbonate,display cover.polycarbonate
