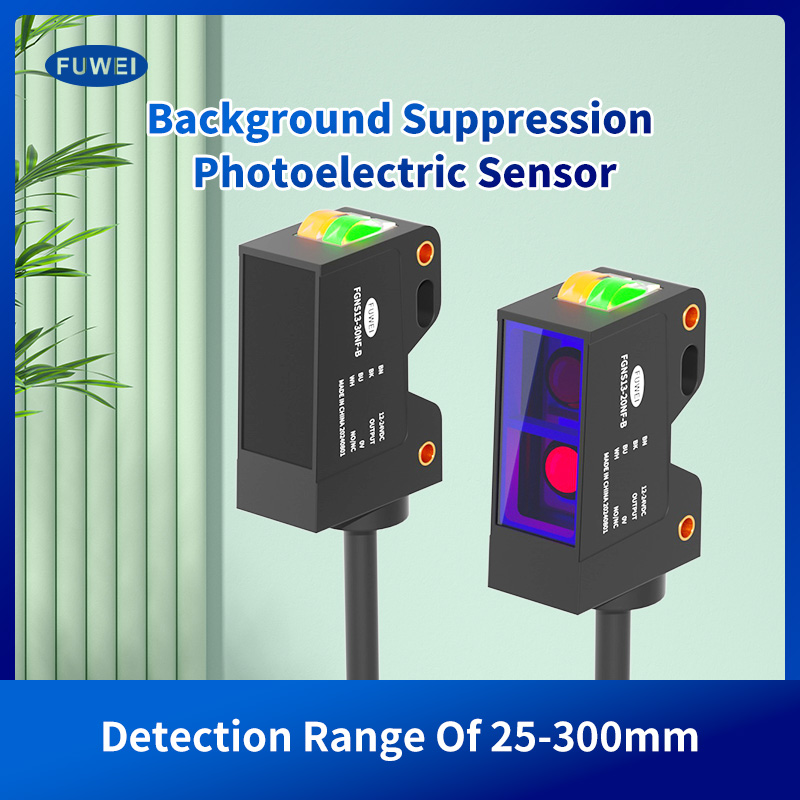

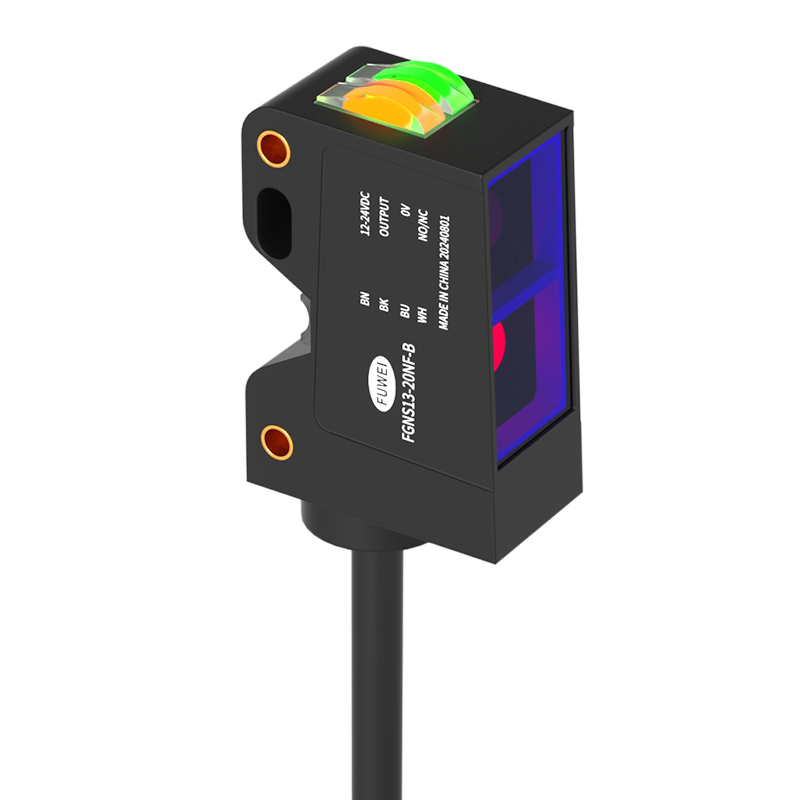

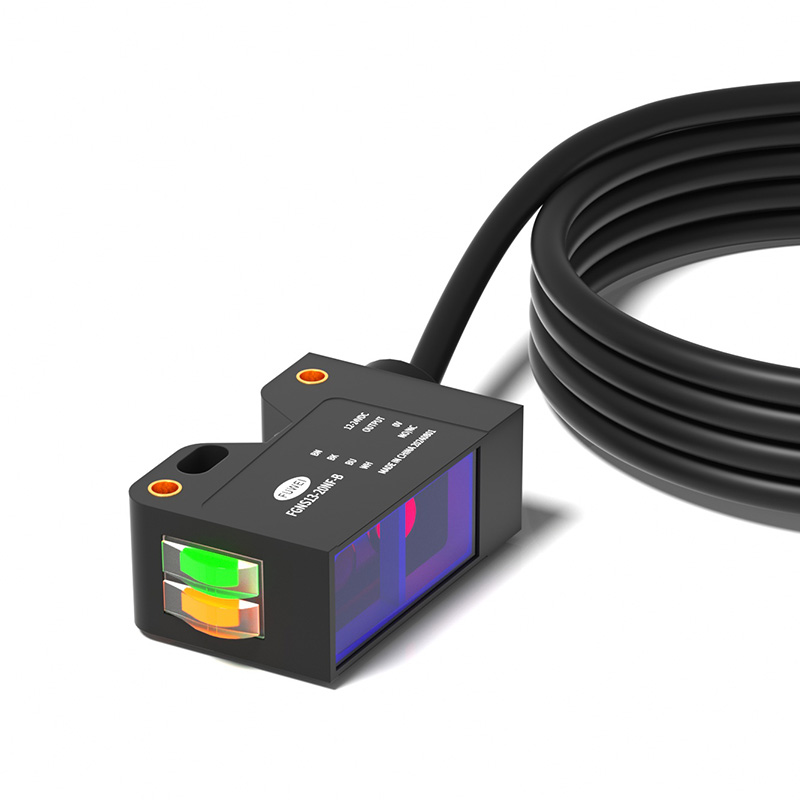

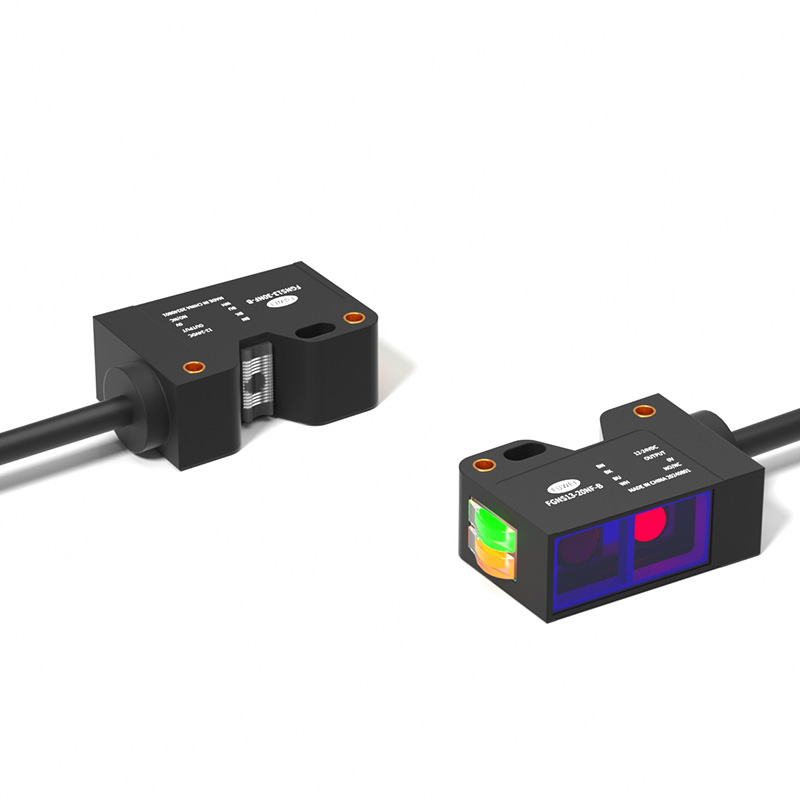

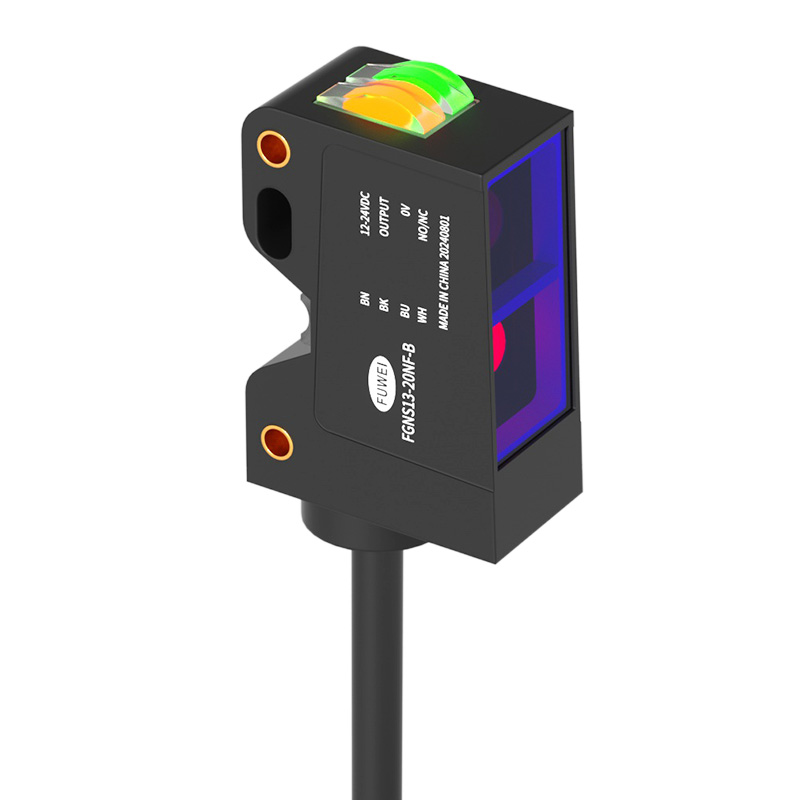

Background Suppression Photoelectric Sensor FGNS13-20NF-B Series

Model: FGNS13-20NF-B Series
Background Suppression Photoelectric Sensor FGNS13-20NF-B Series detection distance is not affected by object color; Sensitivity self-learning setting, one click distance setting for inductance switch; Visible light spot, easy to calibrate objects; Using high-quality electronic components, high sensitivity, stable performance, and strong anti-interference.
Send Inquiry
Product Description

Background Suppression Photoelectric Sensor FGNS13-20NF-B Series Performance Characteristics:

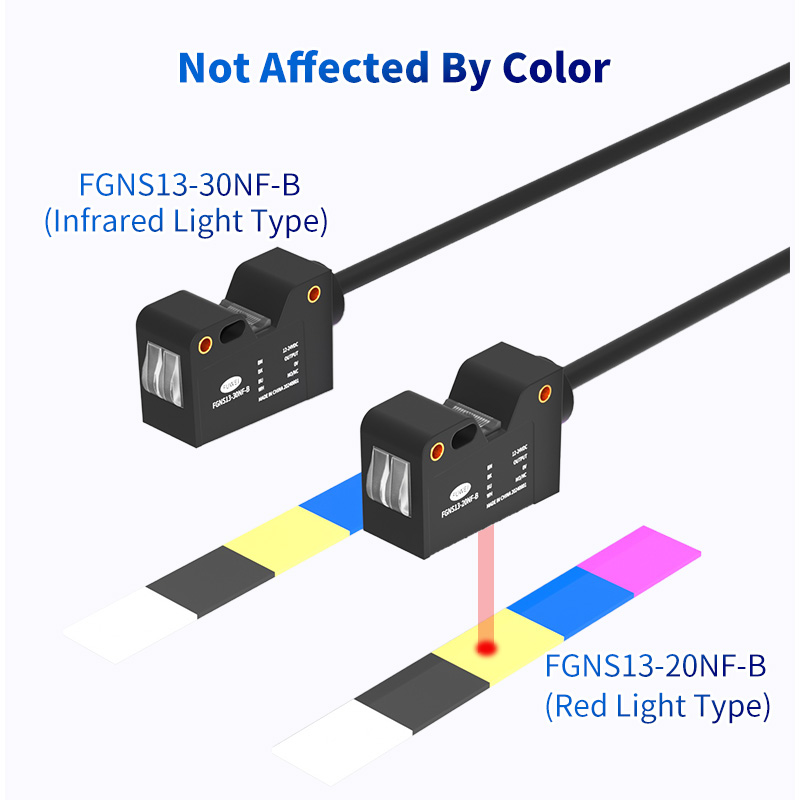

Background suppression photoelectric sensor, detection distance is not affected by object color;

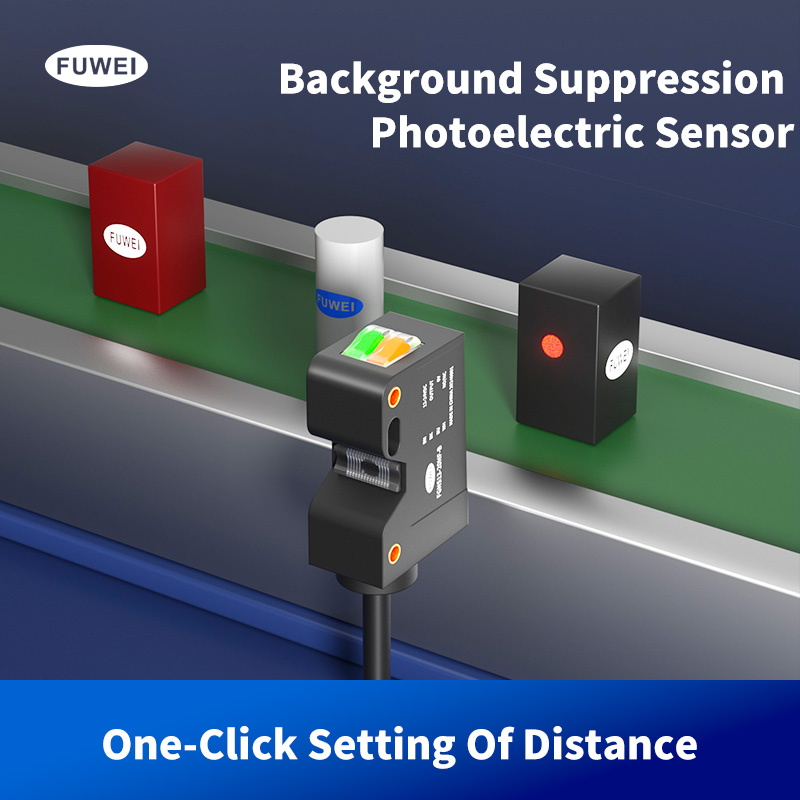

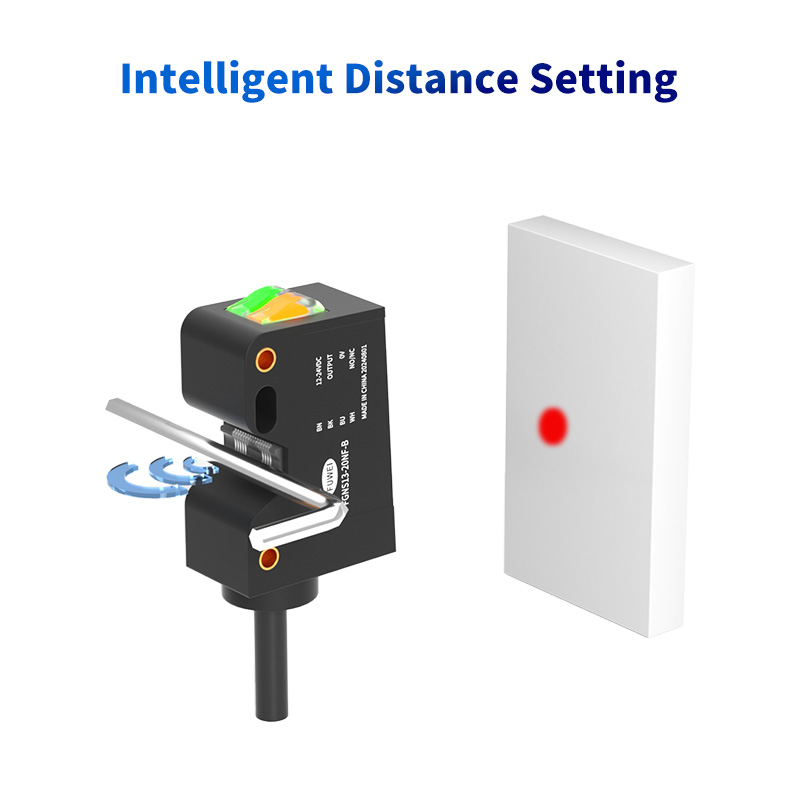

Sensitivity self-learning setting, one click distance setting for inductance switch;

Visible light spot, easy to calibrate objects;

Using high-quality electronic components, high sensitivity, stable performance, and strong anti-interference.


Specification

Detection Method
 Background Suppression Type
Model
 NPN Output
 FGNS13-20NF-B
 FGNS13-30NF-B
PNP Output
 FGNS13-20PF-B
 FGNS13-30PF-B
Detection Distance
 25-200mm
 25-300mm
Set Distance Range

25-200mm(it Is Not Recommended

To Set Within An Edge Distance OfLess

Than 50mm)

25-300mm(it Is Not Recommended

To Set Within An Edge Distance OfLess

Than 50mm)

Black-WhiteError
 Tested Object:Black And WhiteCardboard

Repeatability
 <0.1mm
Response speed
 <2ms

Light transmitting

element

Red light-emitting diode
 Infrared Light-Emitting Diode
0utput Control
 Output Form
 Load Power Supply Below Dc24.6v, Load Current Below100ma, Leakage Current Below 10ua. Npn CollectorOpen-Circuit Output, Pnp Emitter Open-Circuit Output.
Output Action
 When The White Wire ls Not Connected To The Blue Wire (Negative Pole) And Lightls input, it is in The No (NormallyOpen) State;When The White Wire is Connected To The Blue Wire (Negative Pole) And Light isInput, it is in The Nc (Normally Closed) State

indicator

Light

Green: Power indicator light;Orange: Action indicator light & distance setting indicator light.
Power Supply Voltage
 12-24VCD
Consumption Current
 <35mA, it Can AutomaticallyAdjust The Transmission Current AccordingTo The Detected Signal Strength.
Protective Circuit
 Reverse Connection Protection Of Power Supply, Output Short-Circuit Protection
Distance Setting Method
 Rself-Learning, One-Button Setting For Inductive Switch
Ambient llluminance
 Incandescent Lamp<3500LX; Sunlight<100000LX
Ambient Temperature

DuringOperation:-20°C°~+60°C

During Saving:-20°C~+60°C

Ambient Humidity
 During Working:35~85%RH During Saving: 35~95%RH

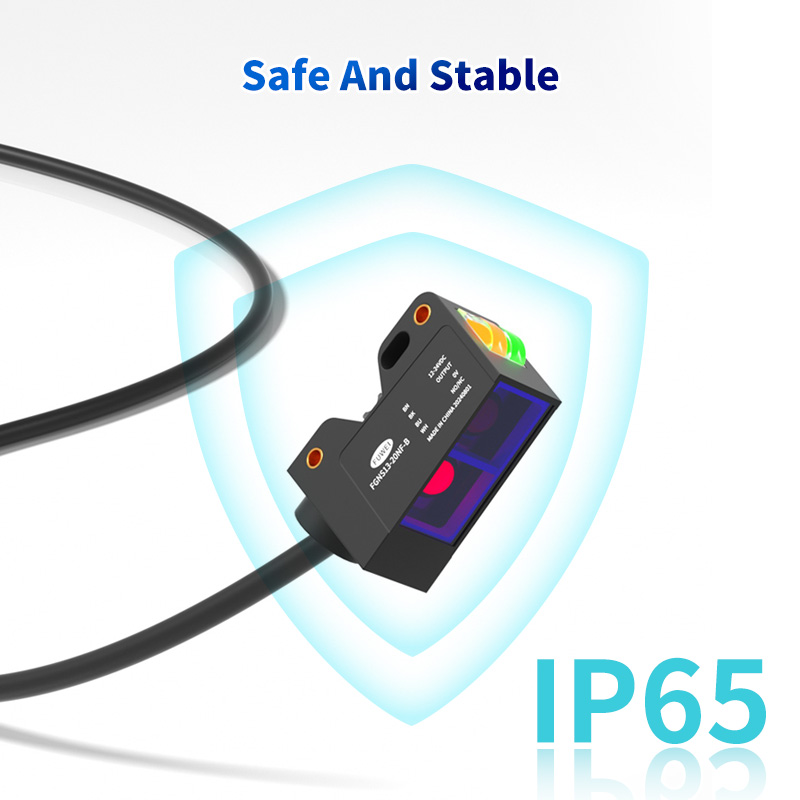

Protection Level
 IP65
Material
 ABS
