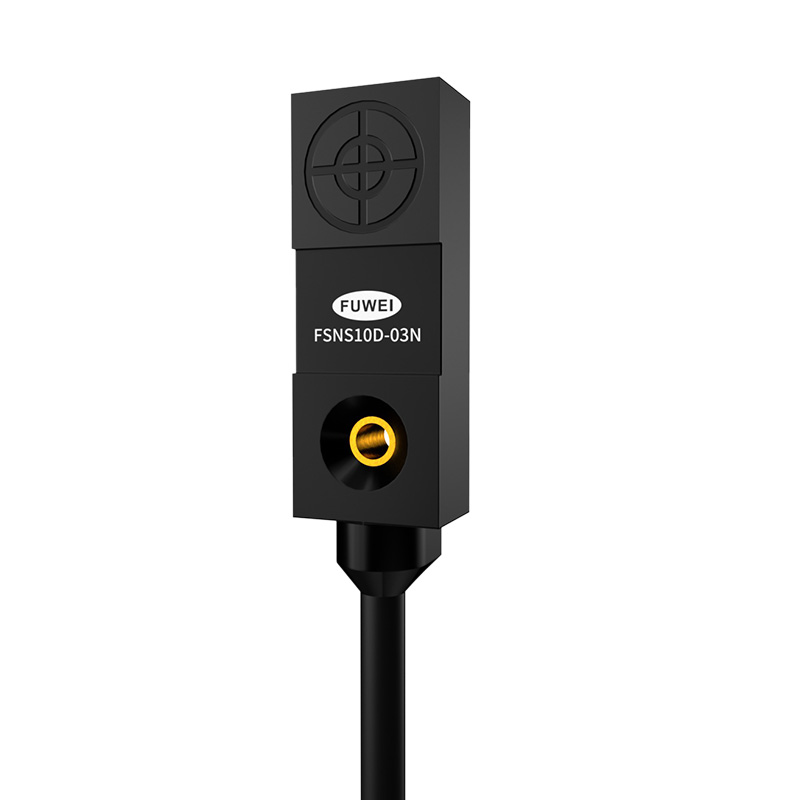

Square Inductive Proximity Sensor FSNS10D-03N

In the world of modern industrial automation, the margin for error is zero. Every millisecond of delay, every false detection, can cascade into significant production losses, quality issues, and unexpected downtime. Are you struggling with reliable metal detection in confined spaces? Are moisture, dust, or electromagnetic interference causing your sensors to fail, compromising your Overall Equipment Effectiveness (OEE)?

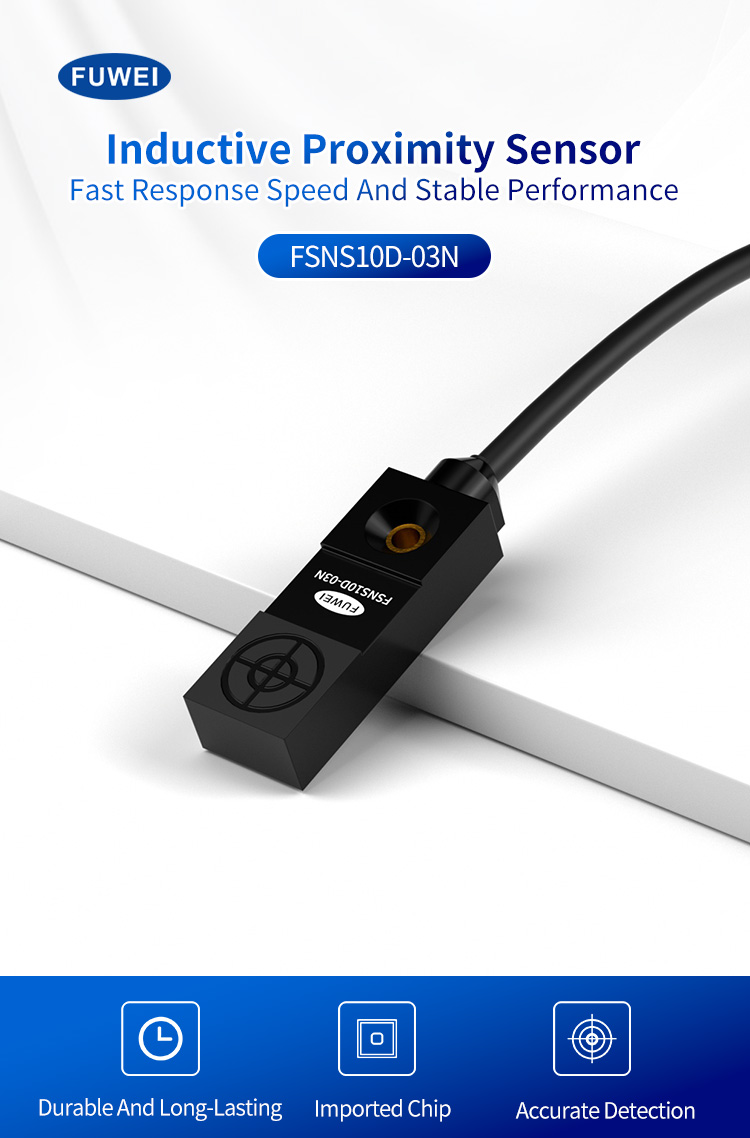

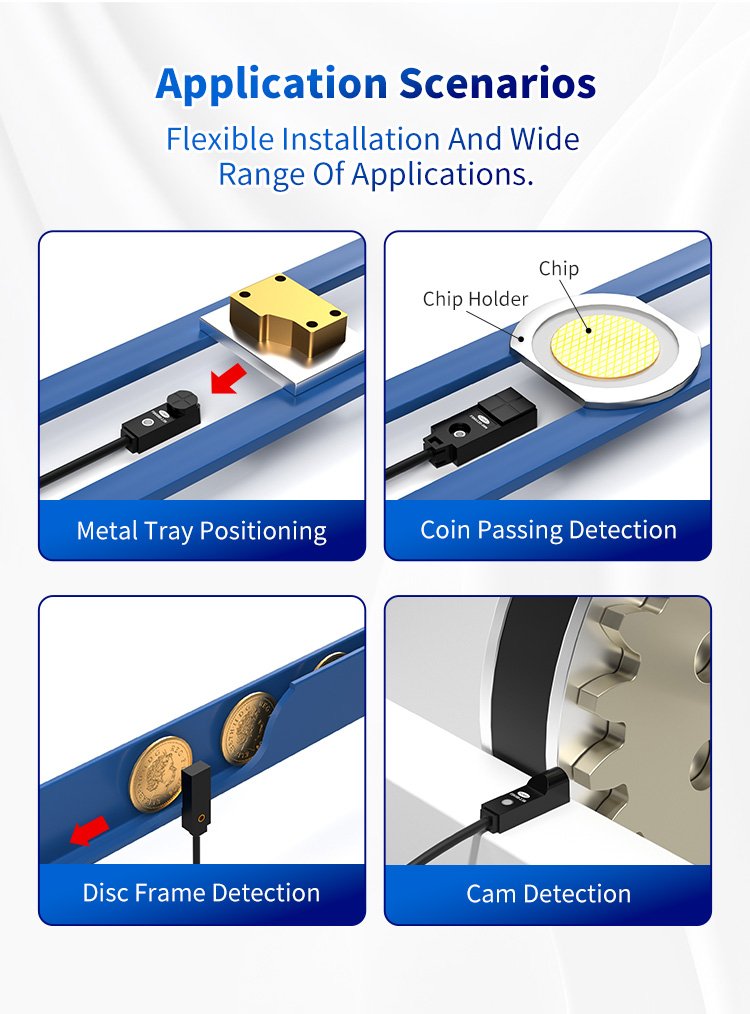

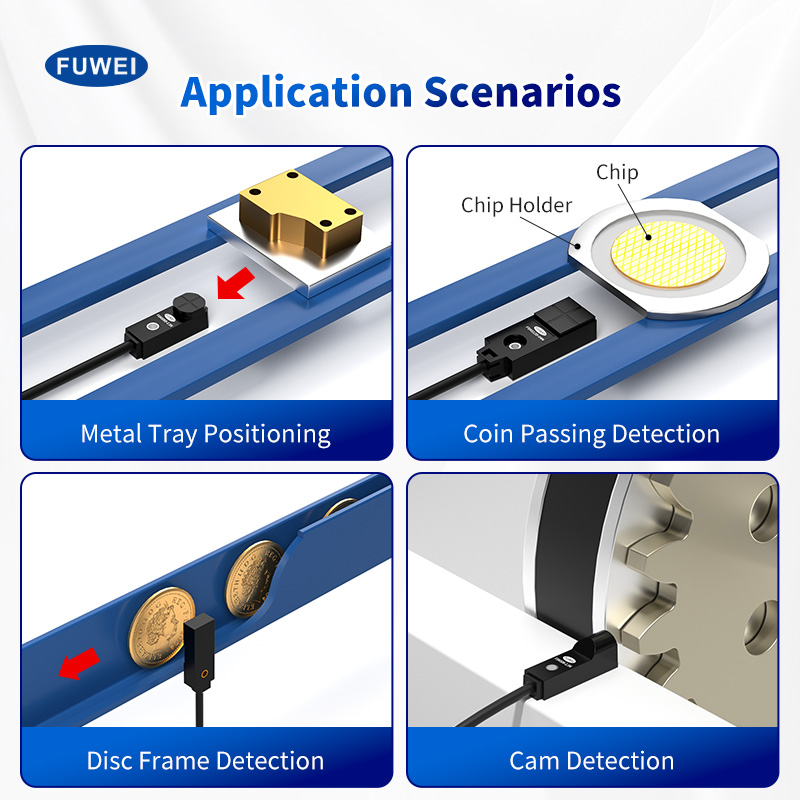

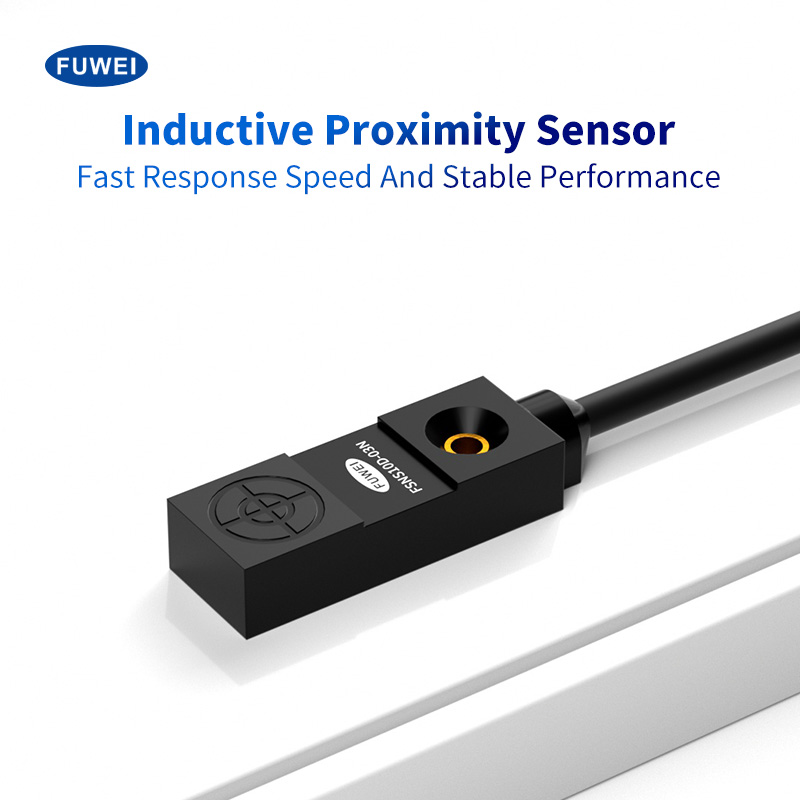

At Fuwel Electronics, we engineer solutions for these exact challenges. We proudly present the FSNS10D-03N Inductive Proximity Sensor—a component designed not just to sense, but to solve. It is the embodiment of fast response speed, unwavering stability, and robust IP67 protection, crafted to deliver flawless performance in the most demanding applications. From metal tray positioning and disc frame detection to coin passing and cam detection, the FSNS10D-03N guarantees pinpoint accuracy, ensuring your operations run smoother, faster, and smarter.

1. Core Value Proposition: Why the FSNS10D-03N is a Game-Changer

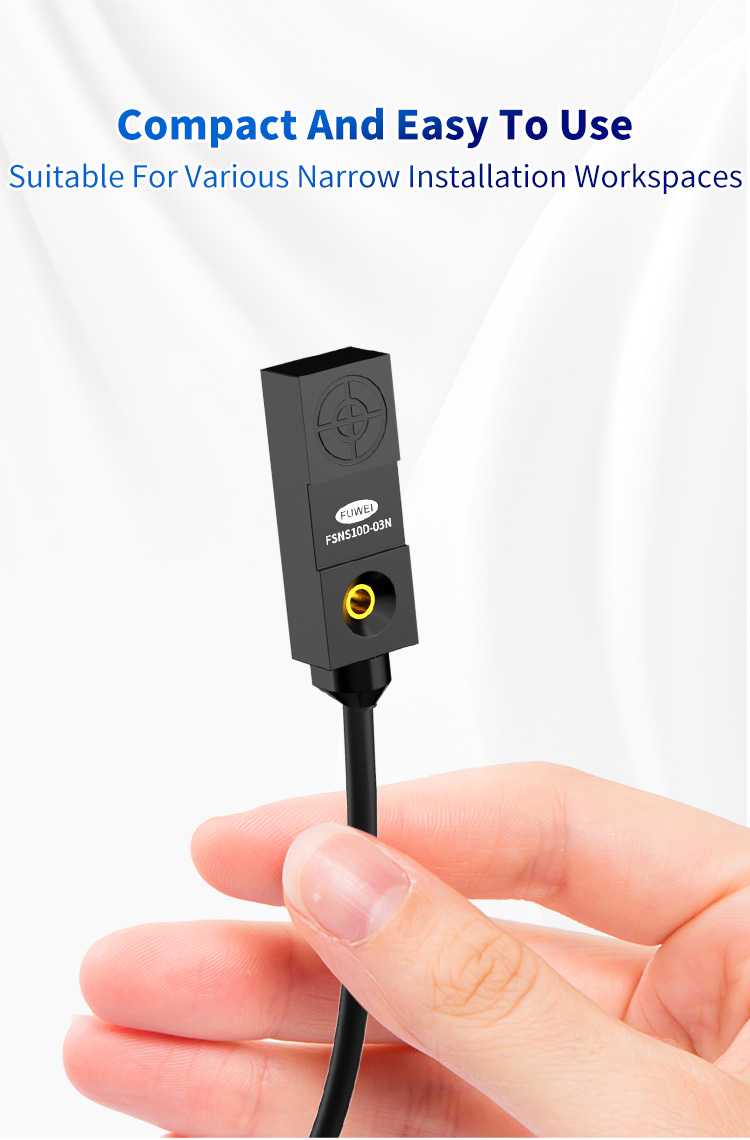

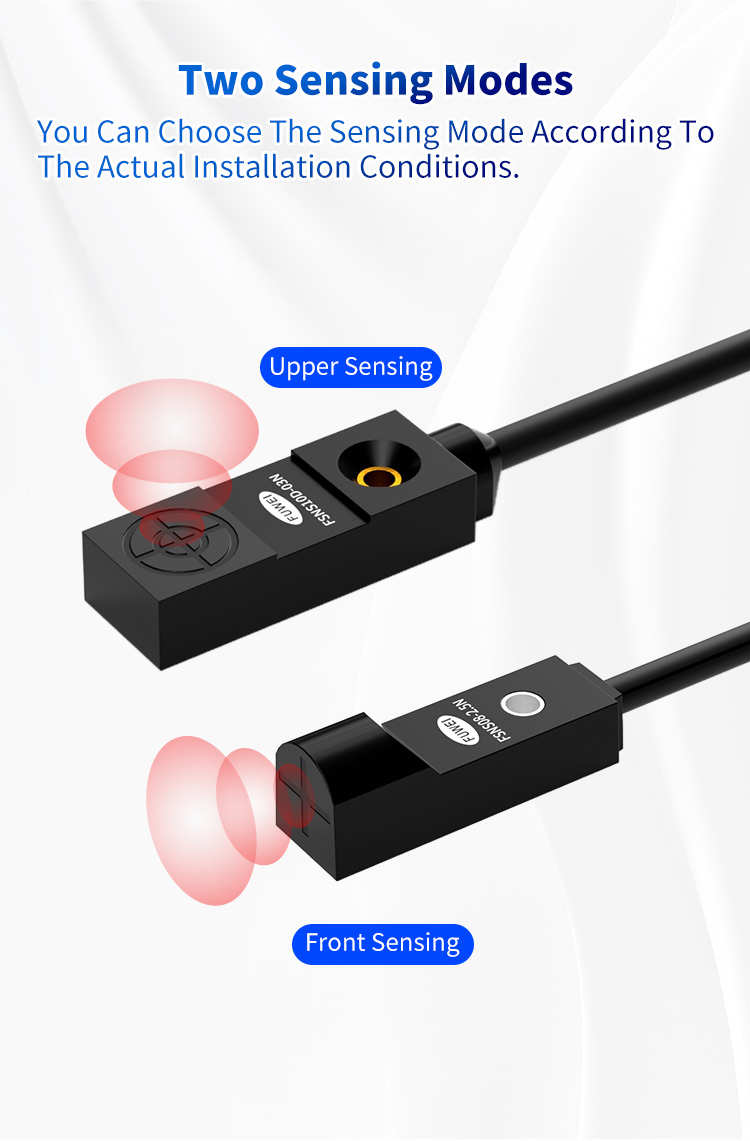

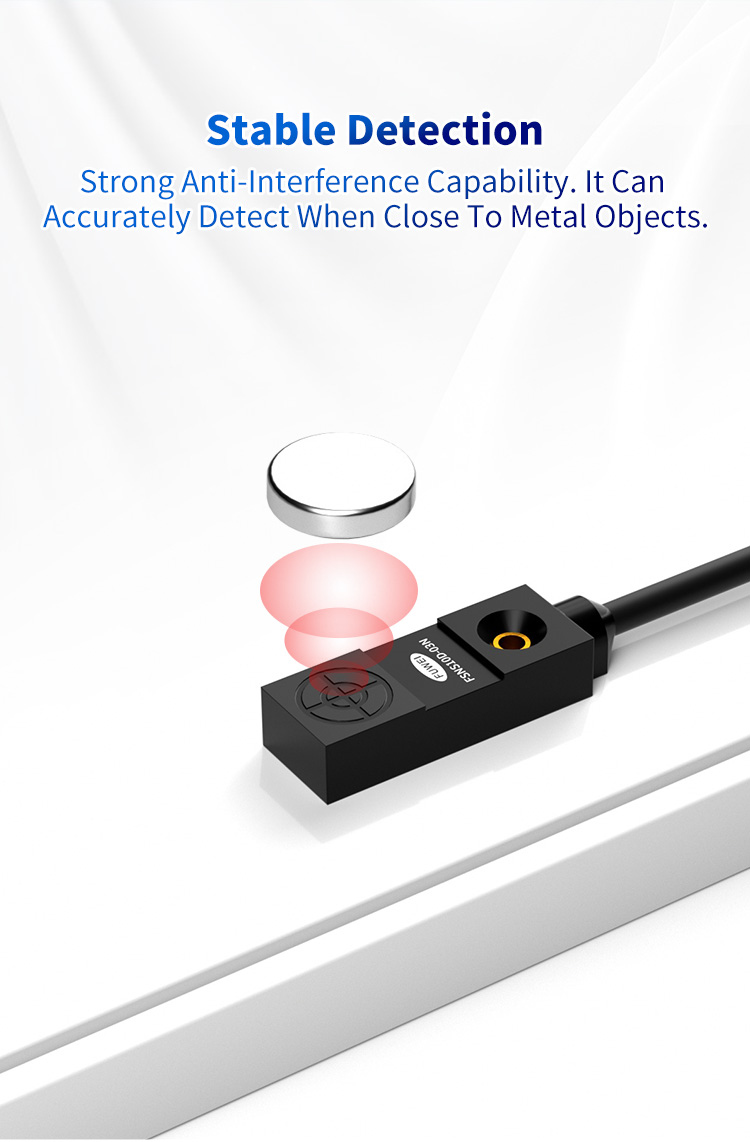

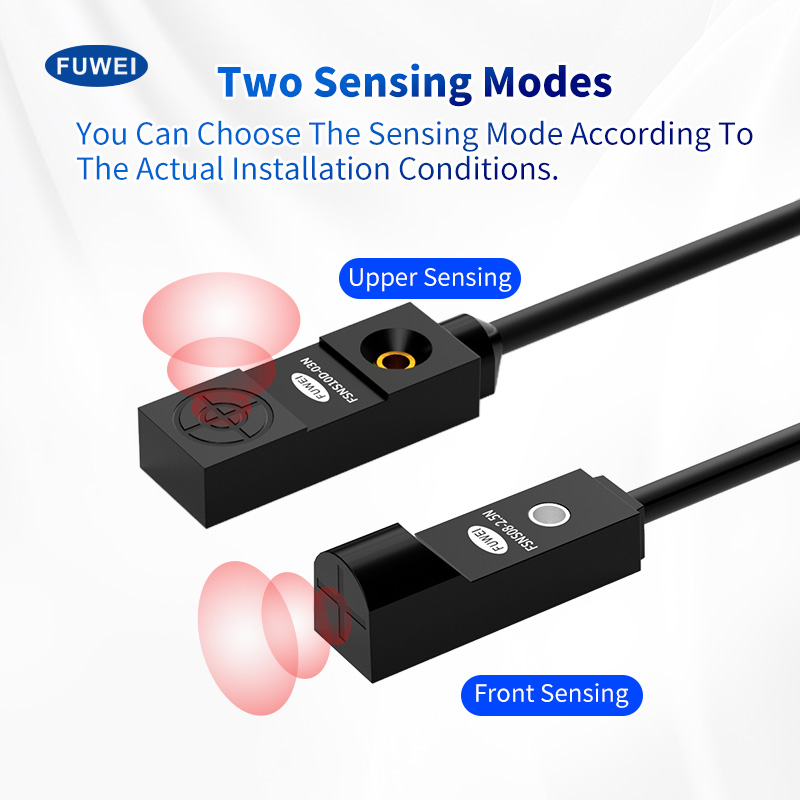

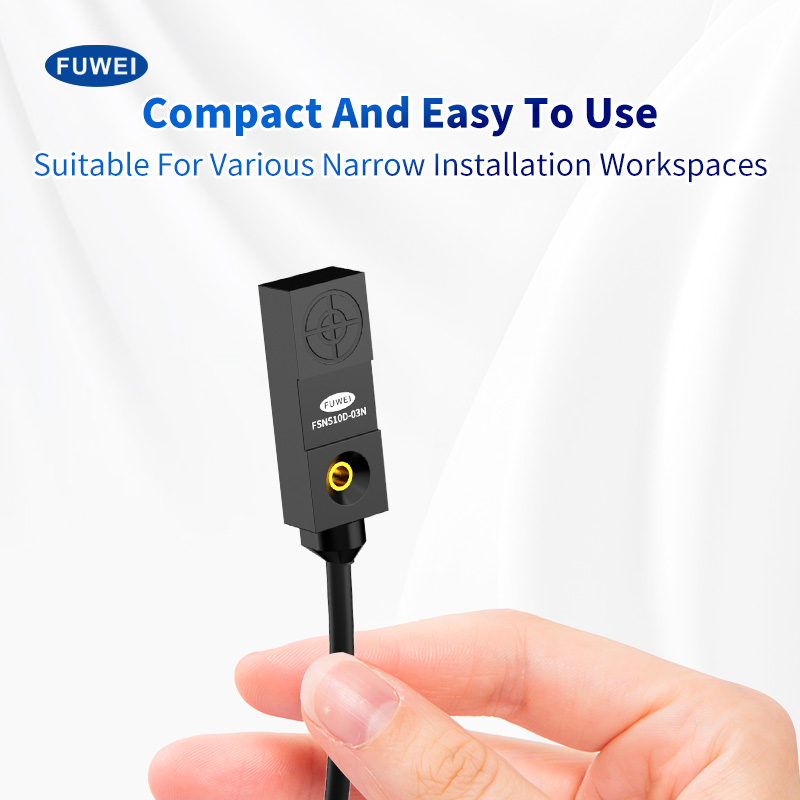

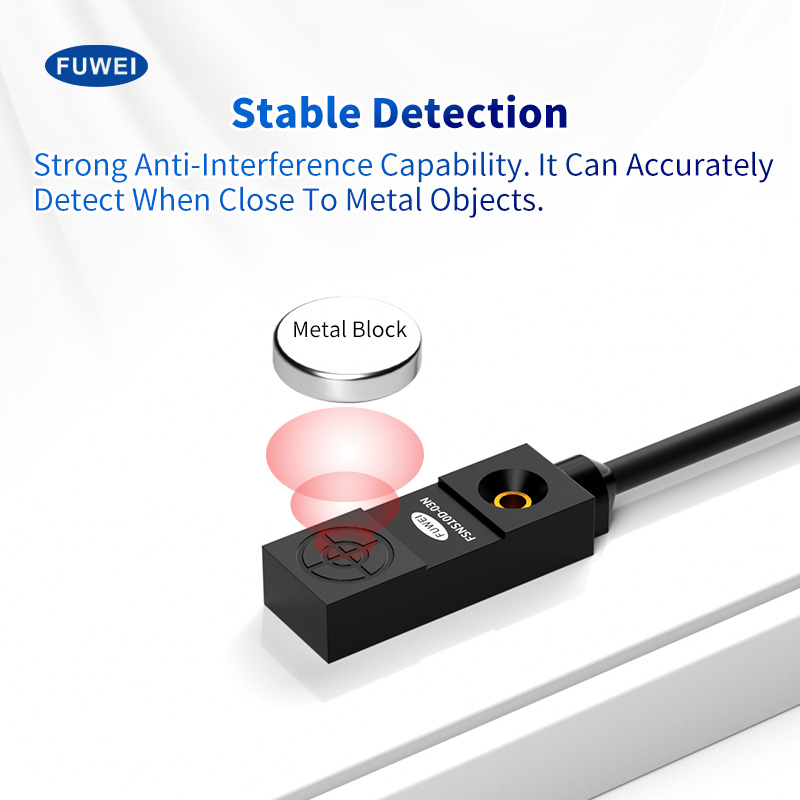

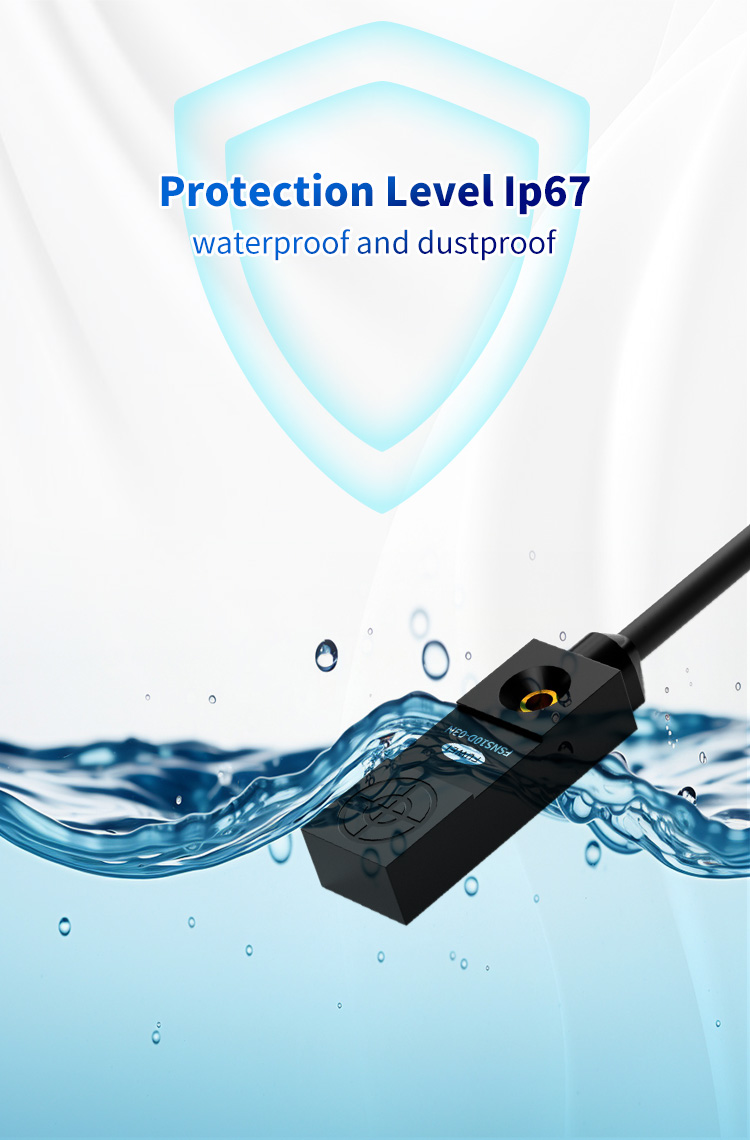

Before diving into the technical specifications, let's clarify the fundamental value the FSNS10D-03N brings to your system:Achieve "Zero-Defect" Detection with Unmatched Stability: Engineered with stable detection capabilities and strong anti-interference capability, this sensor reliably ignores surrounding metal clutter and electrical noise. This translates directly to reduced downtime, higher product quality, and lower maintenance costs.Unlock Higher Speeds with Intelligent Responsiveness: The integrated intelligent chip ensures an exceptionally fast response speed, enabling precise detection in high-speed automated processes. This allows you to increase cycle times and maximize throughput without sacrificing accuracy.Conquer Space and Environmental Challenges: Its compact design allows for easy installation in various narrow installation workspaces. Coupled with a IP67 waterproof and dustproof rating, it performs reliably in environments where other sensors would fail, offering unparalleled installation flexibility and durability.Simplify Integration with Dual Sensing Versatility: Unique to its class, the two sensing modes allow you to adapt the sensor's behavior to your specific actual installation conditions. This

2. Demystifying the Technology: What is an Inductive Proximity Sensor?

For those new to this technology, an inductive proximity sensor is a non-contact electronic device used to detect the presence or absence of metallic objects. Its core principle is electromagnetic induction.

Here’s a simple breakdown of how the FSNS10D-03N works:Generate: The sensor's sensing face contains a coil that generates a high-frequency electromagnetic field.Disturb: When a metal object (the target) enters this field, it causes "eddy currents" to form on the metal's surface.Detect: This disturbance in the electromagnetic field is precisely detected by the sensor's internal intelligent chip.Signal: The chip then processes this change and triggers a solid-state output signal, indicating the object's detection.This non-contact operating principle is key to the sensor's long service life and exceptional reliability, as there are no mechanical parts to wear out.

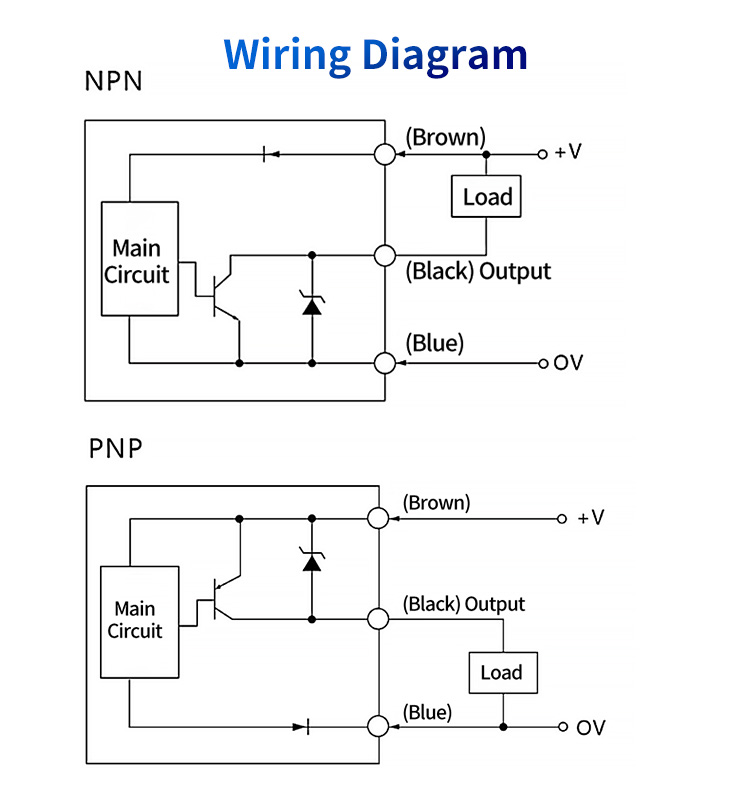

This combination of ruggedness, intelligence, and versatility makes the FSNS10D-03N not just a sensor, but a strategic investment in the reliability and efficiency of your automated systems. Continue reading to explore the detailed technical specifications, wiring diagrams, and specific application examples that showcase how the FSNS10D-03N can be integrated into your unique operational environment.

Parameters
