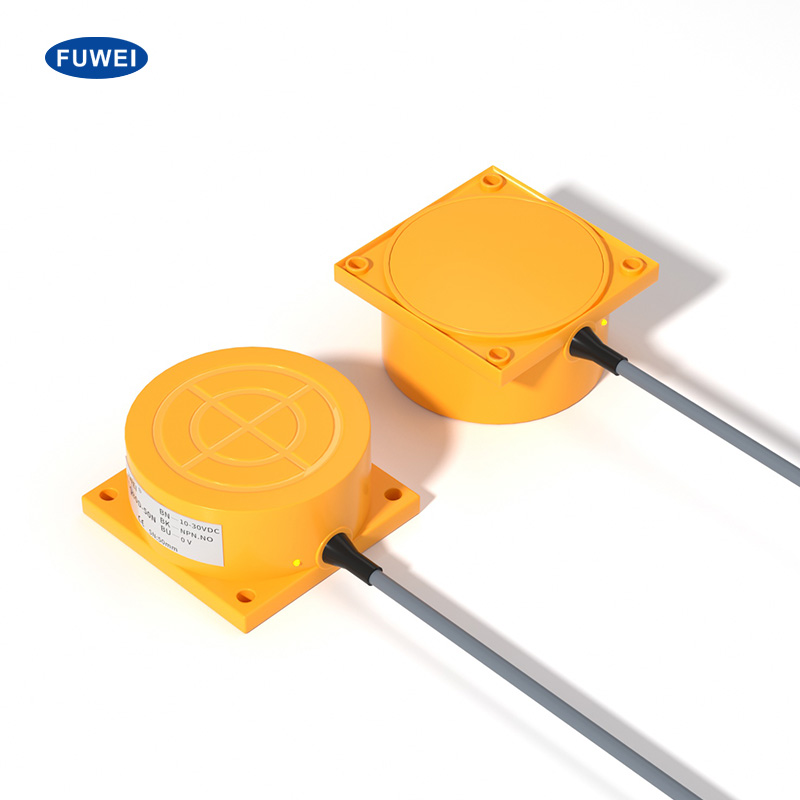

Inductive Proximity Sensor FSQ80D-50N Series

Model:FSQ80D-50N Series
Inductive Proximity Sensor FSQ80D-50N Series Built-in intelligent chip, high-speed response, accurate detection;. IP67 protection structure Built-in reverse connection, surge absorption, circuit protection. Excellent circuit design, anti-electromagnetic and frequency converter interference performance stronger multiple protection safer and more stable.​
Send Inquiry
Product Description

Inductive Proximity Sensor FSQ80D-50N Series Performance Characteristics:

The FSQ80D-50N Series Inductive Proximity Sensor is engineered to excel in industrial environments, featuring a built-in intelligent chip that enables high-speed response and accurate detection—ensuring precise performance even in dynamic operational scenarios. Designed for durability and reliability, it boasts an IP67 protection structure, along with built-in safeguards including reverse connection protection, surge absorption, and comprehensive circuit protection to withstand harsh conditions. Its excellent circuit design further enhances its resilience, delivering stronger resistance to electromagnetic interference and frequency converter interference, making it safer and more stable for long-term use. Whether integrated into automated production lines, machinery monitoring systems, or precision control setups, the FSQ80D-50N Series combines smart technology, robust protection, and consistent performance to meet the most demanding industrial sensing needs.

Specification Parameters

0utput

Mode

Normally Open
 FSQ80D-50N
 FSQ80D-50P
Normally Closed
 FSQ80D-50NA
 FSQ80D-50PA
Output Type
 NPN Output
 PNP Output
Sensing Method
 Upper Induction
Supply Voltage
 10-30VDC
Induction Distance
 0-50mm(Adjustable Distance)
Switch Point Shift
 <士10%
Hysteresis Range
 1-15%
Repeatability Error
 ≤3%
Response Frequency
 80HZ
Load Current
 ≤200mA
Residual Voltage
 ≤1.5V DC
Consumption Current
 <15mA
Protective Circuit
 Polarity Protection, Short-Circuit Protection, OverloadProtection
operating Indicator Light
 LED:Yellow
Ambient Temperature
 During Operation:-25~+70°c During Storage:-40~+85°C
Ambient Humidity
 During operation:35~85%RH During Storage:35~95%RH
Dielectric Strength
 1000V/AC 50/60Hz 60S
Insulation Resistance
 >50MΩ((500VDC)
Vibration Resistance
 Complex Amplitude 1.5mm 10-50Hz(X.Y.Z方各2h)
Protection Grade
 IP67
Enclosure Material
 PBT
Connection Method
 2m PVC Cable

Hot Tags: Inductive Proximity Sensor FSO80D-50 Series, China, Manufacturer, Supplier, Factory, Buy Discount, Buy, Customized
