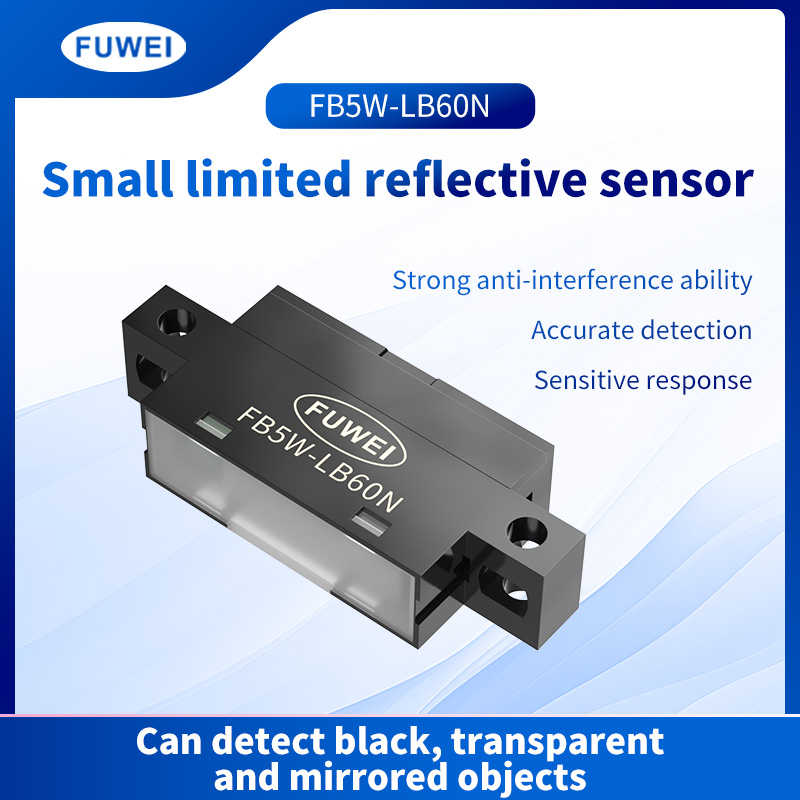

PMMA Photoelectric sensor

Model:FB5W-LB60N

Product Characteristics: Stable detection of various objects such as mirrors, black and transparent objects; Wide detection range and therefore strong resistance to object position deviation; Effective detection of desired objects regardless of the background. Intelligent SensingEmpowers Digital ind......

Product Characteristics:

Stable detection of various objects such as mirrors, black and transparent objects;

Wide detection range and therefore strong resistance to object position deviation;

Effective detection of desired objects regardless of the background.

Intelligent SensingEmpowers Digital industry:

Suitable forvarious scenarios:

Sanitaryinstallationtesting hand

Coffee machinedetection cup

Drug packaging machinetesting and bagging

Detection ofitems insidethe express box


Color stability

Limited reflection type that is not easily affected

by color and materialMirror, black, and transparent objectswill also be detected

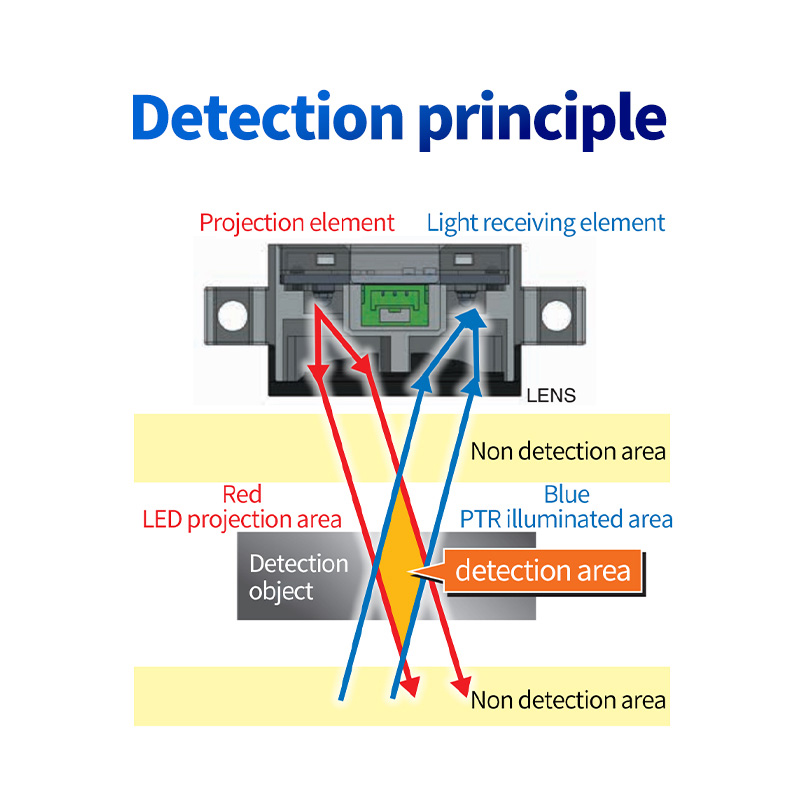

Working principle of limitedreflection type sensors

Receive reflected light from the detected object to detectits presence. Having an optical system that limits theprojection beam and receiving area, it can only detectobjects at a certain distance from the sensor(the rangewhere the projection beam coincides with the receivingarea).



Not affected by background

Can effectively detect the presence or absence ofobjects

Ordinary sensors

① When setting the detection distance for white objects,black objects cannot be detected.

When setting the detection distance for black objectsa white background is detected.



Limit sensor

It is independent ofthe color and background ofthe objectand can effectively detect the presence or absence of the object.




Stability of distance

Wide detection range, even ifthe object's position is offset,it can still be detected

Black object5-40mm

White object5-60mm

Transparent objects

5-50mm

Balancing color and distance stability! Flexible use ofopticalsimulation in lens design!

With a self-designed structure composed of four types of toroidallenses, stable detection can be achieved with only weak light.

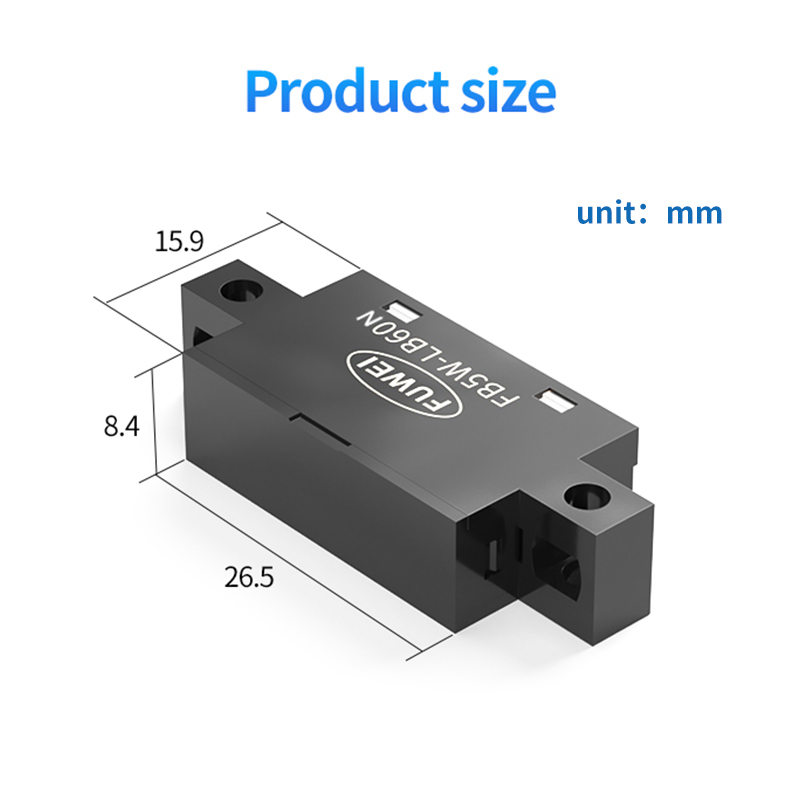

Product size:

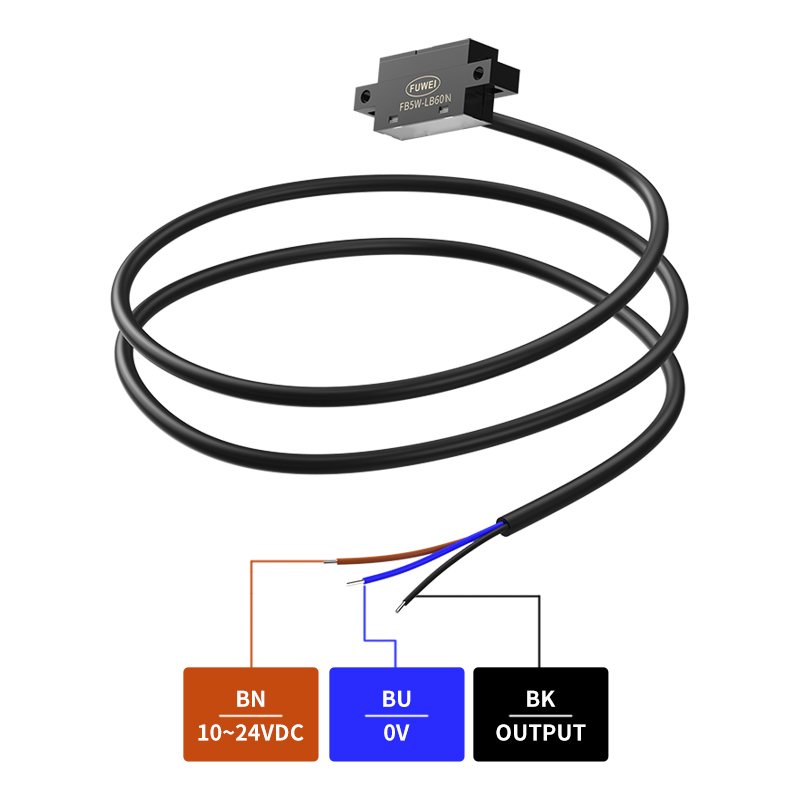

Wiring Guidelines:

Specification:

type
Limited reflection type
model
FB5W-LB60N
FB5W-LB60NA
Detection distance
white
5~60mm
black
5~40mm
transparent
5~50mm

Minimum detection object

Ф0.15mm

Stress difference

<20%

light source Infrared light-emitting diode(850nm)
supply voltage DC24V±10% pulsation (p-p) below 10%
Consumption current Below20mA(at DC26.4V)
Action mode
On when enteringthe light
When shading, on
Control output
Load powersupply voltage below DC26.4VLoad current below 50mA (residual voltage below 0.8V (when load current is 50mA)Residual voltage below 0.32V (when the load current is 10mA)Open collectoroutput (NPN output)
Output indicator light
Red LED
response time
<lms
Usingambient

illumination

Incandescent lamp: below 3000k,sunlight: below 10000lx
Output residual

voltage

Residual voltage below lV(load current less than 10mA)Residual voltage below2V (load curent less than 10-100mA)
Environmental

temperature range

Duringoperation:-10~+60°C,duringstorage:-25~+80°C(without freezing or condensation)
Vibration durability
10~55Hz dual amplitude 1.5mm, 2 hours in X,Y,Z directions
Impact durability
500m/s’, X. 3 times in each direction ofY and Z
Protective structure
lEC standard lp50 (excludingteminals)
Connection method
Connectortype
weight
Approximately 3.4g (bodyonly)
Shell material PC
Display material PMMA
Lens material PC

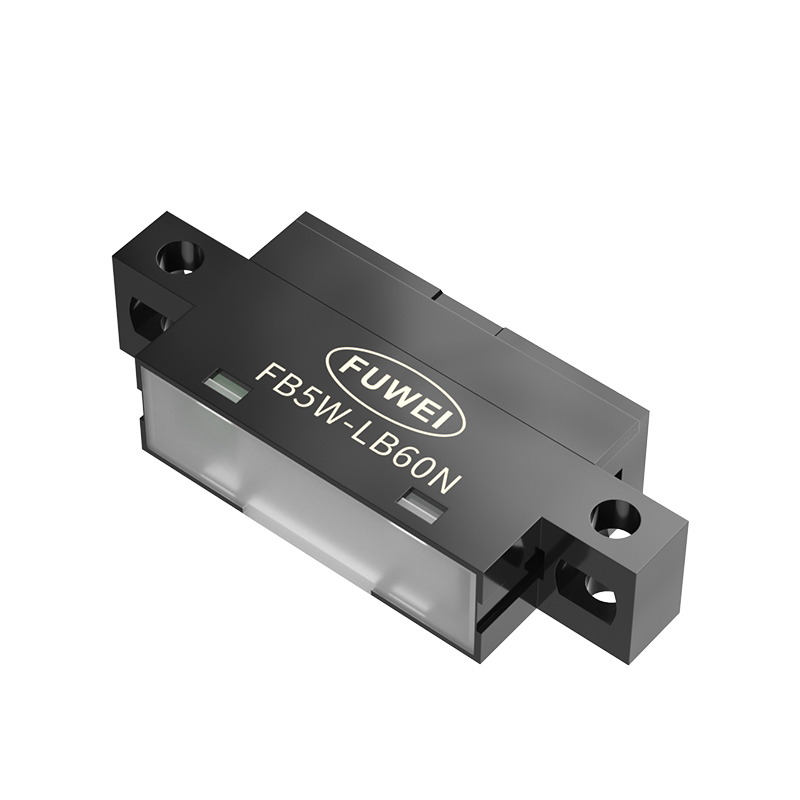

Product Display:
