Part number:FSD23-35-AV

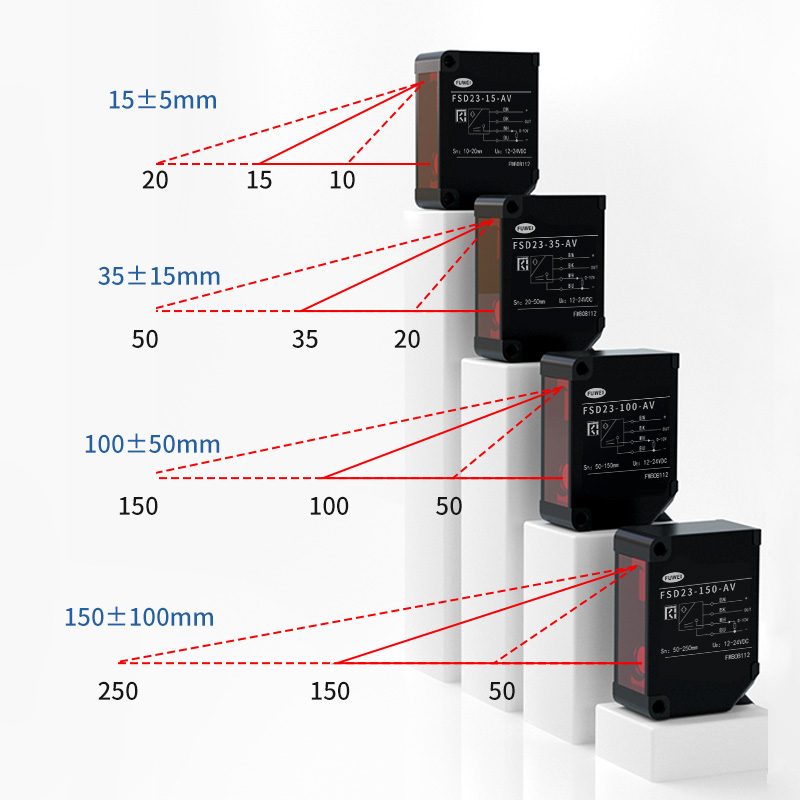

Measurement center distance:35mm
Measurement range:±15mm
Linearity:±0.1%F.S.
Repeatability:6μm
Control output:NPN/PNP max.100mA/DC30V ((Residual voltage 1.8 V max.)
Supply voltage:24VDC, Sampling period: 500 μs, Averaging: 64,Measuring distance:Center of range, Testing object: White ceramic
Analog voltage output:Output 0-10V , output impedance 100ΩAnalog current output:Output 4-20mA, allowable load resistance below 300Ω
Protection:IP67
Operating Temp./Humid.:-10~50⁰C / 35 ~ 85% RH without freasing or condensation
