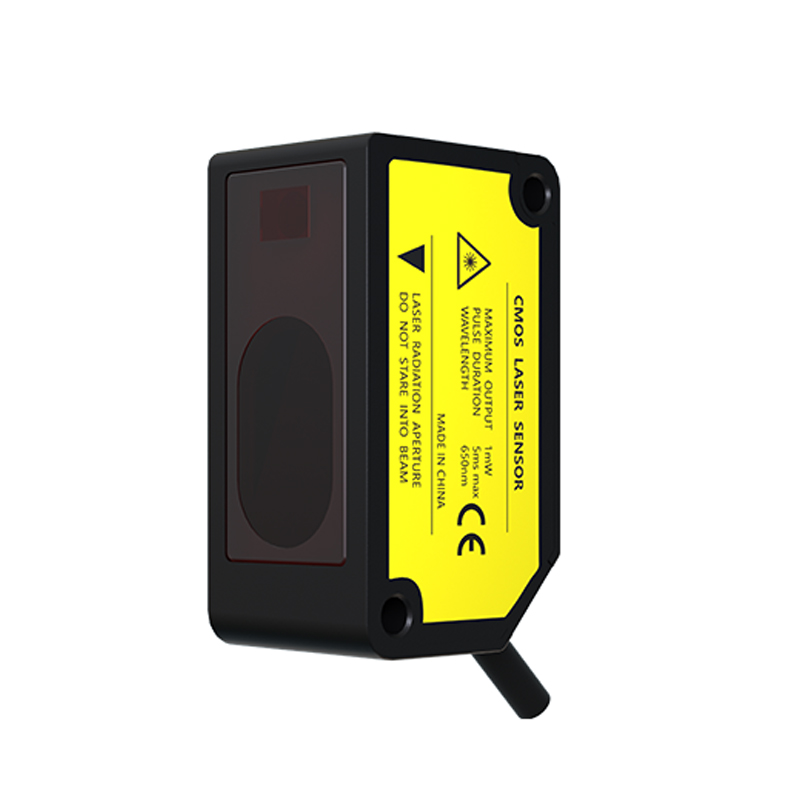

laser displacement range sensor pnp output

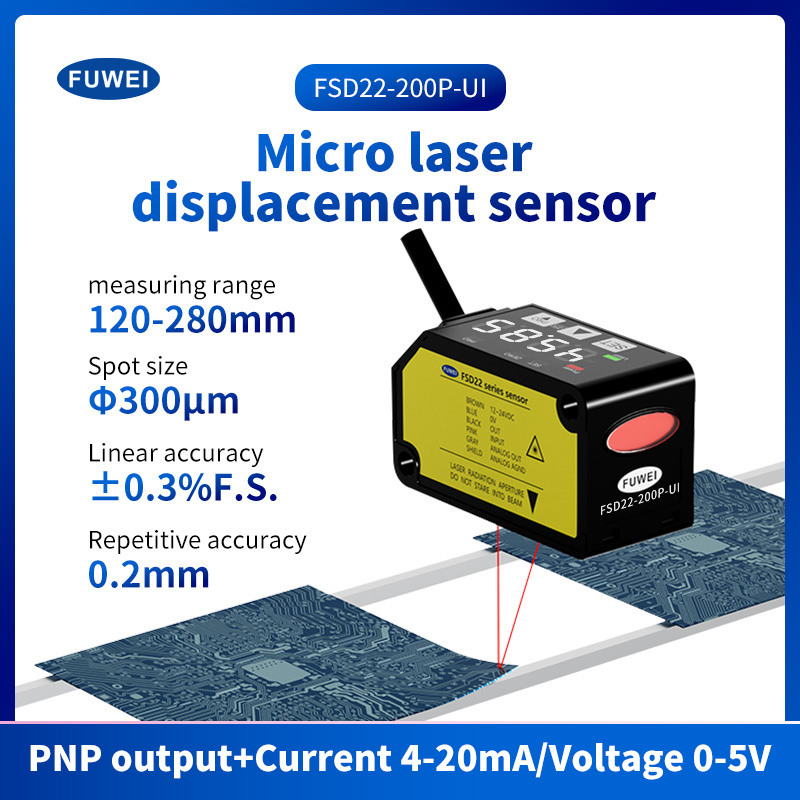

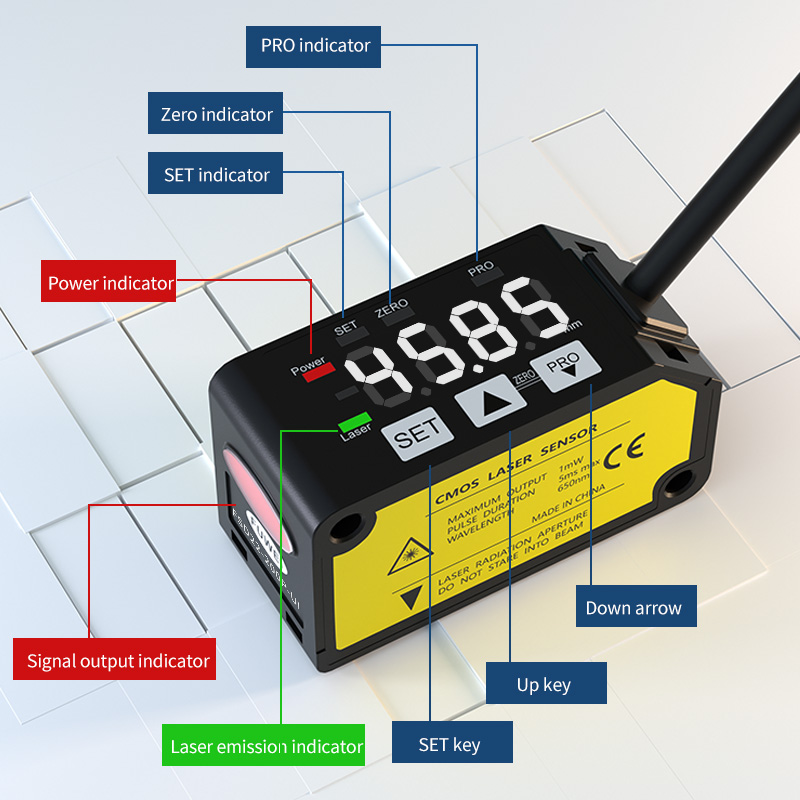

Model:FSD22-200P-UI
laser displacement range sensor pnp output Part number：FSD22-200P-UI Measurement center distance：200mm Measurement range：±80mm Linearity:±0.3%F.S. Beam diameter ：ø300μm Repeatability：200μm Control output：PNP Supply voltage：12 to 24V DC ±10% Analog voltage output：Output range: 0 to +5V (at alarm: +5.2V) Analog current output：Output range: 4 to 20mA (at alarm: 0mA) Response time：Switchable between 1.5ms / 5ms / 10ms Protection：IP67 Ambient temperature：-10 to +45°C (No dew condensation or icing allowed), Storage:-20 to +60°C Cable:0.2mm2 5-core composite cable, 2m long
Send Inquiry PDF DownLoad

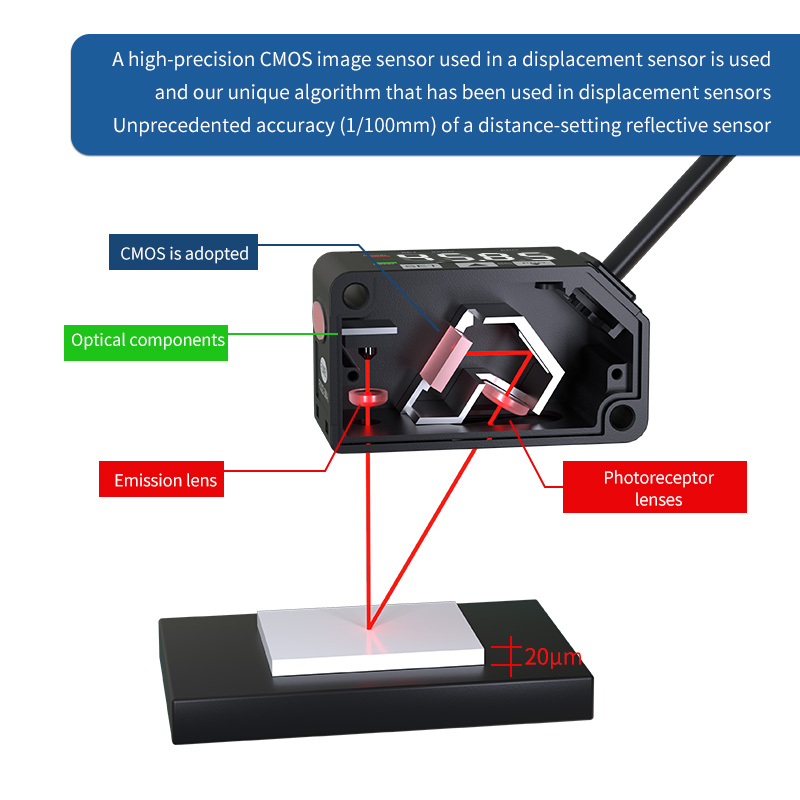

Product Description

laser displacement range sensor pnp output with PNP Output (Model: FSD22-200P-UI) delivers high-precision distance measurements for industrial automation applications. Designed for reliable performance in harsh environments, this sensor combines advanced laser technology with robust construction to meet demanding measurement requirements.

Product Characteristics：

Part number：FSD22-200P-UI

Measurement center distance：200mm

Measurement range：±80mm

Linearity:±0.3%F.S.

Beam diameter ：ø300μm

Repeatability：200μm

Control output：PNP

Supply voltage：12 to 24V DC ±10%

Analog voltage output：Output range: 0 to +5V (at alarm: +5.2V)

Analog current output：Output range: 4 to 20mA (at alarm: 0mA)

Response time：Switchable between 1.5ms / 5ms / 10ms

Protection：IP67

Ambient temperature：-10 to +45°C (No dew condensation or icing allowed), Storage:-20 to +60°C

Cable:0.2mm2 5-core composite cable, 2m long


When there is a detection object on the sensor side, the detectioncan be set according to the background objectBenchmark value.It is a convenient function to detect changesin the size of an object.

(When using the detected object as the base)


Set the reference value on the side of the background object based on thedetected object. Stay away from the background Body time to use.


Parameter specifications：

Type

Measurement

center 30mm type


Measurement

center 50mm type


Measurement

center 100mm type


Measurement

center 200mm type


Measurement

center 400mm type


Analog+NPN output
 FSD22-30N-UI
 FSD22-50N-UI
 FSD22-100N-UI FSD22-200N-UI
 FSD22-400N-UI
Analog+PNP output
 FSD22-30P-UI FSD22-50P-UI
 FSD22-100P-UI
 FSD22-200P-UI
 FSD22-400P-UI
Measurement center distance
 30mm
 50mm
 100mm
 200mm
 400mm
Measurement range
 ±5mm
 ±15mm
 ±35mm
 ±80mm
 ±200mm
Beam diameter (Note 3)
 Approx. ø50μm
 Approx. ø70μm
 Approx. ø120μm
 Approx. ø300μm
 Approx. ø500μm
Repeatability
 10μm
 30μm
 100μm
 200μm

300μm (measurement distance 200 to 400mm)

800μm (measurement distance 400 to 600mm)

Linearity
 ±0.3%F.S.
 ±0.3%F.S.

±0.3%F.S. (measurement distance 200 to 400mm)

±0.4%F.S. (measurement distance 400 to 600mm)

Temperature characteristic
 0.03%F.S./°C
Light source

Red semiconductor laser Class 2 [JIS / IEC / GB / FDA (Note 2)]

Max. output: 1mW, Emission peak wavelength: 655nm

Supply voltage
 12 to 24V DC ±10%, Ripple P-P 10% or less
Power consumption
 40mA or less (at 24V DC supply voltage), 65mA or less (at 12V DC supply voltage)
Control output

NPN open-collector transistor

      •Maximum sink current: 50mA

      •Applied voltage: 30V DC or less

                      (Between control output to 0V)

      •Residual voltage: 1.5V or less

                                  (At 50mA sink current)

      •Leakage current: 0.1 mA or less



  PNP open-collector transistor

  •Maximum source current: 50mA

  •Applied voltage: 30V DC or less

              (Between control output to +V)

  •Residual voltage: 1.5V or less

                       (At 50mA source current)

   •Leakage current: 0.1 mA or less


Switchable either Light-ON or Dark-ON
Incorporated (Auto reset type)

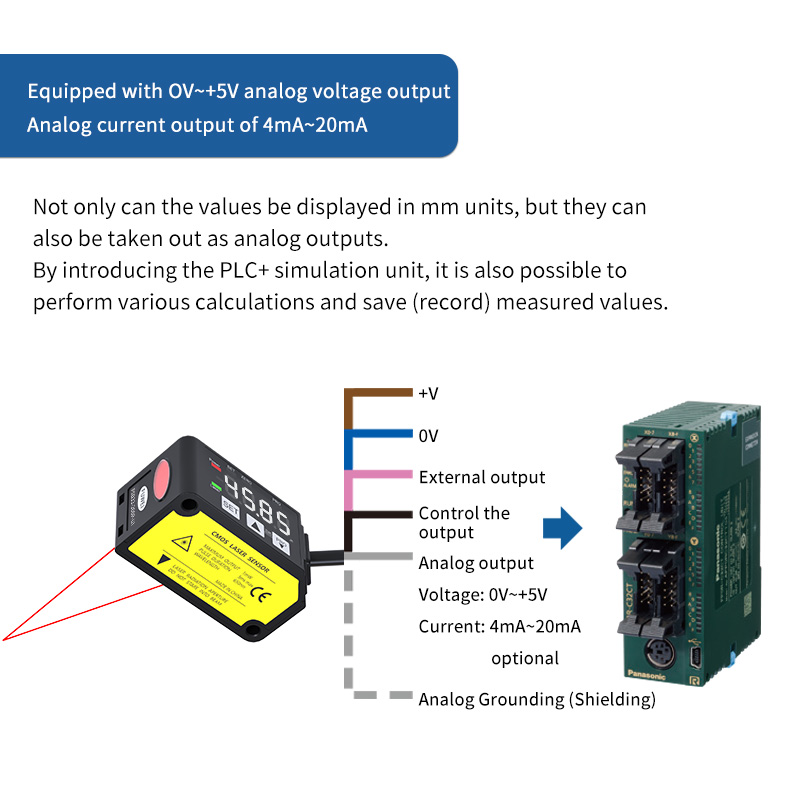

Analog output
 Analog voltage output

•Output range: 0 to +5V (at alarm: +5.2V)

•Output impedance: 100Ω


Analog current output

•Output range: 4 to 20mA (at alarm: 0mA)

•Load impedance: 300Ω or less

Response time
 Switchable between 1.5ms / 5ms / 10ms
External input

 NPN non-contact input

   •Input conditions

     Invalid: +8 to +V DC or Open

     Valid: 0 to +1.2V DC

   •Input impedance: Approx. 10kΩ


  PNP non-contact input

    •Input conditions

     Invalid: 0 to +0.6V DC or Open

     Valid: +4 to +V DC

    •Input impedance: Approx. 10kΩ

Protection
 IP67 (IEC)
Degree of pollution
 2
Ambient temperature
 -10 to +45°C (No dew condensation or icing allowed), Storage: -20 to +60°C
Ambient humidity
 35 to 85% RH, Storage: 35 to 85% RH
Ambient illuminance
 Incandescent lamp: Acceptance surface illuminance 3,000ℓx or less
Operating altitude
 2,000m or less
Cable
 0.2mm2 5-core composite cable, 2m long
Material
 Enclosure: Aluminum die-cast, Front cover: Acrylic
Weight
 approx. 85g (including cable)
Applicable standard
 EMC Directive Compliance, FDA Standard, UL Recognition
Notes:




1) Supply voltage: 24V DC, ambient temperature: +20°C, response time: 10ms, and analog output value of measurement center distance are   used for unspecified measurement conditions. The subject is white ceramics.
2) This is based on the FDA Standard, according to Laser Notice No. 50 of the FDA Standard.
3) This is the size in the measurement center distance. These values were defined by using 1/e2 (approx. 13.5%) of the center light intensity. Due to leak light outside the specified area, the reflectance around the detecting point may be higher than at the point and this may affect the measurement value.
