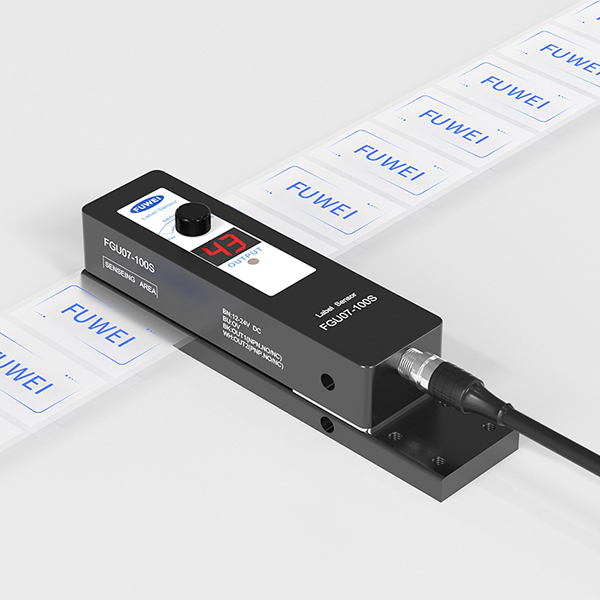

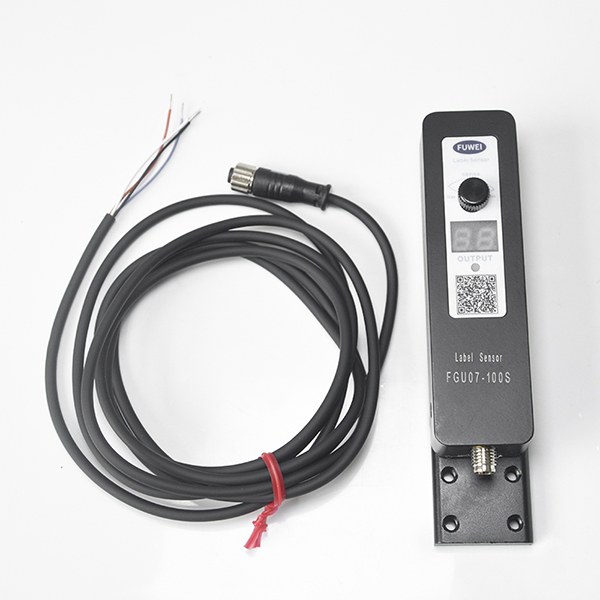

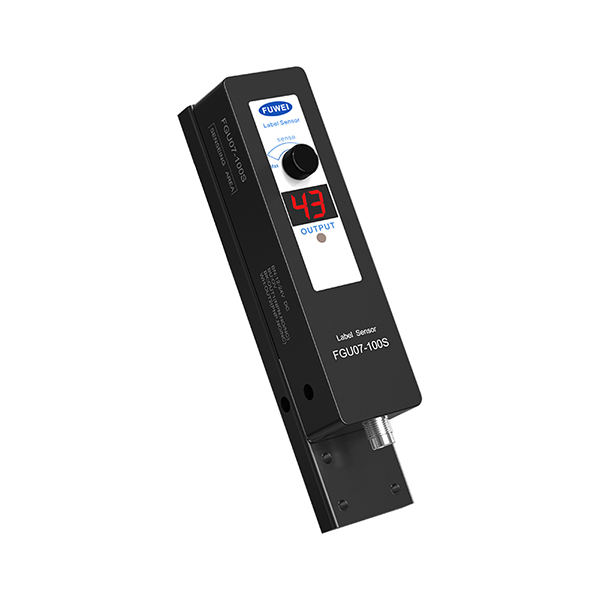

Transparent Label Detection FGU07-100S

Transparent Label Detection FGU07-100S embodies precision engineering and superior quality. As a trusted supplier, we offer competitive prices without compromising on the reliability and performance of our cutting-edge sensor technology, ensuring unmatched value for our customers seeking top-tier label detection solutions.

With the development and degree of industrial automation, labeling machines have to shift from manual or semi-automatic to automated high-speed labeling. In this automated system, tag sensors play a key role. Due to the different production processes and the complexity of labeling procedures, modern commodity labels have increasingly higher requirements for label sensors. A powerful label sensor not only solves traditional problems, but also improves the performance of the entire labeling automation system. FuWei FGU07-100S Label Sensor has consistently adhered to the concept of "high practicality, minimalist operation" and continues to create a good experience for users. There are various types of label sensors on the market, but many of them are easily affected by the external environment, so there are certain limitations in use. The FGU07-100S Label Sensor has strong resistance to sound, light, and magnetic interference and can be used more efficiently. Enter high-speed operation quickly and stably, and can detect transparent labels.

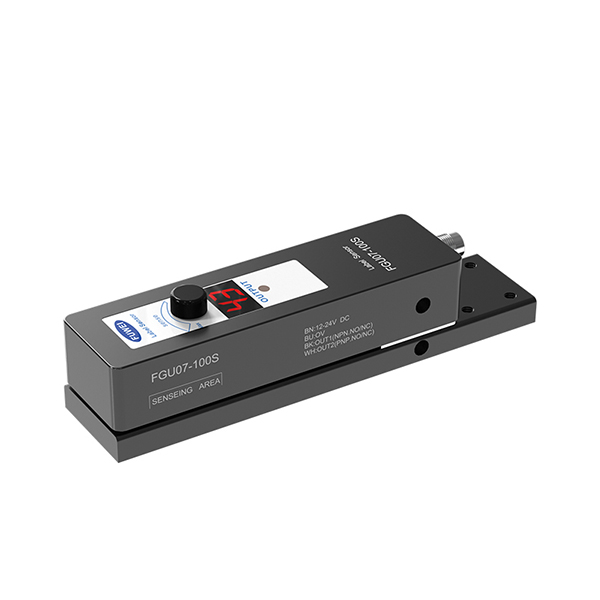

 It can reach a response speed of 5KHZ per second, the positioning accuracy can be controlled below 0.2mm, and it can detect labels as thin as 0.05mm. It is suitable for high-speed labeling equipment with high requirements. FGU07-100S Label Sensor: Extended bottom plate, multi-directional screw holes are suitable for different installation methods. The sensor is composed of a grooved housing, a light modulator transmitter and receiver, an output circuit, a chip, etc.; when the gap between the label and the bottom paper passes, it is Measurement changes will lead to changes in capacitance of the capacitor. Through the measurement circuit, the change in capacitance can be converted into a usable switching signal and output to the host computer. FuWei FGU07-100S Label Sensor, this series of label sensors has fast response speed and is suitable for the detection of transparent labels.

Label Sensor features:

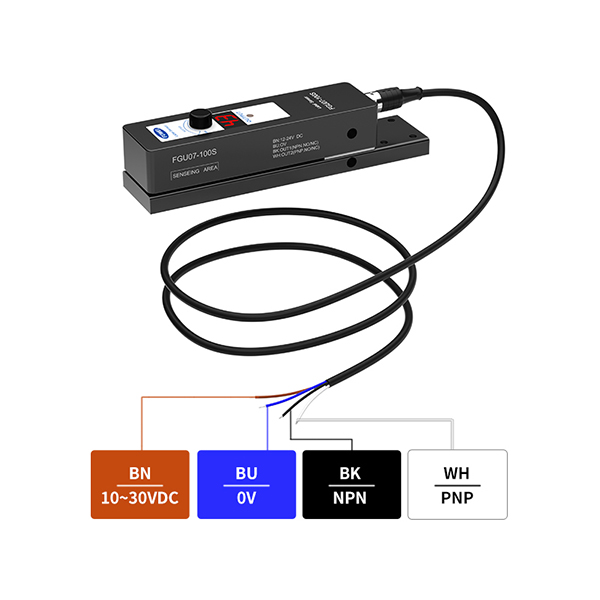

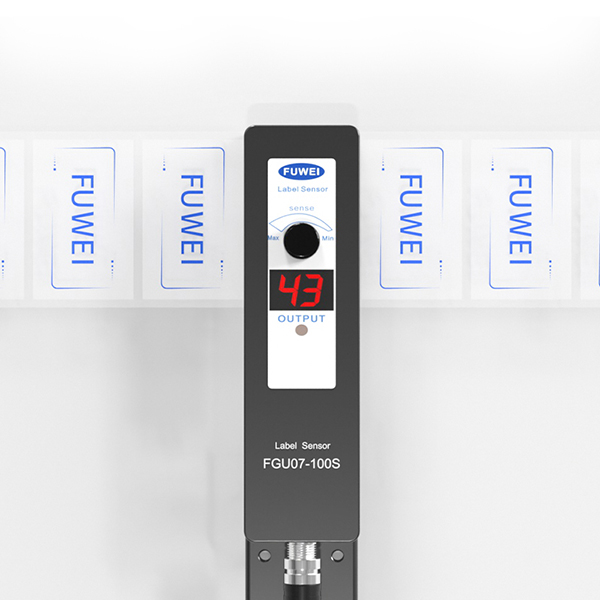

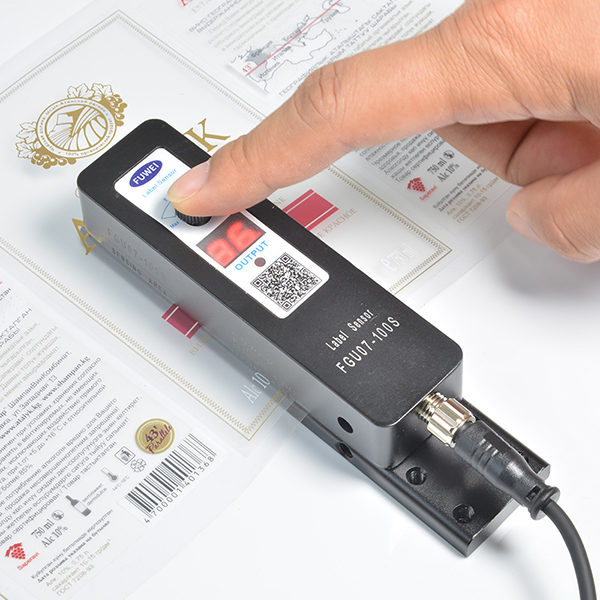

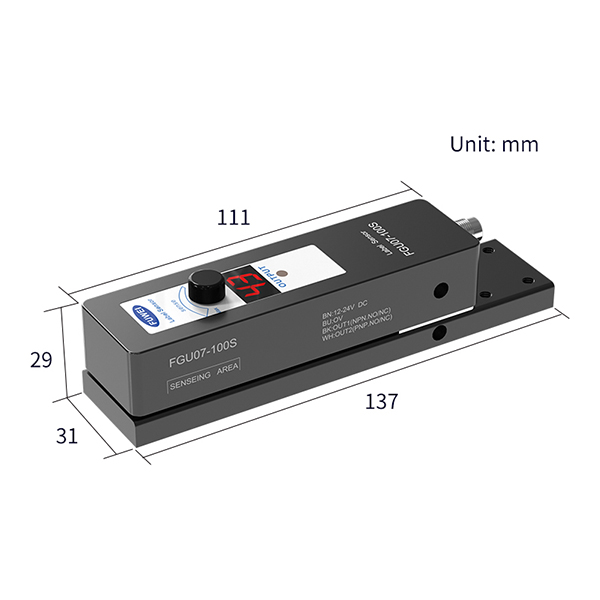

(1) The groove width is 0.7mm, the groove depth is 80mm, and the housing is compact, saving installation space; (2) 5KHZ high-speed switching frequency and extremely short response speed, rapid detection of tags, (3) Highly efficient anti-interference, ensuring good repeatability; (4) Dual output: NPN+PNP, high adaptability; (5) The sensitivity can be adjusted through the knob, and the digital display intuitively displays the current parameters. Even if the label has bubbles or bulges, it can avoid the generation of false signals.

High Speed Transparent Label Sensor settings:

Many tag sensors are troublesome to learn in the initial tag state or when changing tags, but the FGU07-100S series tag sensors can be set up in just a few extremely simple steps.

High Speed Transparent Label Sensor application scenarios:

(1) Beverage filling and labeling By detecting the label gap, the control equipment labels the wall of the cylindrical bottle. (2) Labeling of packaging bags Detect the presence or absence of labels and confirm the position of labels to prepare for the labeling process. (3) Logistics packaging labeling Detect the transparent label gap and control the equipment to label the logistics cartons. (4) PCB circuit board labeling Before laminating the circuit board, check whether the label is in place. (5) Film inspection There is a white paper film on the white plastic film. Check the gaps between the white paper films to prepare for the next step of applying the film.
