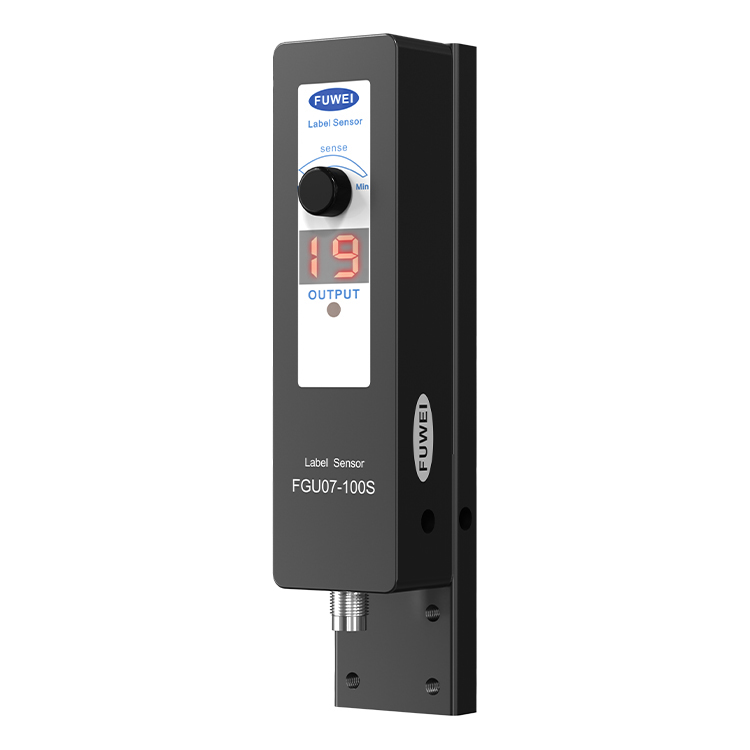

FGU07-100S High Speed Transparent Label Sensor

FGU07-100S High Speed Transparent Label Sensor

Product Overview

Slot Width: 0.8mm; Slot Depth: 82mm

Switching Frequency: 5kHz for fast response

Detection Principle: Differential capacitive sensing, suitable for paper and transparent (non-metallic) labels

Output Type: Dual output (NPN + PNP) for high adaptability

Detection Accuracy: Positioning accuracy within ±0.2mm; capable of detecting label thickness as thin as 0.05mm

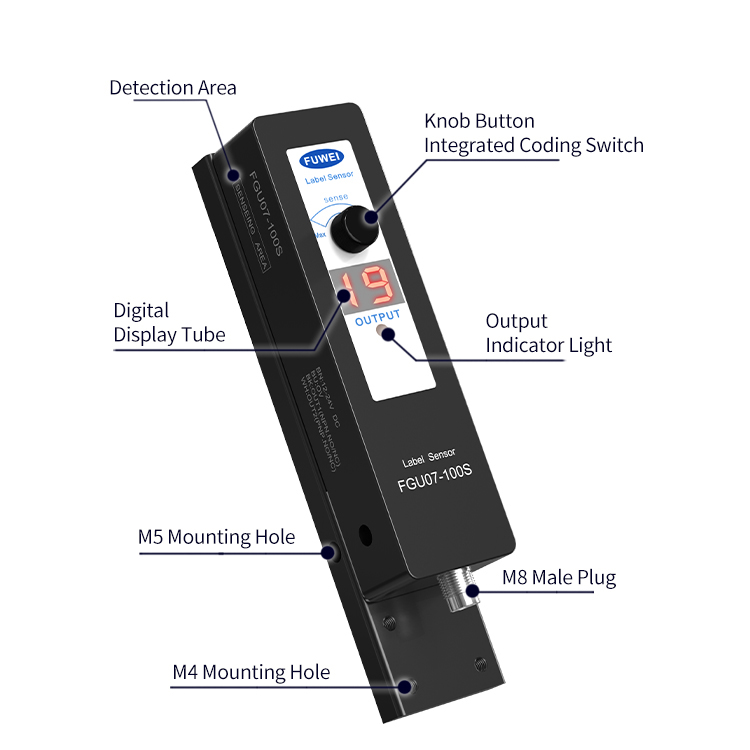

Mechanical Design: Extended base plate with multiple mounting holes for versatile installation options

High Precision Fast Speed

Frequency up to 5000Hz,response speed 20us Both fully automatic and semi-automatic labeling machines can be used.

Digital Display TypeSelf Learning Settings

Digital display: Visual operation, making setting Smore convenient.Self learning: Automatically learn to set sensitivity for optimal performance.

Strong Universality

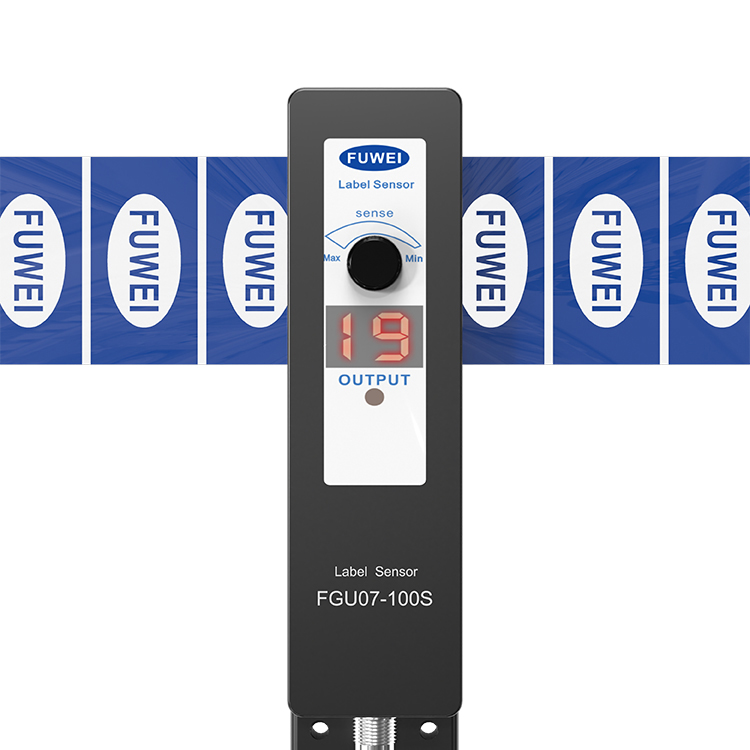

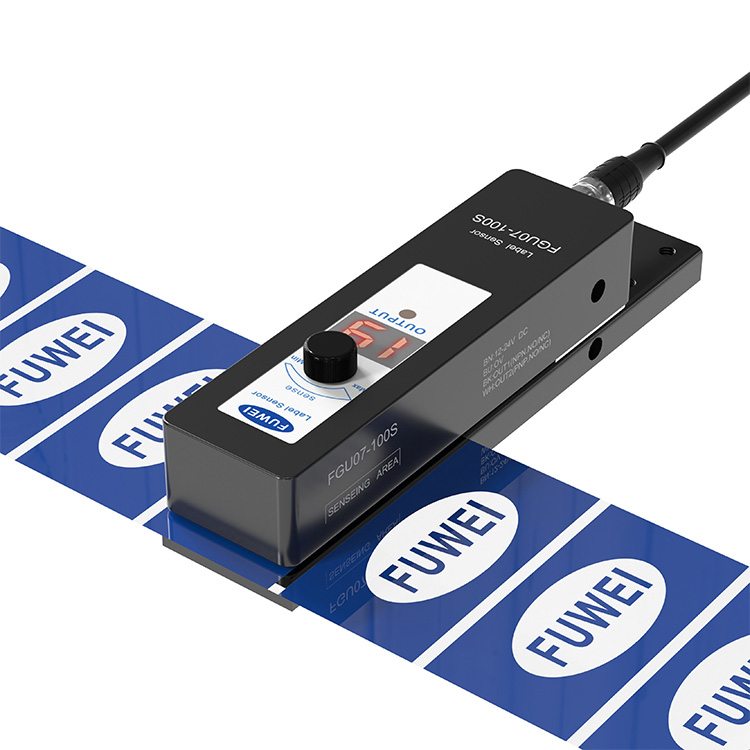

Accurate and fast detection of transparent, paper, and PVC composite labels.Suitable for automatic labeling equipment such asfully automatic labeling machines and semi-automaticlabeling machines

Setting Instructions

Self Learning Settings

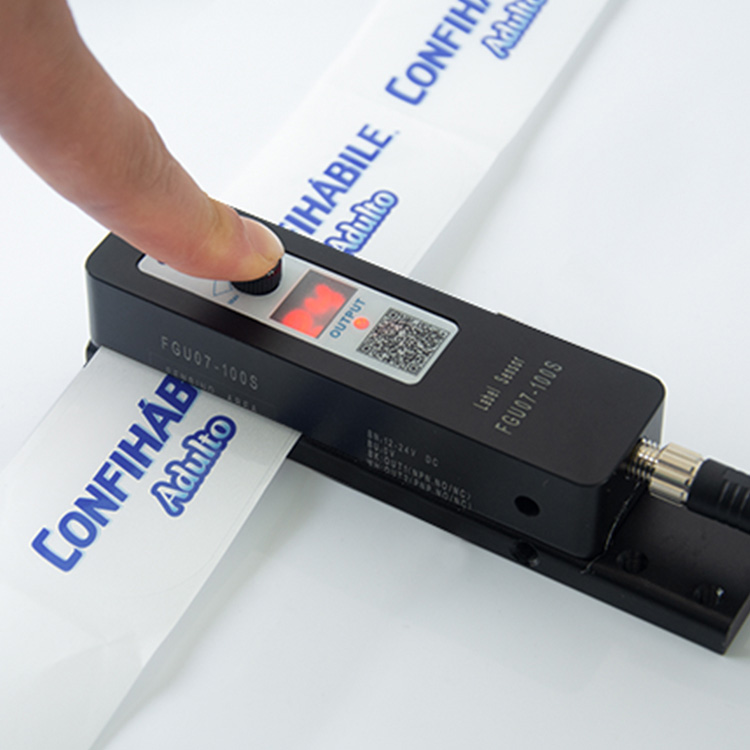

1. Place the label in the card slotdetection area;

2. Press and hold (knob cap) for 5seconds;

3. When displaying AO, briefly press(knob cap) for 1 second;4. Enter the self-learning state, dragthe label paper back and forth, and within 10 seconds, let the sensor self-learning more than 5 labe!seams.

Manual Fine Tuning

1. Short press (knob cap) for 1 second;

2.Increase (clockwise) or decrease(counterclockwise).Increased sensitivity is suitable forthin labels or missing labels;Sensitivity reduction is suitable forsituations with thick labels or erro.neous signals.

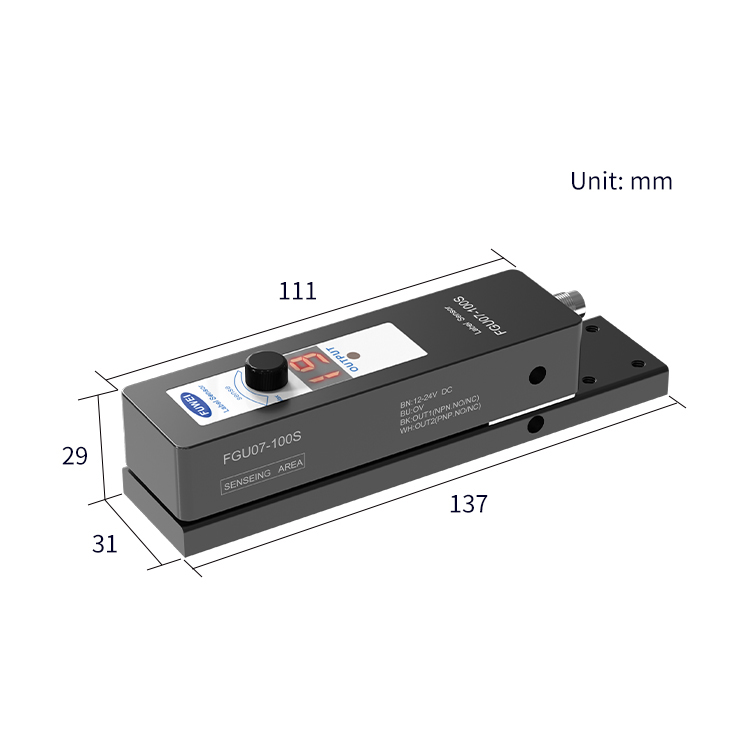

Product Size：

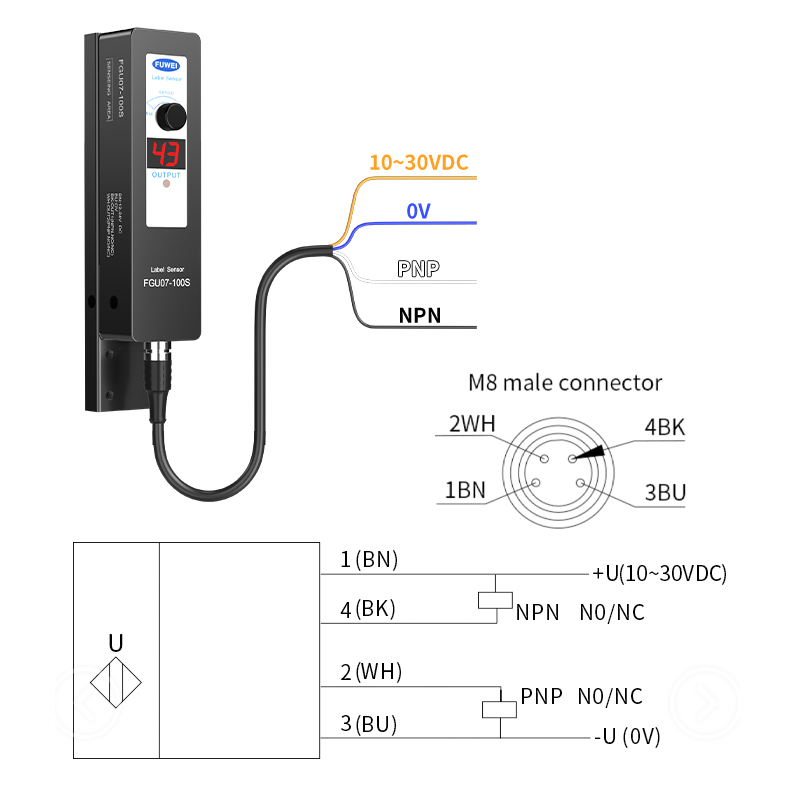

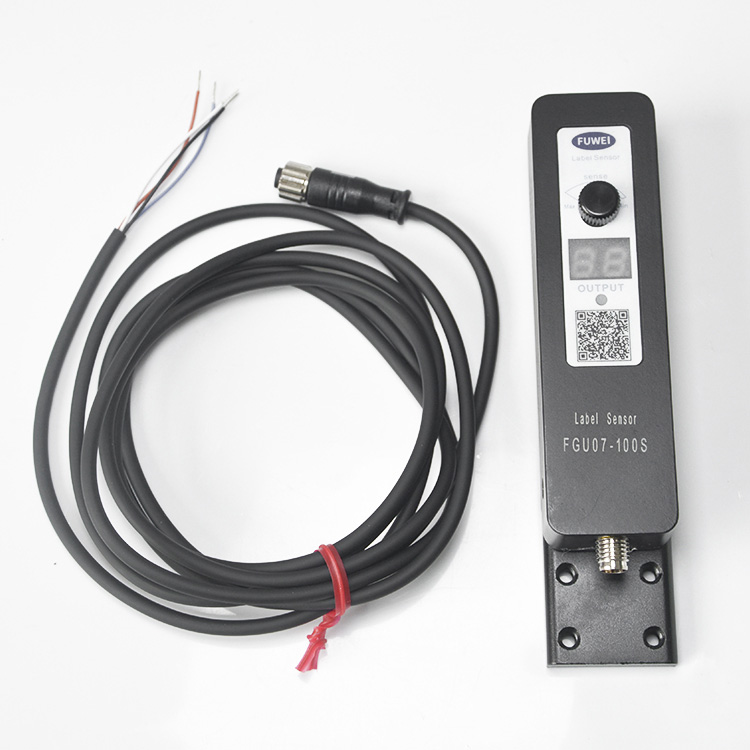

Wiring Guidelines：

Specification：

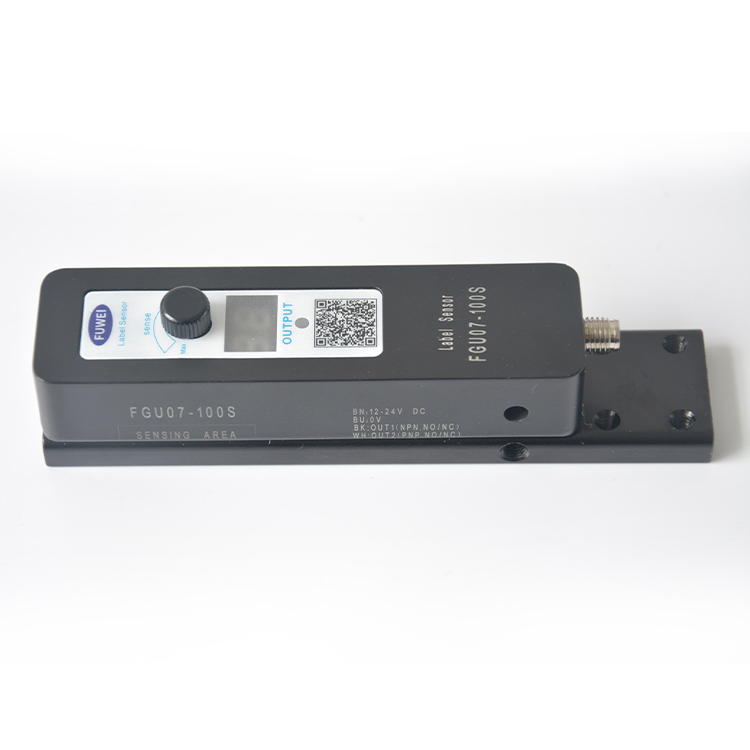

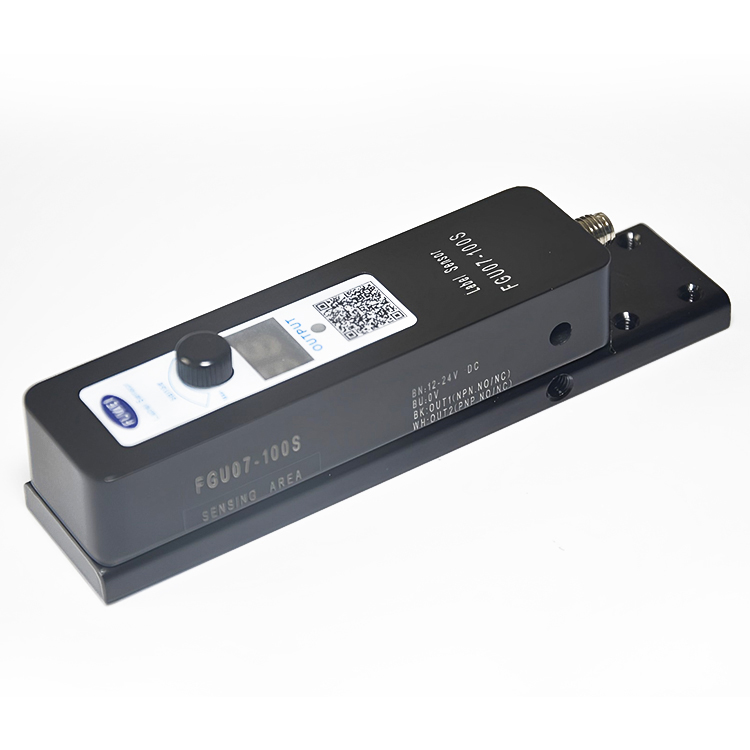

Product Display：
