Laser Displacement Sensor FSD13 Series

FUWEI is a leading China Laser Displacement Sensor FSD13 Series manufacturer, supplier and exporter. Adhering to the pursuit of perfect quality of products, so that our Laser Displacement Sensor FSD13 Series have been satisfied by many customers. Extreme design, quality raw materials, high performance and competitive price are what every customer wants, and that's also what we can offer you. Of course, also essential is our perfect after-sales service. If you are interested in our Laser Displacement Sensor FSD13 Series services, you can consult us now, we will reply to you in time!

Laser Displacement Sensor FSD13 SeriesPerformance Features:

The FLR-10-AA Laser Displacement Sensor is an integrated measurement and control device featuring a digital display, now with an expanded measuring range of 25-600mm (with multi-range options available) to cater to even more diverse application scenarios, complemented by a high-speed sampling frequency of up to 1000Hz for real-time data capture.

Boasting exceptional precision, it delivers repeatability up to 5μm, while its unique algorithm enables stable and reliable detection of tiny objects, ensuring accurate and trustworthy measurement and monitoring data. Equipped with a user-friendly operation panel and an LED digital display for quick function setup and clear visibility of detection data, it supports versatile output modes including switching output, analog (4-20mA), and RS485 communication (compatible with ModBus protocol) to meet various usage requirements.

Designed for robustness, it features excellent EMC characteristics to resist electromagnetic and electrostatic interference, guaranteeing data authenticity, and adopts an automatic gluing process for superior sealing—capable of withstanding immersion in 1m deep water for 30 minutes, making it suitable for complex working conditions. Additionally, its built-in processor design effectively saves space and reduces wiring workload, while maintaining impressive linear accuracy up to +0.1% F.S. and a resolution of 5μm for precise performance.

Outstanding Measurement Performance

Built around the core advantage of "Stable And Accurate Measurement", this device ensures consistent and trustworthy results in various testing scenarios, crucial for precise decision-making and quality control. It offers a versatile measurement distance spanning 25-600mm with multiple range options, adapting effortlessly to both close-up precision part inspection and medium-to-long distance object positioning, eliminating the need for frequent device replacements. Boasting a sampling frequency of up to 1000Hz, it completes 1000 data collections per second, enabling accurate capture of even the tiniest changes in fast-moving objects without missing critical information. Additionally, its repetition accuracy reaches 5um (equivalent to 1/10 of a hair's diameter), allowing it to detect subtle size differences and ensuring consistent, accurate outputs in high-precision scenarios like component inspection and precision assembly.

Product's Significant Advantages

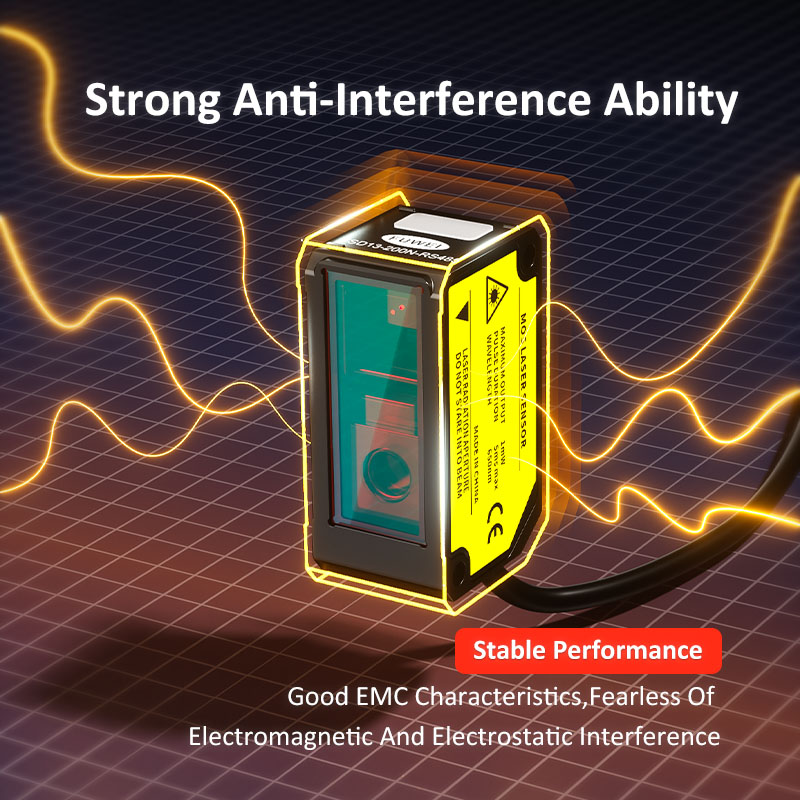

This device boasts significant advantages that make it a reliable choice for various applications. It achieves stable detection of small objects through unique algorithms, ensuring accurate measurement results you can trust. With good EMC characteristics, it fearlessly resists electromagnetic and electrostatic interference, maintaining the integrity of measurement data. Adopting an automatic gluing process, it has excellent sealing performance, providing strong dustproof and waterproof protection. Additionally, it offers a 25-600mm measurement distance with multiple ranges, a sampling frequency up to 1000Hz, and repetition accuracy up to 5um, delivering stable and precise measurements to meet diverse high-precision needs.

Key Features for Enhanced Usability

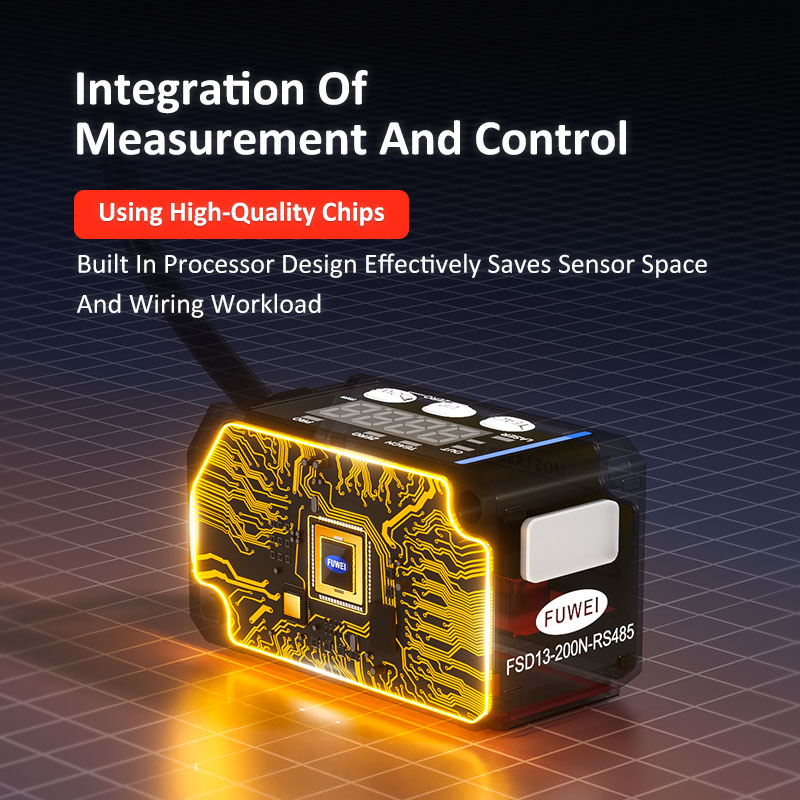

This product comes with a convenient operation panel and an LED display, which provides intuitive digital readings, allowing you to grasp measurement data at a glance and complete settings effortlessly. It also supports multiple flexible output modes, including switching output, analog current/voltage output, and RS485 communication output, ensuring seamless integration with various systems to meet diverse application needs. Moreover, its built-in processor design combines measurement and control functions, effectively saving sensor space and reducing wiring workload, thus making installation and use more efficient.

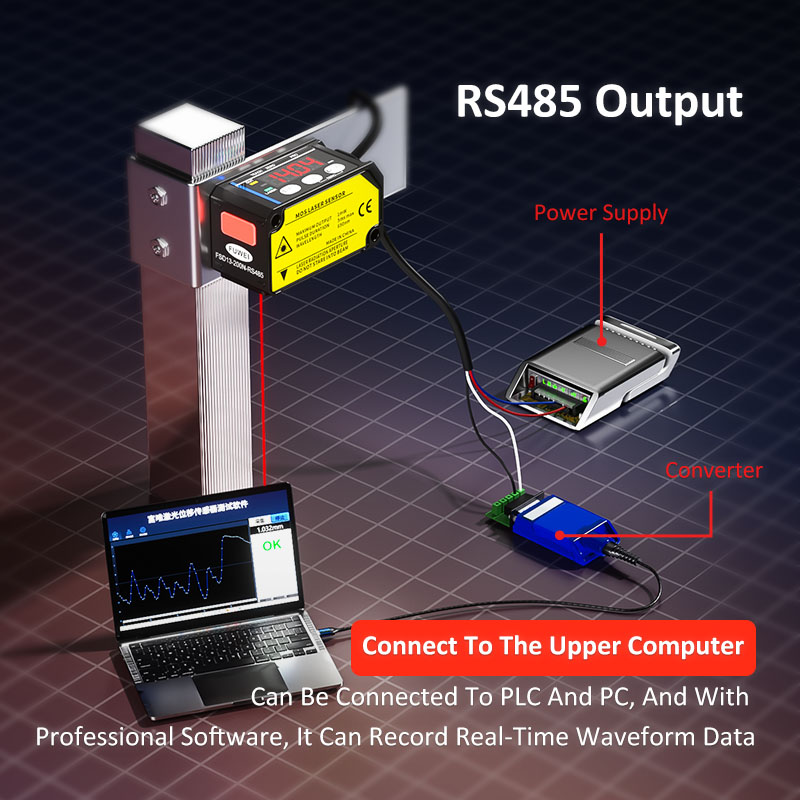

RS485 Communication

Connect to Upper Computer EasilyThis feature enables the device to connect to the upper computer smoothly via RS485 communication, facilitating seamless data transmission and interaction between the sensor and the upper-level system.Centralized Monitoring with Multiple SensorsThrough RS485 communication, multiple sensors can be connected to the same control system. This allows for centralized monitoring and management of the entire production line, making it easier to keep track of all measurement data and operational statuses in a unified manner, thus improving efficiency and convenience in production management.

Application Scenarios of the Product

Laser Displacement Sensor FSD13 Series boasts versatile application scenarios to meet diverse production needs. It excels in detecting surplus, accurately identifying excessive amounts of materials or components to avoid waste and ensure proper resource utilization. It precisely measures insertion amounts, providing accurate data on how far a part is inserted, crucial for ensuring proper assembly in mechanical or electronic setups. In crimping operations, it effectively detects crimp quality, ensuring secure connections that meet standards and reducing the risk of loose joints. Additionally, it reliably checks for the presence or absence of parts, components, or materials, ensuring each production step proceeds with necessary items to prevent errors and maintain process integrity.
