FGS01-500NP Detection distance 50~500mm Remote color sensor

Model:FGS01-500NP

FGS01-500NP Detection distance 50~500mm Remote color sensor,"White dots"can stablydetect differences inappearance (color),Not easily affected bytiltingNoteasily affected by distance changes.

Product characteristics:


White LED+ custom light receiving element to accurately capture subtle color differences;

500,000x high-definition dynamic range, can support a variety of workpiece colors, and effectively track distance changes and tilt;

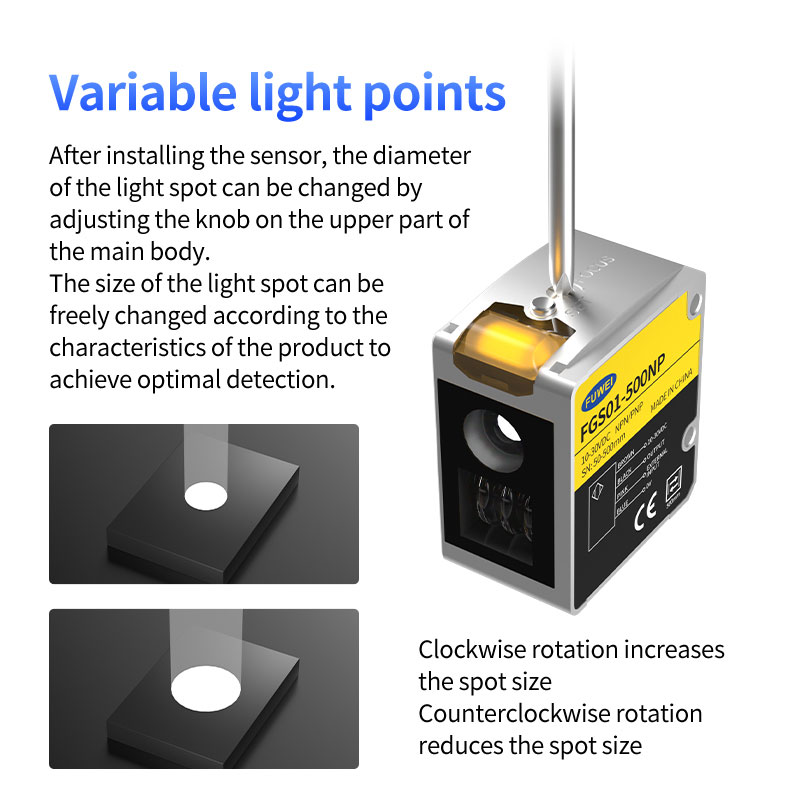

The light spot is variable, and the diameter of the light spot can be changed by the trimmer on the upper part of the main body;

Multiple detection modes, adjustable additional calibration, stable detection even when state changes or color fluctuations.

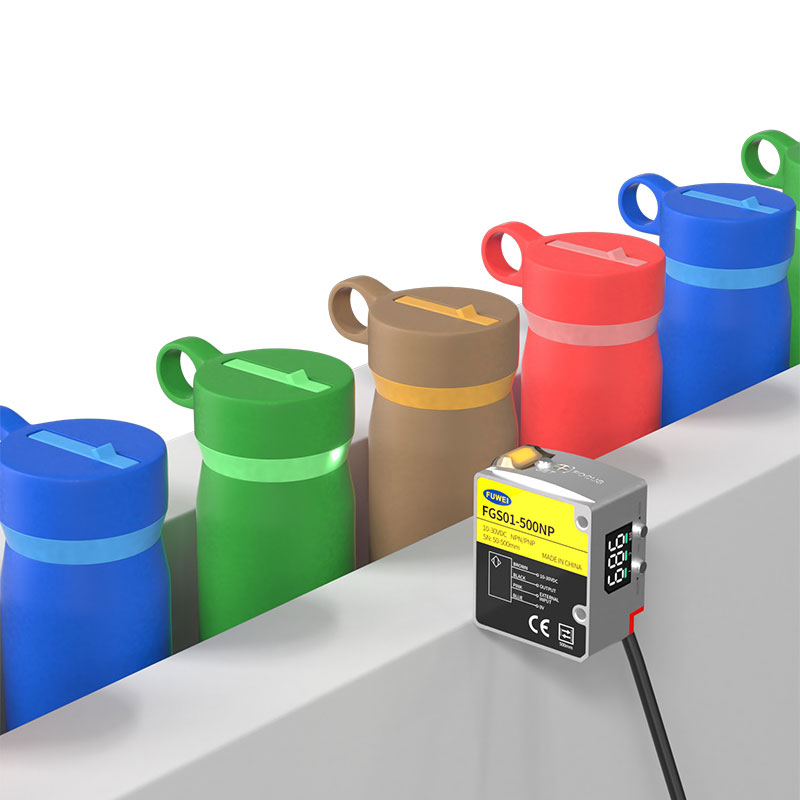

"White dots"can stablydetect differences inappearance (color)

Not easily affected bytiltingNoteasily affected by distance changes



White LED+custom lightreceiving element

(White LED light sourcesupports various wavelengths ofvisible light,Red LED projectionwavelength range

,White LED projectionwavelength range)


Thetraditionalred LED photoelectric sensoris limitedby the red wavelength range,So it canonly solve thedifference in light intensity;

Workpieces with low lightintensity can alsobestably detected with highpower

Controlling the luminouspower of workpieces witheasily saturated lightintensity

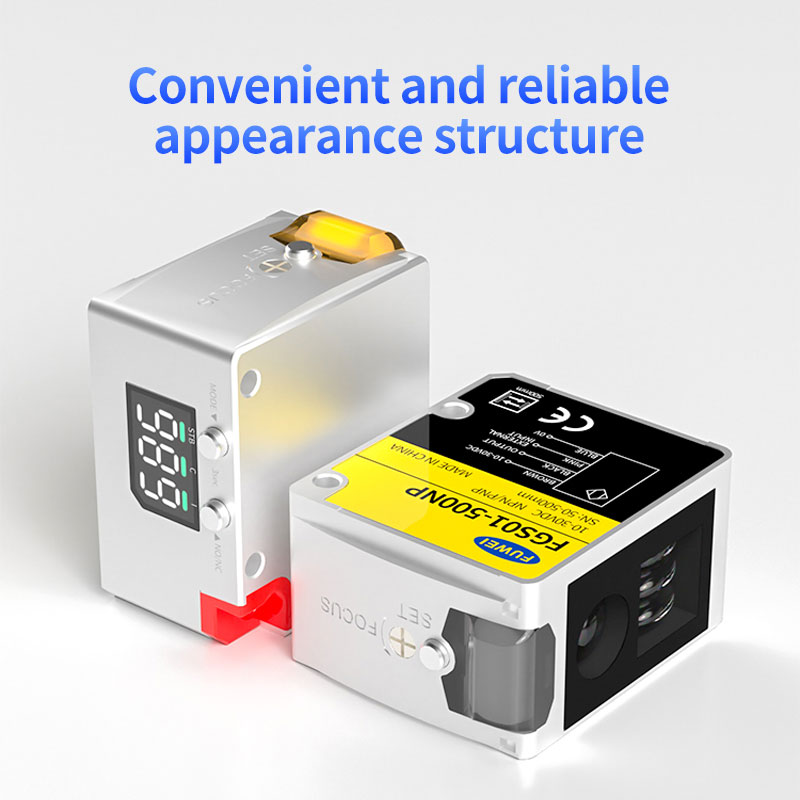

Using a zinc castingshell,no protective cover is required.

The digital display can clearly confirmthe detection status ataglance.

The installation part also has the samedurability as a sturdy body.Even ifexcessively tightened during installation,The sensor will not be damaged.


Large indicator lights thatare easy toobserve from various angles.

The ON/OFF status of the sensor canbe clearly confirmed ataglance.


Specification parameters:

MODEL:NPN/PNP FGS01-70NP
FGS01-500NP
Detection distance
30~70mm
50~500mm

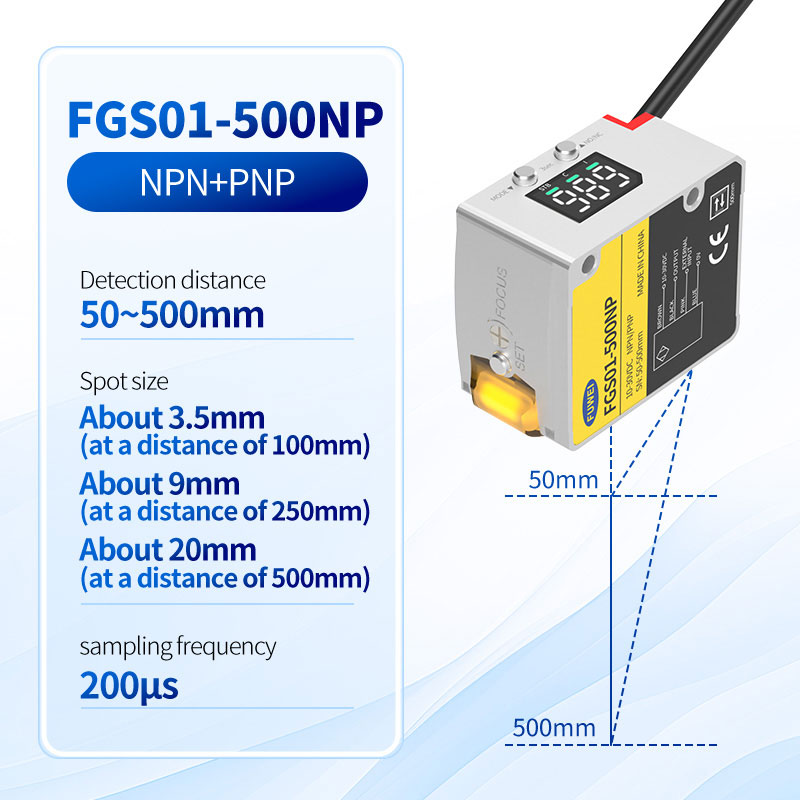

Minimum light

spotdiameter

At50mm,approximately

1.6x2.9mm

At 100mm,approximatelyφ3.5mm

At250mm,approximatelyφ9mm

At500mm,approximatelyφ 20mm

Response time
200μs,1ms,10ms,100ms,500ms
light source
White LED

Prevent mutual

interference

Set different frequencies,up to 2 units

Consumption

current

Under50mAat 24VDC

At 12VDC,below 110mA

At24V,below 50mA

At 12V,below 100mA

Supply voltage
10to 30VDC with ripple(P-P)10%,Class2or LPS
Timer
OFF/On delay/Off delay/Single time

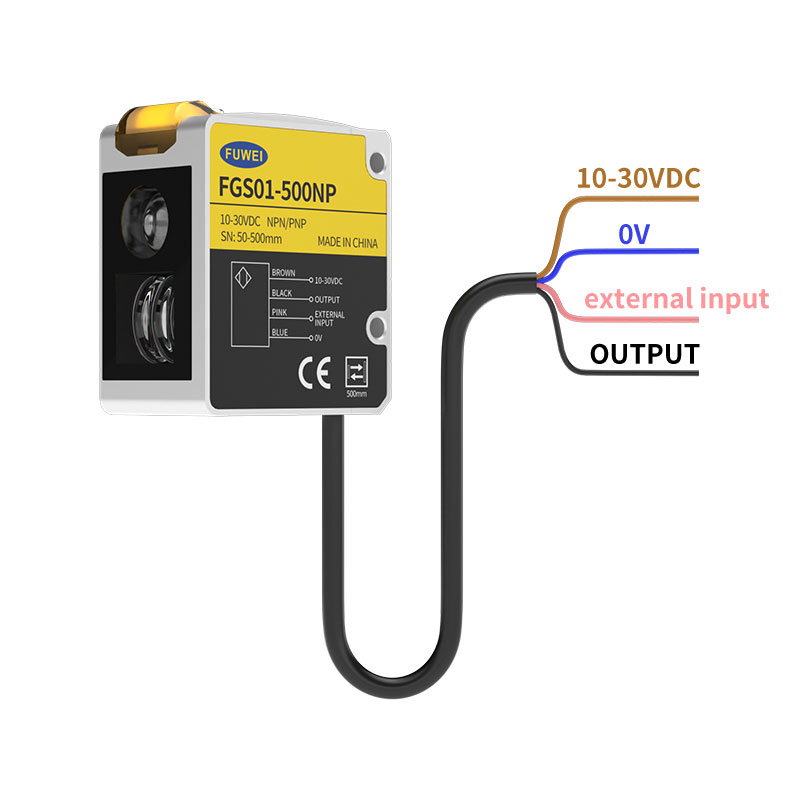

Control output
NPN open collector/PNP open collectorswitching type

Below 30V,below 100mA,residual voltage below 2V

NO/NC switching type

External input
Tune/stop emission switching type

Environmental

ighting

Power reverse protection,power surge protection,

output overcurrent protection,output surge protection

Vibration
ncandescent lamp:below 10000lx,sunlight:below 20000lx
Impact resistance
1000m/s²,X.6times in each direction ofY and Z
Vibration resistance
10to55Hz,dual amplitude 1.5mm,2 hours in X,Y,and Z directions
Protection level
IP65
Materia
Shell:zinc casting (chrome plated),

ndicatorlight cover:PPSU,button:stainless steel

Weight
128g
