FGN20-100NF-C Photoelectric sensors

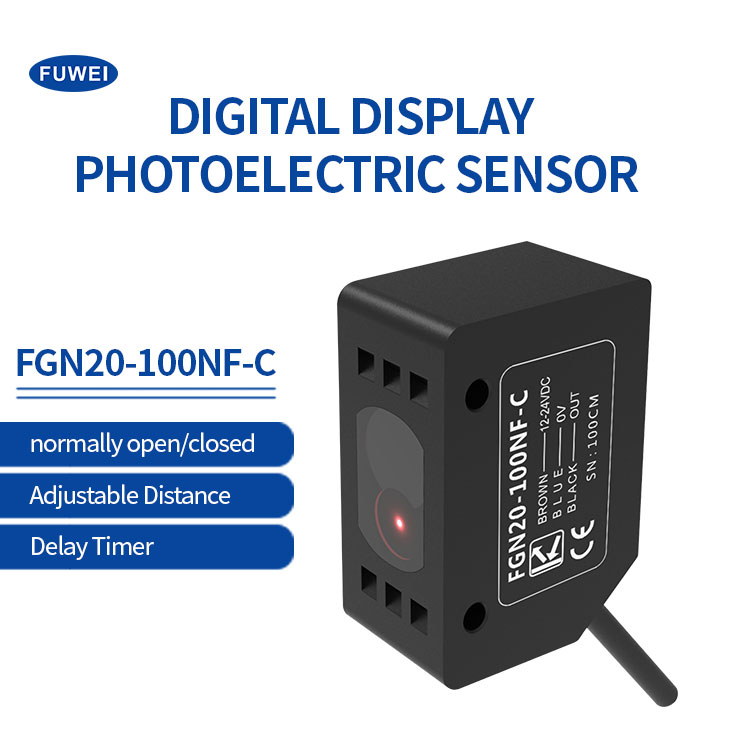

The FUWEI FGN20-100NF-C Photoelectric sensors Digital Display Photoelectric Sensor, proudly manufactured in China, is a testament to our country's expertise in precision engineering and technology.

As a leading manufacturer and supplier, FUWEI ensures that each FGN20-100NF-C Photoelectric sensors Digital display

photoelectric sensor is produced in our state-of-the-art factory, where quality is paramount. We adhere to strict quality control measures, from raw material selection to final assembly, to guarantee the highest standards of performance and reliability.


The FGN20-100NF-C sensor features a digital display that provides accurate and intuitive readings, making it easy to monitor and adjust settings. Its photoelectric technology ensures precise detection of objects, making it suitable for a wide range of industrial applications. Whether you need a standard sensor or a customized solution, FUWEI team of experts is ready to assist you in creating a product that meets your specific requirements.


Trust FUWEI for superior quality, reliability, and customized solutions in your digital display photoelectric sensor needs. We are committed to providing you with the best products and services, tailored to your unique industrial challenges.




Model
FGN20-100NF-C
FGN20-100PF-C
Output Mode
NPN NO+NC
PNP NO+NC

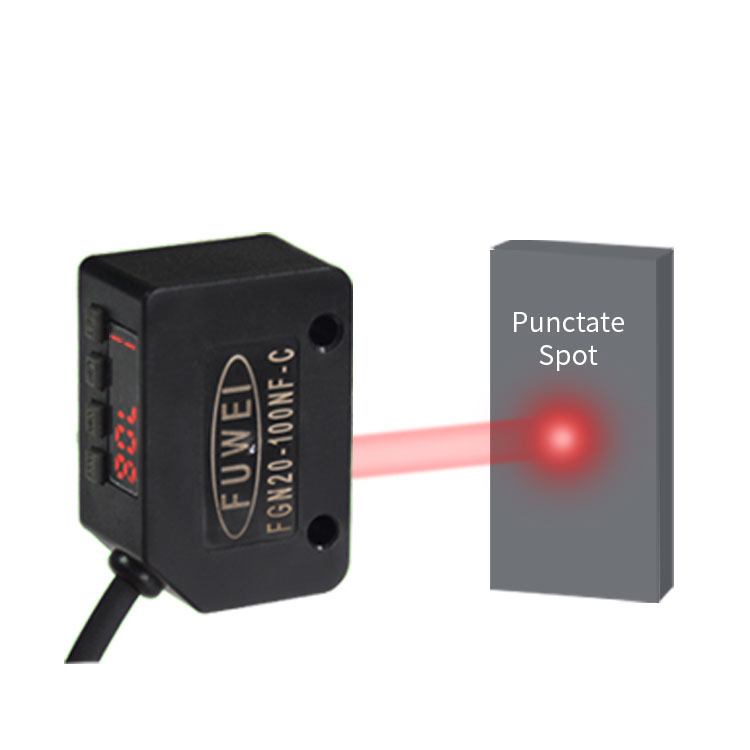

Detection Method
Diffuse reflection
Detection Distance
1m(Adjustable)
Detected Object
Opaque body、translucent body
Light
Infrared  LED(624nm)
Spot Diameter
1m@35mm,30cm@15mm
Output State
LIGHT-ON/DARK-ON

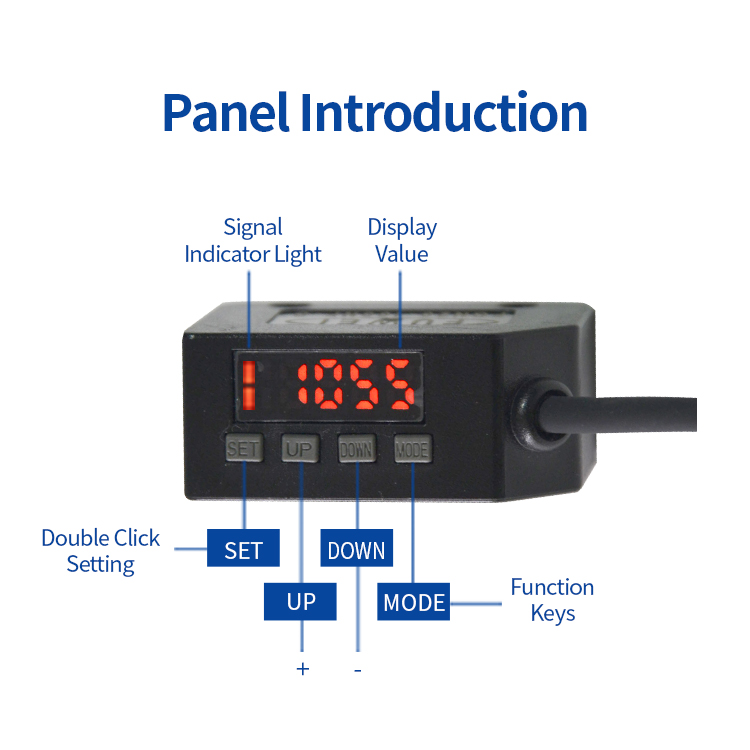

Distance Adjustment
Display values on screen,adjust with buttons
Residual Voltage
≤2.5V
Working Voltage
DC12—24V±10%
Load Current
≤200mA
Consumption Current
≤40mA
ResponseTime
50μs
Hysteresis Range
3—20%
RepetitiveError
≤5%
Ambient Temperature
Working:-25℃—55℃(No        condensation)
AmbientHumidity
Working:35—95%RH(No       condensation)
Protection Circuit
Short circuit protection,overload protection,reverse polarity protection
Impulse Withstand Voltage
1000V/AC50/60Hz60s
Insulation Impedance
≥50MQ(500VDC)
Seismic Resistance
Complexamplitude0.5mm 10-50Hz(2 hours each inX,Y,and Z directions)
Protection Grade
IP66
Output  Indication
Powerindicator:red LED display screen,

output:displayscreen with two redLEDlightsources

Shell Material
PC/PBT
ProductCertification
CE

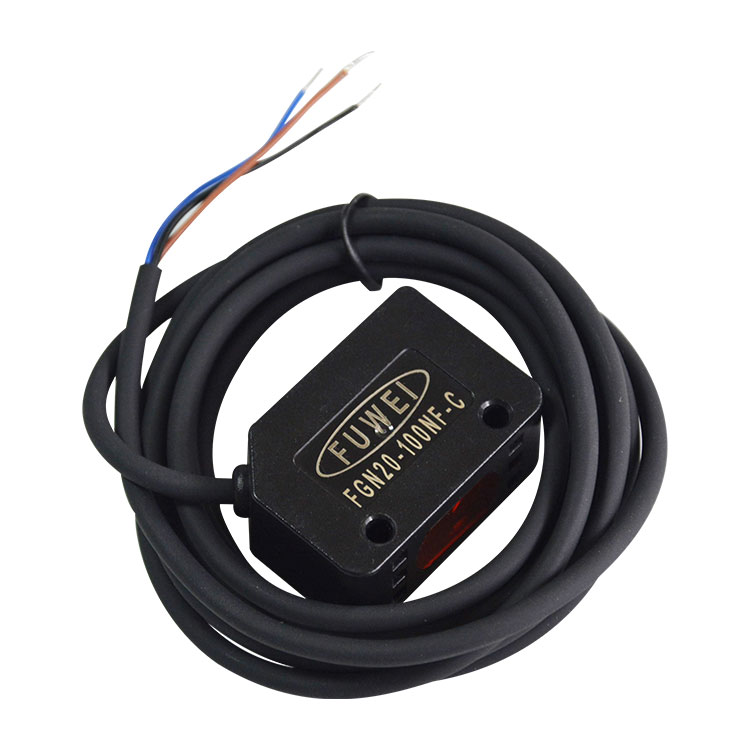

Connection Method
2m   formedcable
