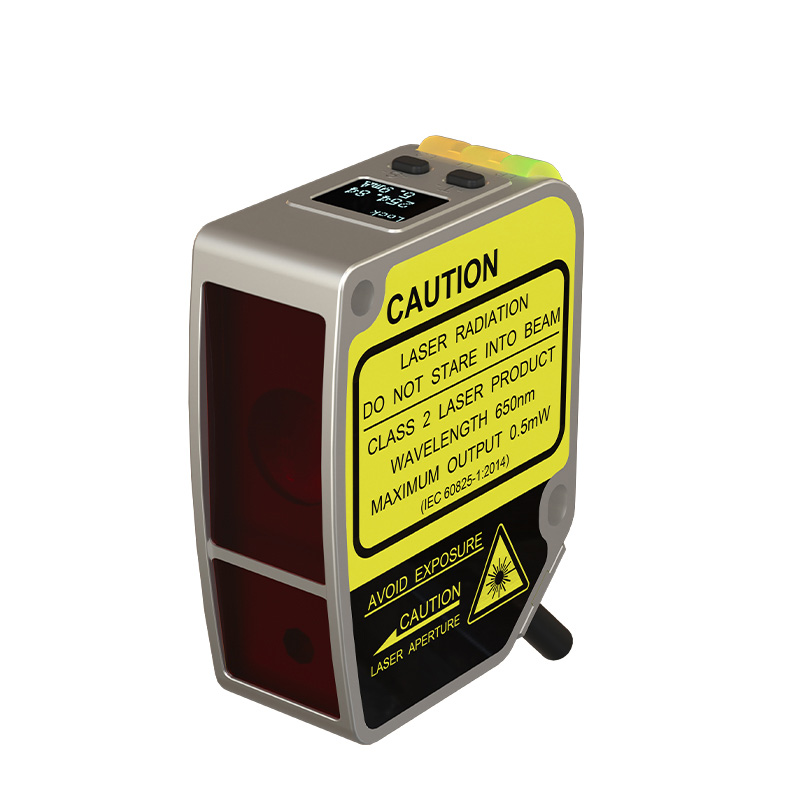

FLR-10-RS485 Laser Displacement Sensor

Model:FLR-10-RS485
FLR-10-RS485 Laser Displacement Sensor Measuring range: 30-100mm Output mode: with switch quantity and RS485 communication (support ModBus protocol) Linearity accuracy: standard type: ±0.3% F.S. (30-100mm); high precision type: ±0.1% F.S. (30-100mm) Repeatability: 10um at 30mm; 0.1mm at 100mm Resolution: 5um at 30mm; 50u m at 100mm Spot size: 1*3mm at 100mm Response time: 2ms / 16ms / 40ms can be set up Ambient light resistance: incandescent light ≥ 3,000lux Operation panel: OLED digital display Temperature drift: ±0.02%F.S./°C
Send Inquiry PDF DownLoad
Product Description

FLR-10-RS485 Laser Displacement Sensor Product Characteristics:

Integrated measurement and control of digital display laser displacement sensor

Measuring range of 30-1000mm with a variety of ranges to choose from

Convenient operation panel configuration OLED digital display

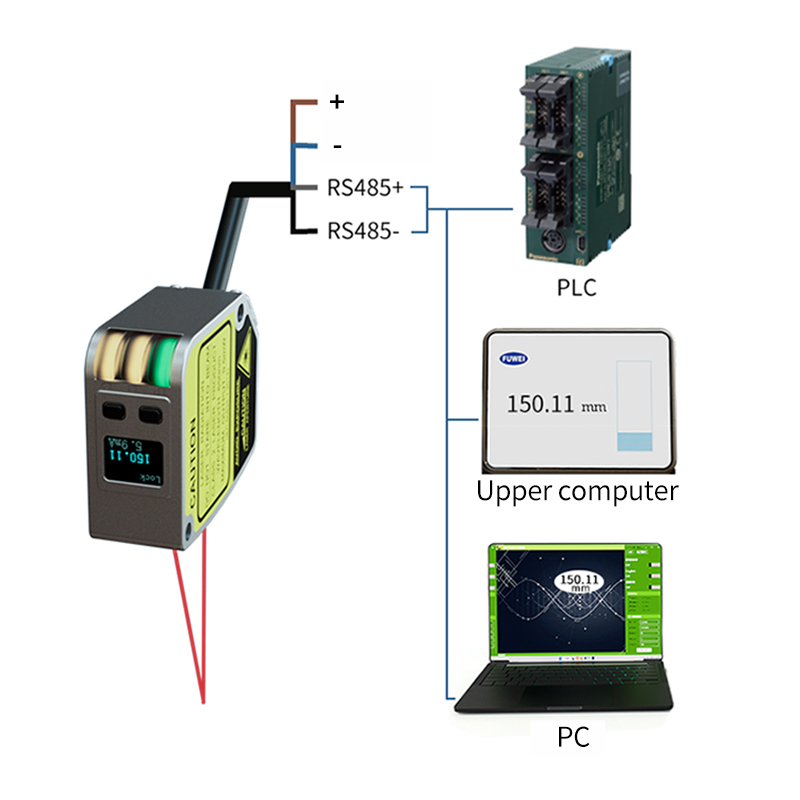

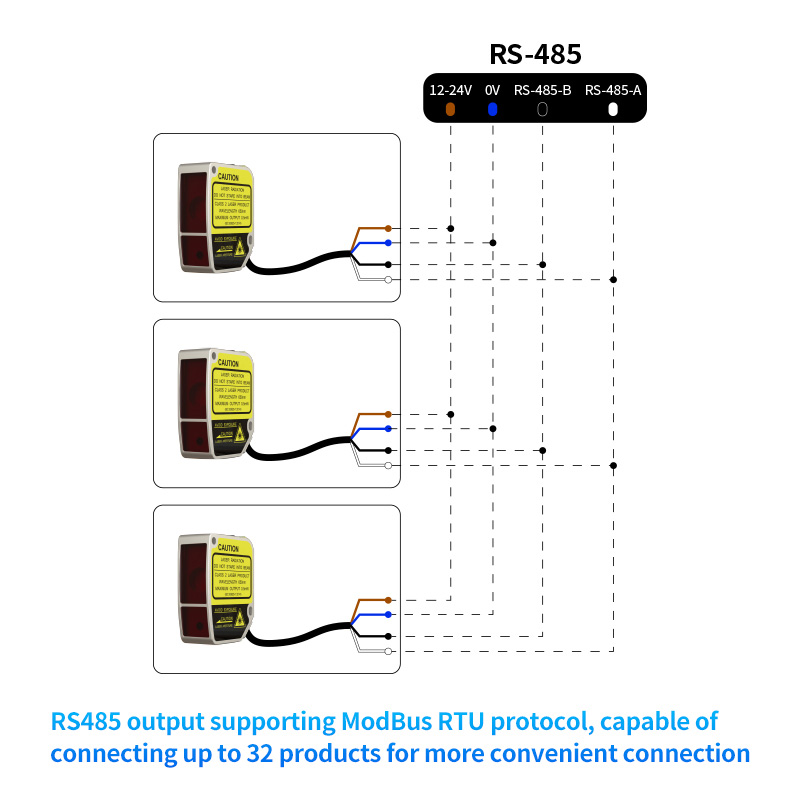

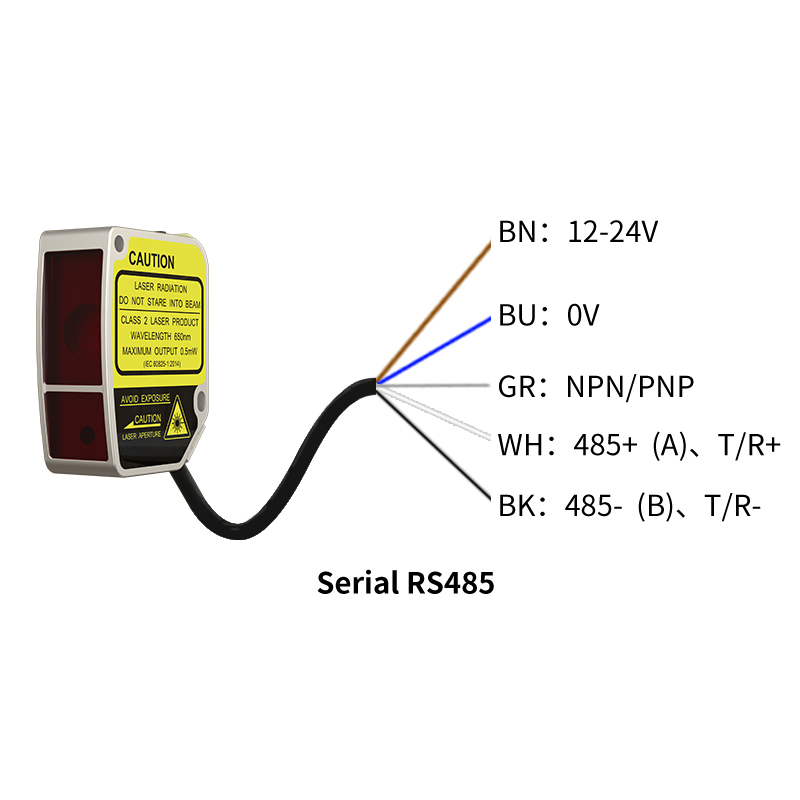

With analog and RS485 communication (support ModBus protocol) communication multiple outputs

Linearity accuracy up to ± 0.1% F.S.

Resolution up to 5um







Hot Tags: RS485 High Precision Distance Measurement Thickness Leveling Analog Digital Laser Displacement Sensor, China, Manufacturer, Supplier, Factory, Buy Discount, Buy, Customized
