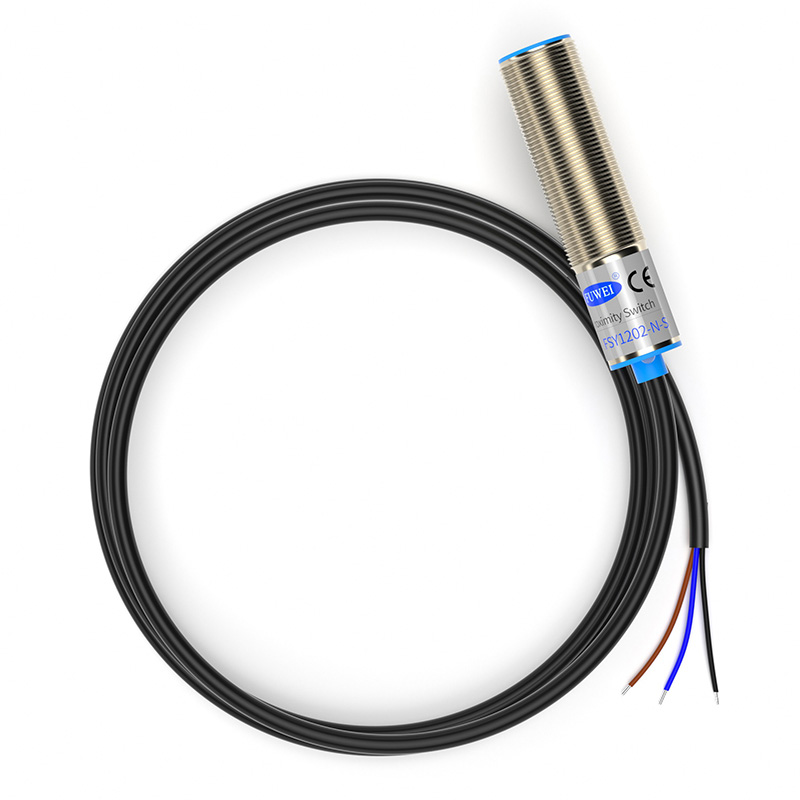

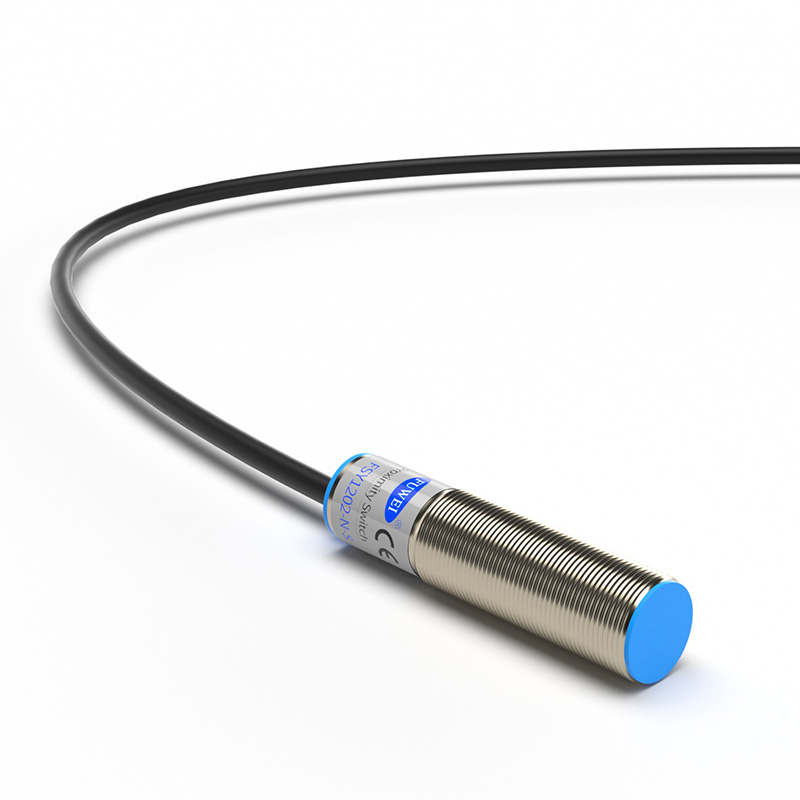

FSY12 series proximity switch Capacitive Sensor

Model: FSY12 series
FSY12 series proximity switch Capacitive Sensor φ3/φ4/p5/φ6/M6/M8 and many other specifications available Stainless steel or high-quality copper material, robust and durable. Detection distance and other special requirements can be customized Replacement of imports, simple and convenient
Send Inquiry
Product Description

FSY12 series proximity switch Capacitive Sensor Performance Characteristics:


The FSY12 series proximity switch Capacitive Sensor is a versatile and reliable choice for diverse industrial applications, offering a wide range of specifications including φ3, φ4, φ5, φ6, M6, M8, and more to fit various installation needs. Crafted from high-quality stainless steel or premium copper, it boasts a robust and durable build, ensuring long-lasting performance even in demanding environments. What sets it apart is its customizable design—detection distance and other special requirements can be tailored to meet specific operational needs, providing flexible solutions for unique scenarios. As an ideal replacement for imported sensors, it delivers comparable performance with the added advantages of simple installation and convenient maintenance, making it a cost-effective and user-friendly option for your sensing requirements.











Specification

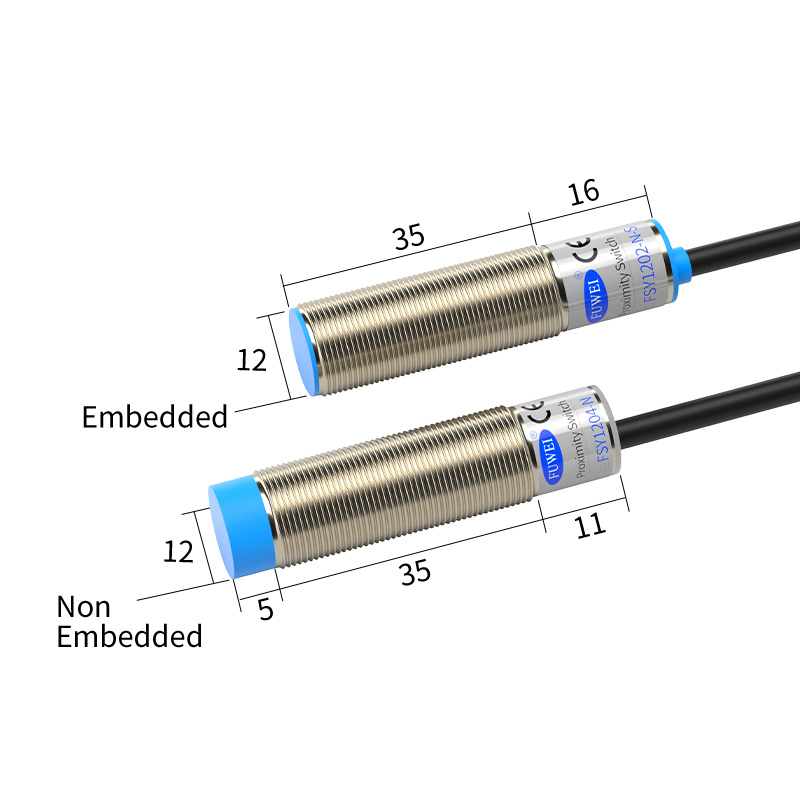

Installation Method
 Embedded
 Non Embedded
Detection Distance
 2mm
 4mm
Model
 NPN.NO
 FSY1202-N-S
 FSY1204-N
NPN.NC
 FSY1202-NA-S
 FSY1204-NA
PNP.NO
 FSY1202-P-S
 FSY1204-P
PNP.NC
 FSY1202-PA-S
 FSY1204-PA
Switch Point offset <士10% Sr
Supply Voltage
 10~30VDC
LOAD
 <200mA
Pressure Drop
 <2.5V
Consumption Current
 <15mA
Repeatability
 <3%
Switching Frequency
 1500Hz
 1000HZ
Output indication
 LED

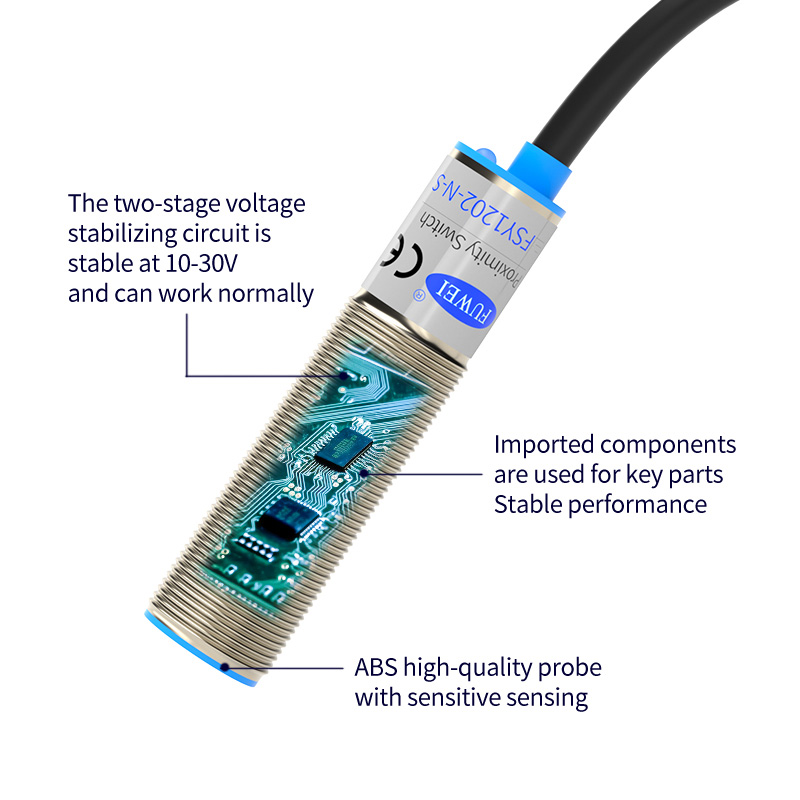

Built in Protection
 Short circuit protectionPolarity protection /10-30v wide voltage protection
impulse Withstand Voltage
 1000V/AC 50/60Hz 60S
Ambient Temperature
 -25~+70°C
Ambient Humidity
 35~95%
Protection Grade
 IP67
Shell Material
 Nickel copper alloy

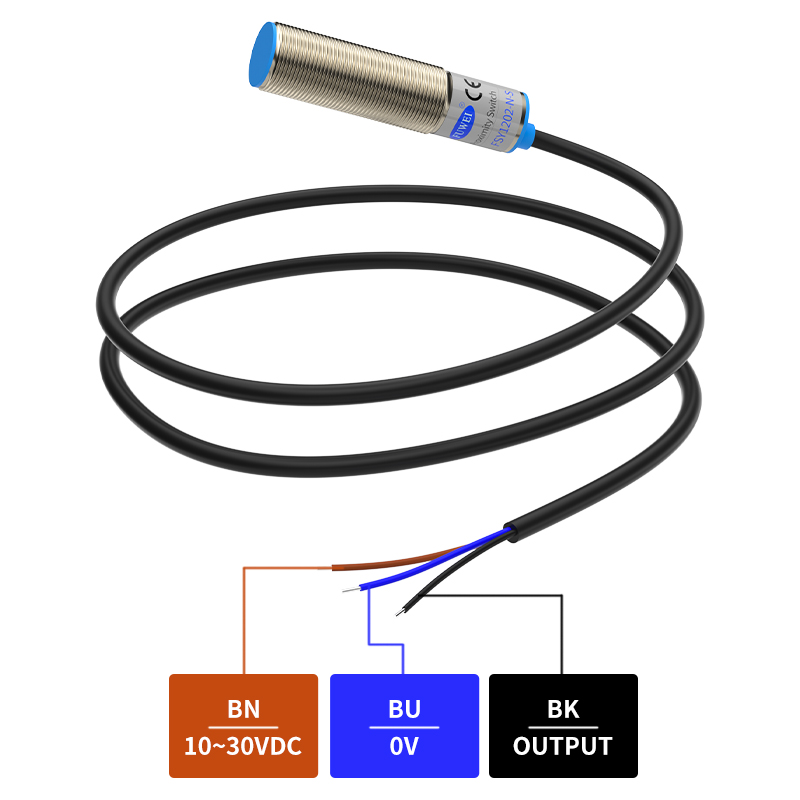

Connection Method
 2m PVC cable
FSY12 Enhanced Long-range Model

Non Embedded
 Installation Method
 Embedded
 Embedded
 Non Embedded
Detection Distance
 4mm
 8mm 6mm
 10mm
Model
 NPN.NO
 FSY1204-NL-S
 FSY1208-NL
 FSY1206-NL-S
 FSY1210-NL
NPN.NC
 FSY1204-NAL-S
 FSY1208-NAL
 FSY1206-NAL-S
 FSY1210-NAL
PNP.NO
 FSY1204-PL-S
 FSY1208-PL
 FSY1206-PL-S
 FSY1210-PL
PNP.NC
 FSY1204-PAL-S
 FSY1208-PALa
 FSY1206-PAL-S
 FSY1210-PAL
Supply Voltage
 10~30VDC
Light Source
 <士10% Sr
LOAD
 <200mA
Pressure Drop
 <2.5V
Consumption Curent
 <15mA
Return Range
 1~20%
Repeatability
 <3%
Switching Frequency
 1500Hz
 1000Hz
Output indication
 LED
Built in Protection
 Short circuit protectionPolarity protection/10-30V widevoltage protection

impulse Withstand Voltage

1000V/AC 50/60Hz 60S
AmbientTemperature
 -25~+70°C
Ambient Humidity
 35~95%
Protection Grade
 IP67
Shell Material
 Nickel copper alloy
Connection Method
 2m PVC cable
