Laser Distance Ranging Sensor

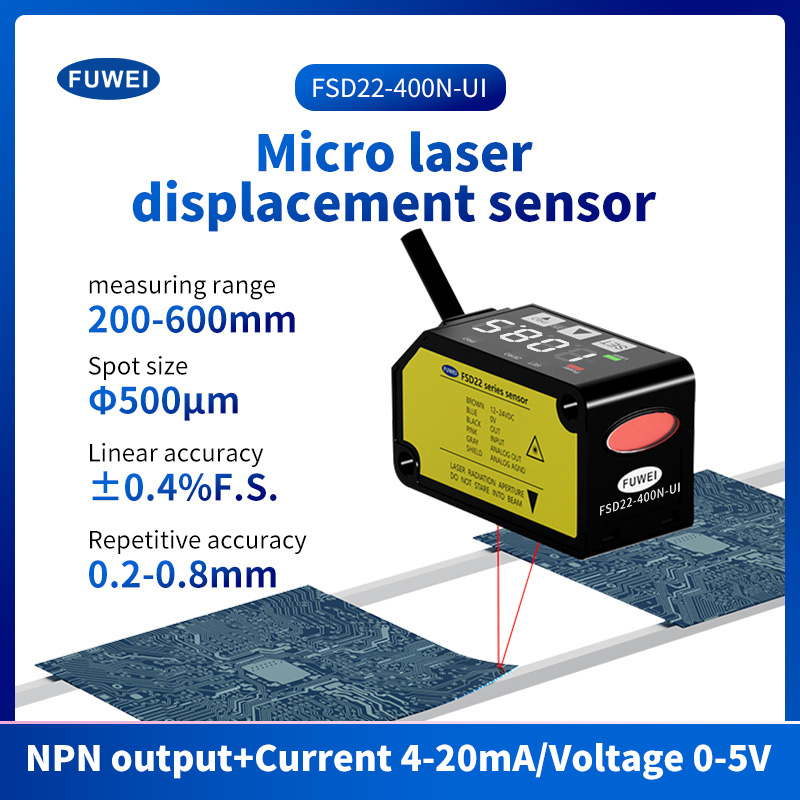

Model:FSD22-400N-UI

A high-precision CMOS image sensor used in a displacement sensor is usedand our unique algorithm that has been used in displacement sensorsUnprecedented accuracy(1/100mm) of a distance-setting reflective sensor

Product Characteristics:


Part number:FSD22-400N-UI

Measurement center distance:400mm

Measurement range:±200mm

Repeatability:300μm (measurement distance 200 to 400mm)

800μm (measurement distance 400 to 600mm)

Linearity:±0.3%F.S. (measurement distance 200 to 400mm)

±0.4%F.S. (measurement distance 400 to 600mm)

Beam diameter :Approx. ø500μm

Control output:PNP

Supply voltage:12 to 24V DC ±10%, Ripple P-P 10% or less

Analog voltage output:Output range: 0 to +5V (at alarm: +5.2V)

Analog current output:Output range: 4 to 20mA (at alarm: 0mA)

Response time:Switchable between 1.5ms / 5ms / 10ms

Protection:IP67

Ambient temperature:-10 to +45°C (No dew condensation or icing allowed), Storage:-20 to +60°C

Cable:0.2mm2 5-core composite cable, 2m long

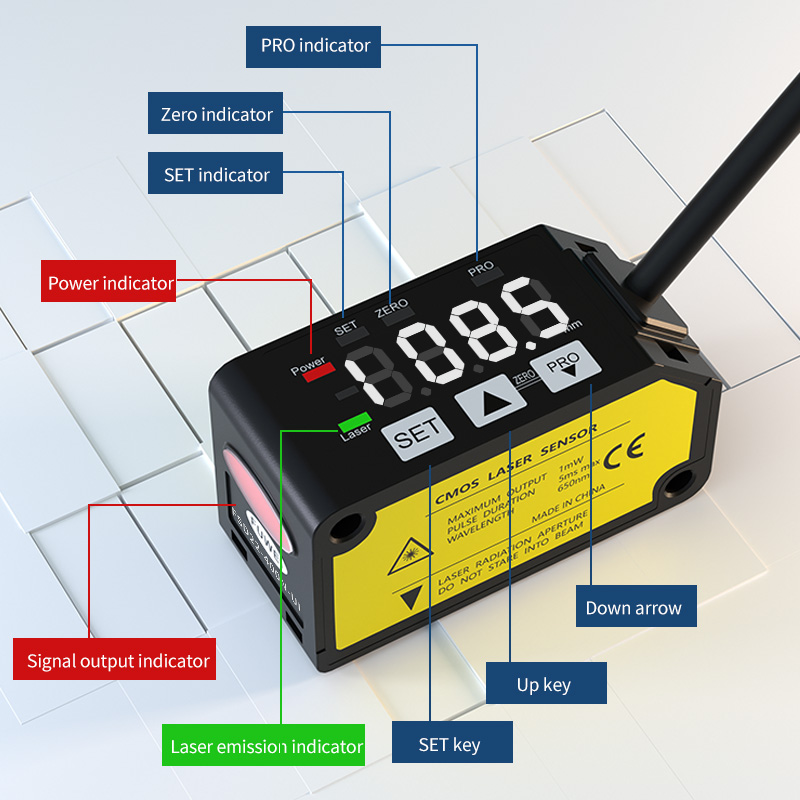

Panelintroduction:

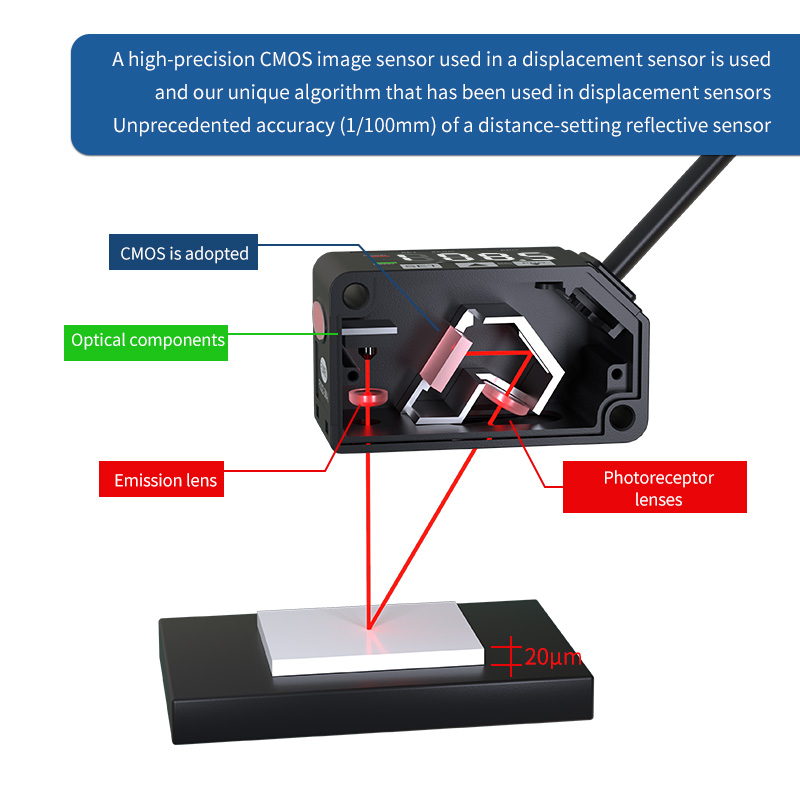

High-precision CMos images are usedSensor's unique algorithm

A high-precision CMOS image sensor used in a displacement sensor is usedand our unique algorithm that has been used in displacement sensorsUnprecedented accuracy(1/100mm) of a distance-setting reflective sensor

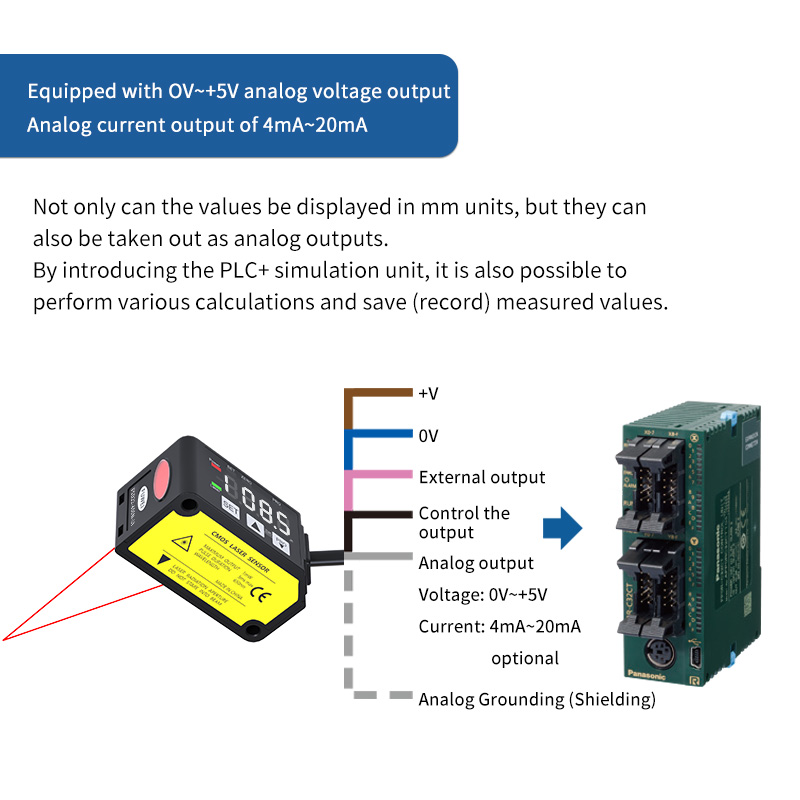

Equipped with OV~+5V analog voltage outputAnalog current output of 4mA~20mA

Not only can the values be displayed in mm units, but they canalso be taken out as analog outputs.Byintroducing the PLC+ simulation unit, it is also possible toperform various calculations and save (record) measured values


Zeroing function

This is a function that allows you to forcibly zero the measured value. The zeropoint can be arbitrarily determined, Set the height of the detected object to thebase value it can be used easily when measuring tolerances or when measuringsection differences.

Equipped with convenient onesSwitching setting function


When there is a detection object on the sensor side, the detectioncan be set according to the background objectBenchmark value.It is a convenient function to detect changesin the size of an object.

(When using the detected object as the base)


Set the reference value on the side of the background object based on thedetected object. Stay away from the background Body time to use.

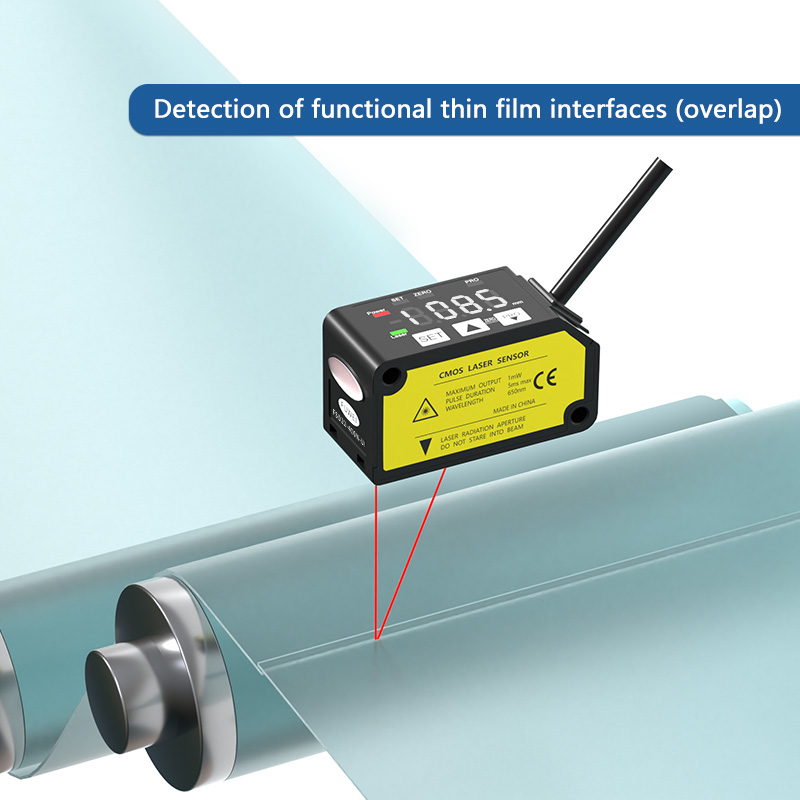

Scene application:

Detect the warpage ofthe substrate

Detect overlap of lead frames

Judgment of the front and back ofthe housing of electronic components

Detect the presence orabsence of gaskets

Dimensions wiring:

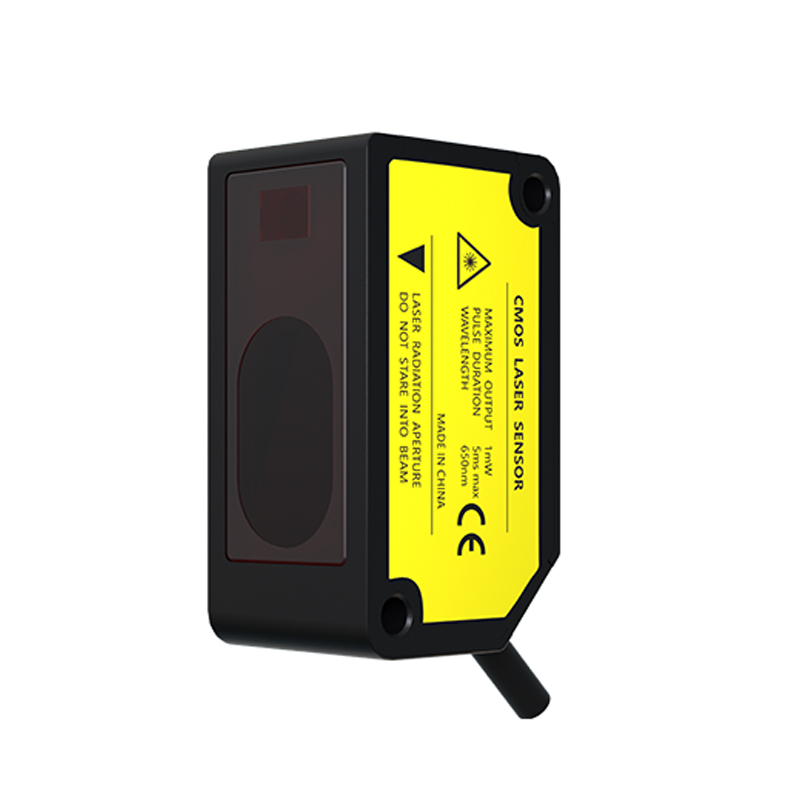

Product Showcase:

Parameter specifications:

Type

Measurement

center 30mm type


Measurement

center 50mm type


Measurement

center 100mm type


Measurement

center 200mm type


Measurement

center 400mm type


Analog+NPN output
FSD22-30N-UI
FSD22-50N-UI
FSD22-100N-UI FSD22-200N-UI
FSD22-400N-UI
Analog+PNP output
FSD22-30P-UI FSD22-50P-UI
FSD22-100P-UI
FSD22-200P-UI
FSD22-400P-UI
Measurement center distance
30mm
50mm
100mm
200mm
400mm
Measurement range
±5mm
±15mm
±35mm
±80mm
±200mm
Beam diameter (Note 3)
Approx. ø50μm
Approx. ø70μm
Approx. ø120μm
Approx. ø300μm
Approx. ø500μm
Repeatability
10μm
30μm
100μm
200μm

300μm (measurement distance 200 to 400mm)

800μm (measurement distance 400 to 600mm)

Linearity
±0.3%F.S.
±0.3%F.S.

±0.3%F.S. (measurement distance 200 to 400mm)

±0.4%F.S. (measurement distance 400 to 600mm)

Temperature characteristic
0.03%F.S./°C
Light source

Red semiconductor laser Class 2 [JIS / IEC / GB / FDA (Note 2)]

Max. output: 1mW, Emission peak wavelength: 655nm

Supply voltage
12 to 24V DC ±10%, Ripple P-P 10% or less
Power consumption
40mA or less (at 24V DC supply voltage), 65mA or less (at 12V DC supply voltage)
Control output

NPN open-collector transistor

      •Maximum sink current: 50mA

      •Applied voltage: 30V DC or less

                      (Between control output to 0V)

      •Residual voltage: 1.5V or less

                                  (At 50mA sink current)

      •Leakage current: 0.1 mA or less



  PNP open-collector transistor

  •Maximum source current: 50mA

  •Applied voltage: 30V DC or less

              (Between control output to +V)

  •Residual voltage: 1.5V or less

                       (At 50mA source current)

   •Leakage current: 0.1 mA or less


Switchable either Light-ON or Dark-ON
Incorporated (Auto reset type)
Analog output
Analog voltage output

•Output range: 0 to +5V (at alarm: +5.2V)

•Output impedance: 100Ω


Analog current output

•Output range: 4 to 20mA (at alarm: 0mA)

•Load impedance: 300Ω or less

Response time
Switchable between 1.5ms / 5ms / 10ms
External input

 NPN non-contact input

   •Input conditions

     Invalid: +8 to +V DC or Open

     Valid: 0 to +1.2V DC

   •Input impedance: Approx. 10kΩ


  PNP non-contact input

    •Input conditions

     Invalid: 0 to +0.6V DC or Open

     Valid: +4 to +V DC

    •Input impedance: Approx. 10kΩ

Protection
IP67 (IEC)
Degree of pollution
2
Ambient temperature
-10 to +45°C (No dew condensation or icing allowed), Storage: -20 to +60°C
Ambient humidity
35 to 85% RH, Storage: 35 to 85% RH
Ambient illuminance
Incandescent lamp: Acceptance surface illuminance 3,000ℓx or less
Operating altitude
2,000m or less
Cable
0.2mm2 5-core composite cable, 2m long
Material
Enclosure: Aluminum die-cast, Front cover: Acrylic
Weight
approx. 85g (including cable)
Applicable standard
EMC Directive Compliance, FDA Standard, UL Recognition
Notes:





1) Supply voltage: 24V DC, ambient temperature: +20°C, response time: 10ms, and analog output value of measurement center distance are   used for unspecified measurement conditions. The subject is white ceramics.
2) This is based on the FDA Standard, according to Laser Notice No. 50 of the FDA Standard.
3) This is the size in the measurement center distance. These values were defined by using 1/e2 (approx. 13.5%) of the center light intensity. Due to leak light outside the specified area, the reflectance around the detecting point may be higher than at the point and this may affect the measurement value.

Product size:

connection:
