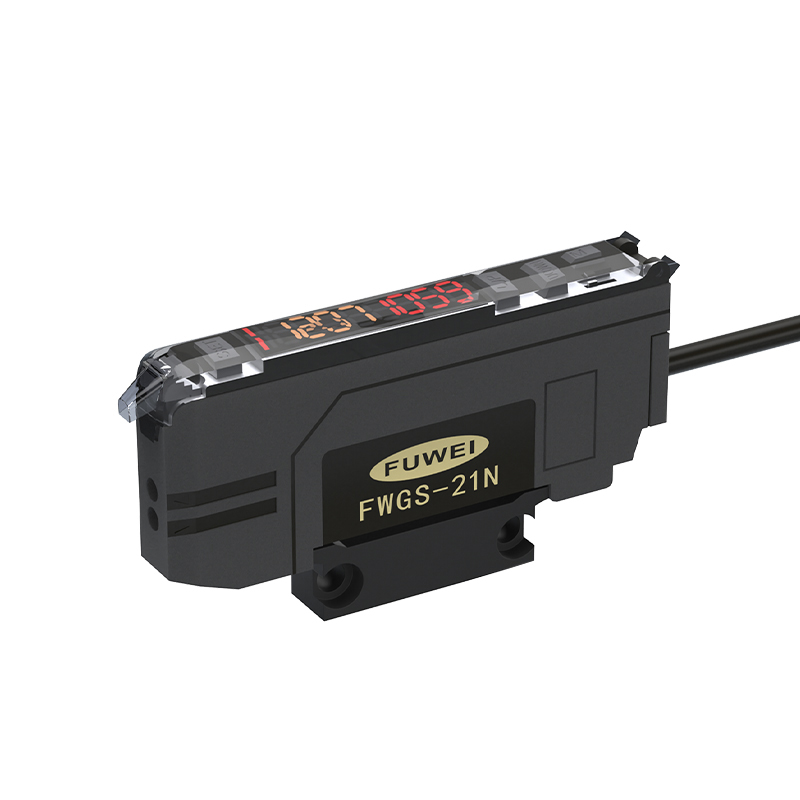

FWGS-21N Photoelectric Color Sensor

Model:FWGS-21N

Built-in RGB three-color light source, making the detection more accurate;

FWGS-21N Electric Eye Correction Anti-shake Photoelectric  Color Sensor:

Built-in RGB three-color light source, Making the detection more accurate;

Light saturation can be set, Suitable for high-reflective material detection;

8-bit digital display, Intuitive operation;


Comes with three delay modes, Delay 0-10S adjustable;

One key set intelligent lock color, Teaching mode can be switched; Simple and convenient operation;

Three detection modes can be switched freely, Excellent color difference resolution, Accurate recognition of any color.




Operating Instructions:

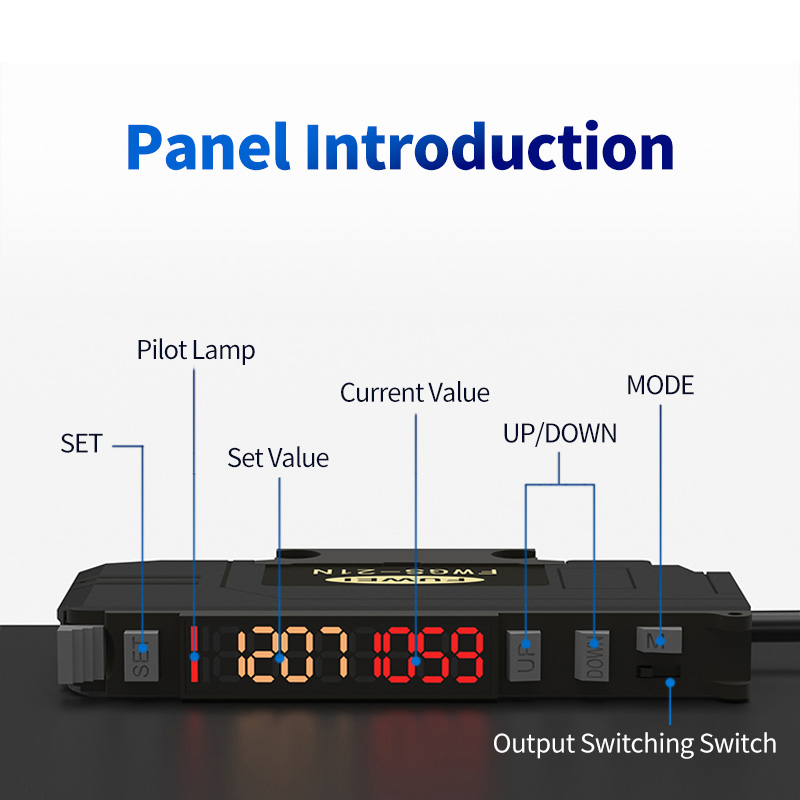

1.In MARKmode,Align the colorto bedetected and pressthe SET key once.Movethe color away and press SET again tocomplete the setting;In Cand Clmodes,Press SET onceagainstthe color to be detected to completethe setting;

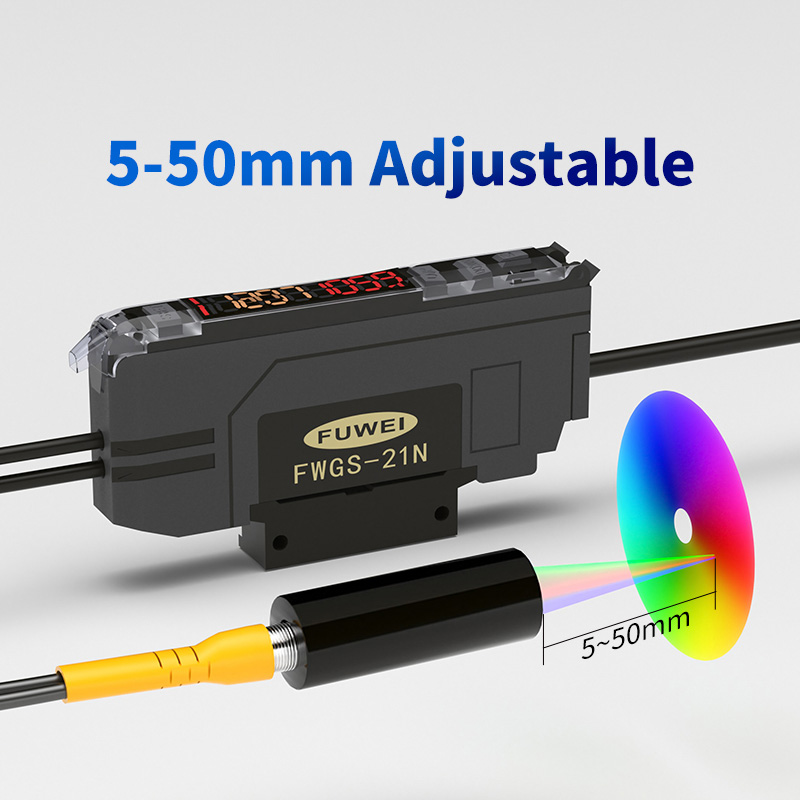

2.Detection distance of 5-50mm;

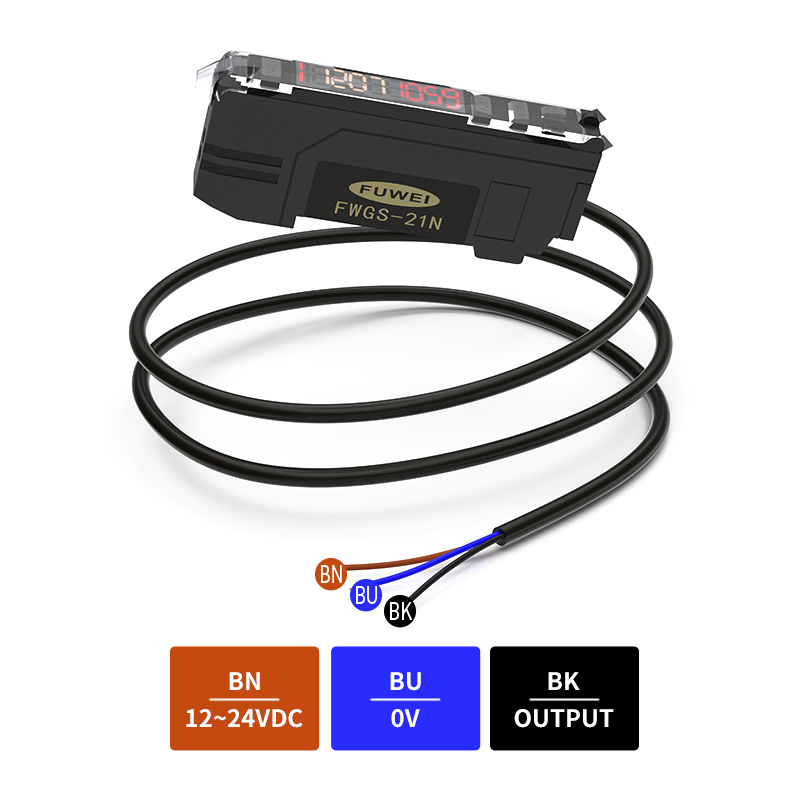

3.Use 12-24VDC,Output NPN switch quantity,Brown con-nected to the positive pole of the power supply,Blue con-nected tothe negative pole of the power supply,And blacksignal output;

4.Three detection modes,Three delay modes,Adjustabledelayof 0-10 seconds;

5.The color amplifier,Probe,And focusing mirror are used to-gether for better detection results.




Specification:

Model
FWGS-21N
FWGS-21P
Output
NPN output
PNP output
Type
1 output port,1 synchronous input port,wire lead out type
Control Output
BN:+V;BU:OV;BK:signal output;WH:External control line
Light Source
RGB tri primary light-emitting diode
Detection
C mode,Cl mode,MARK mode
Reaction Time
MARK mode 50μs;C orC1 mode 130μs
Output Selection
LIGHT-ON/DARK-ON
Supply Voltage
12~24VDC±10%pulsation P-P below 10%
Ambient Temperature
-10~55°℃;During storage:-20~70℃
Ambient Humidity
35~85%RH;During storage:35~85%RH
Power Consumption
Standard mode:maximum 300mW;maximum voltage:24V
Vibration Resistance
Dual amplitude:1.5mm,10-55Hz

(2 hours each in the XYZ direction)
