Model:FGS-22N

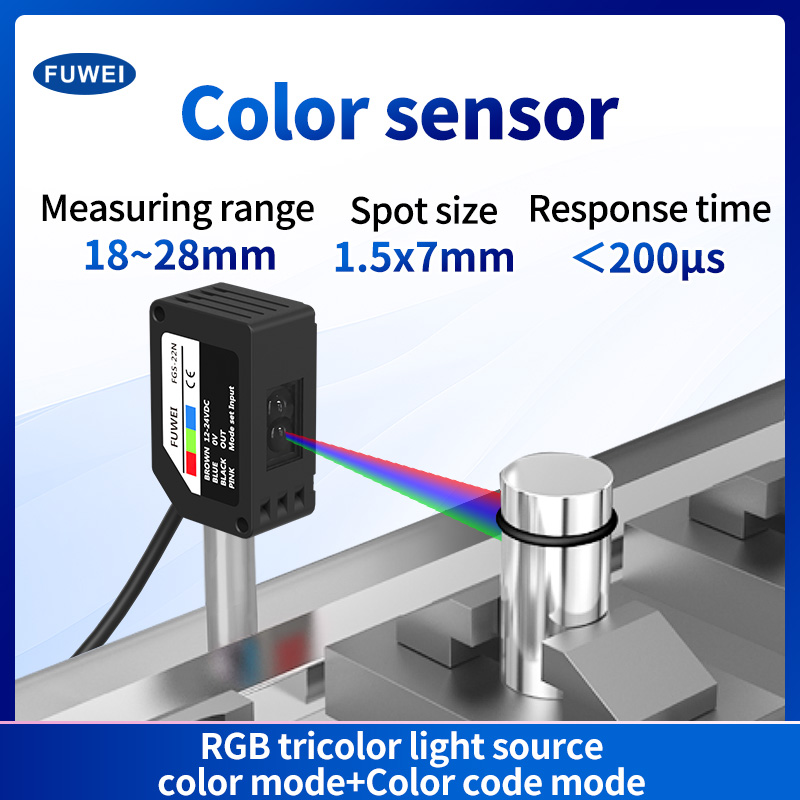

Photoelectric Color Sensor Built-in RGB three-color light source, the best LED automatic selection function; The detection error is adjustable, which can eliminate the influence of the measured object jitter;

FGS-22N Color Sensor Features:

Built-in three-color light source, the best LED automatic selection function;

The detection error is adjustable, which can eliminate the influence of the measured object jitter;

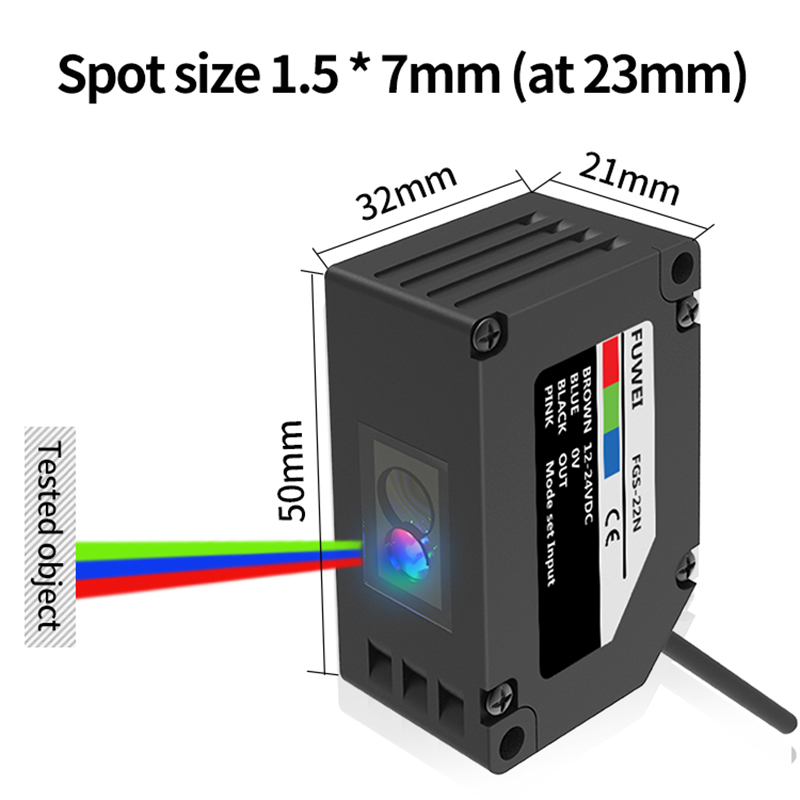

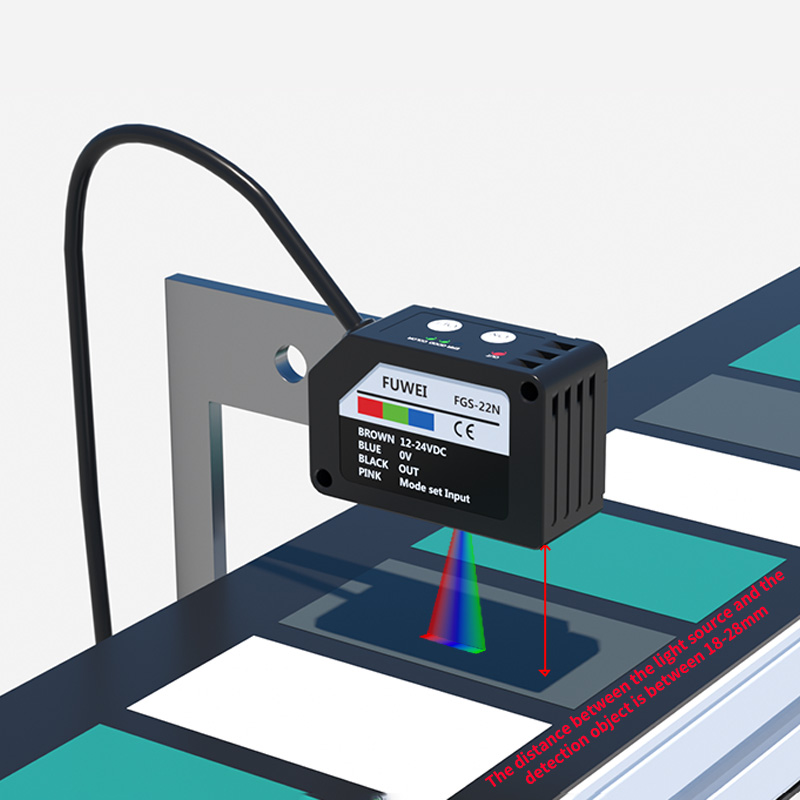

The spot size is about 1.5*7mm(23mm detection distance);

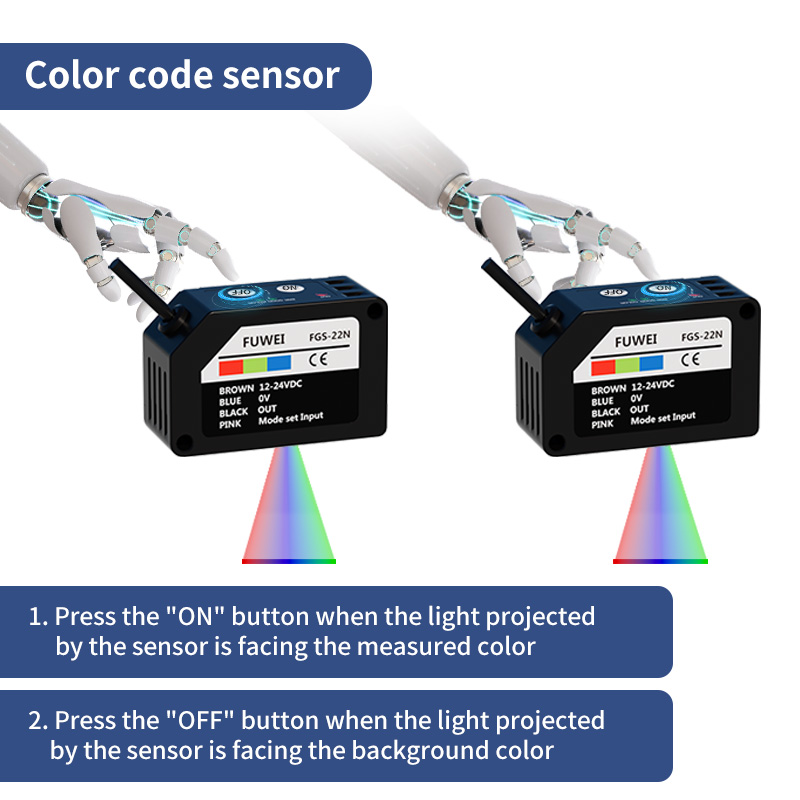

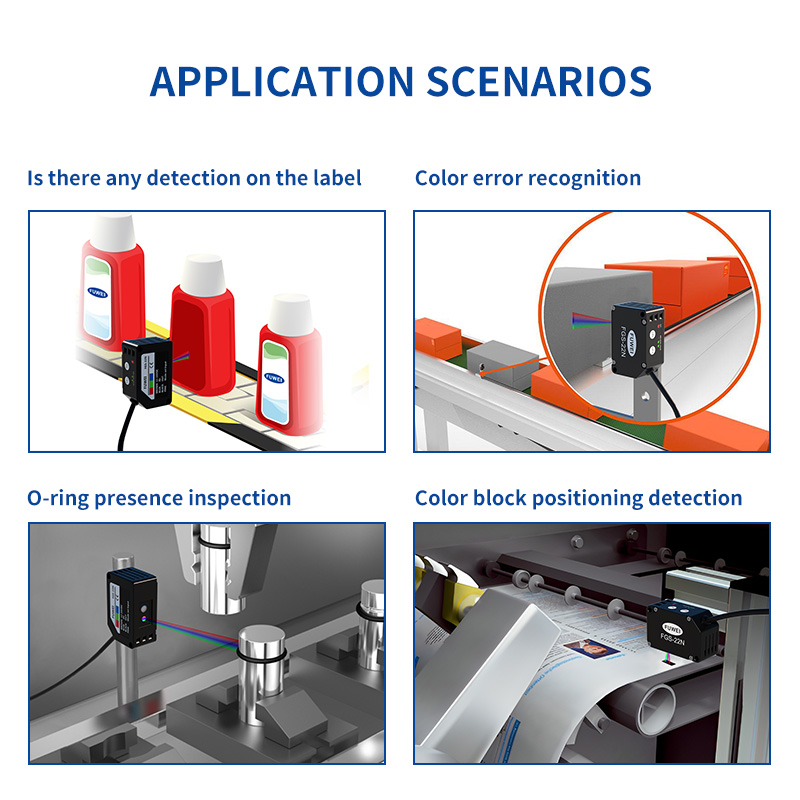

The unique dual-mode mode has the function of color marker + color detection at the same time, which is more applicable to a wide range of scenarios

Two point setting mode, the operation is more convenient


Specification:

Model FGS-22N
FGS-22P
Detection distance
18.28mm
Supply voltage
24VDC±10%Ripple     P-P<10%
Supply voltage
Composite LED:Red/Green/Blue(Light source wavelength:640nm/525nm/470mm)
Current consumption
Power<850mW(Supply voltage is 24V、Consumption current<35mA)
Mode switch input

Color mark mode:Low(ON)0.0.6VDC

Leakage current is below

0.5mA;Input impedance is about 10kQ.



Color mode:High(OFF)

12.…+VDC or open


Color mark mode:Low(OFF)

0.0.6VDC or ope



Color mode:High(ON)12…+VDC

Leakage current is below 3mA;

Input impedance is about 10kQ


Output type


NPN open-collector transistor.the max

inflow current is 50mA;The

applied voltage is below

30VDC(Between output and

0V);Residual

voltage is less than 1.5V(When inflow

current is 50mA)*


PNP open-collector transistor.the max

inflow current is 50mA;The

applied voltage is below

30VDC(Between output and

+V);Residual

voltage is less than 1.5V(When inflow

current is 50mA)

Output operation Color mark mode:ON when color mark detection;Color mode:ON when consistent
Protection circuit Short circuit protection
Response time
<200μs
Ambient temperature
-1055℃(No condensing、No condensation)
Environment humidity
35…85%RH(No condensation)
Housing material
Housing:PBT;Operation panel:PC;Operation button:Silica gel;Lens:PC
Connection method
2m cable(0.2mm²4-pins cable
Weight About 104g
