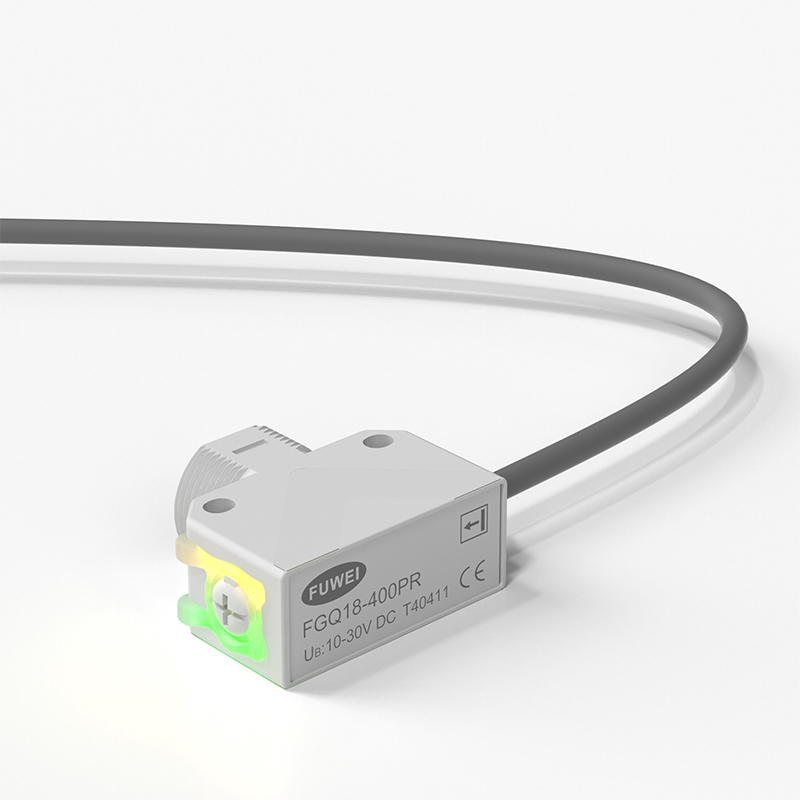

FGQ18-400PR photoelectric sensor

Model:FGQ18-400PR

The FUWEIi FGQ18-400PR Mirror Reflective Front Photoelectric Sensor, a product that embodies the essence of China's manufacturing prowess, is a reliable and high-performance solution from a leading manufacturer and supplier.

The FUWEI FGQ18-400PR Mirror Reflective Front Photoelectric Sensor, a product that truly encapsulates the precision and innovation of China's manufacturing industry, stands as a testament to our nation's dedication to excellence. As a leading manufacturer and supplier, Fuwei has established a strong reputation for delivering top-notch sensors that meet the highest standards of performance and reliability.


Produced in a modern factory equipped with the latest machinery and technology, the FGQ18-400PR sensor undergoes a rigorous quality control process to ensure its superiority. From raw material selection to final assembly, every step is carefully monitored and optimized to guarantee the highest quality output.

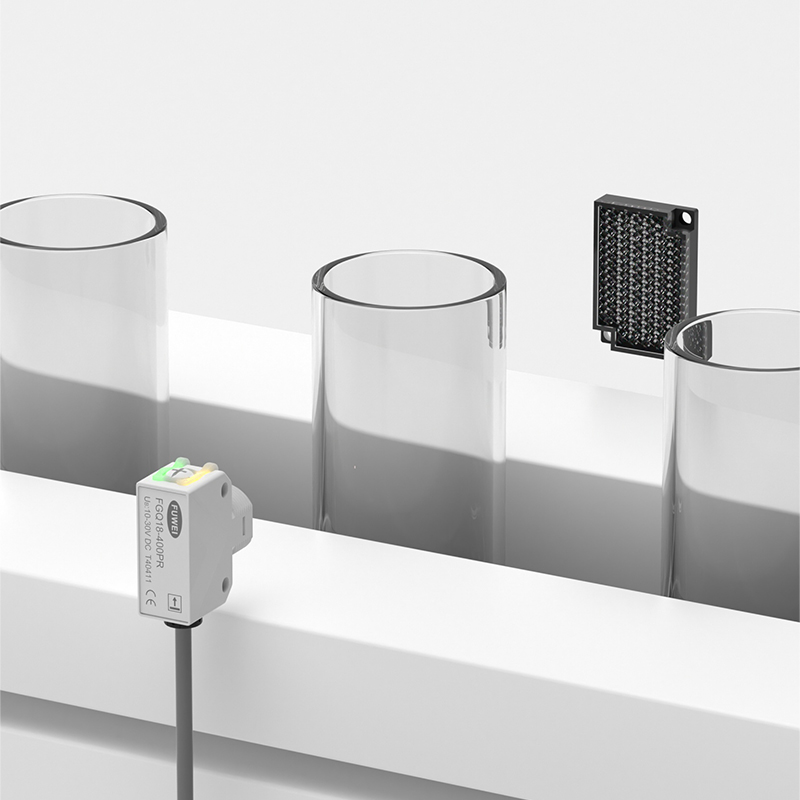

The mirror-reflective design of the FGQ18-400PR sensor offers a unique advantage in detection capabilities. By utilizing a mirror-based reflection system, it can accurately detect objects within its sensing range, even in challenging environments. This feature makes it an ideal choice for a wide range of industrial applications, including automation, robotics, and packaging systems.


Moreover, as a trusted supplier, Fuwei understands that each customer's needs are unique. That's why we offer customized solutions to cater to specific requirements. Whether you need a sensor with a different sensing range, output type, or other specifications, our team of experts will work closely with you to develop a tailored solution that perfectly suits your needs.




Detection
Small light point diffuse reflection type
Mode
FGQ18-400NR
FGQ18-400PR
Output
NPN.NO/NC
PNP.NO/NC
Detection Distance
4m
Light Source
Infrared LED 660nm
Load Current
≤100mA
Residual Voltage
≤1V
Distance Adjustment
Single turn potentiometer
Response Time
≤1ms
Size
31x35x15mm
Protection Circuit
Short circuitprotection/polarity protection

overload protection/Zener protection

Supply Voltage
10~30VDC

Resistance to

Ambient Light

Antienvironmental light interference 10000lux;

Incandescent light interference 3000lux

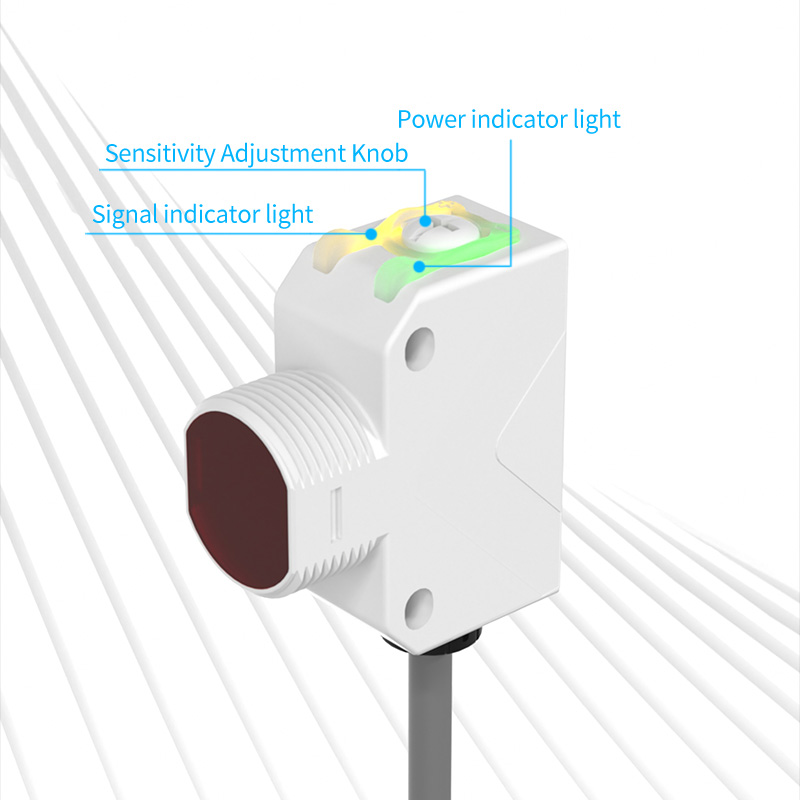

Output Indication
Green light:Power indicator,stable indicator

(brightness decreases,signalweakens)

Ambient Temperature
-15℃~60℃
Ambient Humidity
35%~95%RH(withoutcondensation)

Impulse Withstand

Voltage

1000V/AC50/60Hz60s
Insulation Impedance
≥50m0500VDC
Vibration Resistance
Complex amplitude 0.5mm 10~50Hz

(2 hours inx,y,and zdirections)

Protection Grade
IP67
Material
ShellABS;Filter optical grade PMMA

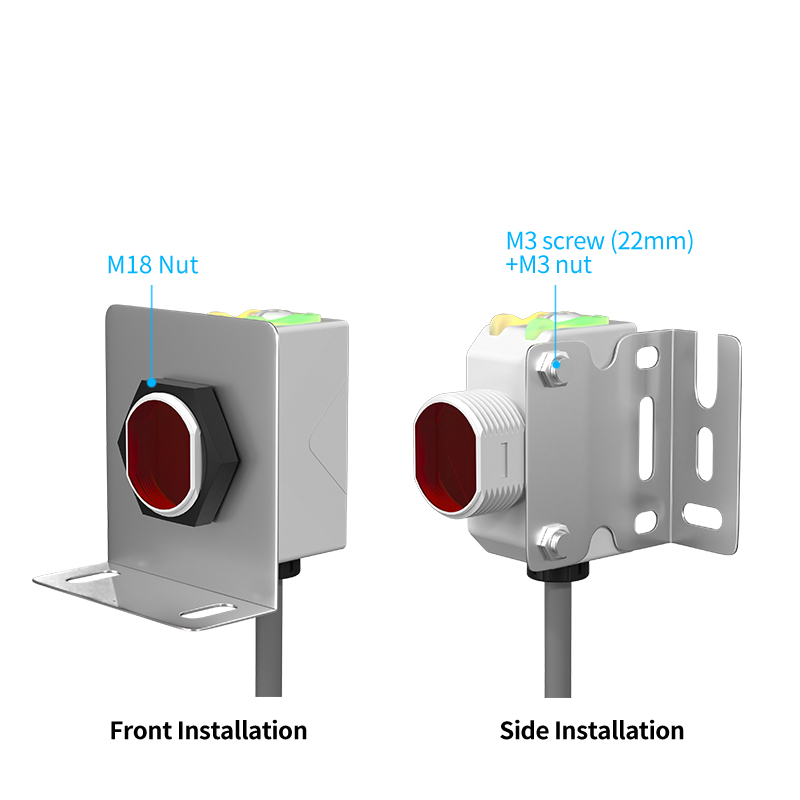

Installation Method Compositeinstallation
Weight
52g
Connection
2m PVC cable
