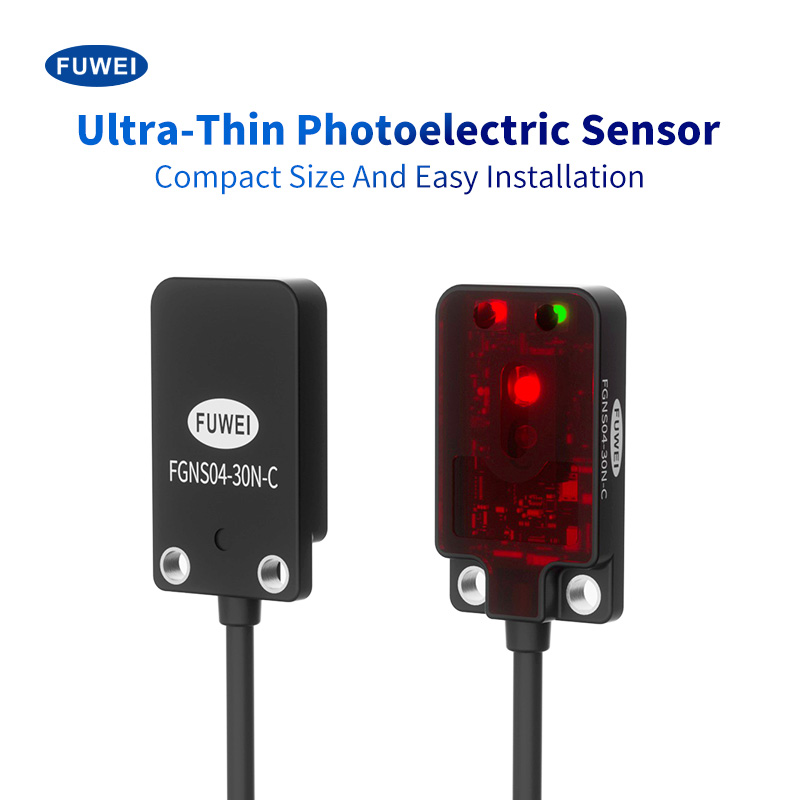

FGNS04-30P-C photoelectric sensor

Model:FGNS04-30P-C

Compact size for easy installation and use Bright, easy-to-see two-color indicator light Good resistance to light interference and high product stability Red light source design for easy alignment

Performance Characteristics:

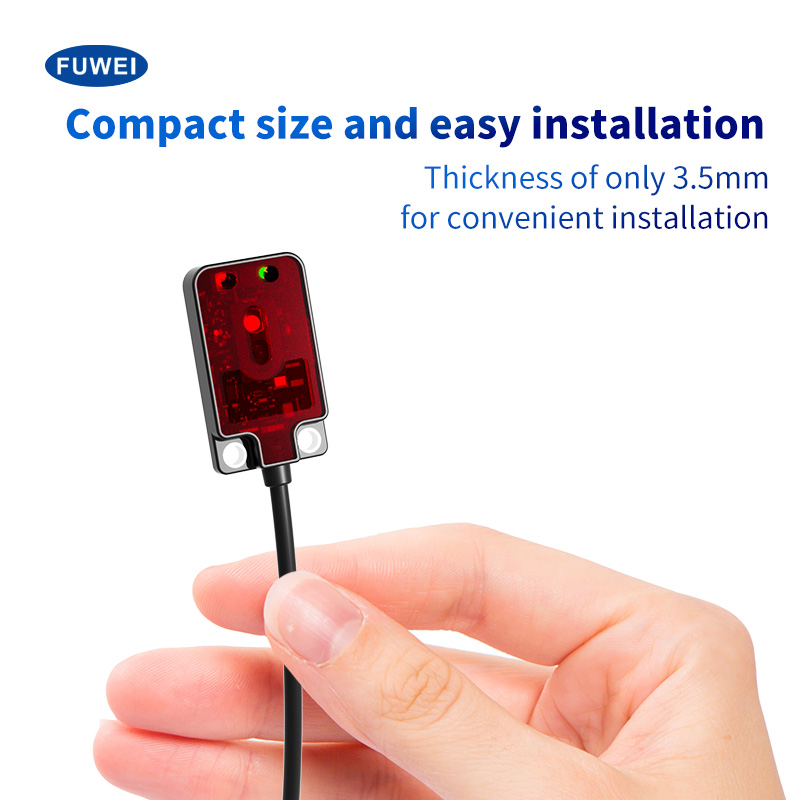

Compact size for easy installation and use

Bright, easy-to-see two-color indicator light

Good resistance to light interference and high product stability

Red light source design for easy alignment

Specification:

Brand
FUWEI

Product Name

Ultra-Thin Photoelectric Sensor
Product Model
FGNS04-30P-C
Output Mode
NPN.NO/NPN.NC/PNP.NO/PNP.NC
Detection Distance
5~30mm
Light Emitting Element
Red 650nm

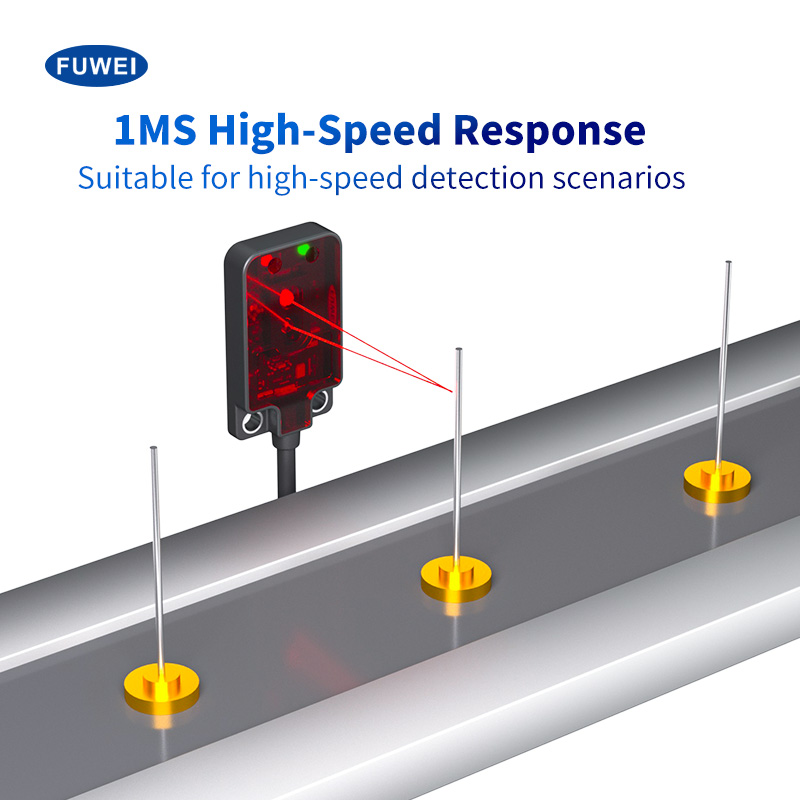

Response Time
<lms(Action/Reset)
Power Supply Voltage
12 -24VDC With Ripple Current (P-P) 10%
Current Consumption
<20mA
Indicator Light
Green: Power indicator Light Red: Output Indicator Light
Protection Circuit
Reverse Connection Protection, Short Circuit Protection
Protective Structure
IP65
Control Output

DC26.4V: load current below 50mA;

Open collector output type, load power supply voltage below

Residual Voltage
Residual Voltage Below 2v (When Load Currentls 10~50ma);Residual Voltage Below lv (When Load Current is Less Than 10ma)
Connection Method
Wire Lead-OutType (2m)
Shell
Shell: PC; Lens part: Modified polyarylate
