dual arm compound robot 50012-GV-DA

Model:50012-GV-DA
Highly integrated modular design; Multiple driving methods: differential, 4-wheel differential, single steering wheel, double steering wheel; Independently developed functions of pre-accepting hitchhiking orders and combining orders; Integration of robots and self-developed software: zero-code programming, FAPS intelligent production scheduling system​
Send Inquiry
Product Description

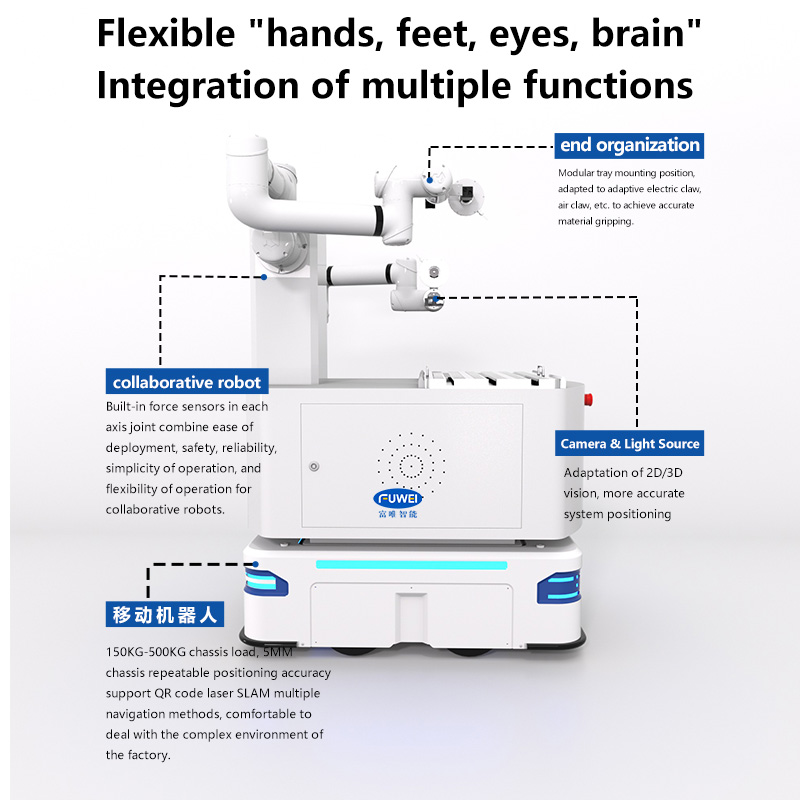

Performance Features:

Highly integrated modular design;

Multiple driving methods: differential, 4-wheel differential, single steering wheel, double steering wheel;

Independently developed functions of pre-accepting hitchhiking orders and combining orders;

Integration of robots and self-developed software: zero-code programming, FAPS intelligent production scheduling system


Specification parameters:

Model Product
 ICR50012-GV-DA
Name
 Dual arm compound robot
AGV chassis size
 1000mm*700mm*200mm
Mobile robot navigation speed
 <1.0m/s
Composite robot weight
 310kg
Navigation accuracy of mobile robots
 士5mm
Repetitive positioning accuracy of collaborative robots
 士0.02mm-±0.05mm
The highest operational accuracy of composite robots
 Imm (with 3D vision)/± 0.05mm (with 2D vision)
software
 ForwardControl
Navigation method
 Laser SLAM
Driving method
 Two wheel differential
Climbing ability
 20
Battery capacity
 48v/52Ah (ternary lithium)
Charging time (10-80%)
 5.5h
3D obstacle avoidance function
 <2.5h
Automatic sleep wake-up function
 Standard configuration
HlM display screen
 Standard configuration
Automatic charging function
 Standard configuration
3D vision of the end effector of a robotic arm
 Standard configuration
2D vision of the end effector of a robotic arm
 Optional selection
