Performance characteristics:
Highly integrated modular design;
Flexible "hand, foot, eye, brain"multi-functional integration;
Differential, differential 4-wheel, single steering wheel, double steering wheel；
Robotics + in-house softwareintegration
Specification parameters：
|
Model Product |
ICR50025-SV |
|
Name |

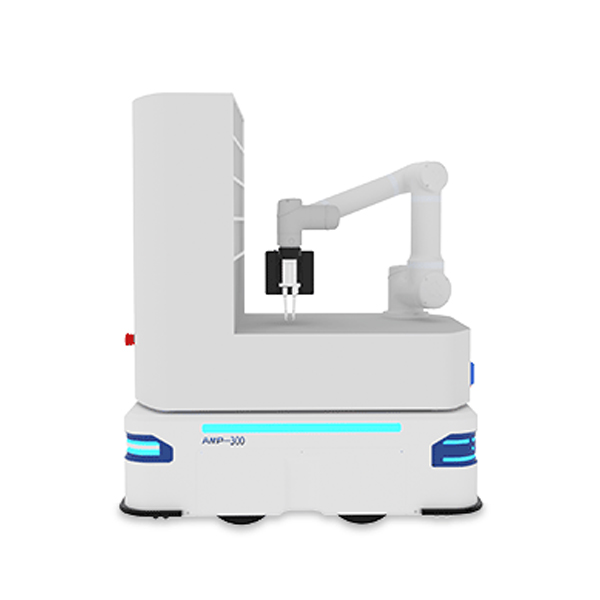

Large scale fixture library automatic changeover robot |
|
AGV chassis size |
1000mm*700mm*200mm |
|
Mobile robot navigation speed |
<1.0m/s |
|
Composite robot weight |
320kg |
|
Navigation accuracy of mobile robots |
±5mm |
|
Repetitive positioning accuracy of collaborative robots |
士0.02mm-士0.05mm |
|
The highest operational accuracy of composite robots |
士0.2mm (with 3D vision)/± 0.05mm (with 2D vision) |
|
software |
ForwardControl |
|
Navigation method |
Laser SLAM |
|
Driving method |
Two wheel differential |
|
Climbing ability |
≤20° |
|
Battery capacity |
48v/52Ah (ternary lithium) |
|
Comprehensive endurance |
<2.5h |
|
Charging time (10-80%) |
Standard configuration |
|
3D obstacle avoidance function |
Standard configuration |
|
Automatic sleep wake-up function |
Standard configuration |
|
HlM display screen |
Standard configuration |
|
Automatic charging function |
Standard configuration |
|
3D vision of the end effector of a robotic arm |
Optional selection |
|
2D vision of the end effector of a robotic arm |
Optional selection |
